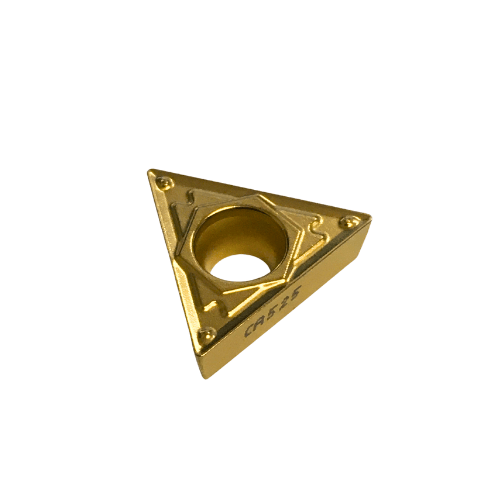

10pc Kyocera TCMT16T304HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

Kyocera TCMT16T304HQ CA525 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker) The Kyocera TCMT16T304HQ CA525 is a positive-type triangular turning insert designed for finishing to medium machining in...
$106.00
$0.00
$106.00
(-0%)
SKU: TCMT16T304HQCA525-10
Availability: In Stock
Subtotal: $106.00
10pc Kyocera TCMT16T304HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

10pc Kyocera TCMT16T304HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

$0.00 $106.00

10pc Kyocera TCMT16T304HQ CA525 – Turning Insert (Finishing to Medium, HQ Chipbreaker)

$0.00 $106.00

Kyocera TCMT16T304HQ CA525 – Turning Insert (10 pcs Finishing to Medium, HQ Chipbreaker)

The Kyocera TCMT16T304HQ CA525 is a positive-type triangular turning insert designed for finishing to medium machining in steel. Supplied in a pack of 10 inserts, it features the proven CA525 CVD-coated carbide grade, engineered to deliver an ideal balance of wear resistance and toughness for stable and long-lasting performance. The HQ chipbreaker provides excellent chip evacuation, reduced cutting force, and smooth surface finishes, ensuring reliability during both continuous and light interrupted cutting operations.

Key Features & Benefits

  • CA525 Grade: Robust CVD-coated carbide optimized for steel turning, offering excellent wear resistance and fracture toughness.
  • HQ Chipbreaker: Provides stable chip control and low cutting resistance during finishing and medium-depth operations.
  • Reliable Edge Strength: Maintains consistent sharpness while resisting chipping under variable load conditions.
  • Stable Tool Life: Predictable wear and extended longevity even during light interrupted cutting.

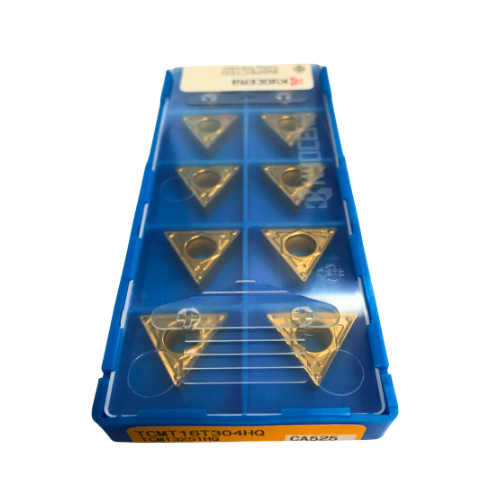

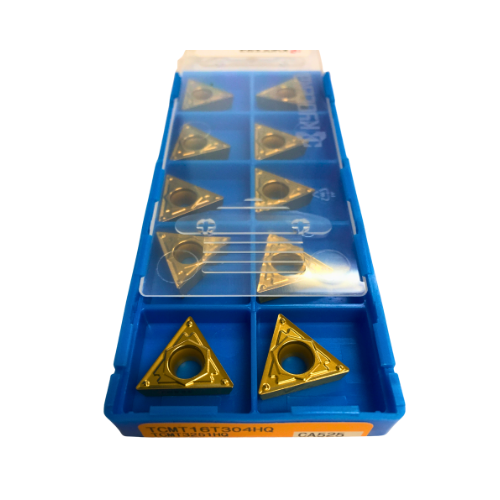

  • Pack Quantity: Supplied as a pack of 10 inserts for convenience and efficiency in production environments.

Applications

  • Ideal for general turning of carbon and alloy steels (e.g., S45C, SCM435, SCM440).
  • Commonly used in automotive and industrial parts such as shafts, housings, and flanges.

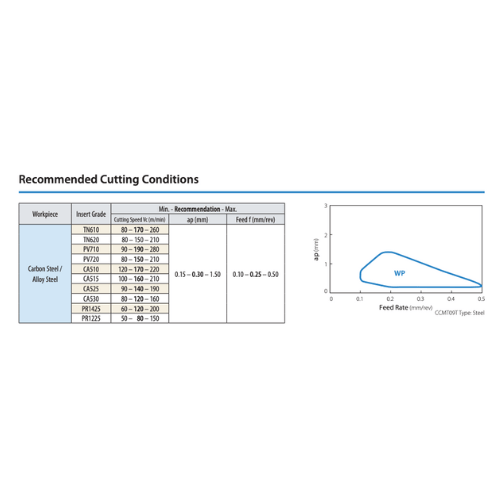

  • Recommended cutting conditions: Vc = 150–250 m/min, ap = 0.3–1.5 mm, f = 0.1–0.3 mm/rev (wet cutting).

Technical Specifications

  • Designation / Order Code: TCMT16T304HQ
  • Insert Type: Positive, 60° triangular
  • Inscribed Circle (IC): 9.525 mm
  • Thickness: 3.97 mm
  • Hole Diameter: 4.4 mm
  • Corner Radius (RE): 0.4 mm
  • Relief Angle:
  • Grade: CA525 (CVD-coated carbide)
  • Chipbreaker: HQ – Finishing to Medium
  • Pack Quantity: 10 pcs
