10pc Kyocera TNMG160408PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

Kyocera TNMG160408PMG CA125P – Turning Insert (10 pcs Medium-Roughing, PMG Chipbreaker) The Kyocera TNMG160408PMG CA125P is a negative-type triangular turning insert engineered for medium to roughing operations in steel machining....
$92.00
$0.00
$92.00
(-0%)
SKU: TNMG160408PMGCA125P-10
Availability: In Stock
Subtotal: $92.00
10pc Kyocera TNMG160408PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

10pc Kyocera TNMG160408PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

$0.00 $92.00

10pc Kyocera TNMG160408PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

$0.00 $92.00

Kyocera TNMG160408PMG CA125P – Turning Insert (10 pcs Medium-Roughing, PMG Chipbreaker)

The Kyocera TNMG160408PMG CA125P is a negative-type triangular turning insert engineered for medium to roughing operations in steel machining. It uses the CA125P CVD-coated carbide grade, designed with a highly uniform alumina layer for superior wear resistance and fracture toughness. Combined with the PMG chipbreaker, it provides stable chip control across a wide cutting range, suppressing chip entanglement at large depths of cut while maintaining reliable chip formation at smaller depths.

Key Features & Benefits

  • CA125P Grade: Optimized for continuous to heavy interrupted steel cutting, with excellent crater wear and flank wear resistance.
  • PMG Chipbreaker: Step-breaker geometry ensures consistent chip formation and reduces cutting force, ideal for medium-to-roughing ranges.
  • Stable Edge Condition: Internal evaluations show longer tool life compared to conventional competitor inserts.
  • Versatile Use: Reliable performance across a wide machining window, from moderate to heavy cutting depths.

Applications

  • Steel machining, including automotive and industrial parts such as gears, bolts, and shafts.
  • Effective in both continuous and interrupted cuts under wet machining conditions.

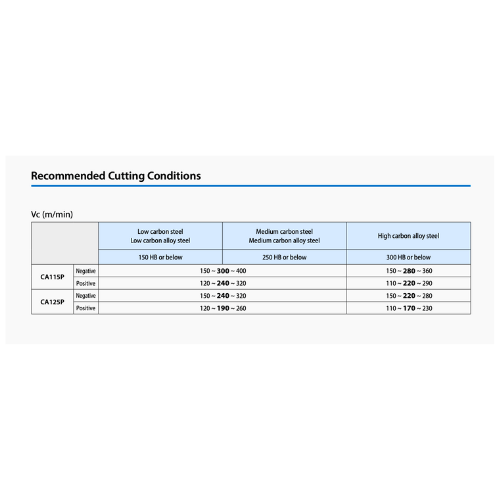

  • Recommended catalog conditions: Vc = 190–300 m/min, ap up to 5.0 mm, f = 0.1–0.5 mm/rev (materials like SCr420, SCM435).

Technical Specifications

  • Designation / Order Code: TNMG160408PMG CA125P

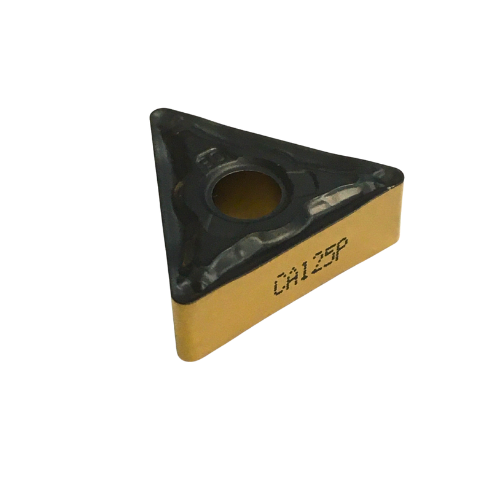

  • Insert Type: Negative, 60° triangular
  • Inscribed Circle (IC): 9.525 mm
  • Thickness: 4.76 mm
  • Hole Diameter: 3.81 mm
  • Corner Radius (RE): 0.8 mm
  • Grade: CA125P (CVD coated carbide)
  • Chipbreaker: PMG – Medium-Roughing
  • Pack Size: 10 pieces
