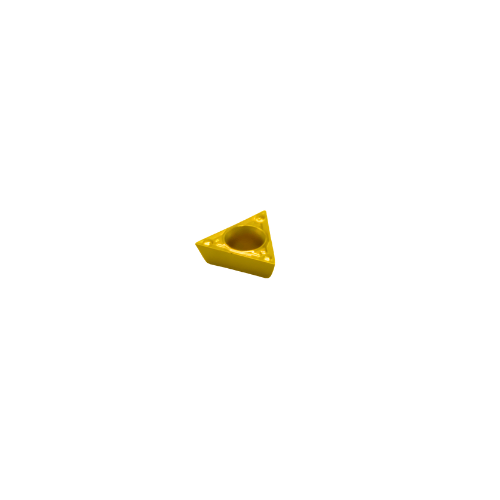

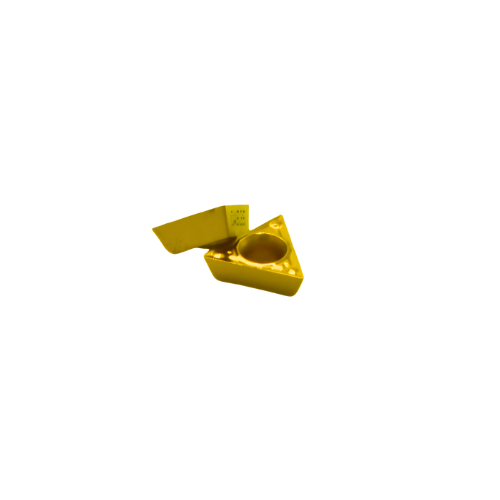

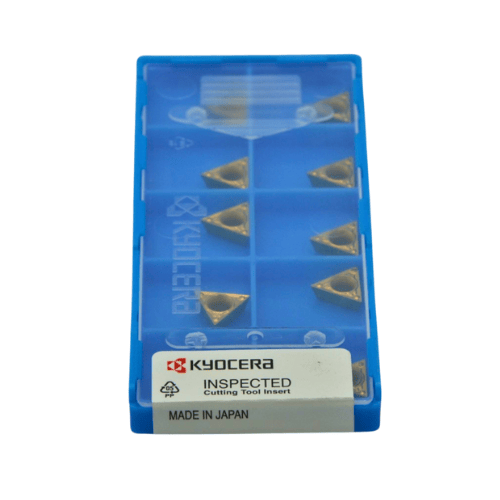

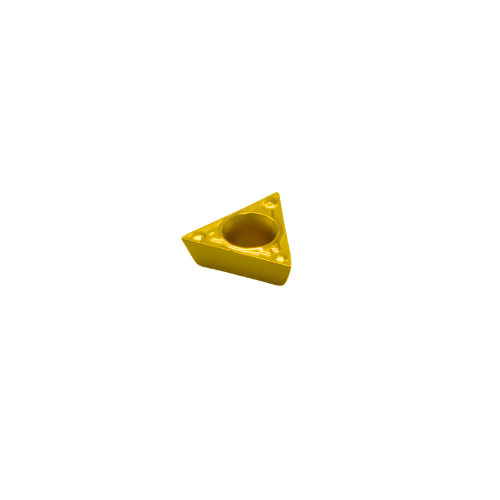

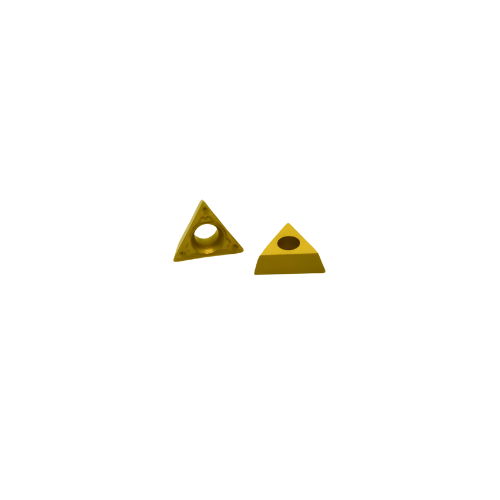

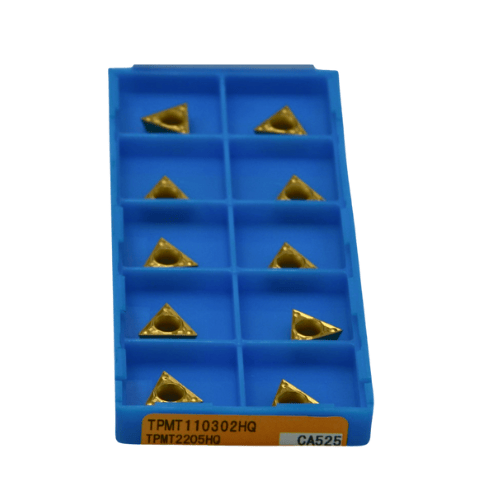

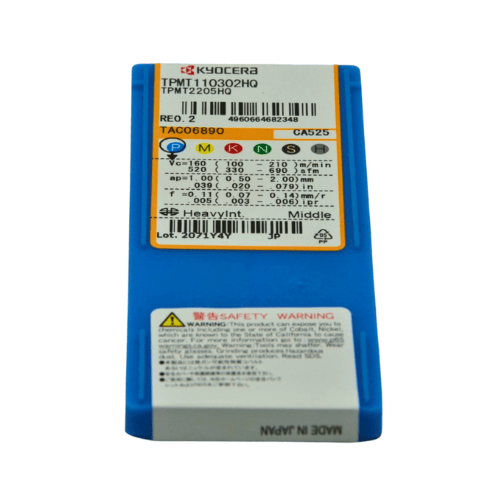

10pc Kyocera TPMT110302HQ CA525 – Turning Insert (Finishing, HQ Chipbreaker)

Kyocera TPMT110302HQ CA525 – Turning Insert (10 pcs Finishing, HQ Chipbreaker) The Kyocera TPMT110302HQ CA525 is a precision-ground positive-type triangular turning insert designed for finishing operations on steels. It features...
$73.00
$0.00
$73.00
(-0%)
SKU: TPMT110302HQCA525-10
Availability: In Stock
Subtotal: $73.00
10pc Kyocera TPMT110302HQ CA525 – Turning Insert (Finishing, HQ Chipbreaker)

10pc Kyocera TPMT110302HQ CA525 – Turning Insert (Finishing, HQ Chipbreaker)

$0.00 $73.00

10pc Kyocera TPMT110302HQ CA525 – Turning Insert (Finishing, HQ Chipbreaker)

$0.00 $73.00

Kyocera TPMT110302HQ CA525 – Turning Insert (10 pcs Finishing, HQ Chipbreaker)

The Kyocera TPMT110302HQ CA525 is a precision-ground positive-type triangular turning insert designed for finishing operations on steels. It features the HQ chipbreaker, engineered for light cutting with low resistance and excellent chip control, producing superior surface finishes. Manufactured with Kyocera’s CA525 MEGACOAT TOUGH CVD-coated carbide grade, this insert provides excellent wear resistance, edge strength, and stability, ensuring consistent tool life and performance under high-speed finishing conditions.

Key Features & Benefits

  • CA525 Grade – MEGACOAT TOUGH: CVD-coated carbide designed for reliable steel turning with high wear resistance and toughness.
  • HQ Chipbreaker: Finishing geometry provides stable chip evacuation and reduced cutting force for precise finishing.
  • Superior Surface Finish: Delivers smooth and accurate cutting results with excellent dimensional stability.
  • Low Cutting Resistance: Sharp-edged design minimizes tool load and vibration for clean finishes.
  • Ideal for Finishing: Optimized for light cuts in carbon and alloy steels under stable conditions.

Technical Specifications

  • Designation / Order Code: TPMT110302HQ CA525
  • Insert Shape: 60° Triangle (T Type)
  • Insert Type: Positive Turning Insert
  • Material: CVD-Coated Carbide
  • Grade: CA525 – MEGACOAT TOUGH (CVD)
  • Chipbreaker: HQ – Finishing Geometry
  • Inscribed Circle (IC): 6.35 mm
  • Thickness (S): 3.18 mm
  • Hole Diameter (D1): 3.3 mm
  • Corner Radius (RE): 0.2 mm
  • Relief Angle:
  • Cutting Depth (ap): 0.05 – 1.0 mm
  • Feed Rate (f): 0.03 – 0.15 mm/rev
  • Tolerance (Class G): ±0.025 mm (thickness) / ±0.13 mm (corner height)
  • Pack Quantity: 10 pcs

About Kyocera CA525:
Kyocera’s CA525 MEGACOAT TOUGH grade provides a robust balance between toughness and wear resistance, ideal for steel turning applications. Its advanced CVD coating ensures long tool life, reliable performance, and excellent heat resistance for consistent results in precision finishing operations.
