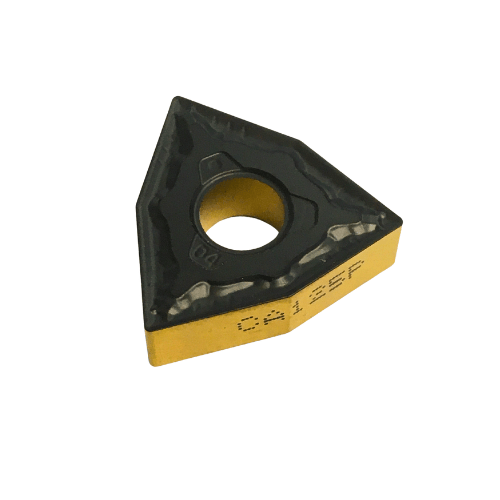

10pc Kyocera WNMG080404PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

Kyocera WNMG080404PMG CA125P – Turning Insert (10 pcs Medium-Roughing, PMG Chipbreaker) The Kyocera WNMG080404PMG CA125P is a negative-type trigon turning insert engineered for medium to roughing operations in steel machining....
$104.00
$0.00
$104.00
(-0%)
SKU: WNMG080404PMGCA125P-10
Availability: In Stock
Subtotal: $104.00
10pc Kyocera WNMG080404PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

10pc Kyocera WNMG080404PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

$0.00 $104.00

10pc Kyocera WNMG080404PMG CA125P – Turning Insert (Medium-Roughing, PMG Chipbreaker)

$0.00 $104.00

Kyocera WNMG080404PMG CA125P – Turning Insert (10 pcs Medium-Roughing, PMG Chipbreaker)

The Kyocera WNMG080404PMG CA125P is a negative-type trigon turning insert engineered for medium to roughing operations in steel machining. It combines the CA125P CVD-coated carbide grade, optimized for excellent wear resistance and fracture toughness under continuous to interrupted cutting, with the PMG chipbreaker, which ensures stable chip control across a wide machining window. Together, they provide reliable machining performance, extended tool life, and reduced cutting force in demanding conditions.

Key Features & Benefits

  • CA125P Grade: First choice for steel machining. Demonstrates high fracture resistance and reduced crater wear compared to conventional competitor inserts.
  • PMG Chipbreaker: Step-breaker geometry suppresses chip entanglement at large depths of cut while maintaining chip control at small depths.
  • Tool Life: Internal Kyocera evaluations show longer stable tool life versus competitor inserts under interrupted cutting.
  • Stable Performance: Maintains consistent edge condition and reliable chip evacuation across medium-to-roughing operations.

Applications

  • Medium-to-roughing operations in steels such as SCM435, SCr420, and other alloy steels.
  • Automotive and industrial machining of shafts, gears, bolts, and general steel components.

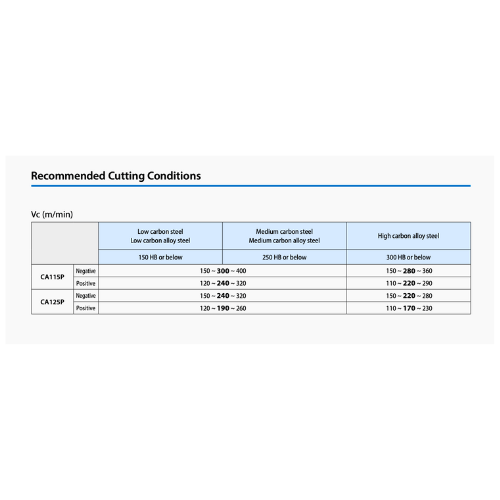

  • Effective under wet cutting with catalog examples of Vc = 190–300 m/min, ap up to 5.0 mm, f = 0.1–0.5 mm/rev.

Technical Specifications

  • Designation / Order Code: WNMG080404PMG
  • Insert Type: Negative, 80° trigon
  • Inscribed Circle (IC): 12.70 mm
  • Thickness: 4.76 mm
  • Hole Diameter: 5.16 mm
  • Corner Radius (RE): 0.4 mm
  • Grade: CA125P (CVD coated carbide)
  • Chipbreaker: PMG – Medium-Roughing
  • Pack Size: 10 pieces
