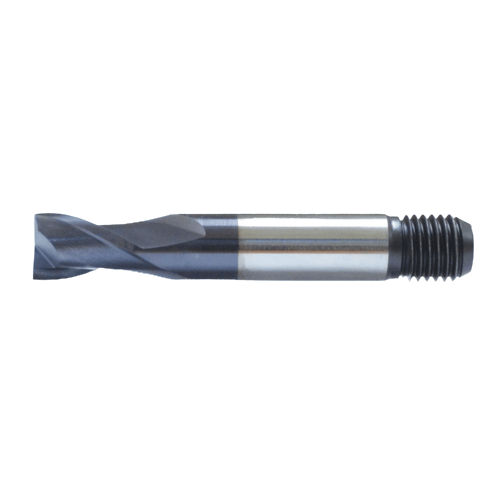

Somta Series 348 – 3.5mm HSS-Co8 TiAlN 2 Flute Slot Drill End Mill

The Somta Series 348 2 Flute Slot Drill End Mill is manufactured from premium HSS-Co8 material and features a TiAlN coating for improved wear resistance and heat protection during demanding...
$30.00
$0.00
$30.00
(-0%)
Vendor: SOMTA
SKU: 3480350
Availability: In Stock
Subtotal: $30.00
SOMTA ENDMILL Somta Series 348 – 3.5mm HSS-Co8 TiAlN 2 Flute Slot Drill End Mill

Somta Series 348 – 3.5mm HSS-Co8 TiAlN 2 Flute Slot Drill End Mill

$0.00 $30.00

Somta Series 348 – 3.5mm HSS-Co8 TiAlN 2 Flute Slot Drill End Mill

$0.00 $30.00

The Somta Series 348 2 Flute Slot Drill End Mill is manufactured from premium HSS-Co8 material and features a TiAlN coating for improved wear resistance and heat protection during demanding machining applications. Designed for milling keyways and slots to size in a single cut, this cutter is ideal for plunging operations and general-purpose slot milling.

Manufactured to DIN 327 and BS 122 standards, the tool features a 2 flute geometry for efficient chip evacuation and smooth cutting performance. The Type N helix with 30° helix angle provides excellent versatility across a wide range of materials including steel and alloy steels.

Key Features & Benefits

  • Somta Series 348 2 flute slot drill end mill
  • Part Number: 3480350
  • Diameter (d): 3.5mm
  • Cutting Length (l2): 6mm
  • Overall Length (l1): 50mm
  • Shank Diameter (d1): 6mm
  • Manufactured from premium HSS-Co8
  • Suitable for slotting, plunging, and keyway milling
  • TiAlN coating for improved wear resistance and tool life
  • 2 flute design for efficient chip evacuation
  • Designed for plunging operations
  • Type N helix geometry
  • 30° helix angle
  • Tool tolerance: e8
  • Shank tolerance: h8
  • Manufactured to DIN 327 and BS 122 standards
  • Suitable for steel, alloy steel, and general machining applications

Technical Specifications

  • Brand: Somta
  • Series: 348
  • Tool Type: 2 Flute Slot Drill End Mill
  • Diameter: 3.5mm
  • Cutting Length: 6mm
  • Overall Length: 50mm
  • Shank Diameter: 6mm
  • Flute Count: 2
  • Material: HSS-Co8
  • Coating: TiAlN
  • Helix Type: Type N
  • Helix Angle: 30°
  • Tool Tolerance: e8
  • Shank Tolerance: h8
  • Standards: DIN 327 / BS 122
  • Code: 3480350

Somta cutting tools are internationally trusted for precision engineering, durability, and consistent machining performance across industrial manufacturing, engineering, and metalworking applications.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
