HSS Second (Intermediate) Short Hand Tap No.6 UNF

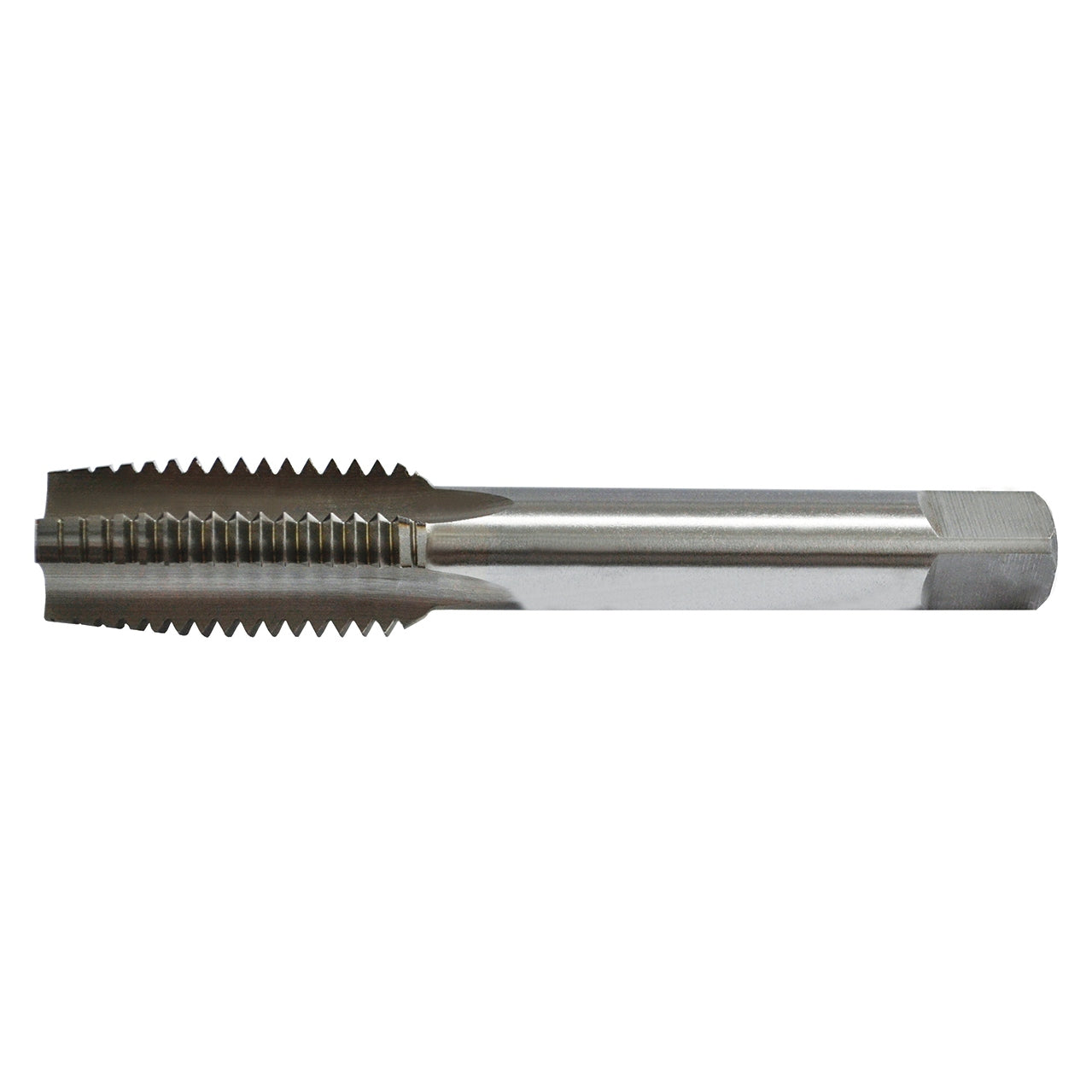

The SOMTA 5510352 – No.6 HSS Second (Intermediate) Short Hand Tap is a precision-manufactured tool for general-purpose hand tapping applications. Built to ISO 529 standards and crafted from high-speed steel (HSS), this tap delivers accurate Unified Fine (UNF) threads with a standard 60° flank angle. Featuring a straight flute design and right-hand cutting direction, it performs reliably in both through-hole and blind-hole tapping scenarios. As the second stage in a traditional 3-piece hand tap set, this intermediate tap supports smooth and progressive thread formation across various workshop and maintenance tasks.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread for precise and secure fastener engagement.
  • Second Tap (Intermediate) – Mid-sequence tap for refining threads after initial cutting with a taper tap.
  • High-Speed Steel (HSS) – Provides superior wear resistance, edge retention, and durability.
  • Straight Flute Design – Efficient chip clearance ideal for hand tapping.
  • 60° Flank Angle – Produces standard-compliant UNF threads with reliable performance.
  • ISO 2 / 2B Tolerance – Supports common thread fit applications in general-purpose use.
  • Right-Hand Cutting – Compatible with standard tap wrenches and clockwise cutting motion.
  • Blind & Through Hole Capability – Suitable for a wide range of tapping tasks.
  • Manual Tapping – Optimized for hand use in professional workshop or repair settings.

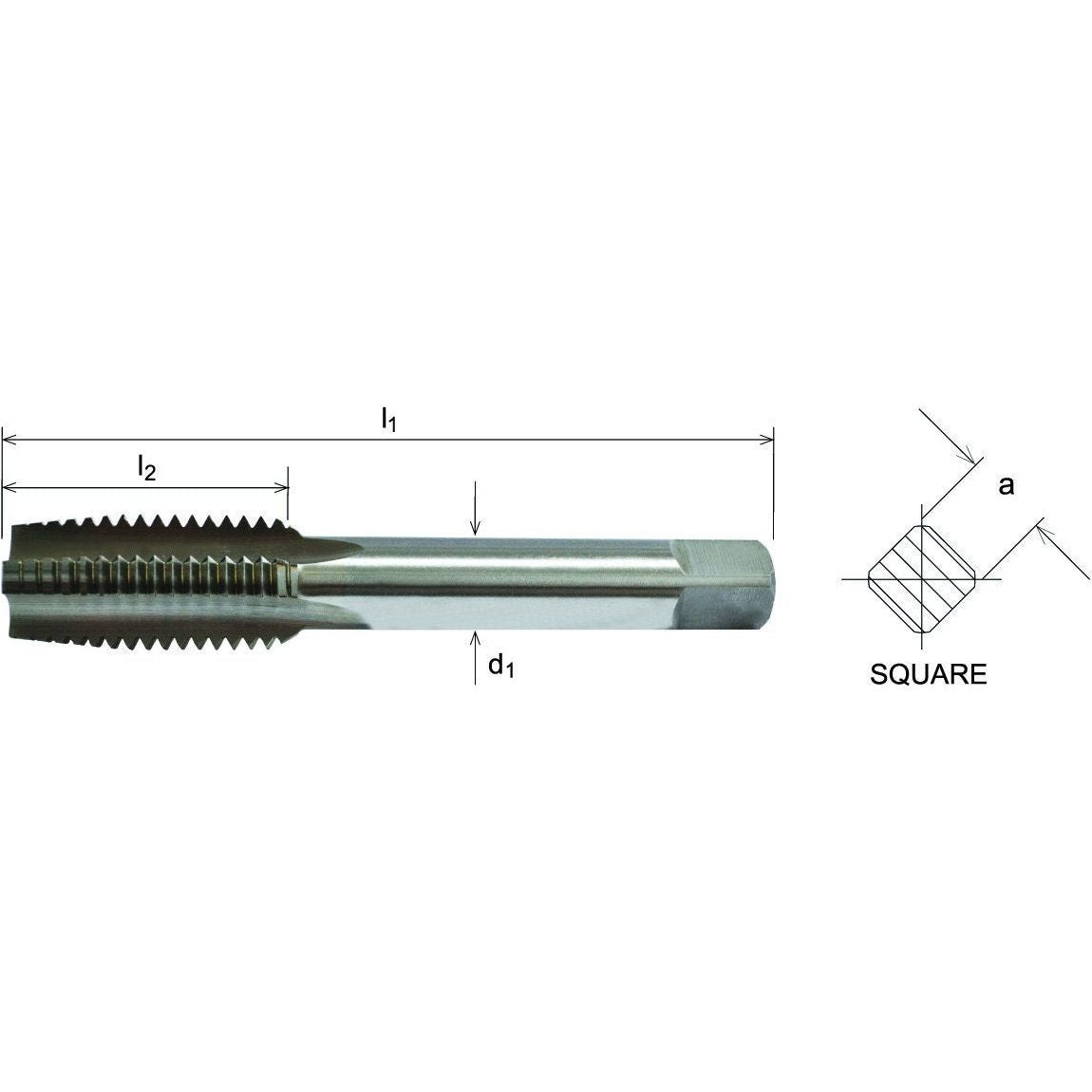

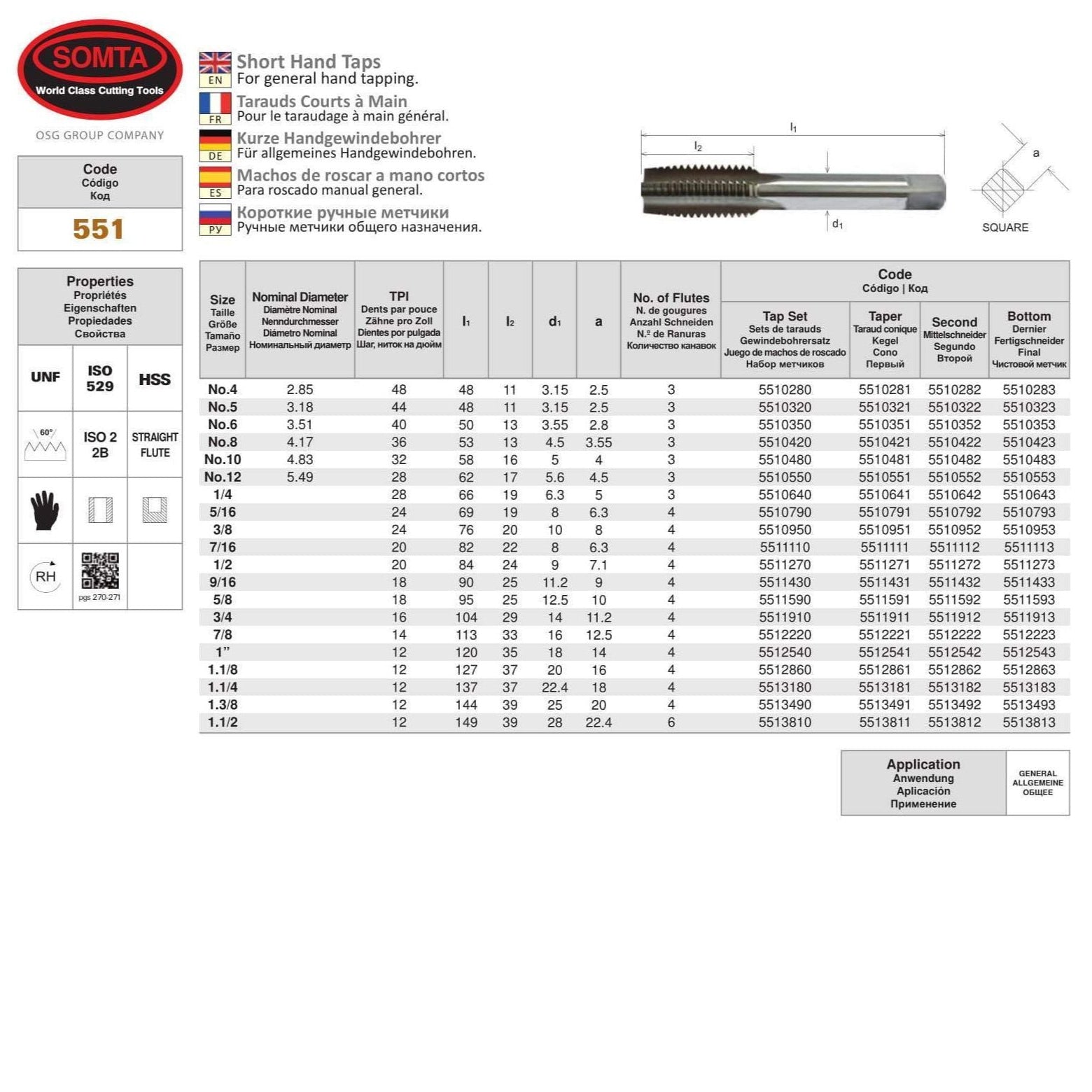

Technical Specifications

  • Part No: 5510352
  • Tap Size: No.6 UNF
  • Nominal Diameter: 3.51 mm
  • Threads Per Inch (TPI): 40
  • Overall Length (l1): 50 mm
  • Thread Length (l2): 13 mm
  • Shank Diameter (d1): 3.55 mm
  • Square Size (a): 2.8 mm
  • Number of Flutes: 3
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5510352 Second Tap?

  • Precision Threading – Ensures high-quality threads in metalworking, repair, and fabrication environments.
  • Efficient Intermediate Tap – Ideal for continuing thread formation between taper and bottom taps.
  • Long-Lasting HSS Build – Maintains performance under repeated manual use.
