Somta Series 551 - HSS Short Hand Tap No.10 UNF Second (Intermediate)

HSS Second (Intermediate) Short Hand Tap No.10 UNF The SOMTA 5510482 – No.10 HSS Second (Intermediate) Short Hand Tap is a precision-engineered tool built for general-purpose hand tapping. Crafted from...
$28.00
$28.00
(-0%)
Vendor: SOMTA
SKU: 5510482
Availability: In Stock
Subtotal: $28.00
Twin Eagle's  SOMTA - HSS UNF TAP NO.10 INTER

Somta Series 551 - HSS Short Hand Tap No.10 UNF Second (Intermediate)

$28.00

Somta Series 551 - HSS Short Hand Tap No.10 UNF Second (Intermediate)

$28.00

HSS Second (Intermediate) Short Hand Tap No.10 UNF

The SOMTA 5510482 – No.10 HSS Second (Intermediate) Short Hand Tap is a precision-engineered tool built for general-purpose hand tapping. Crafted from high-speed steel (HSS) and manufactured to ISO 529 standards, this tap produces Unified Fine (UNF) threads with a 60° flank angle and ISO 2 / 2B tolerance. Its straight flute design ensures effective chip removal, while the right-hand cutting action enables smooth operation in both through-hole and blind-hole applications. Designed as the second tap in a 3-piece set, it is used to further develop threads after the taper tap stage. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread for high-precision mechanical applications.
  • Second Tap (Intermediate) – Mid-stage tap used after the taper tap for refined thread shaping.
  • High-Speed Steel (HSS) – Offers outstanding wear resistance and tool longevity.
  • Straight Flute Design – Ensures clean chip evacuation during manual tapping.
  • 60° Flank Angle – Delivers standard-compliant thread geometry.
  • ISO 2 / 2B Tolerance – Suitable for general-purpose internal thread fits.
  • Right-Hand Cutting – Designed for use with standard clockwise tapping tools.
  • Through & Blind Hole Tapping – Versatile solution for a range of tapping scenarios.
  • Manual Use – Optimized for controlled hand tapping in workshops and repair environments.

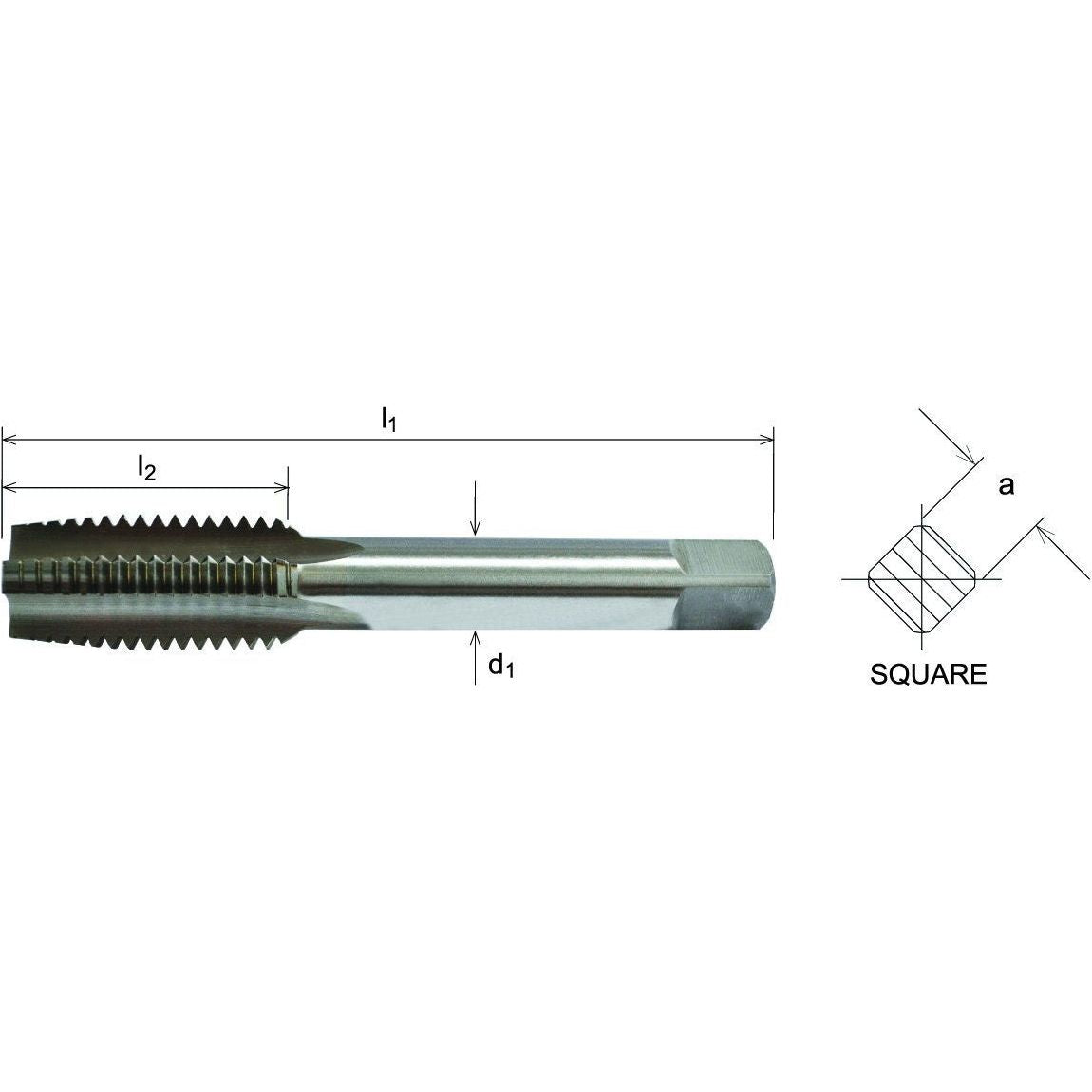

Technical Specifications

  • Part No: 5510482
  • Tap Size: No.10 UNF
  • Nominal Diameter: 4.83 mm
  • Threads Per Inch (TPI): 32
  • Overall Length (l1): 58 mm
  • Thread Length (l2): 16 mm
  • Shank Diameter (d1): 5.0 mm
  • Square Size (a): 4.0 mm
  • Number of Flutes: 3
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5510482 Second Tap?

  • Clean, Controlled Thread Formation – Ideal for progressing thread cuts after the taper stage.
  • Durable HSS Construction – Built to perform in demanding hand-tapping operations.
  • Versatile Use – Performs well in both blind and through-hole tapping tasks.
