Somta Series 551 - HSS Short Hand Tap 5/16" UNF Second (Intermediate)

HSS Second (Intermediate) Short Hand Tap 5/16" UNF The SOMTA 5510792 – 5/16" HSS Second (Intermediate) Short Hand Tap is a professional-grade tool designed for general-purpose hand tapping. Manufactured to...
$17.00
$17.00
(-0%)
Vendor: SOMTA
SKU: 5510792
Availability: In Stock
Subtotal: $17.00
Somta Series 551 - HSS Short Hand Tap 5/16" UNF Second (Intermediate)

Somta Series 551 - HSS Short Hand Tap 5/16" UNF Second (Intermediate)

$17.00

Somta Series 551 - HSS Short Hand Tap 5/16" UNF Second (Intermediate)

$17.00

HSS Second (Intermediate) Short Hand Tap 5/16" UNF

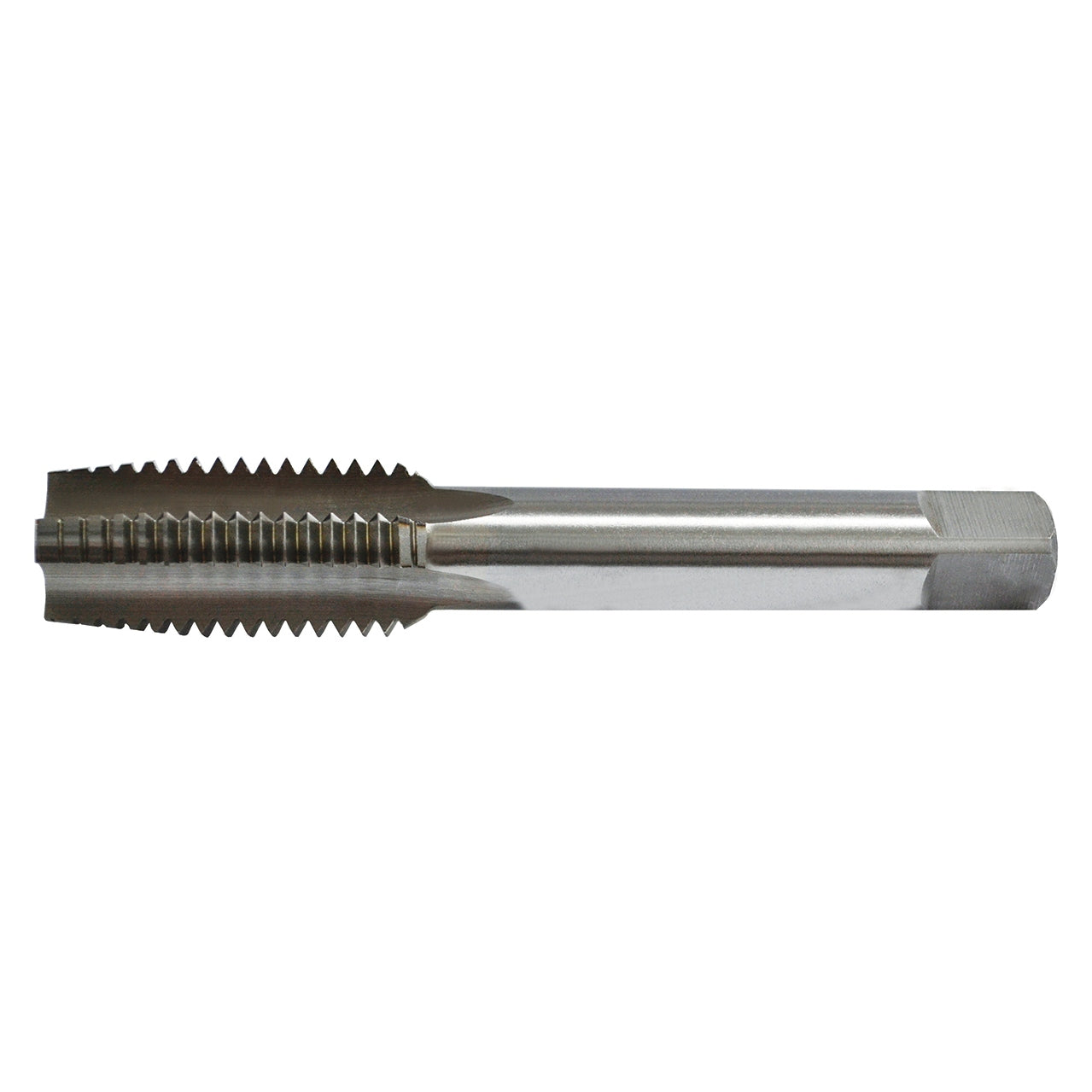

The SOMTA 5510792 – 5/16" HSS Second (Intermediate) Short Hand Tap is a professional-grade tool designed for general-purpose hand tapping. Manufactured to ISO 529 standards and constructed from high-speed steel (HSS), this tap delivers precise Unified Fine (UNF) threads with a 60° flank angle. It features a straight flute design and right-hand cutting direction, making it suitable for both blind and through-hole applications. This intermediate tap is intended to be used after a taper tap in a 3-piece set, supporting smooth, accurate thread progression. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread for consistent, high-precision fastenings.
  • Second Tap (Intermediate) – Mid-sequence tap used to refine threads after the initial taper tap.
  • High-Speed Steel (HSS) – Offers excellent durability, edge retention, and wear resistance.
  • Straight Flute Design – Ensures reliable chip evacuation during manual tapping.
  • 60° Flank Angle – Produces standard UNF thread profiles with precision.
  • ISO 2 / 2B Tolerance – Suitable for general-purpose internal threading with standard fit.
  • Right-Hand Cutting – For clockwise tapping with conventional tools.
  • Blind & Through Hole Compatible – Effective in a range of common threading tasks.
  • Designed for Manual Use – Optimized for hand tapping in workshop and repair environments.

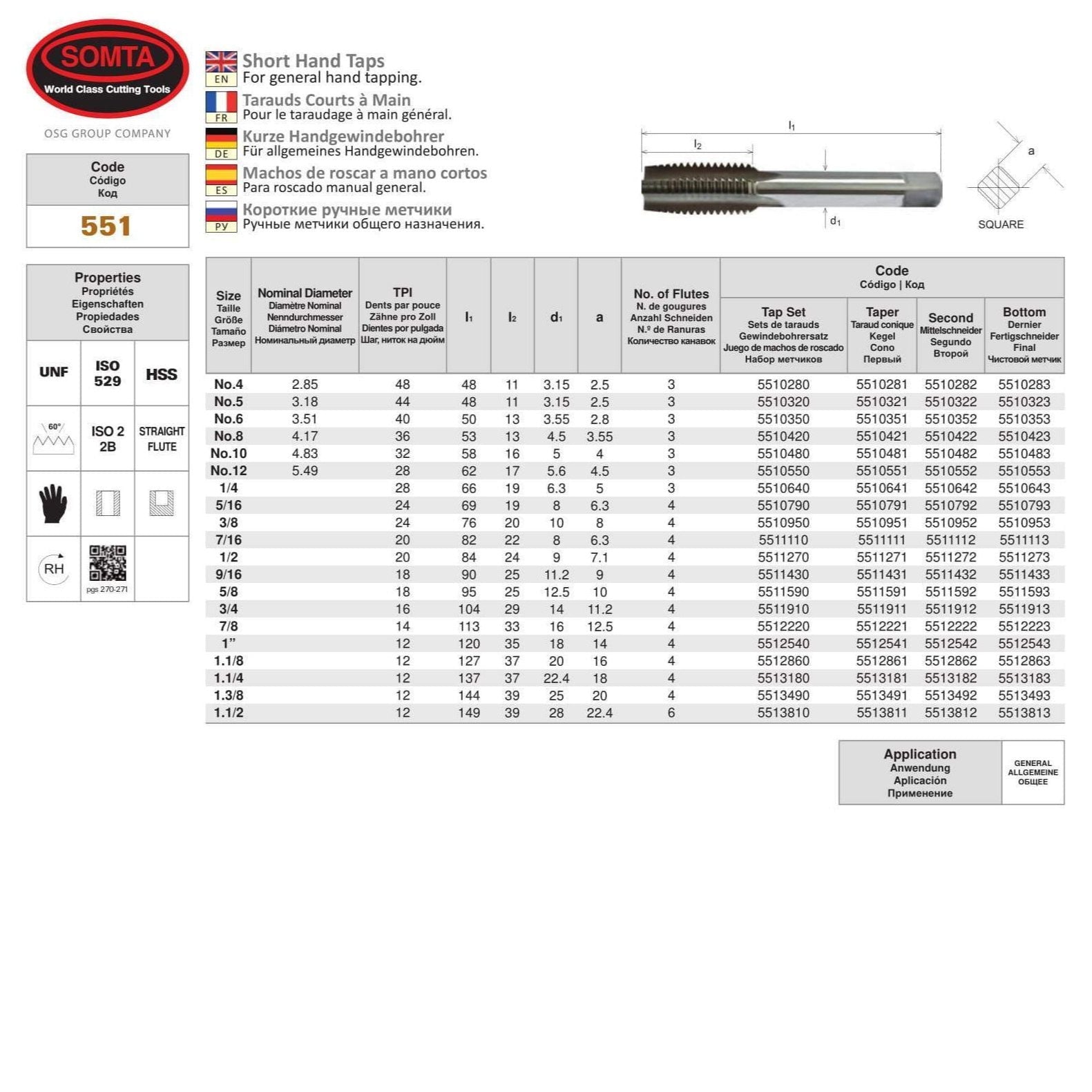

Technical Specifications

  • Part No: 5510792
  • Tap Size: 5/16" UNF
  • Threads Per Inch (TPI): 24

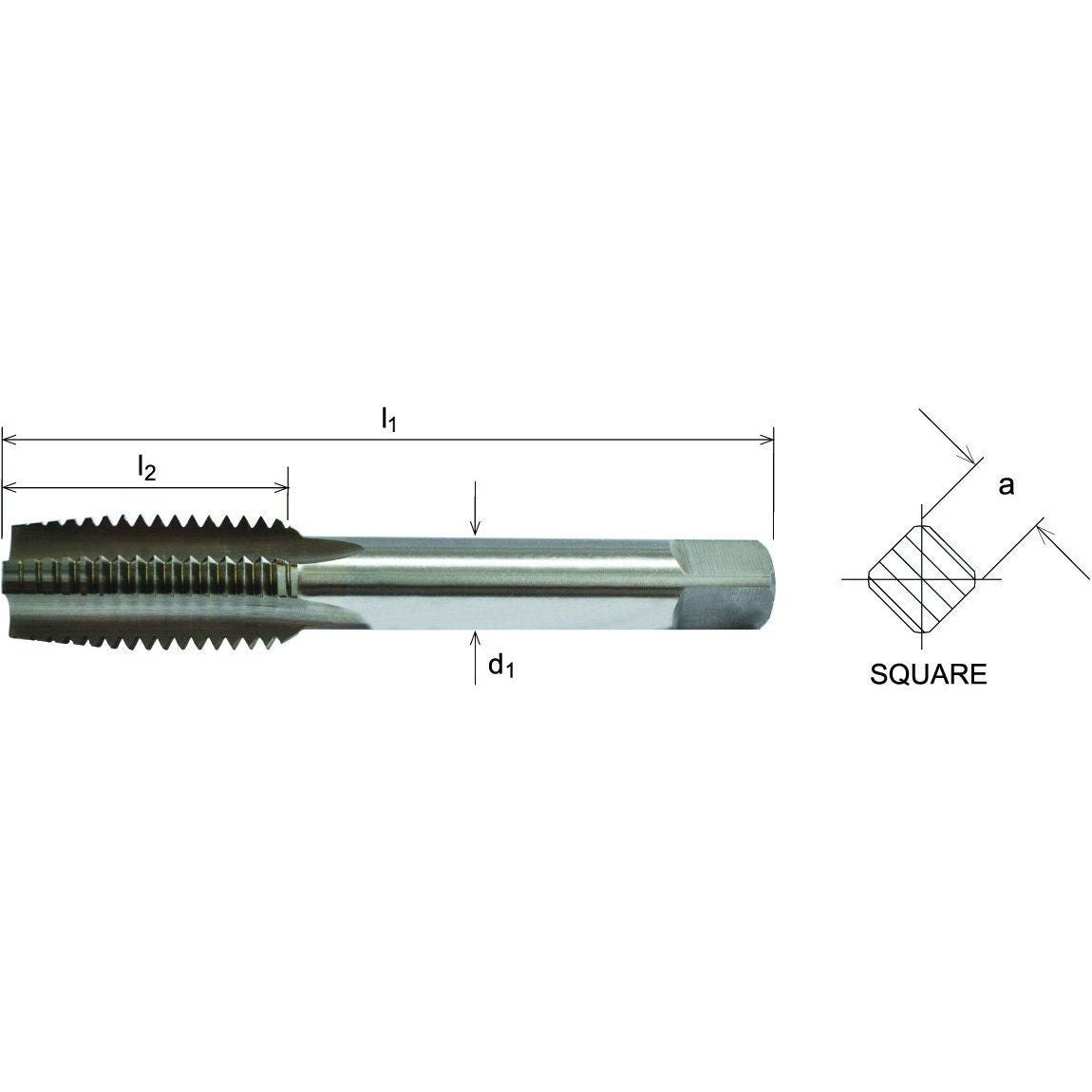

  • Overall Length (l1): 69 mm
  • Thread Length (l2): 19 mm
  • Shank Diameter (d1): 8 mm
  • Square Size (a): 6.3 mm
  • Number of Flutes: 4
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5510792 Second Tap?

  • Precision UNF Threading – Ensures high-quality results in mechanical and assembly applications.
  • Efficient Intermediate Operation – Facilitates clean, progressive thread cutting between taper and bottom taps.
  • Robust HSS Design – Suitable for repeated manual use in demanding workshop settings.
