Somta Series 551 - HSS Short Hand Tap 3/8" UNF Second (Intermediate)

HSS Second (Intermediate) Short Hand Tap 3/8" UNF The SOMTA 5510952 - 3/8" HSS Second (Intermediate) Short Hand Tap is a high-quality threading tool engineered for general-purpose hand tapping applications....
$20.00
$20.00
(-0%)
Vendor: SOMTA
SKU: 5510952
Availability: In Stock
Subtotal: $20.00
Twin Eagle's  SOMTA - HSS UNF TAP 3/8" INTER

Somta Series 551 - HSS Short Hand Tap 3/8" UNF Second (Intermediate)

$20.00

Somta Series 551 - HSS Short Hand Tap 3/8" UNF Second (Intermediate)

$20.00

HSS Second (Intermediate) Short Hand Tap 3/8" UNF

The SOMTA 5510952 - 3/8" HSS Second (Intermediate) Short Hand Tap is a high-quality threading tool engineered for general-purpose hand tapping applications. Made from high-speed steel (HSS) and conforming to ISO 529 standards, this tap produces accurate Unified Fine (UNF) threads with a 60° flank angle. Its straight flute design supports effective chip removal, and the right-hand cutting direction ensures compatibility with conventional manual tapping tools. Intended as the second tap in a standard 3-piece sequence, it is ideal for refining threads after the taper tap stage. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread design ensures reliable and consistent threading results.
  • Second Tap (Intermediate) – Used between taper and bottom taps to progressively cut threads.
  • High-Speed Steel (HSS) – Provides excellent hardness, durability, and wear resistance.
  • Straight Flute Design – Enables smooth chip flow and controlled cutting action.
  • 60° Flank Angle – Produces industry-standard thread geometry for fine-thread applications.
  • ISO 2 / 2B Tolerance – Suitable for general-purpose internal threads and secure fastener fits.
  • Right-Hand Cutting – Standard clockwise cutting direction for manual tap wrenches.
  • Compatible with Blind & Through Holes – Versatile usage across different tapping scenarios.
  • Manual Use – Specifically designed for controlled hand tapping in workshop settings.

Technical Specifications

  • Part No: 5510952
  • Tap Size: 3/8" UNF
  • Threads Per Inch (TPI): 24

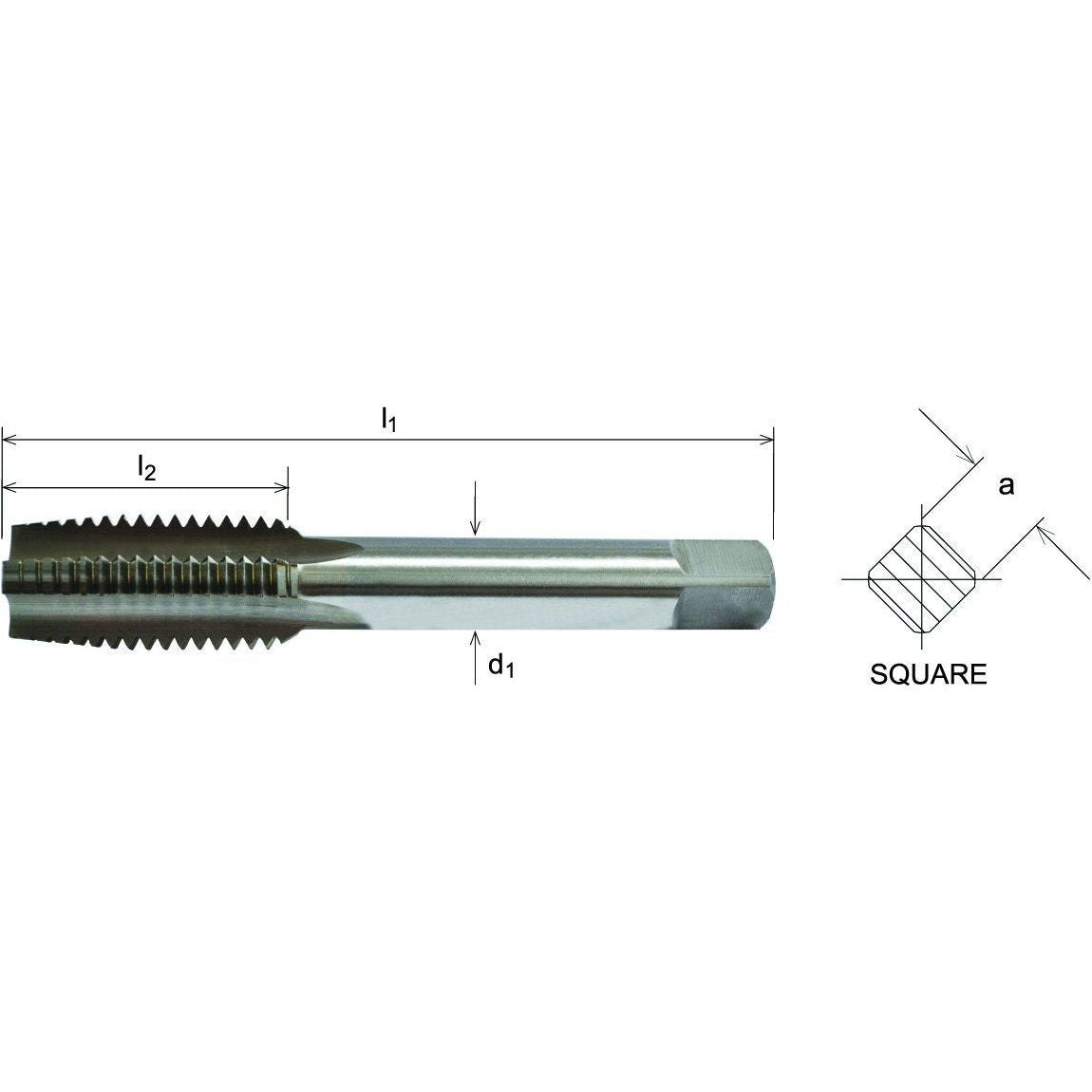

  • Overall Length (l1): 76 mm
  • Thread Length (l2): 20 mm
  • Shank Diameter (d1): 10 mm
  • Square Size (a): 8 mm
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5510952 Second Tap?

  • Progressive Threading Accuracy – Ideal for clean, intermediate-stage thread development.
  • Durable HSS Material – Delivers long-lasting performance for manual threading applications.
  • Versatile Tapping Use – Effective in both through-hole and blind-hole operations.
