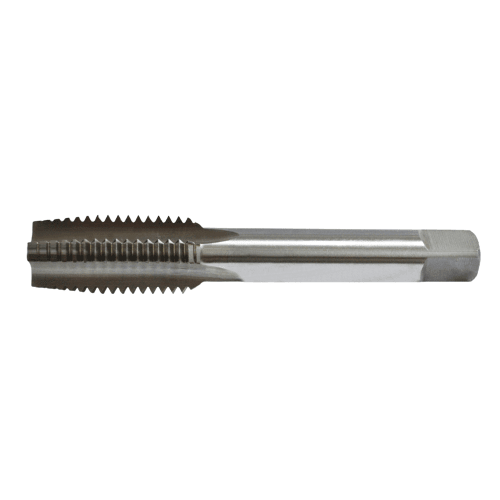

Somta Series 551 - HSS Short Hand Tap 1/2" UNF Second (Intermediate)

HSS Second (Intermediate) Short Hand Tap 1/2" UNF The SOMTA 5511272 - 1/2" HSS Second (Intermediate) Short Hand Tap is a professional-grade tool built for general-purpose hand tapping applications. Manufactured...
$28.00
$28.00
(-0%)
Vendor: SOMTA
SKU: 5511272
Availability: In Stock
Subtotal: $28.00
Twin Eagle's  SOMTA - HSS UNF TAP 1/2" INTER

Somta Series 551 - HSS Short Hand Tap 1/2" UNF Second (Intermediate)

$28.00

Somta Series 551 - HSS Short Hand Tap 1/2" UNF Second (Intermediate)

$28.00

HSS Second (Intermediate) Short Hand Tap 1/2" UNF

The SOMTA 5511272 - 1/2" HSS Second (Intermediate) Short Hand Tap is a professional-grade tool built for general-purpose hand tapping applications. Manufactured to ISO 529 standards and constructed from high-speed steel (HSS), it produces accurate Unified Fine (UNF) threads with a 60° flank angle and ISO 2 / 2B tolerance. The straight flute design provides effective chip removal, while the right-hand cutting action ensures compatibility with standard manual tapping procedures. As the second tap in a traditional 3-piece set, it advances thread formation after the initial taper tap. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread for precision thread engagement in engineering and assembly.
  • Second Tap (Intermediate) – Used between taper and bottom taps for progressive thread cutting.
  • High-Speed Steel (HSS) – Offers exceptional durability, hardness, and edge retention.
  • Straight Flute Design – Promotes smooth chip evacuation and controlled cutting action.
  • 60° Flank Angle – Produces industry-standard UNF threads with consistent profile and fit.
  • ISO 2 / 2B Tolerance – Suitable for general-purpose internal thread applications.
  • Right-Hand Cutting – Designed for clockwise manual operation with tap wrenches.
  • Blind & Through Hole Capable – Versatile for a wide range of tapping environments.
  • Manual Use – Optimized for precise hand tapping in workshop and field settings.

Technical Specifications

  • Part No: 5511272
  • Tap Size: 1/2" UNF
  • Threads Per Inch (TPI): 20

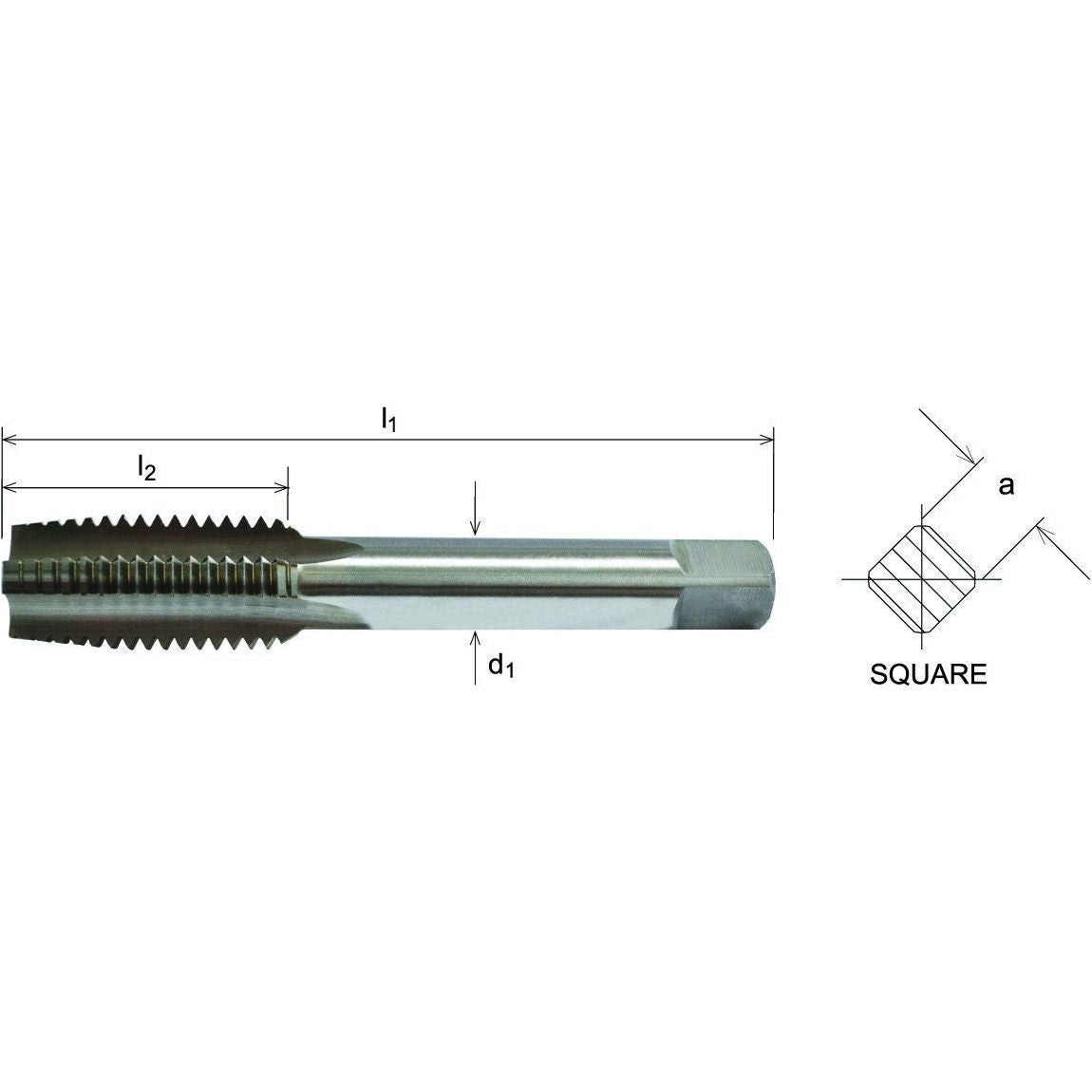

  • Overall Length (l1): 84 mm
  • Thread Length (l2): 24 mm
  • Shank Diameter (d1): 9 mm
  • Square Size (a): 7.1 mm
  • Number of Flutes: 4
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5511272 Second Tap?

  • Precision Threading – Ensures clean, accurate threads in metalwork and assembly.
  • High-Quality HSS Build – Durable construction ideal for manual tapping tasks.
  • Versatile Use – Effective in both blind and through-hole threading applications.
