HSS Second (Intermediate) Short Hand Tap 5/8" UNF

The SOMTA 5511592 – 5/8" HSS Second (Intermediate) Short Hand Tap is a heavy-duty threading tool engineered for general-purpose hand tapping applications. Manufactured to ISO 529 standards and made from high-speed steel (HSS), this tap produces Unified Fine (UNF) threads with a 60° flank angle and ISO 2 / 2B tolerance. Its straight flute design supports efficient chip evacuation, while the right-hand cutting action ensures smooth, controlled manual operation. Intended as the second tap in a 3-piece set, it advances the thread profile after the taper stage. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread for precise threading in mechanical and structural applications.
  • Second Tap (Intermediate) – Used between taper and bottom taps to progress thread formation.
  • High-Speed Steel (HSS) – Excellent strength, durability, and cutting-edge retention.
  • Straight Flute Design – Enables consistent chip removal during tapping.
  • 60° Flank Angle – Produces standard-compliant thread geometry.
  • ISO 2 / 2B Tolerance – Ideal for general-purpose thread fit and fastener compatibility.
  • Right-Hand Cutting – Clockwise cutting direction for use with standard tap wrenches.
  • Through & Blind Hole Tapping – Versatile solution for a range of thread applications.
  • Manual Use – Designed specifically for hand tapping in workshop environments.

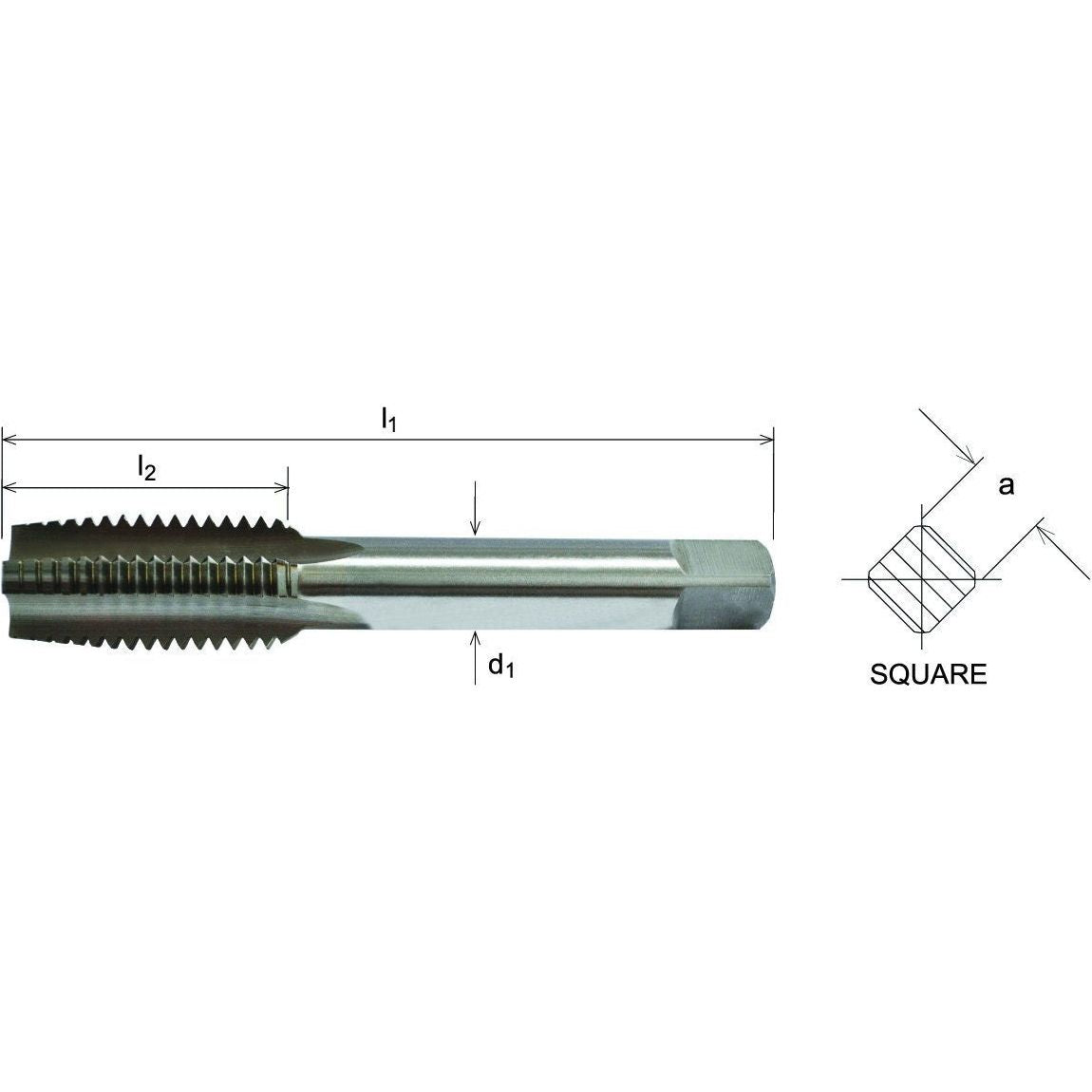

Technical Specifications

  • Part No: 5511592
  • Tap Size: 5/8" UNF
  • Threads Per Inch (TPI): 18
  • Overall Length (l1): 95 mm
  • Thread Length (l2): 25 mm
  • Shank Diameter (d1): 12.5 mm
  • Square Size (a): 10.0 mm
  • Number of Flutes: 4
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5511592 Second Tap?

  • Reliable Intermediate Threading – Designed to refine threads between taper and finishing stages.
  • Long-Lasting HSS Construction – Built for durability and repeated manual use.
  • Adaptable Performance – Suitable for both blind-hole and through-hole threading tasks.
