Somta Series 551 - HSS Short Hand Tap 1-3/8" UNF Second (Intermediate)

HSS Second (Intermediate) Short Hand Tap 1-3/8" UNF The SOMTA 5513492 – 1-3/8" HSS Second (Intermediate) Short Hand Tap is a heavy-duty, precision tap designed for general-purpose hand tapping of...
$312.00
$312.00
(-0%)
Vendor: SOMTA
SKU: 5513492
Availability: In Stock
Subtotal: $312.00
Twin Eagle's  SOMTA - HSS UNF TAP 1-3/8" INTER

Somta Series 551 - HSS Short Hand Tap 1-3/8" UNF Second (Intermediate)

$312.00

Somta Series 551 - HSS Short Hand Tap 1-3/8" UNF Second (Intermediate)

$312.00

HSS Second (Intermediate) Short Hand Tap 1-3/8" UNF

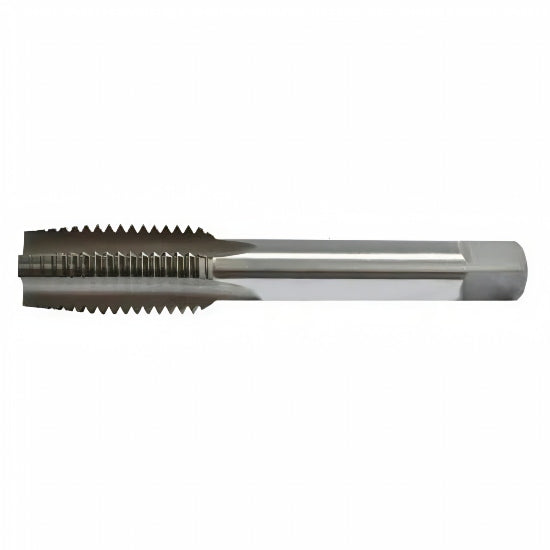

The SOMTA 5513492 – 1-3/8" HSS Second (Intermediate) Short Hand Tap is a heavy-duty, precision tap designed for general-purpose hand tapping of large-diameter UNF threads. Made from high-speed steel (HSS) and compliant with ISO 529 standards, it features a 60° flank angle thread form and ISO 2 / 2B tolerance for accurate, secure threading. The straight flute design promotes efficient chip evacuation, and the right-hand cutting action is ideal for use with standard tap wrenches. This intermediate tap is used after the taper tap to further form threads in both blind and through-hole applications. This listing is for one individual second (intermediate) tap only.

Key Features & Benefits

  • UNF Thread Form – Unified Fine Thread profile ensures precise, fine-pitch threading for large components.
  • Second Tap (Intermediate) – Ideal for continuing thread cutting after taper tapping in a 3-step sequence.
  • High-Speed Steel (HSS) – Provides high wear resistance and cutting strength, even in demanding use.
  • Straight Flute Design – Enables smooth chip flow and supports clean hand tapping.
  • 60° Flank Angle – Produces standard thread profiles suitable for most UNF fittings.
  • ISO 2 / 2B Tolerance – Ideal for general-purpose internal threading with standard fit requirements.
  • Right-Hand Cutting – Compatible with clockwise tap operation using conventional tap wrenches.
  • Blind & Through Hole Tapping – Delivers reliable results across both hole types.
  • Manual Use – Designed specifically for controlled hand tapping in workshop and industrial environments.

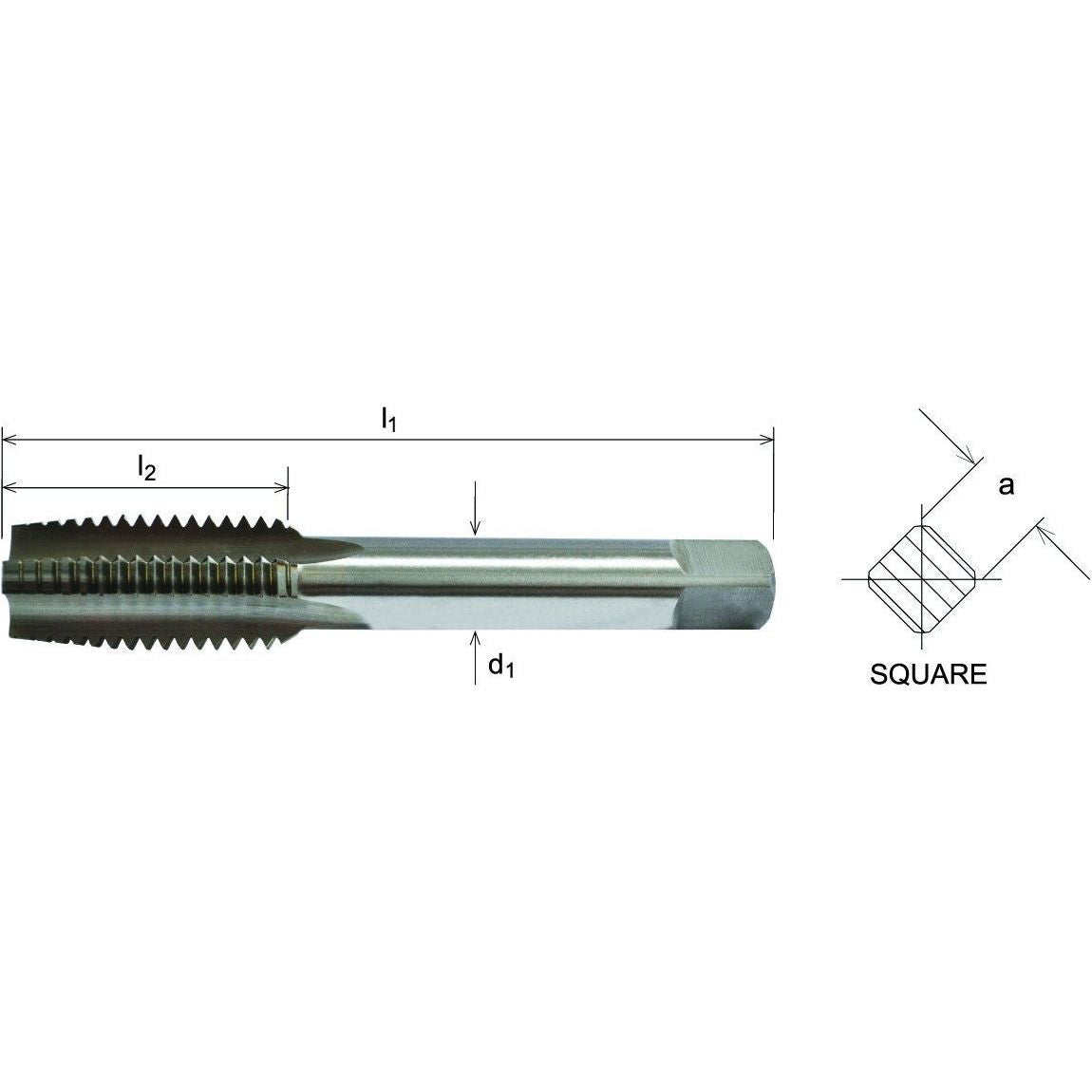

Technical Specifications

  • Part No: 5513492
  • Tap Size: 1-3/8" UNF
  • Threads Per Inch (TPI): 12
  • Overall Length (l1): 144 mm
  • Thread Length (l2): 39 mm
  • Shank Diameter (d1): 25 mm
  • Square Size (a): 20 mm
  • Number of Flutes: 4
  • Thread Angle: 60°, UNF Form
  • Material: High-Speed Steel (HSS)
  • Flute Type: Straight Flute
  • Standard: ISO 529
  • Tolerance: ISO 2 / 2B
  • Cutting Direction: Right-Hand
  • Application: General-Purpose Hand Tapping

Why Choose the SOMTA 5513492 Second Tap?

  • Precision Intermediate Threading – Supports clean and controlled thread formation after taper cutting.
  • Rugged HSS Construction – Built to withstand the demands of tapping large-diameter threads by hand.
  • Flexible Tapping Performance – Suitable for both blind-hole and through-hole threading across various materials.
