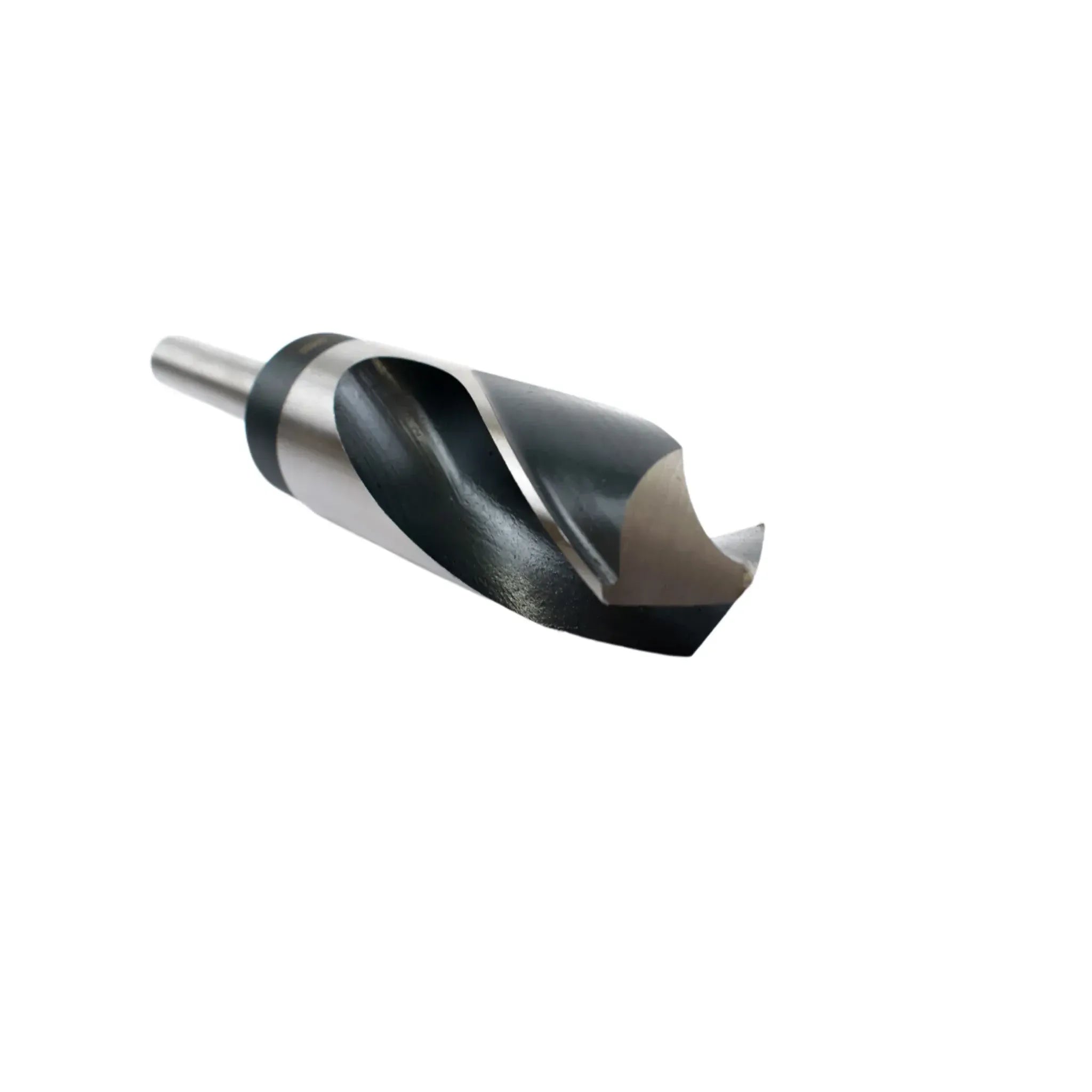

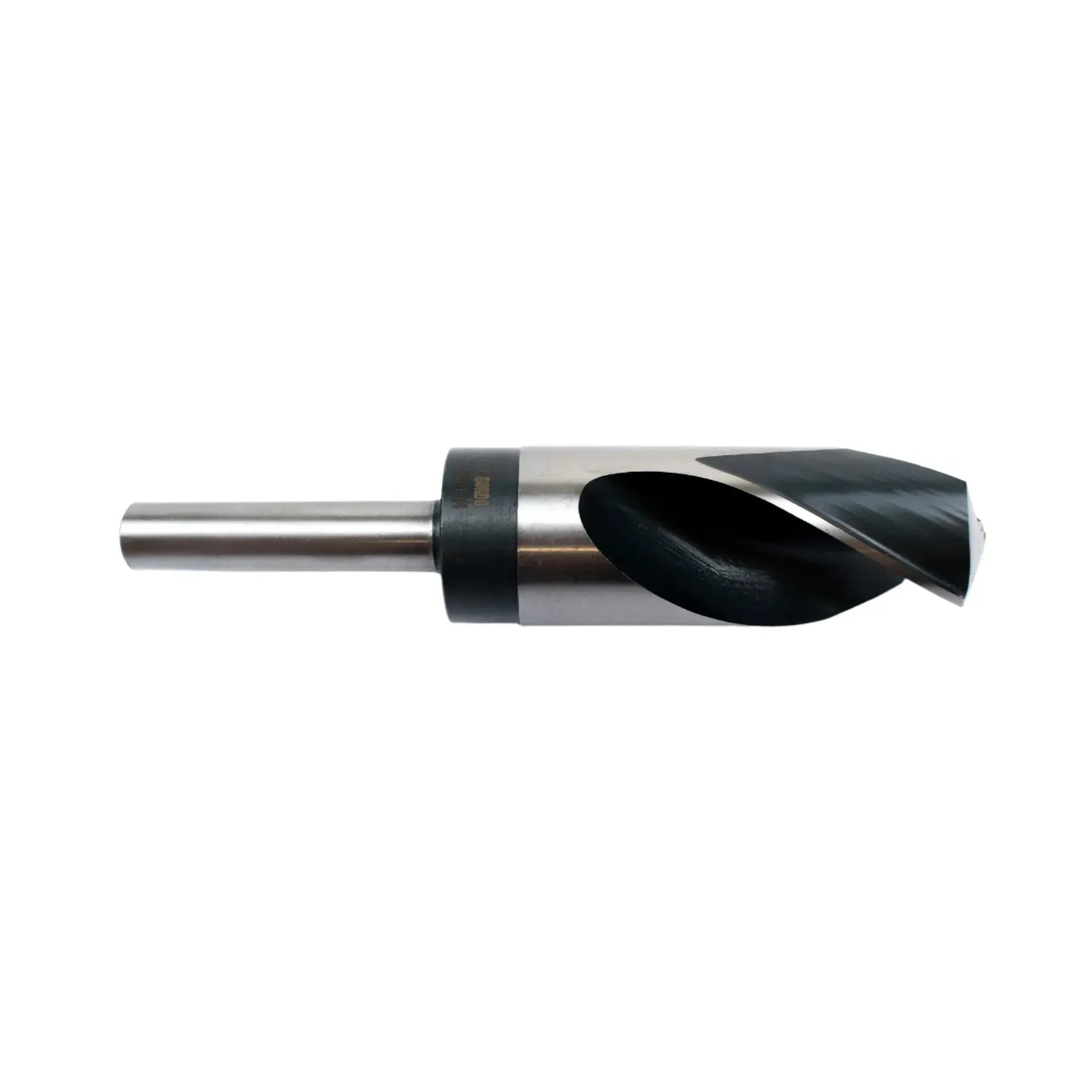

Bordo HSS 1-1/4" Reduced 1/2" Straight Shank Drill Bit

This Bordo reduced shank drill features a 118° notched point with a 30° helix. The notched point is a variation of the standard chisel point, designed to provide faster starting,...
$210.00
$0.00
$210.00
(-0%)
Vendor: BORDO
SKU: 2651-1.1/4
Availability: In Stock
Subtotal: $210.00
BORDO DRILLS Bordo HSS 1-1/4" Reduced 1/2" Straight Shank Drill Bit

Bordo HSS 1-1/4" Reduced 1/2" Straight Shank Drill Bit

$0.00 $210.00

Bordo HSS 1-1/4" Reduced 1/2" Straight Shank Drill Bit

$0.00 $210.00

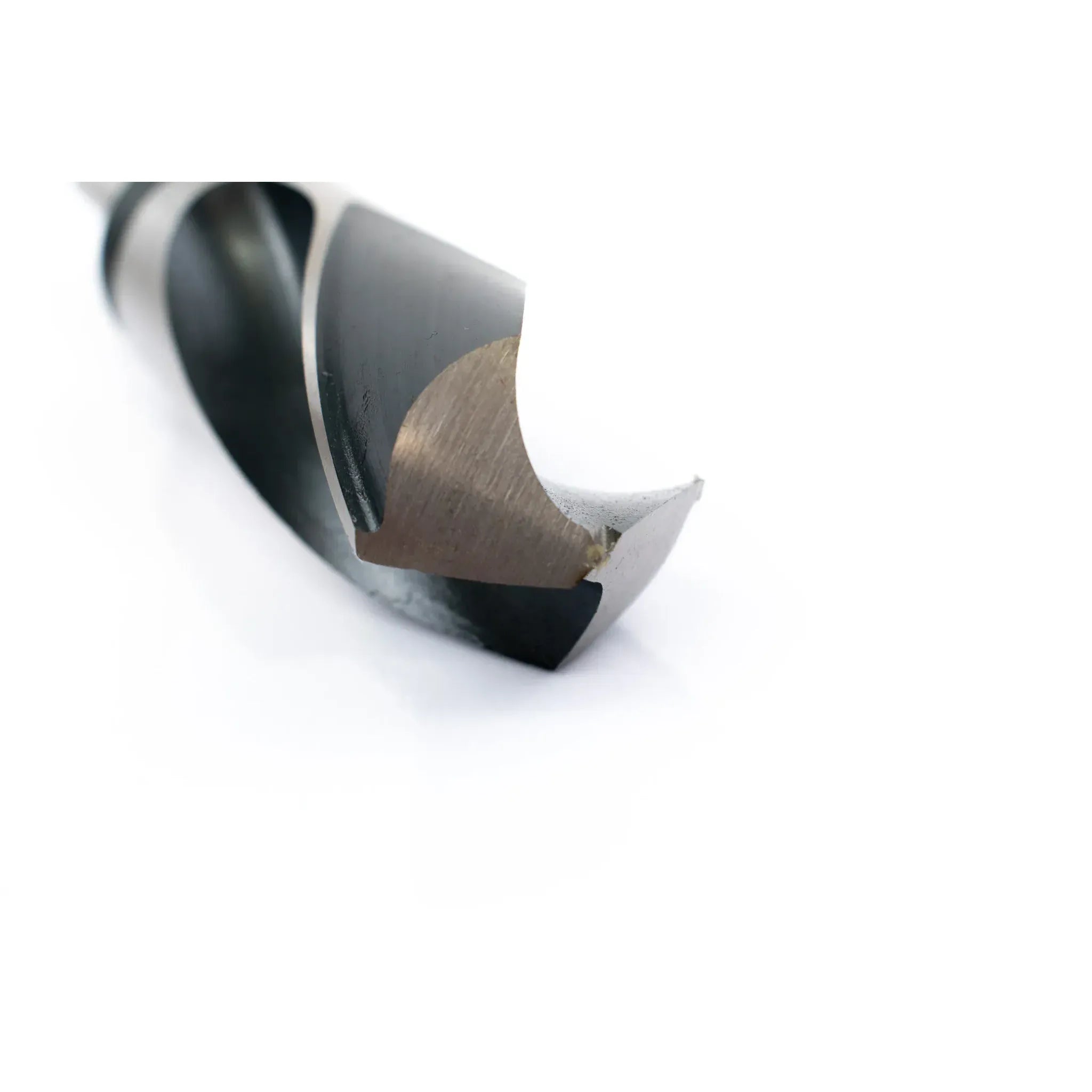

This Bordo reduced shank drill features a 118° notched point with a 30° helix. The notched point is a variation of the standard chisel point, designed to provide faster starting, reduced drill wander, and improved accuracy. A 118° point angle is ideal for materials such as mild steel and cast iron, producing easily controlled chips that are wide and thin.

Bordo reduced shank HSS drills are precision ground, then steam tempered to create a durable black oxide surface. This porous finish enhances lubrication, chip flow, and heat dissipation during drilling. Finally, the drill is ground a second time to produce bright, sharp cutting edges and a smooth shank finish.

Key Features & Benefits

  • 1-1/4" diameter with reduced 1/2" shank for use in standard drill chucks
  • 118° notched point for improved starting accuracy and reduced wander
  • 30° helix angle for efficient chip evacuation
  • Steam tempered black oxide finish improves heat dissipation and chip flow
  • Precision ground HSS construction for long tool life
  • Ideal for drilling mild steel, cast iron, and similar materials

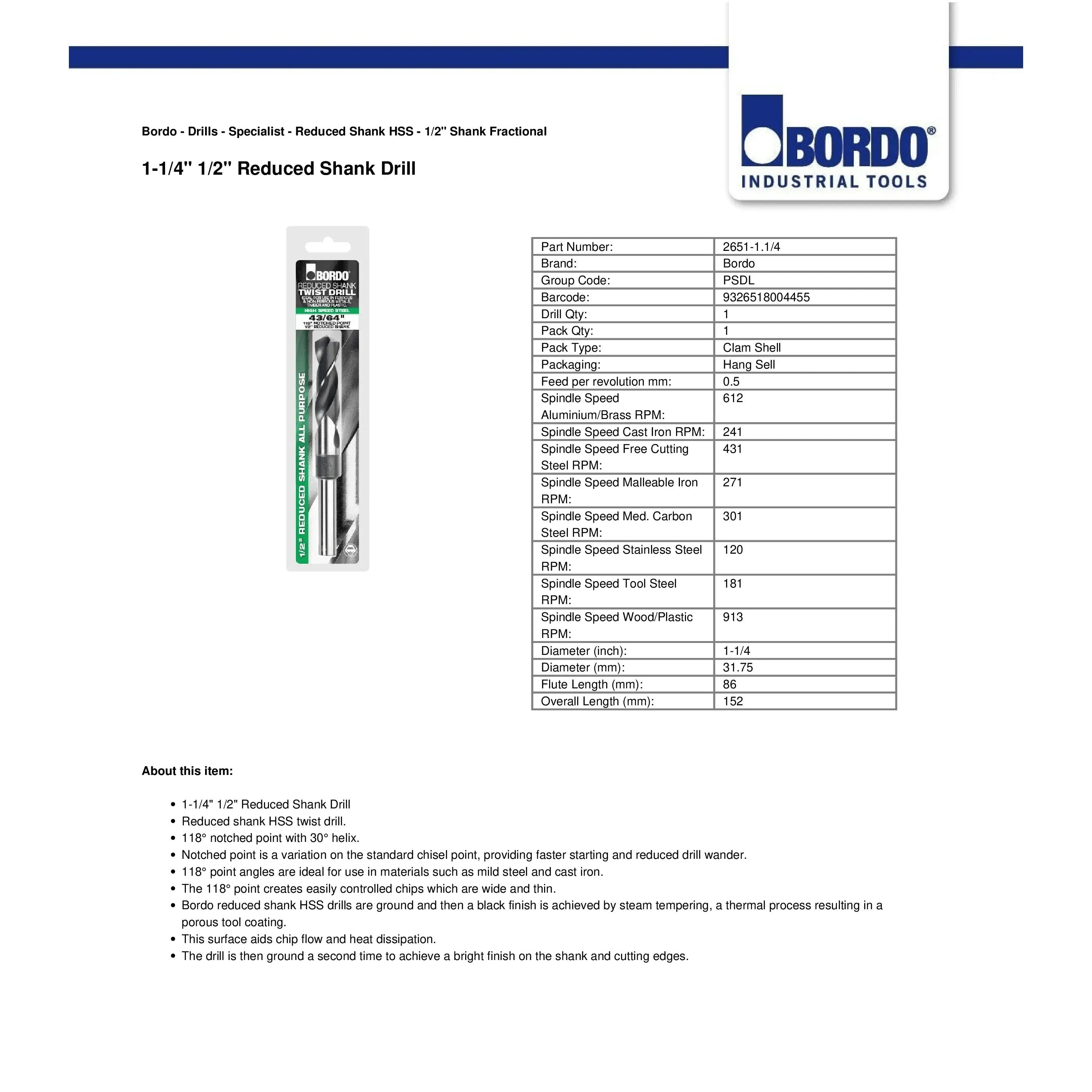

Technical Specifications

  • Diameter (inch): 1-1/4"
  • Diameter (mm): 31.75 mm
  • Flute Length: 86 mm
  • Overall Length: 152 mm
  • Shank Size: 1/2"
  • Point Angle: 118°
  • Helix Angle: 30°
  • Material: High Speed Steel (HSS)
  • Finish: Steam tempered black oxide with bright-ground cutting edges
  • Feed per Revolution: 0.5 mm
  • Recommended Spindle Speeds:
    • Aluminium/Brass: 612 RPM
    • Cast Iron: 241 RPM
    • Free Cutting Steel: 431 RPM
    • Malleable Iron: 271 RPM
    • Medium Carbon Steel: 301 RPM
    • Stainless Steel: 120 RPM
    • Tool Steel: 181 RPM
    • Wood/Plastic: 913 RPM

This reduced shank drill is designed for applications where large diameter drilling is required using a standard 1/2" chuck, offering versatility, durability, and excellent performance across a wide range of materials.
