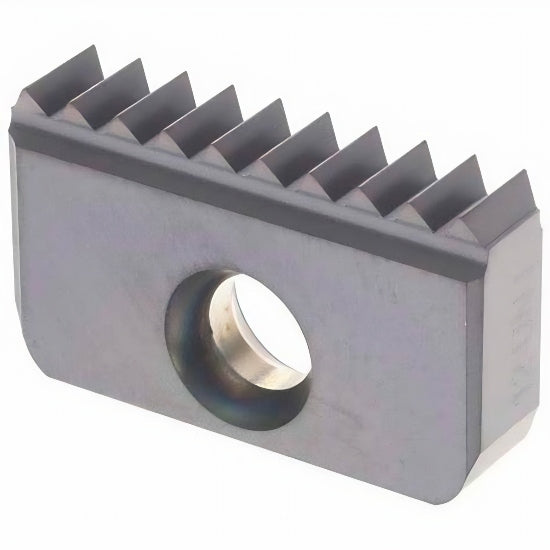

Mill-Thread Insert – BSPT 19 TPI, External & Internal

The 12-19 BSPT MT7 Mill-Thread Insert is specifically designed for producing British Standard Pipe Taper (BSPT) threads using CNC milling with helical interpolation. Ideal for both external and internal conical threading, this compact insert is suited for small-diameter threaded components where tight sealing is required in gas and fluid systems. With a 6.3 mm height and 2.9 mm thickness, this size 12 insert offers excellent control, high precision, and stability in close-tolerance operations. Manufactured from Carmex’s high-performance MT7 carbide grade, it provides outstanding wear resistance, thermal durability, and consistent thread quality over long production runs.

The insert is fully compatible with SR series toolholders offered in single, twin, and multi-insert configurations with options for internal coolant and carbide shanks. These holders provide secure clamping, enhanced rigidity, and high repeatability, making them ideal for demanding BSPT pipe threading applications in tight or intricate machining environments.

Key Features:

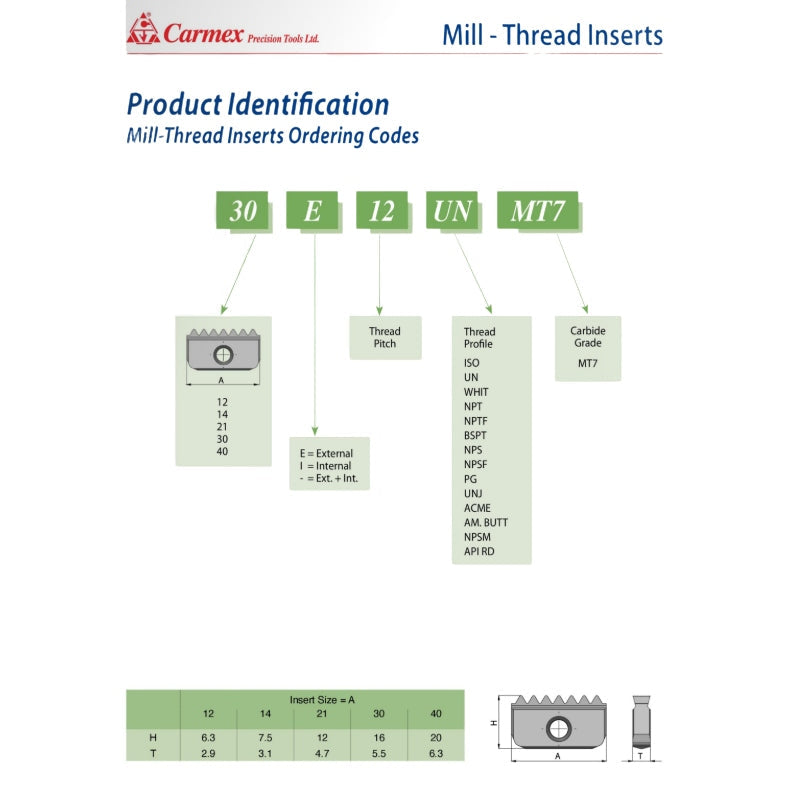

  • Ordering Code: 12-19 BSPT MT7
  • Thread Type: External and Internal Threading

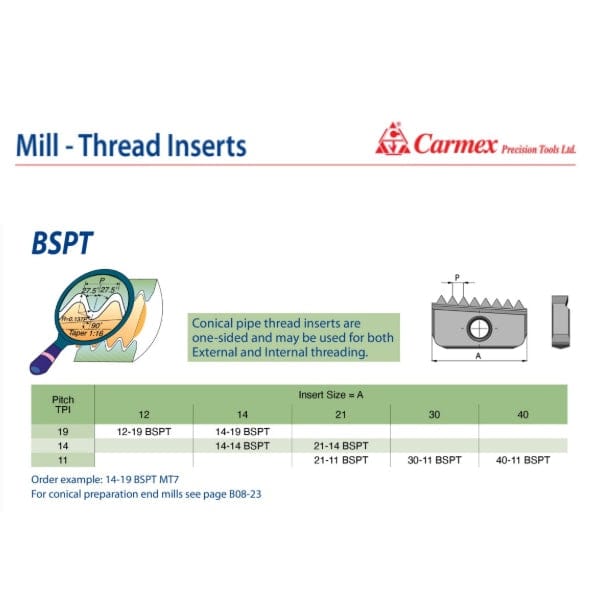

  • Thread Profile: BSPT – British Standard Pipe Taper
  • Pitch (TPI): 19
  • Insert Size: 12
  • H (Height): 6.3 mm
  • T (Thickness): 2.9 mm
  • Carbide Grade: MT7
  • Insert Type: Single-sided
  • Applications: Precision BSPT threading in compact fluid and gas-tight assemblies
  • Key Advantage: Small-format tapered threading with reliable SR toolholder integration

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in threading solutions for turning and milling, offering Thread Turning inserts, Mill-Thread systems, Spiral Mill-Thread, and Solid Carbide threadmills all engineered to deliver accuracy, reliability, and efficiency in modern machining environments.
