Carmex External/Internal WHIT Threadmill Insert 12mm/ 19 TPI

Mill-Thread Insert – WHIT 19 TPI, External & Internal The 12-19 W MT7 Mill-Thread Insert is designed for producing 55° Whitworth profile threads using CNC milling machines with helical interpolation....
$62.00
$0.00
$62.00
(-0%)
SKU: 12-19WMT7
Availability: In Stock
Subtotal: $62.00
Carmex External/Internal WHIT Threadmill Insert 12mm/ 19 TPI

Carmex External/Internal WHIT Threadmill Insert 12mm/ 19 TPI

$0.00 $62.00

Carmex External/Internal WHIT Threadmill Insert 12mm/ 19 TPI

$0.00 $62.00

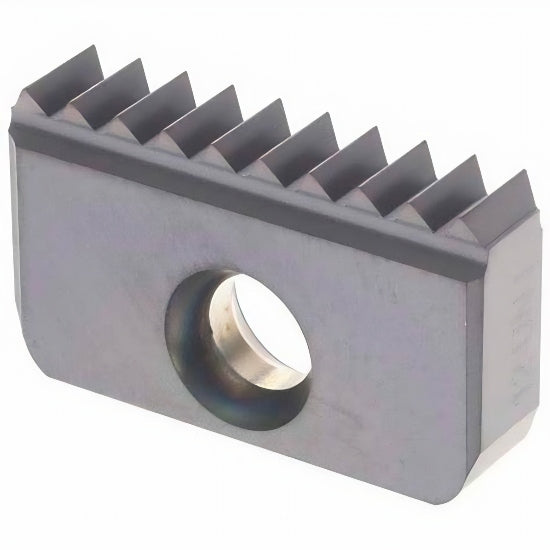

Mill-Thread Insert – WHIT 19 TPI, External & Internal

The 12-19 W MT7 Mill-Thread Insert is designed for producing 55° Whitworth profile threads using CNC milling machines with helical interpolation. Suitable for both external and internal applications, this compact-size insert is ideal for smaller thread diameters commonly used in general engineering, fastening, and low-pressure pipe systems. With a height of 6.3 mm and a thickness of 2.9 mm, this size 12 insert offers excellent control and precision in tight machining spaces. Manufactured from Carmex’s advanced MT7 carbide grade, it ensures exceptional wear resistance, thermal stability, and consistent thread form throughout production runs.

This insert is fully compatible with Carmex’s SR series toolholders, which are available in single, twin, and multi-insert configurations, with options for internal coolant and carbide shanks. These holders enhance clamping rigidity, reduce vibration, and help ensure repeatable high-accuracy threading in a variety of CNC setups.

Key Features:

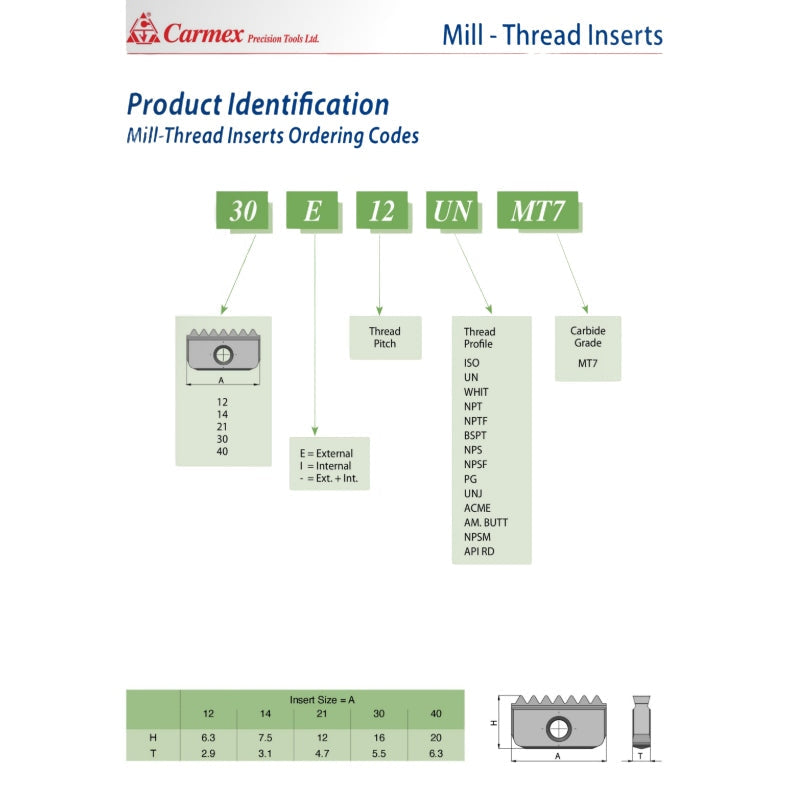

  • Ordering Code: 12-19 W MT7
  • Thread Type: External and Internal Threading

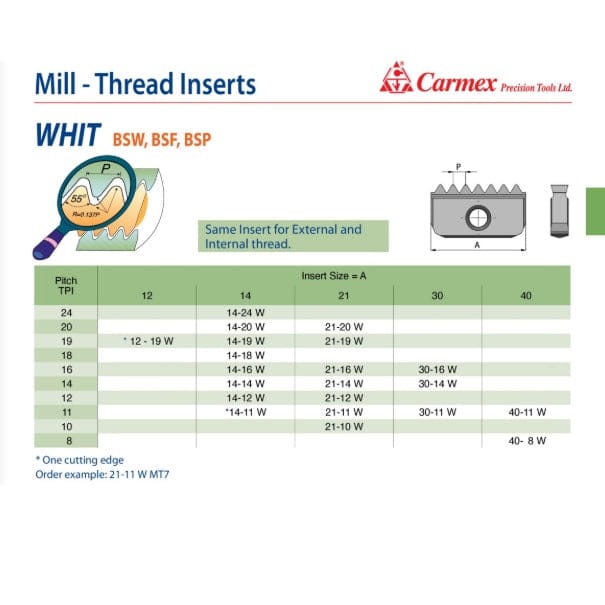

  • Thread Profile: WHIT – Whitworth
  • Pitch (TPI): 19
  • Insert Size: 12
  • H (Height): 6.3 mm
  • T (Thickness): 2.9 mm
  • Carbide Grade: MT7
  • Insert Type: Single-sided
  • Applications: Small-diameter Whitworth threading in fastening, mechanical, and pipe systems
  • Key Advantage: Compact, high-precision insert with compatibility to SR series toolholders

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in threading solutions for turning and milling, offering Thread Turning inserts, Mill-Thread systems, Spiral Mill-Thread, and Solid Carbide threadmills all engineered to deliver accuracy, reliability, and efficiency in modern machining environments.
