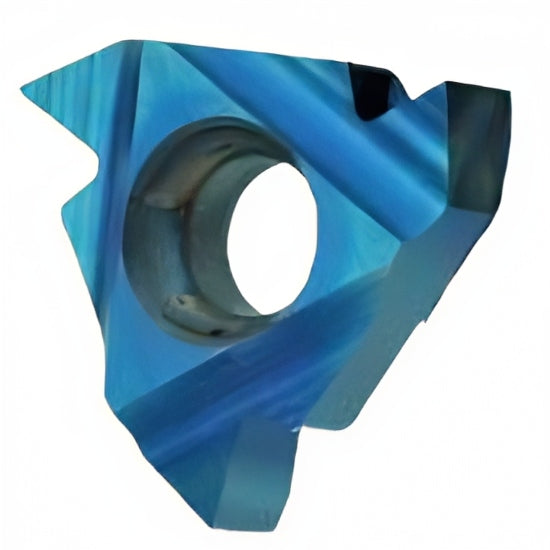

Carmex External Left Hand Vertical Partial Profile 60° Thread Turning Insert 7-5 TPI / 22V EL N60 BLU

External Thread Turning Insert – 60° Vertical Partial Profile The 60° Vertical Partial Profile External Thread Turning Insert is engineered for external threading applications that require a 60° vertical partial...
$40.00
$40.00
(-0%)
SKU: 22V EL N60 BLU
Availability: In Stock
Subtotal: $40.00
Carmex External Left Hand Vertical Partial Profile 60° Thread Turning Insert 7-5 TPI / 22V EL N60 BLU

Carmex External Left Hand Vertical Partial Profile 60° Thread Turning Insert 7-5 TPI / 22V EL N60 BLU

$40.00

Carmex External Left Hand Vertical Partial Profile 60° Thread Turning Insert 7-5 TPI / 22V EL N60 BLU

$40.00

External Thread Turning Insert – 60° Vertical Partial Profile

The 60° Vertical Partial Profile External Thread Turning Insert is engineered for external threading applications that require a 60° vertical partial profile across a range of medium thread pitches. Supporting thread pitches from 3.5 mm to 5.0 mm (7–5 TPI), this insert allows for flexible multi-pitch threading using a single tool which is ideal for general-purpose, maintenance, and small-batch production environments.

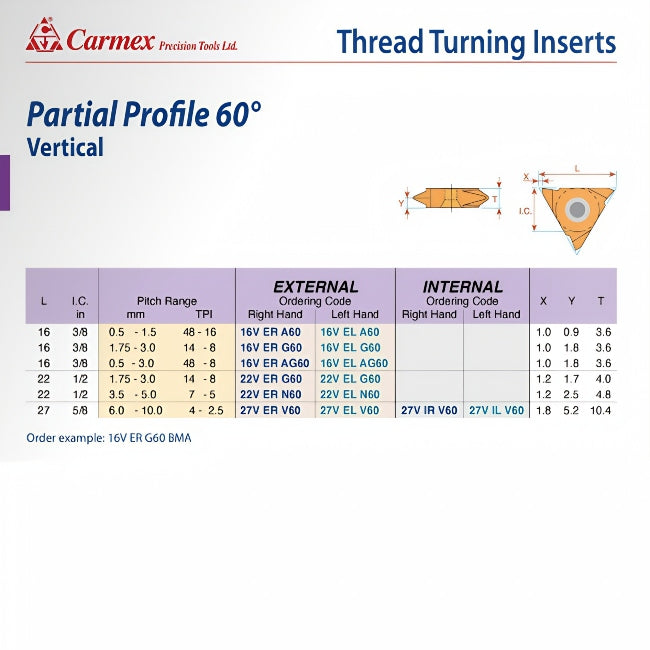

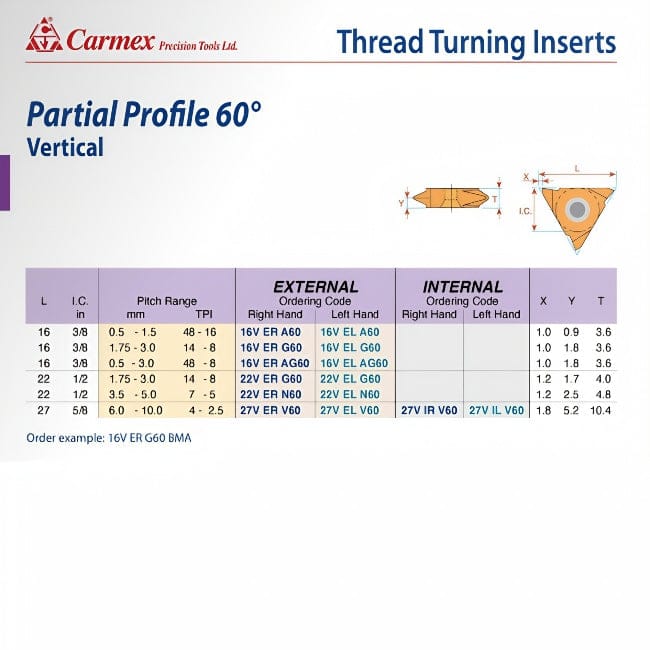

Crafted from high-performance BLU-grade carbide, the insert ensures exceptional wear resistance, thermal stability, and edge durability. With a compact 22 mm length and 1/2" I.C., and optimized X, Y, and T dimensions of 1.2 mm, 2.5 mm, and 4.8 mm respectively, it delivers reliable cutting performance and efficient chip control during demanding operations.

Key Features:

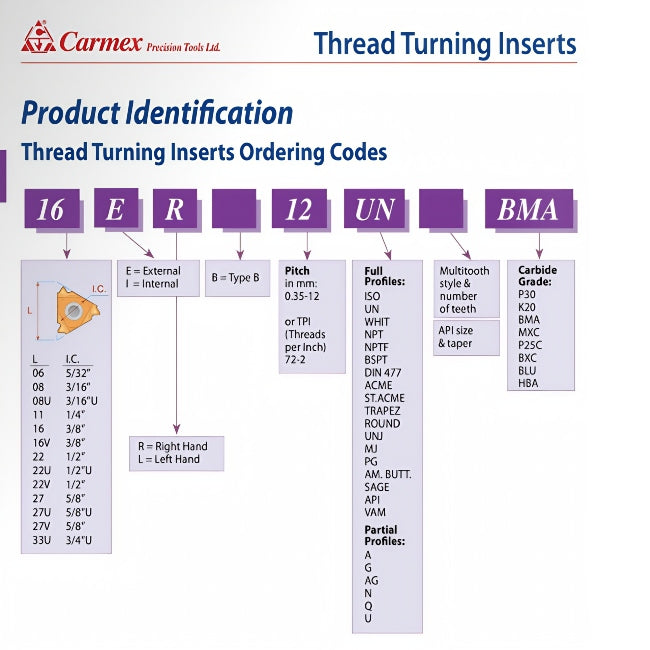

  • Ordering Code: 22V EL N60 BLU
  • Thread Type: 60° Vertical Partial Profile
  • Profile: 60° Partial Form
  • Insert Type: External
  • Hand: Left Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch Range (mm): 3.5 – 5.0 mm
  • Pitch Range (TPI): 7 – 5
  • X: 1.2 mm
  • Y: 2.5 mm
  • T: 4.8 mm

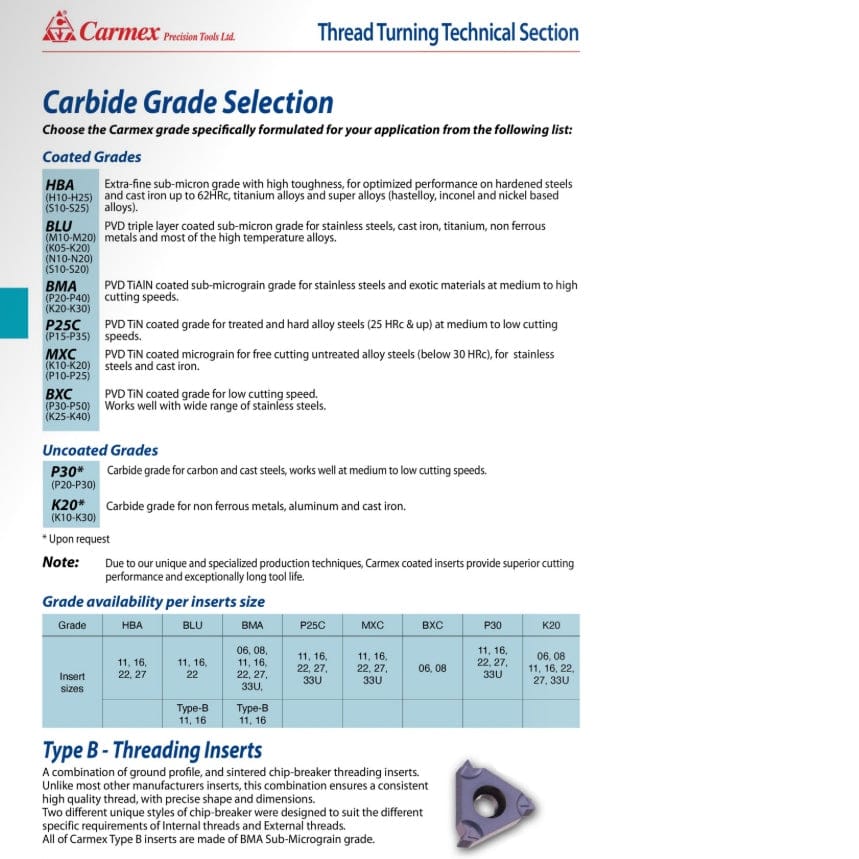

  • Carbide Grade: BLU
  • Applications: External Thread Turning for ISO/UN/NPT threads in medium pitch ranges
  • Key Advantage: Vertical insert form enables multi-pitch threading with consistent and durable performance

Carmex Precision Tools Ltd. is a global leader in advanced threading technology. Their wide product range includes Thread Turning Inserts, Mill Thread systems, and Solid Carbide threadmills trusted for precision, reliability, and performance in demanding industrial applications worldwide.
