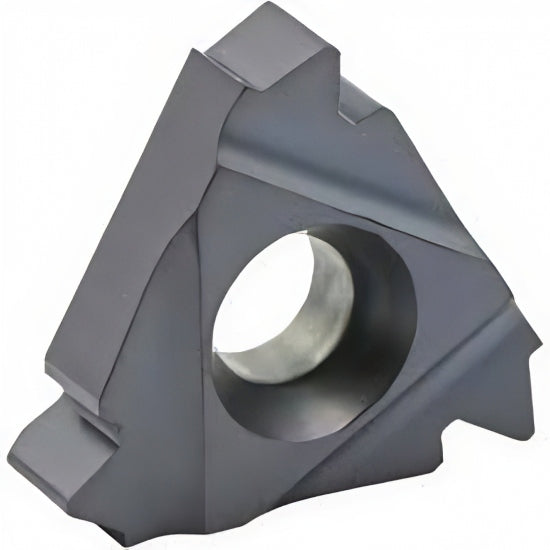

Carmex External Right Hand Stub ACME Thread Turning Insert 6 TPI / 22 ER 6 STACME BMA

External Thread Turning Insert – Stub ACME Profile (6 TPI) The 22 ER 6 STACME BMA is a precision external threading insert tailored for Stub ACME threads, providing reliable thread...
$24.00
$0.00
$24.00
(-0%)
SKU: 22 ER 6 STACME BMA
Availability: In Stock
Subtotal: $24.00
Carmex External Right Hand Stub ACME Thread Turning Insert 6 TPI / 22 ER 6 STACME BMA

Carmex External Right Hand Stub ACME Thread Turning Insert 6 TPI / 22 ER 6 STACME BMA

$0.00 $24.00

Carmex External Right Hand Stub ACME Thread Turning Insert 6 TPI / 22 ER 6 STACME BMA

$0.00 $24.00

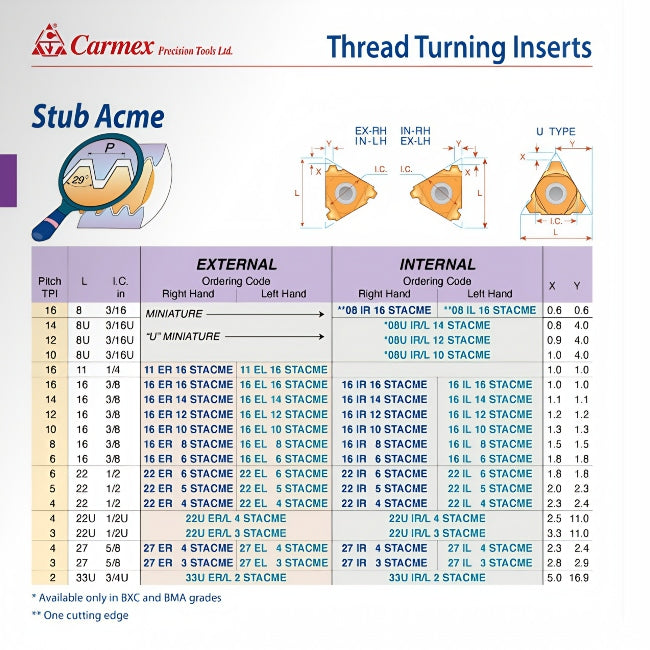

External Thread Turning Insert – Stub ACME Profile (6 TPI)

The 22 ER 6 STACME BMA is a precision external threading insert tailored for Stub ACME threads, providing reliable thread engagement and strength in linear motion, power transmission, and lead screw applications. Designed for 6 TPI thread pitches, it delivers efficient material removal and accurate form in a compact geometry suitable for smaller components and detailed threading operations.

Made from high-performance BMA-grade carbide, the insert ensures exceptional wear resistance, thermal stability, and edge retention under challenging machining conditions. With a 22 mm length and 1/2" I.C., and X and Y dimensions of 1.8 mm each, it offers excellent chip flow and consistent thread profile accuracy in medium-duty cutting environments.

Key Features:

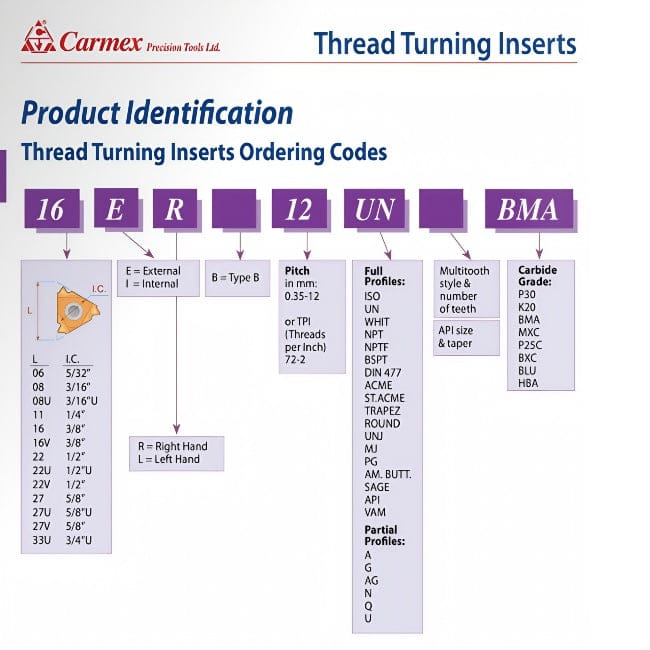

  • Ordering Code: 22 ER 6 STACME BMA
  • Thread Type: Stub ACME
  • Profile: Trapezoidal (29° Included Angle)
  • Insert Type: External
  • Hand: Right Hand
  • L: 22 mm
  • I.C.: 1/2"
  • Pitch (TPI): 6
  • X: 1.8 mm
  • Y: 1.8 mm
  • Carbide Grade: BMA
  • Applications: External Stub ACME threading for precision screws, motion control systems, and moderate-load mechanical assemblies
  • Key Advantage: Compact, rugged insert with dependable cutting performance and long tool life in fine Stub ACME threads

Carmex Precision Tools Ltd. is a recognized global provider of advanced threading technologies. Their Stub ACME series is built to deliver outstanding performance in high-precision threading applications across a wide range of industrial sectors.
