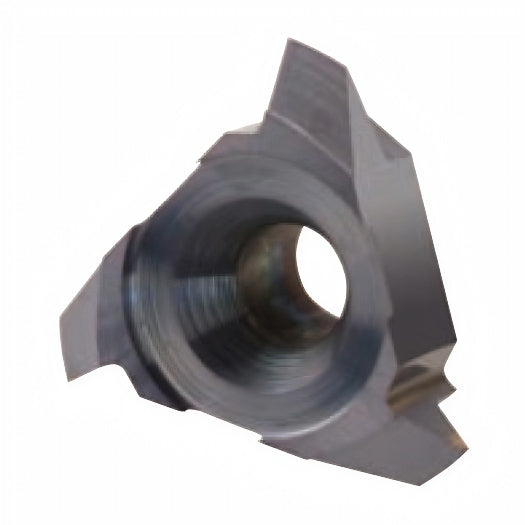

CMT Vertical Milling Tool – C18 Insert, Partial Profile 60° for ISO and UN Threads

The CMT C18 Vertical Milling Tool with Partial Profile 60° inserts is engineered for both internal and external thread milling across ISO and UN profiles. Utilizing the C18D60 insert, it supports coarse pitch ranges for robust thread cutting performance in a wide range of applications. With a cutting diameter of 17.8 mm, this tool delivers optimal access and accuracy, even in challenging workpieces.

The insert handles internal pitch ranges from 2.0–3.0 mm (13–8 TPI) and external pitch ranges from 1.75–2.5 mm (15–10 TPI), making it highly versatile for coarse-thread applications. Designed for performance in both small and medium-diameter threads, the insert offers excellent chip control and dimensional consistency.

Manufactured using MT7 carbide grade with a titanium aluminum nitride multi-layer coating (ISO K10–K20), the insert excels in high-speed, high-load cutting environments. The tool is compatible with a variety of holders featuring internal coolant capability and a solid clamping system for maximum repeatability and tool life.

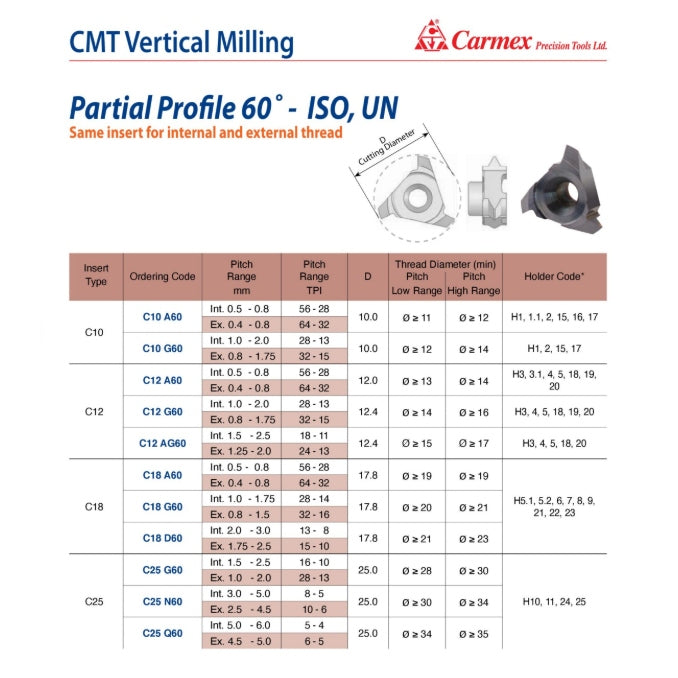

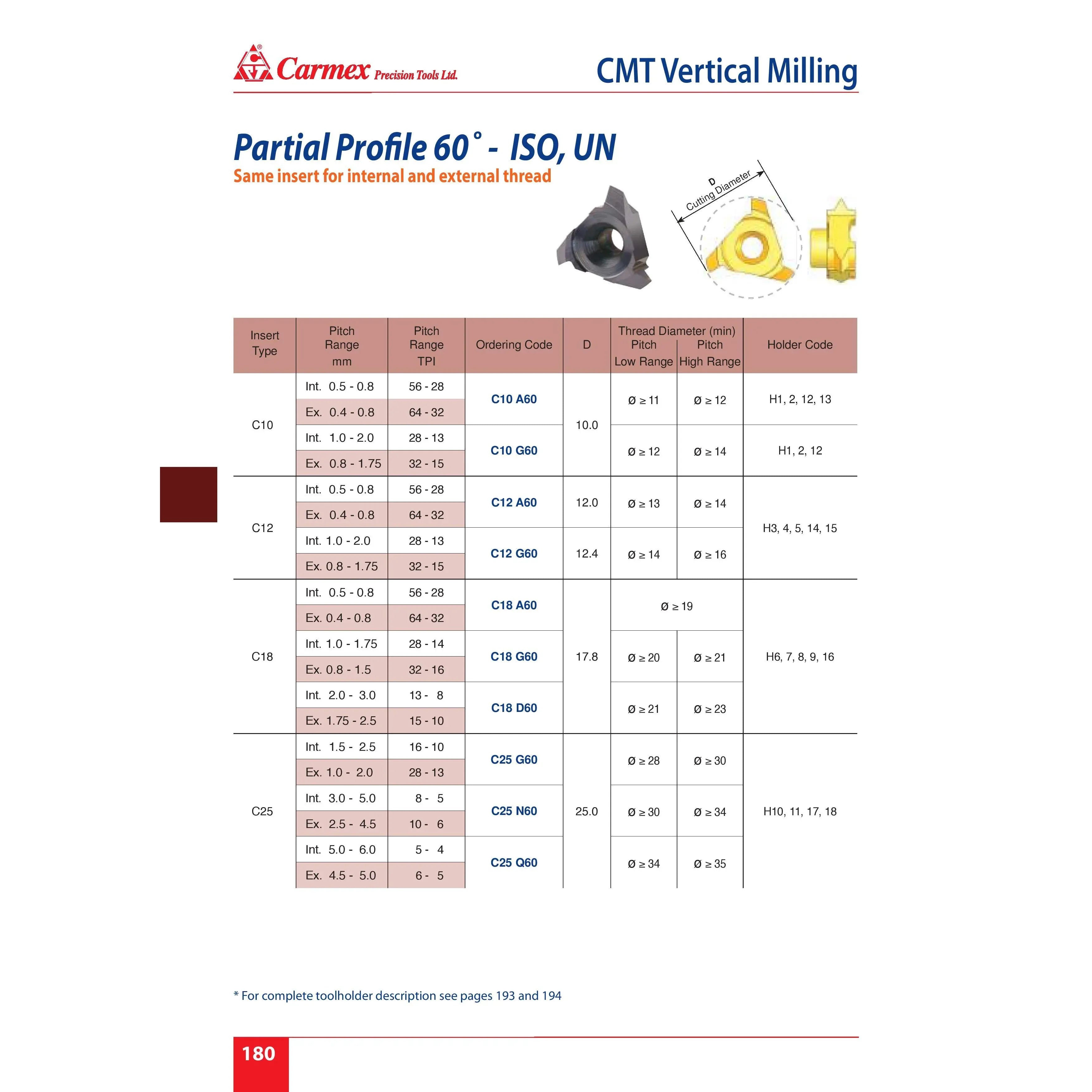

Key Features:

  • Ordering code: C18D60MT7
  • Tool Type: CMT Vertical Milling – Internal and External Threading
  • Insert Type: C18
  • Thread Profile: 60° Partial Profile – ISO, UN
  • Pitch Range:
    • Internal: 2.0 – 3.0 mm (13 – 8 TPI)
    • External: 1.75 – 2.5 mm (15 – 10 TPI)
  • Cutting Diameter (D): 17.8 mm
  • Minimum Thread Diameter:
    • Low Range Pitch: ⌀≥21 mm
    • High Range Pitch: ⌀≥23 mm
  • Carbide Grade: MT7
  • Coolant: Internal coolant compatible
  • Clamping: High-accuracy solid clamp system

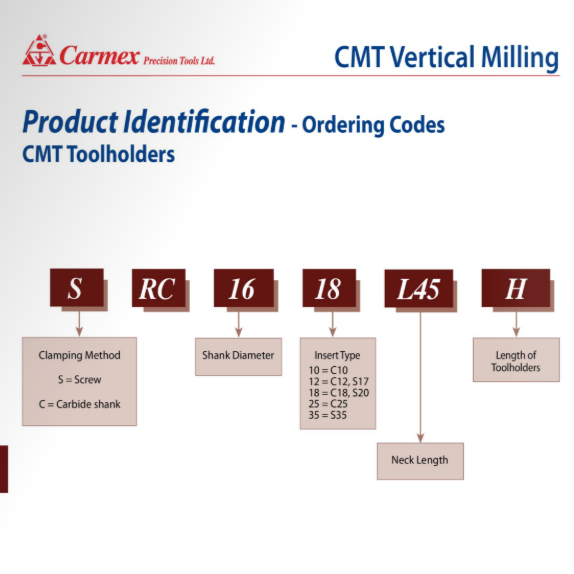

  • Holder Code: H5.1, 5.2, 6, 7, 8, 9, 21, 22, 23

Carmex Precision Tools Ltd. is a leading manufacturer of high-quality cutting tools. Carmex specializes in the production of threading tools for turning and milling. The product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide, and Spiral Mill Thread—offering complete solutions for advanced CNC threading and grooving applications.
