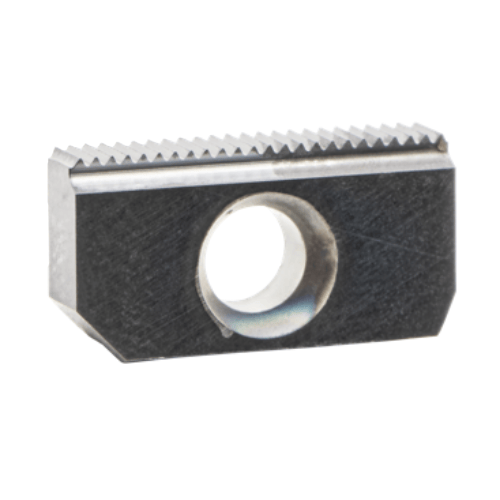

Carmex Internal ISO Threadmill Insert 21mm / 1.75mm Pitch / 21 I 1.75 ISO MT7

Mill-Thread Insert – ISO 1.75 mm Pitch, Internal The Carmex 21 I 1.75 ISO MT7 is a precision internal thread milling insert engineered for ISO metric threads with a 1.75...
$96.00
$0.00
$96.00
(-0%)
Vendor: CARMEX
SKU: 21I1.75ISOMT7
Availability: In Stock
Subtotal: $96.00
Carmex Internal ISO Threadmill Insert 21mm / 1.75mm Pitch / 21 I 1.75 ISO MT7

Carmex Internal ISO Threadmill Insert 21mm / 1.75mm Pitch / 21 I 1.75 ISO MT7

$0.00 $96.00

Carmex Internal ISO Threadmill Insert 21mm / 1.75mm Pitch / 21 I 1.75 ISO MT7

$0.00 $96.00

Mill-Thread Insert – ISO 1.75 mm Pitch, Internal

The Carmex 21 I 1.75 ISO MT7 is a precision internal thread milling insert engineered for ISO metric threads with a 1.75 mm pitch. It delivers excellent accuracy, surface finish and repeatability in CNC helical interpolation operations, making it ideal for high-precision thread production across engineering applications.

Manufactured from MT7 ultra-fine carbide, this insert provides outstanding hardness, wear resistance and heat stability for extended tool life. The size 21 profile ensures stability and rigidity for larger-diameter internal threads.

Compatible with Carmex SR Series toolholders (single, twin or multi-insert configurations), it guarantees secure clamping and efficient chip evacuation for ISO metric thread milling applications.

Key Features & Benefits

  • Ordering Code: 21 I 1.75 ISO MT7
  • Thread Type: Internal Threading
  • Thread Profile: ISO – Metric 60°
  • Pitch (mm): 1.75
  • Insert Size: 21
  • H (Height): 12 mm
  • T (Thickness): 4.7 mm
  • Carbide Grade: MT7
  • Cutting Edge: Single
  • Applications: Internal ISO metric thread milling for industrial and precision components
  • Compatible Toolholders: SR Series (Single, Twin, Multi-Insert)

Carmex Precision Tools Ltd. is a global leader in advanced threading solutions – Thread Turning Inserts, Mill-Thread Inserts, Solid Carbide Threadmills and SR Toolholders – renowned for reliability and precision.
