Carmex Threadmill Single Insert Toolholder 17mm Cut. SR0017H14

Mill-Thread Toolholder – SR0017H14, Ø17 mm, Single Insert with Internal Coolant The SR0017H14 Mill-Thread Toolholder is built for high-precision thread milling using a single insert, featuring a 17 mm cutting...
$370.00
$0.00
$370.00
(-0%)
SKU: SR0017H14
Availability: In Stock
Subtotal: $370.00
Carmex Threadmill Single Insert Toolholder 17mm Cut. SR0017H14

Carmex Threadmill Single Insert Toolholder 17mm Cut. SR0017H14

$0.00 $370.00

Carmex Threadmill Single Insert Toolholder 17mm Cut. SR0017H14

$0.00 $370.00

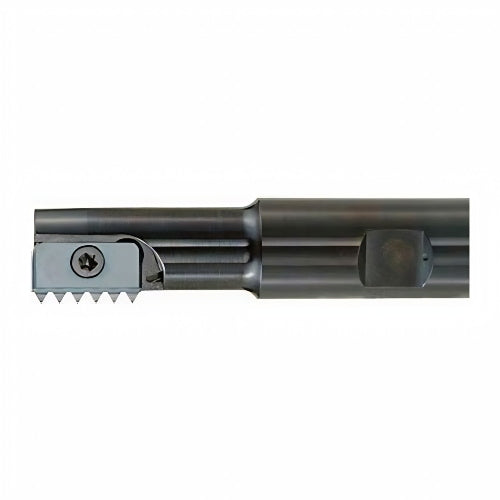

Mill-Thread Toolholder – SR0017H14, Ø17 mm, Single Insert with Internal Coolant

The SR0017H14 Mill-Thread Toolholder is built for high-precision thread milling using a single insert, featuring a 17 mm cutting diameter and internal coolant supply to optimize chip evacuation and reduce heat buildup during machining. Engineered for reliability, it uses a screw-clamping system that ensures secure insert positioning for consistent performance across various materials and applications.

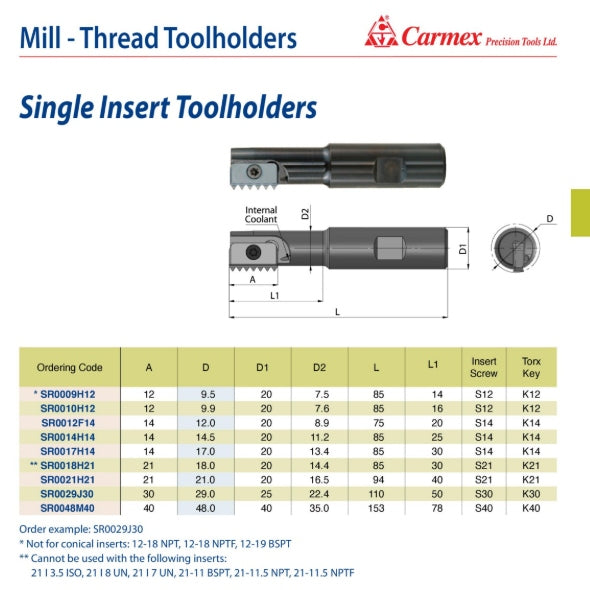

Designed to accommodate 14 mm inserts, the toolholder has a 20 mm shank diameter (D1), 13.4 mm neck diameter (D2), an overall length of 85 mm, and a 30 mm projection length (L1). Compatible with S14 insert screws and K14 Torx keys, the SR0017H14 provides excellent rigidity, tool life, and cutting stability—ideal for both standard and high-performance CNC threading.

Key Features:

  • Ordering Code: SR0017H14
  • Toolholder Type: Single Insert Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size (A): 14 mm
  • Cutting Diameter (D): 17 mm
  • D1: 20 mm
  • D2: 13.4 mm
  • L: 85 mm
  • L1: 30 mm
  • Insert Screw: S14
  • Torx Key: K14

Carmex Precision Tools Ltd. is a globally respected manufacturer of advanced cutting tools. Their extensive product line includes Thread Turning inserts, Mill-Thread holders, Spiral Mill-Thread systems, and Solid Carbide threadmills—engineered for precision, durability, and top-tier performance in modern machining operations.
