Mill-Thread Toolholder – SR0009H12, Ø9.5 mm, Single Insert with Internal Coolant

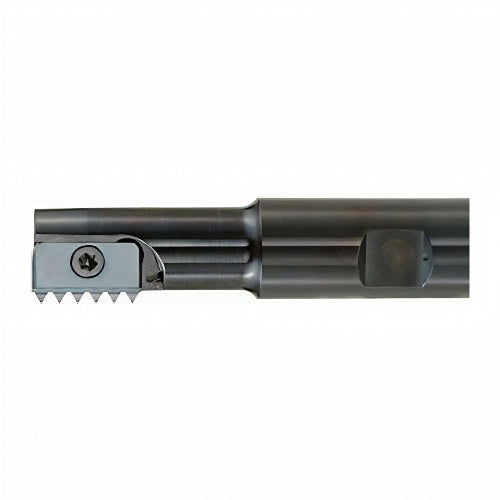

The SR0009H12 Mill-Thread Toolholder is engineered for precision thread milling operations using a single insert and helical interpolation on CNC machines. Designed with a cutting diameter of 9.5 mm and internal coolant bore, it ensures optimal chip evacuation and temperature control during machining. The screw-clamping method provides secure and repeatable insert positioning, making it ideal for high-precision threading in compact and small-diameter bores.

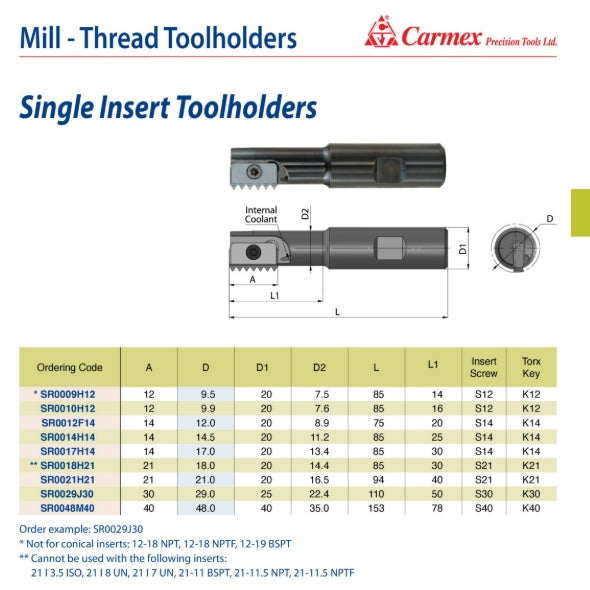

Built to hold size 12 inserts, this toolholder features a 20 mm D1 diameter and 7.5 mm D2 neck, with an overall length of 85 mm and 14 mm protrusion (L1). Compatible with S12 insert screws and K12 Torx keys, the SR0009H12 offers excellent rigidity and performance in demanding applications while supporting consistent tool engagement and minimal vibration.

Key Features:

  • Ordering Code: SR0009H12
  • Toolholder Type: Single Insert Mill-Thread
  • Coolant Supply: Internal Coolant Bore
  • Clamping Method: Screw
  • Insert Pocket Size (A): 12 mm
  • Cutting Diameter (D): 9.5 mm
  • D1: 20 mm
  • D2: 7.5 mm
  • L: 85 mm
  • L1: 14 mm
  • Insert Screw: S12
  • Torx Key: K12

Carmex Precision Tools Ltd. is a globally recognized provider of high-performance threading solutions. With a complete product line including Thread Turning inserts and holders, Mill-Thread tools, Spiral Mill-Thread, and Solid Carbide threadmills, Carmex delivers innovation, precision, and reliability for modern machining applications worldwide.
