Carmex DER 1212 H16 External Thread Toolholder, 16 mm Insert

External Thread Turning Toolholder – 16 mm Insert (Top Clamp Type) The Carmex DER 1212 H16 is a high-precision external thread turning toolholder designed for use with 16 mm IC...
$262.00
$0.00
$262.00
(-0%)
SKU: DER 1212 H16
Availability: In Stock
Subtotal: $262.00
Carmex DER 1212 H16 External Thread Toolholder, 16 mm Insert

Carmex DER 1212 H16 External Thread Toolholder, 16 mm Insert

$0.00 $262.00

Carmex DER 1212 H16 External Thread Toolholder, 16 mm Insert

$0.00 $262.00

External Thread Turning Toolholder – 16 mm Insert (Top Clamp Type)

The Carmex DER 1212 H16 is a high-precision external thread turning toolholder designed for use with 16 mm IC threading inserts. Built with a compact 12 × 12 mm shank, this toolholder is ideal for small-to-medium external threading applications that require excellent stability, secure insert clamping, and reliable chip control.

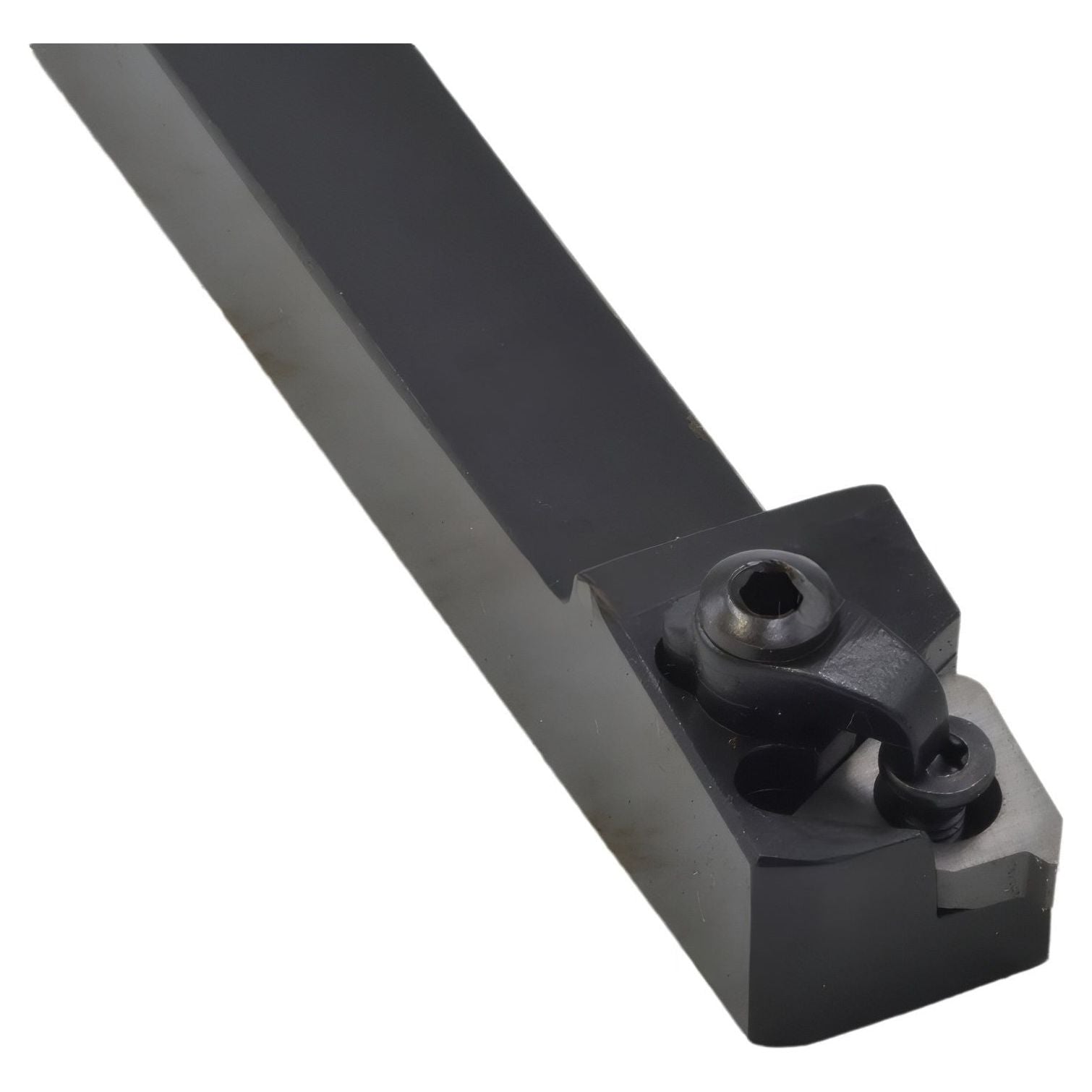

This model features a top-clamp design, ensuring extremely strong insert retention, especially during heavy or interrupted cuts. Compatible with all Carmex 16 mm external threading inserts—including Metric, UN, Whitworth, ACME, Trapez, NPT, and other special profiles—it provides versatility and accuracy across a wide range of threading operations.

Key Features:

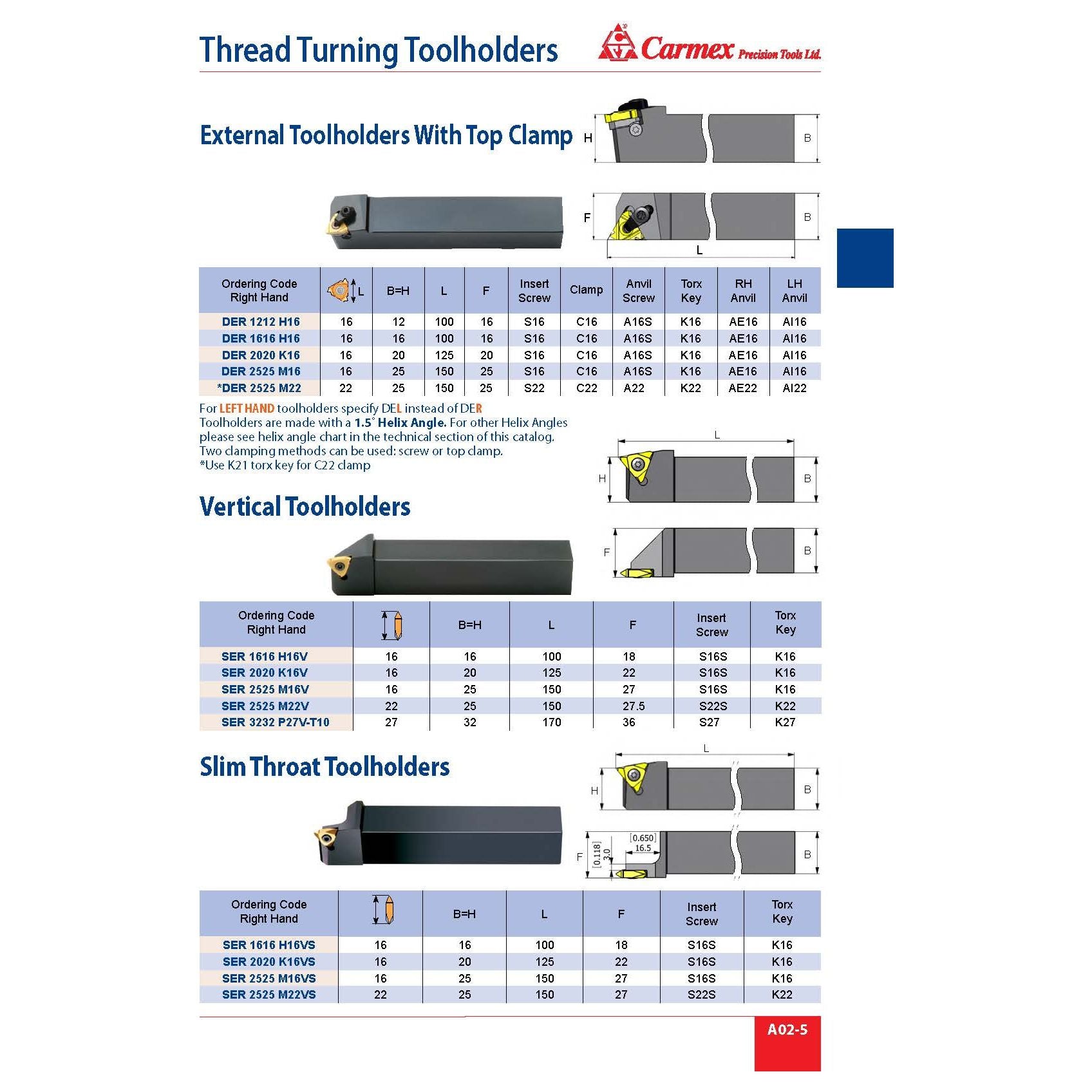

  • Ordering Code: DER 1212 H16
  • Tool Type: External Thread Turning Toolholder (Top Clamp)
  • Insert Compatibility: 16 mm IC external threading inserts
  • Shank Size (B × H): 12 × 12 mm
  • Overall Length (L): 100 mm
  • Functional Length (F): 16 mm
  • Insert Screw: S16
  • Clamp: C16
  • Anvil Screw: A16S

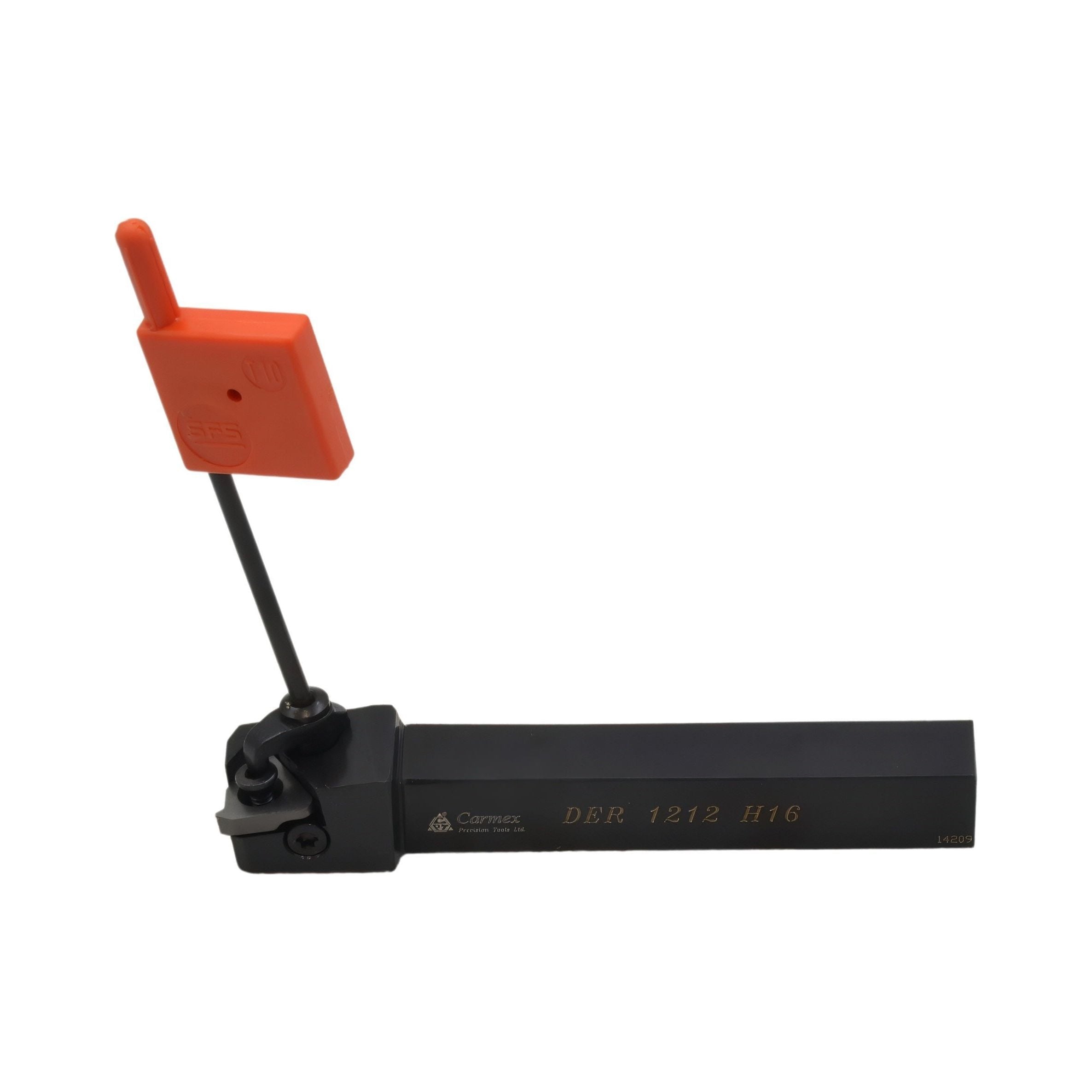

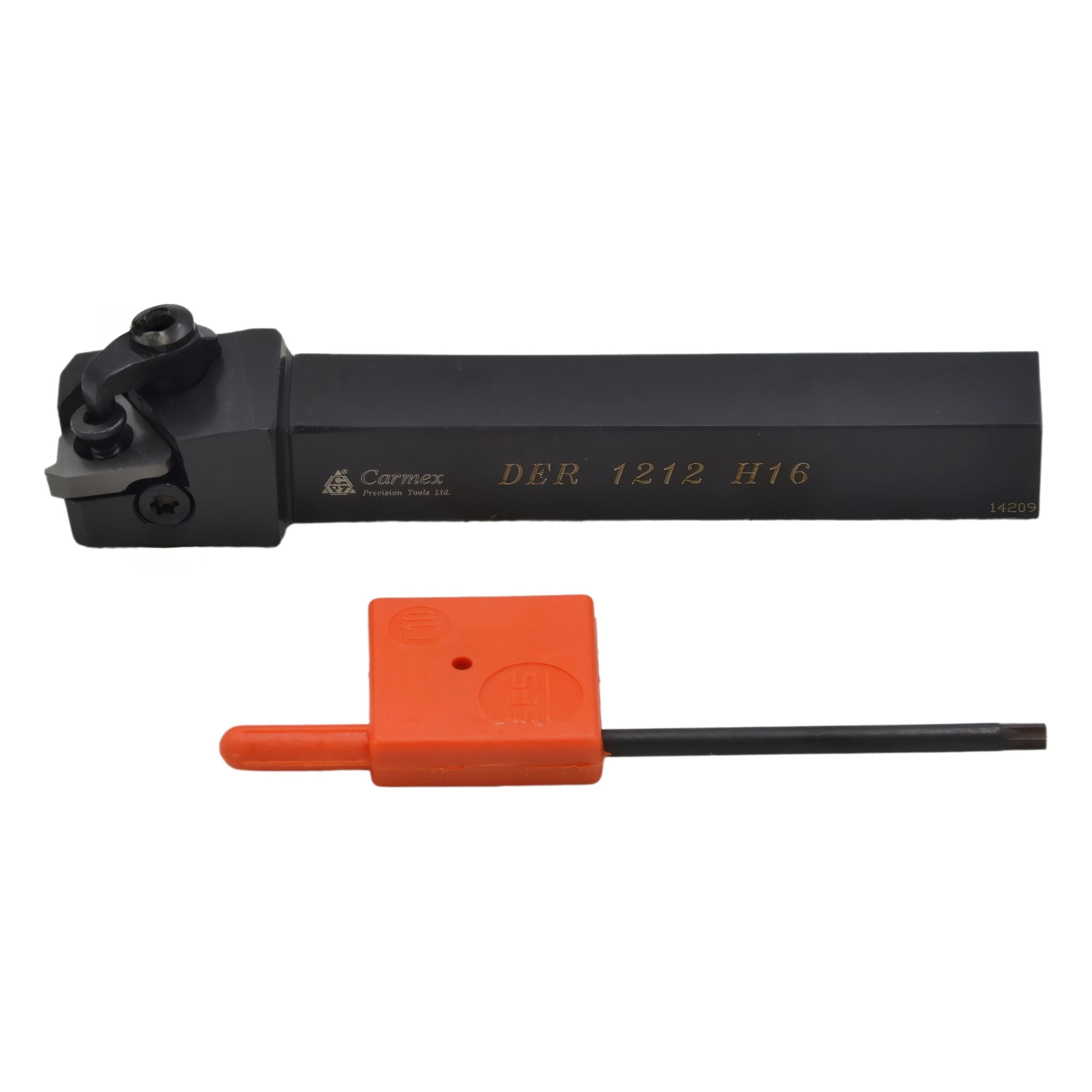

  • Torx Key: K16
  • Right-Hand Anvil: AE16
  • Left-Hand Anvil: A16
  • Construction: Hardened steel body with top-clamp locking for superior insert stability
  • Applications: External thread turning on steels, stainless steels, alloy steels, and general machining materials
  • Key Advantage: Strong top-clamp system provides excellent rigidity and stability for precision and heavy threading operations

Manufactured by Carmex Precision Tools Ltd.—a global leader in advanced threading and grooving technologies—the DER 1212 H16 ensures high performance, durability, and accuracy in all external threading applications.
