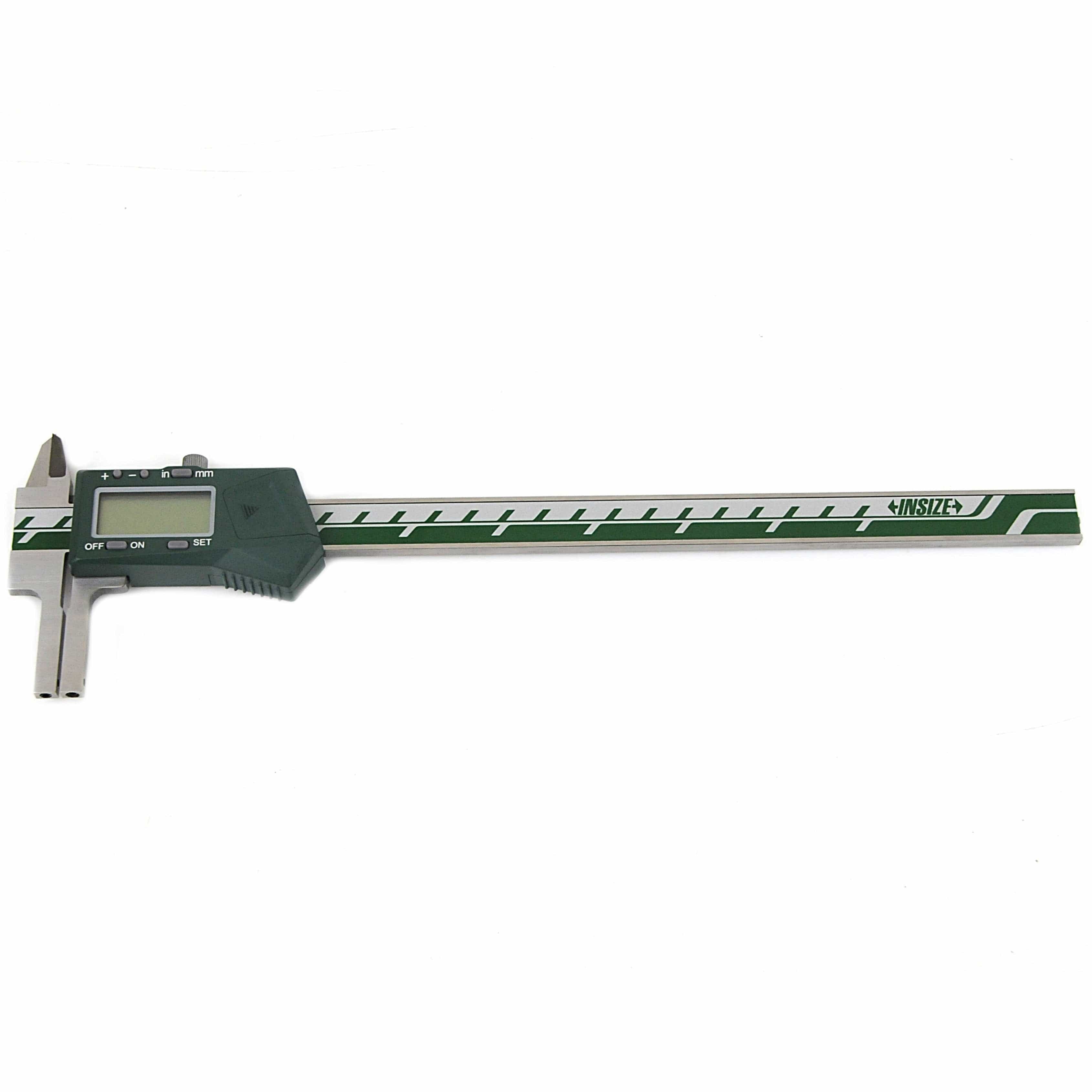

A versatile high-precision digital caliper designed for specialised internal and external groove measurements. Featuring interchangeable measuring points, this instrument allows accurate measurement of a wide variety of groove profiles, recesses, and hard-to-reach features. Its digital display provides fast, clear readings, while the robust stainless steel construction ensures durability in demanding workshop environments.

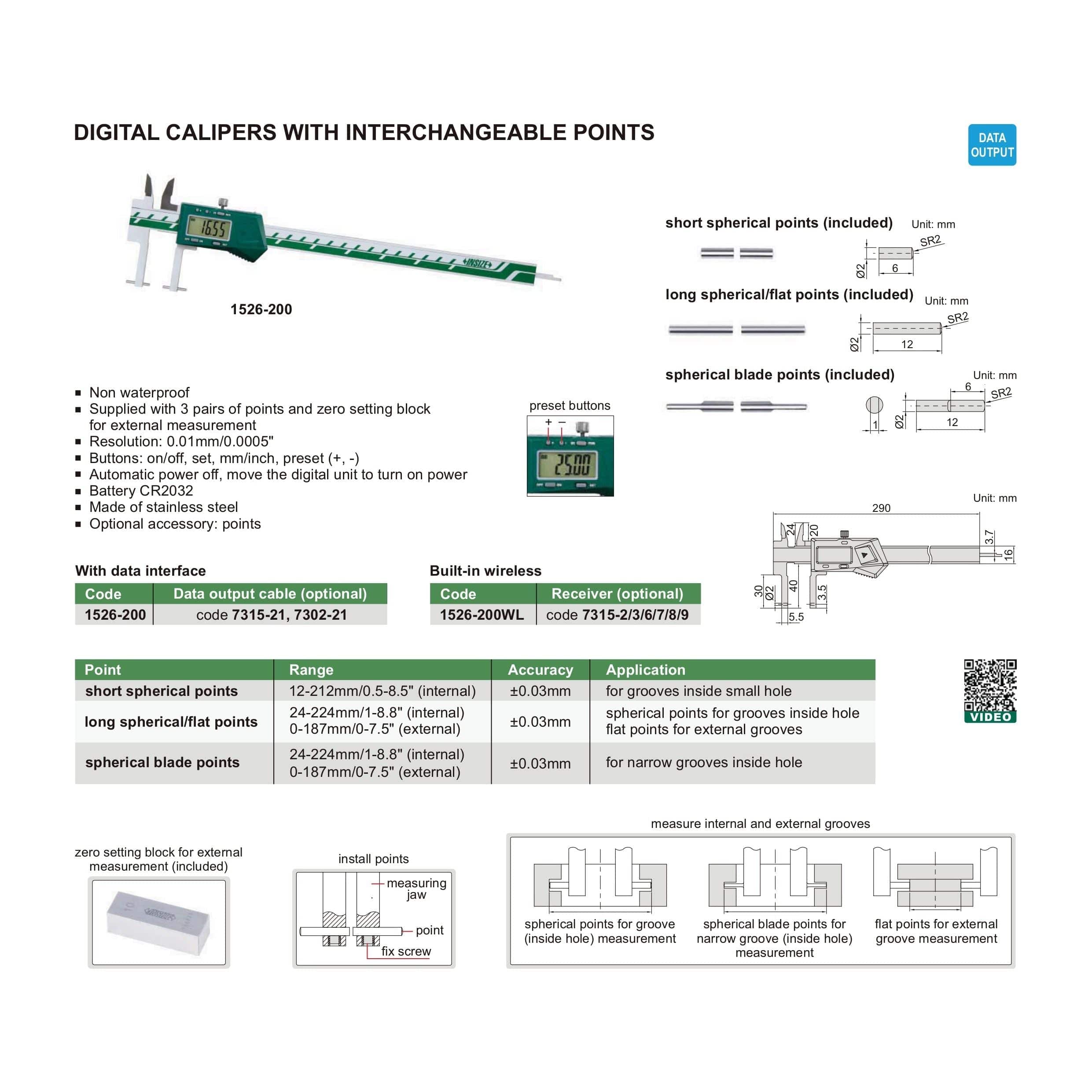

Specifications :
| Point | Range | Accuracy | Application |
|---|---|---|---|

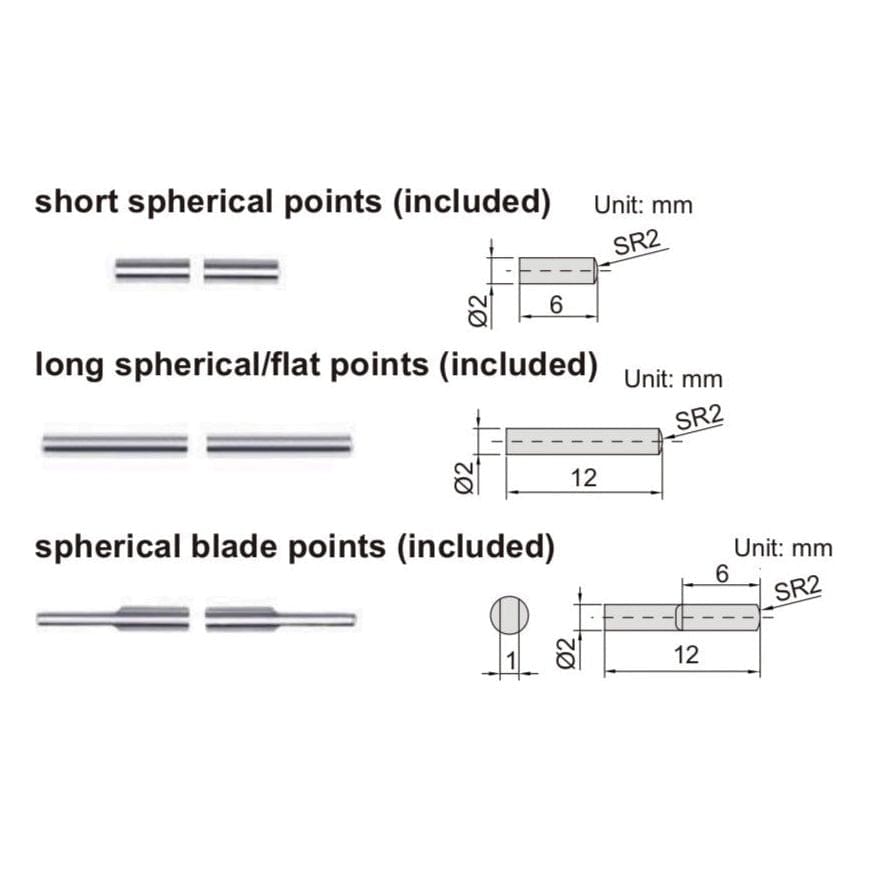

| Short Spherical Points | 12–212mm / 0.5–8.5" (internal) | ±0.03mm | For measuring grooves inside small holes |
| Long Spherical / Flat Points | 24–224mm / 1–8.8" (internal) 0–187mm / 0–7.5" (external) |
±0.03mm | Spherical points for internal grooves Flat points for external grooves |
| Spherical Blade Points | 24–224mm / 1–8.8" (internal) 0–187mm / 0–7.5" (external) |
±0.03mm | For measuring narrow grooves inside holes |
Well-designed and engineered for accuracy, this digital caliper provides exceptional versatility for inspecting internal grooves, recesses, and specialised features. Smooth operation, clear digital readout, and interchangeable points make it a valuable tool for precision measurement in machining, tooling, and inspection environments.
