Insize Interchangeable Anvil Micrometer 0-25mm Range Series 3262-25A

The Insize 3262-25A Interchangeable Anvil Micrometer is a precision measuring instrument designed for specialised measurement applications including tube thickness, shoulder edge distance, rivet head height, and similar dimensional inspections. Engineered...
$305.00
$0.00
$305.00
(-0%)
Vendor: INSIZE
SKU: 3262-25A
Availability: In Stock
Subtotal: $305.00
INSIZE Micrometer Insize Interchangeable Anvil Micrometer 0-25mm Range Series 3262-25A

Insize Interchangeable Anvil Micrometer 0-25mm Range Series 3262-25A

$0.00 $305.00

Insize Interchangeable Anvil Micrometer 0-25mm Range Series 3262-25A

$0.00 $305.00

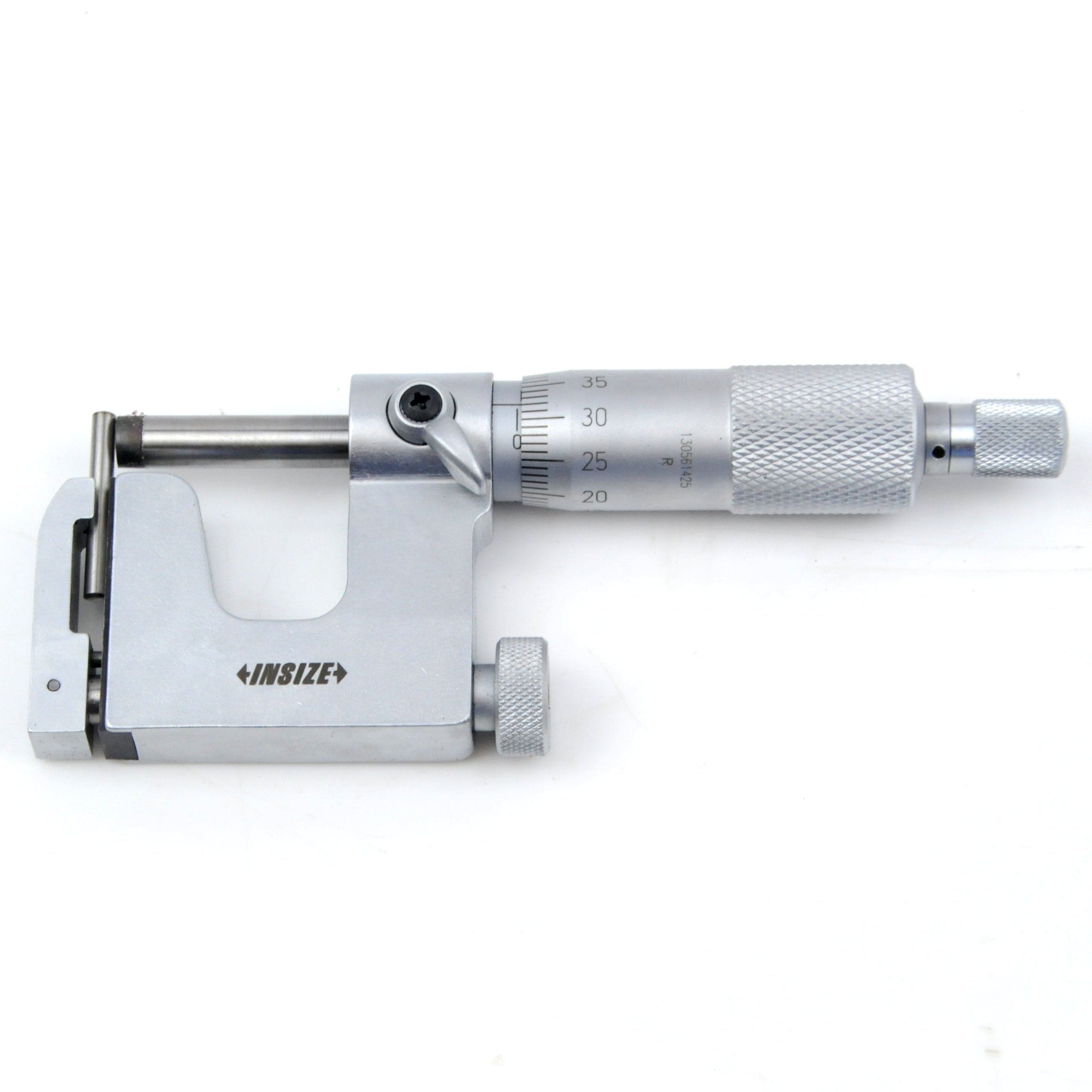

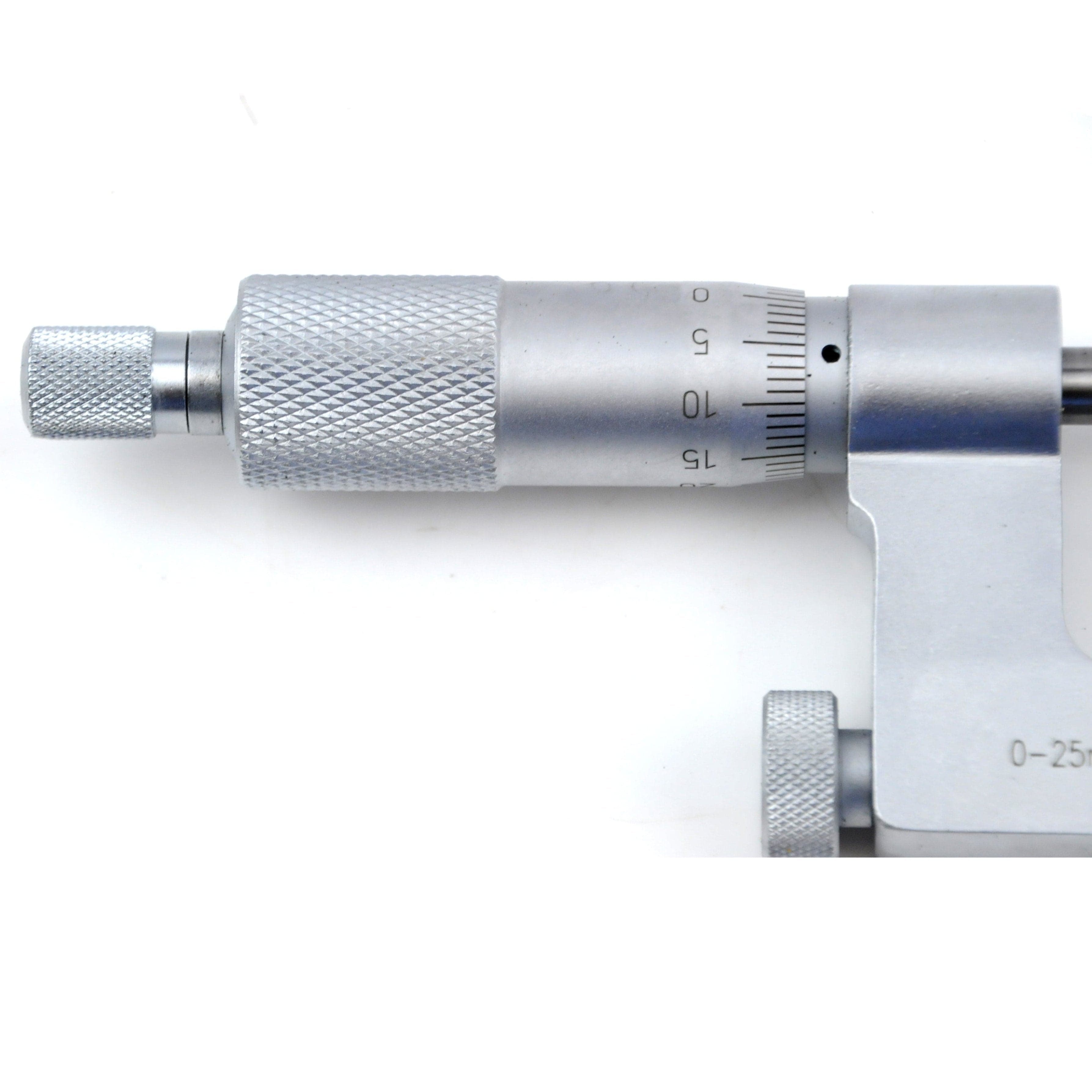

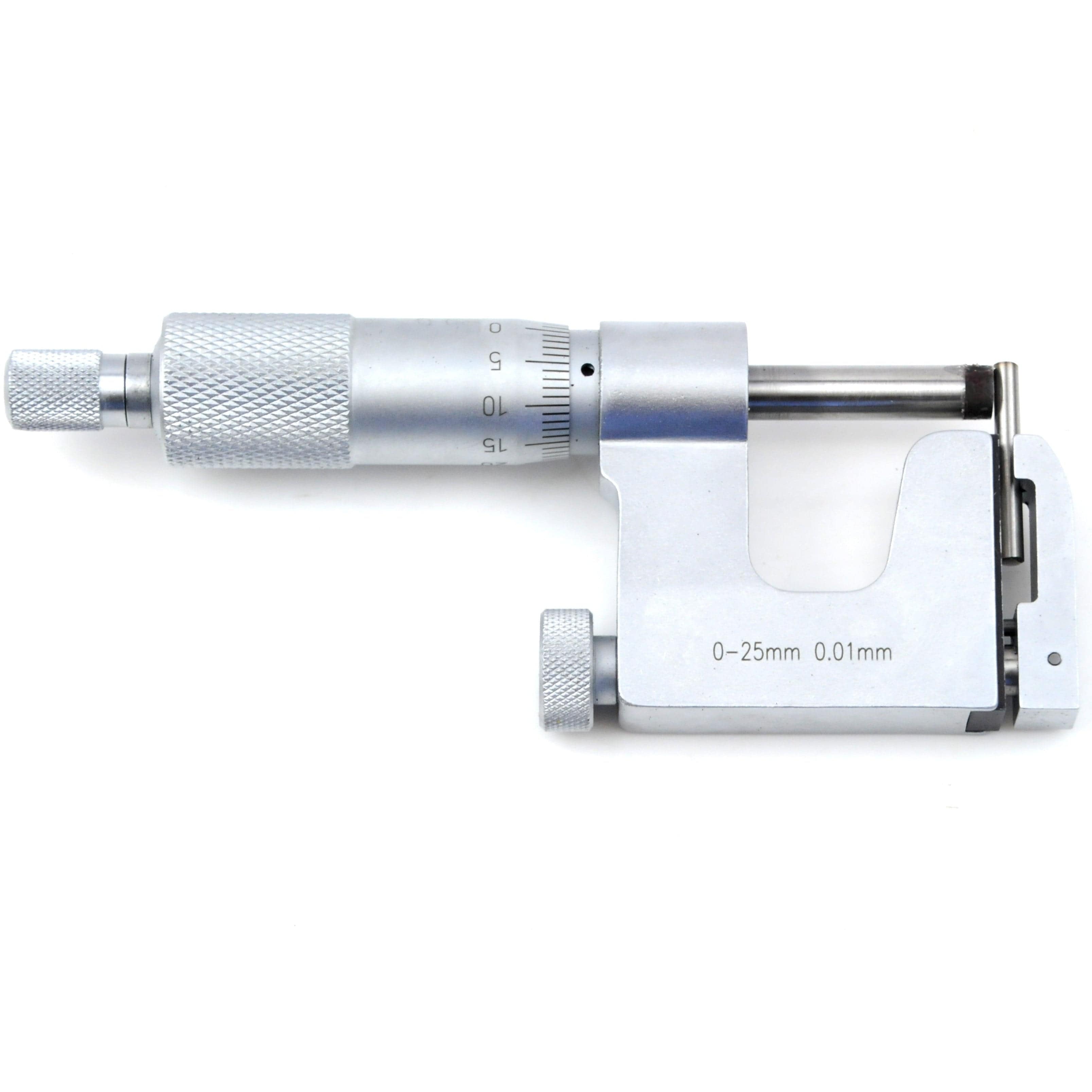

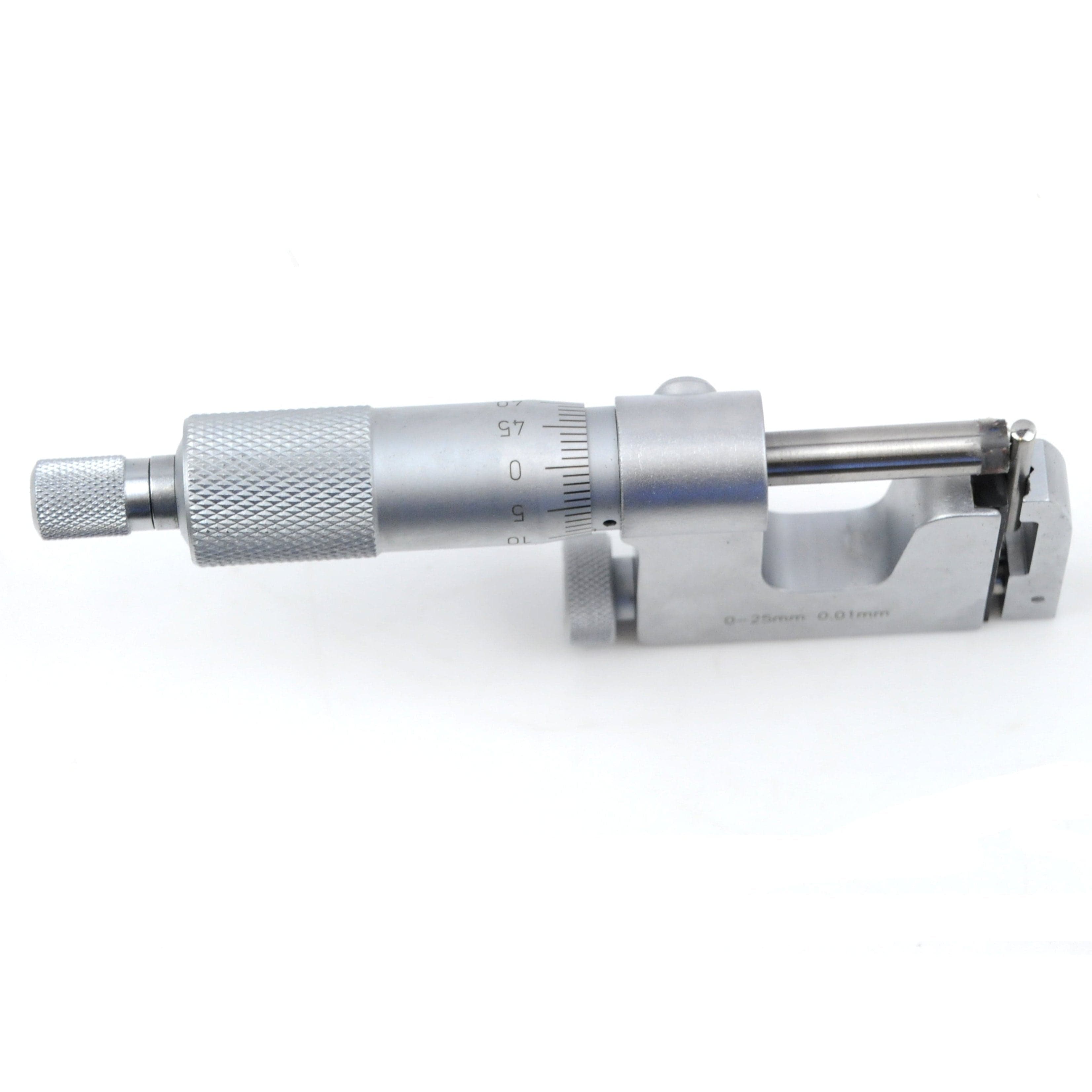

The Insize 3262-25A Interchangeable Anvil Micrometer is a precision measuring instrument designed for specialised measurement applications including tube thickness, shoulder edge distance, rivet head height, and similar dimensional inspections. Engineered for workshop, manufacturing, and quality control environments, this micrometer provides reliable accuracy and repeatable measurement performance.

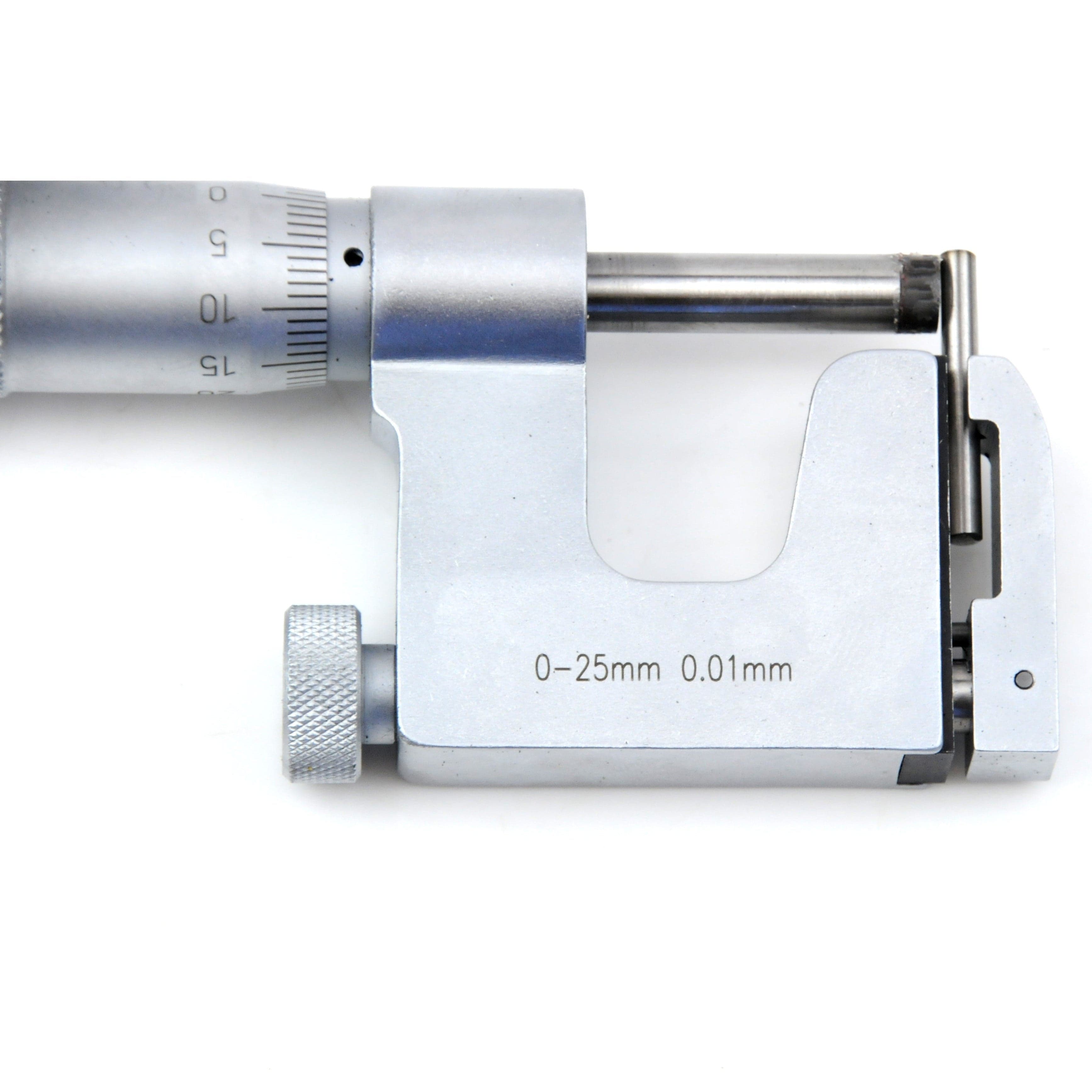

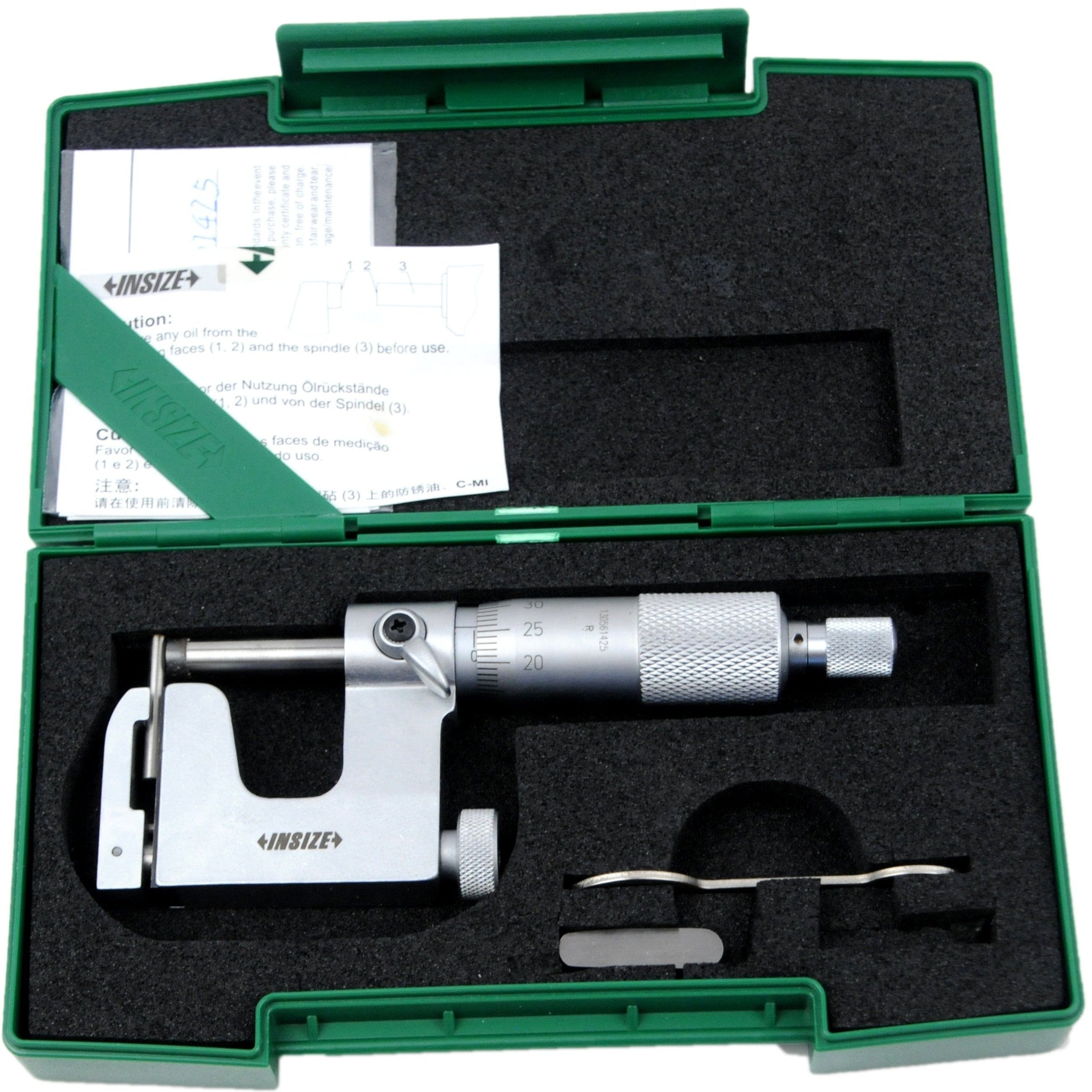

Supplied with both flat anvil and rod anvil attachments, the Insize 3262-25A offers versatile measuring capability across different applications. Featuring a carbide spindle tip for enhanced durability and wear resistance, this precision micrometer includes a ratchet stop mechanism to ensure consistent measuring force and accurate readings.

Key Features & Benefits

  • Precision interchangeable anvil micrometer
  • Suitable for measuring tube thickness and shoulder edge distance
  • Designed for rivet head height measurement applications
  • 0-25mm measuring range
  • Fine 0.01mm graduation for precise readings
  • Supplied with flat anvil and rod anvil
  • Carbide spindle tip for long service life
  • Ratchet stop ensures consistent measuring force
  • Compact and durable workshop measuring tool
  • Ideal for industrial inspection and engineering applications

Technical Specifications

  • Part Number: 3262-25A
  • Product Type: Interchangeable Anvil Micrometer
  • Measurement Range: 0-25mm
  • Accuracy: 4µm
  • Graduation: 0.01mm
  • L Dimension: 28.5mm
  • Rod Anvil Diameter (d): Ø3mm
  • Spindle Diameter: Ø6.5mm
  • Thimble Diameter: Ø18mm
  • Ratchet Stop: Yes
  • Carbide Spindle Tip: Yes
  • Anvil Types Included: Flat anvil and rod anvil

Applications

  • Tube wall thickness measurement
  • Shoulder edge distance inspection
  • Rivet head height measurement
  • Precision engineering inspection
  • Workshop dimensional measurement
  • Manufacturing quality control
  • Industrial component inspection

Insize precision measuring instruments are trusted by machinists, engineers, and inspection professionals worldwide for their dependable quality, precision accuracy, and long-lasting durability in demanding industrial applications.

Designed for professional workshop and inspection use, the Insize 3262-25A delivers accurate and repeatable measurement results for specialised dimensional measurement tasks.
