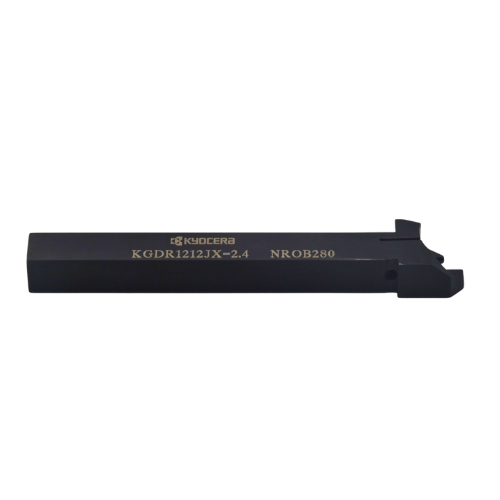

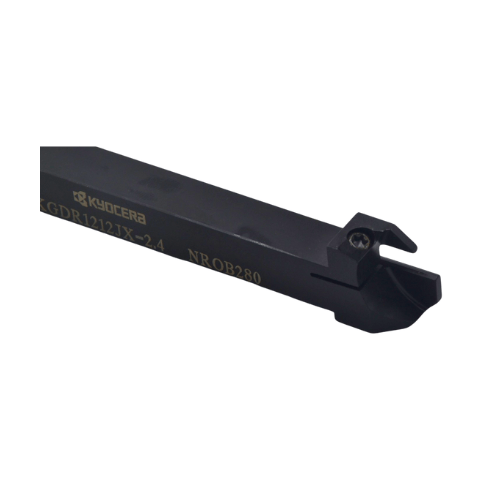

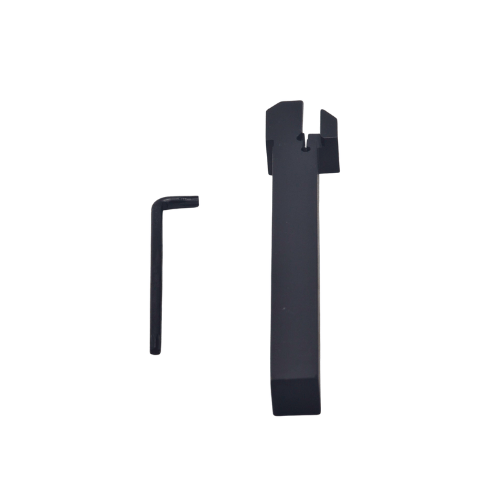

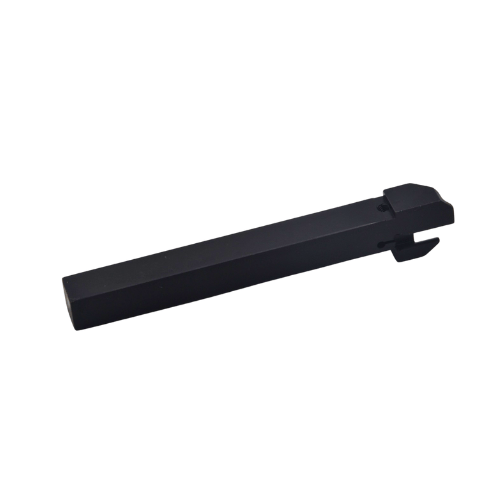

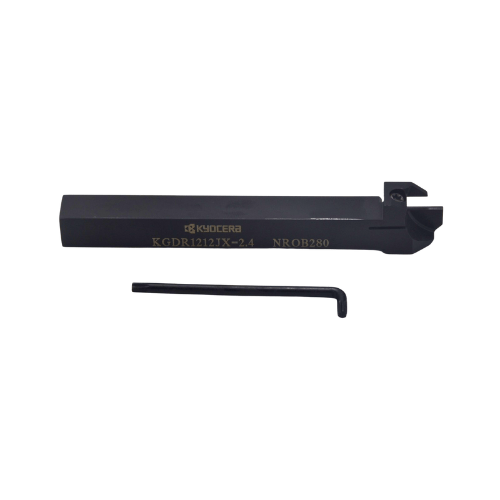

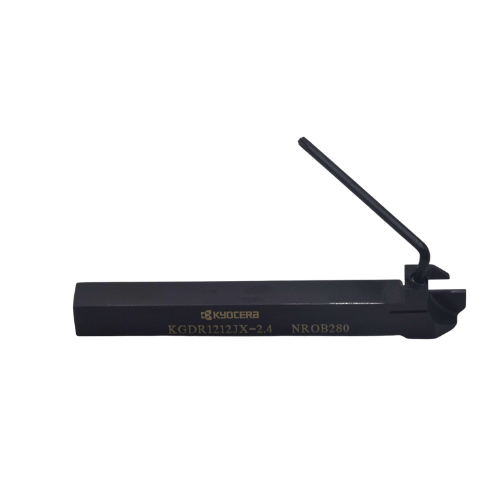

Kyocera KGDR1212JX-2.4 – External Grooving & Cut-Off Toolholder (THT03754)

The Kyocera KGDR1212JX-2.4 (Item no. THT03754) is a precision external grooving and cut-off toolholder designed for narrow groove tasks on turning machines. With a compact 12 mm × 12 mm...
$259.00
$0.00
$259.00
(-0%)
SKU: KGDR1212JX-2.4
Availability: In Stock
Subtotal: $259.00
KYOCERA ASIA PACIFIC PTE LTD TOOL HOLDERS Kyocera KGDR1212JX-2.4 – External Grooving & Cut-Off Toolholder (THT03754)

Kyocera KGDR1212JX-2.4 – External Grooving & Cut-Off Toolholder (THT03754)

$0.00 $259.00

Kyocera KGDR1212JX-2.4 – External Grooving & Cut-Off Toolholder (THT03754)

$0.00 $259.00

The Kyocera KGDR1212JX-2.4 (Item no. THT03754) is a precision external grooving and cut-off toolholder designed for narrow groove tasks on turning machines. With a compact 12 mm × 12 mm square shank and ~2.4 mm groove width capacity, this right-hand holder provides stable performance for fine grooving and parting off small profiles. It features robust clamping and excellent chip control for consistent groove geometry and repeatable results in a wide range of materials.

This toolholder is ideal for applications where access is limited and precision grooving or cut-off work is required, such as intricate shaft features or small components on CNC and manual lathes.

Key Features & Benefits

  • 12 mm × 12 mm square shank — compact and rigid for small turning setups.
  • Right-hand orientation — suitable for standard turning and grooving operations.
  • Grooving width ~2.4 mm — ideal for fine grooves and light cut-off tasks.
  • Secure clamp design — ensures stable insert seating and repeatability.
  • Excellent chip control with proper insert selection.
  • Perfect for precision grooving, parting, and profiling in small workpieces.

Technical Specifications

  • Item No: THT03754
  • Model: KGDR1212JX-2.4
  • Shank Width (B): 12 mm
  • Shank Height (H): 12 mm
  • Cutting Type: External grooving and cut-off
  • Hand: Right-hand
  • Groove Width: ~2.4 mm
  • Max Groove Depth: Designed for small profile work
  • Compatible Insert Styles: ~JX-style grooving inserts
  • Internal Coolant: No internal coolant
