Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant) The Kyocera MEV032R-06-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient face milling and shoulder milling operations....
$324.00
$0.00
$324.00
(-0%)
SKU: MEV032R064TM
Availability: In Stock
Subtotal: $324.00
Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant) - Twin Eagle Imports

Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

$0.00 $324.00

Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

$0.00 $324.00

Kyocera MEV032R-06-4T-M 32mm Milling Toolholder (4 Inserts 16mm Bore Internal Coolant)

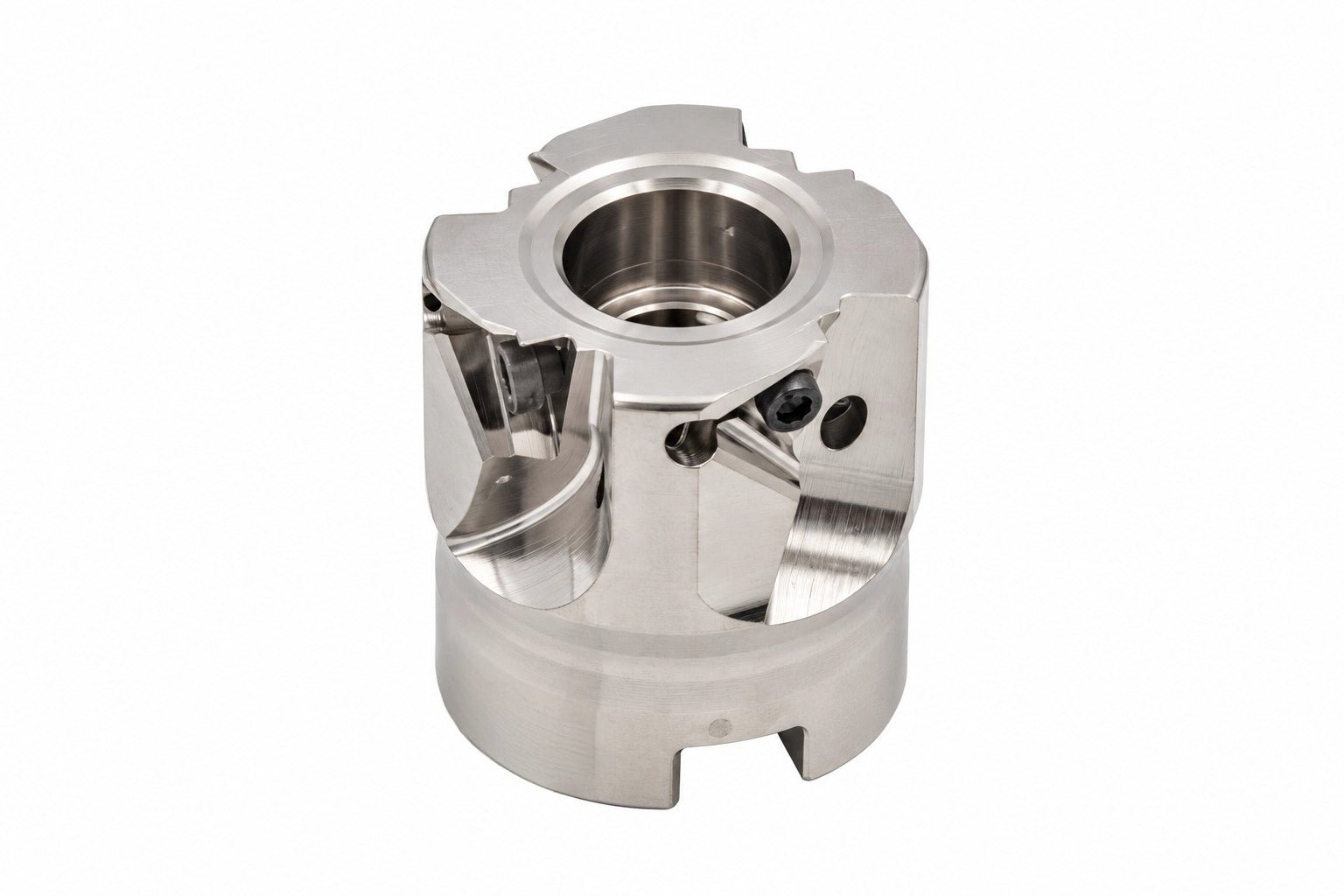

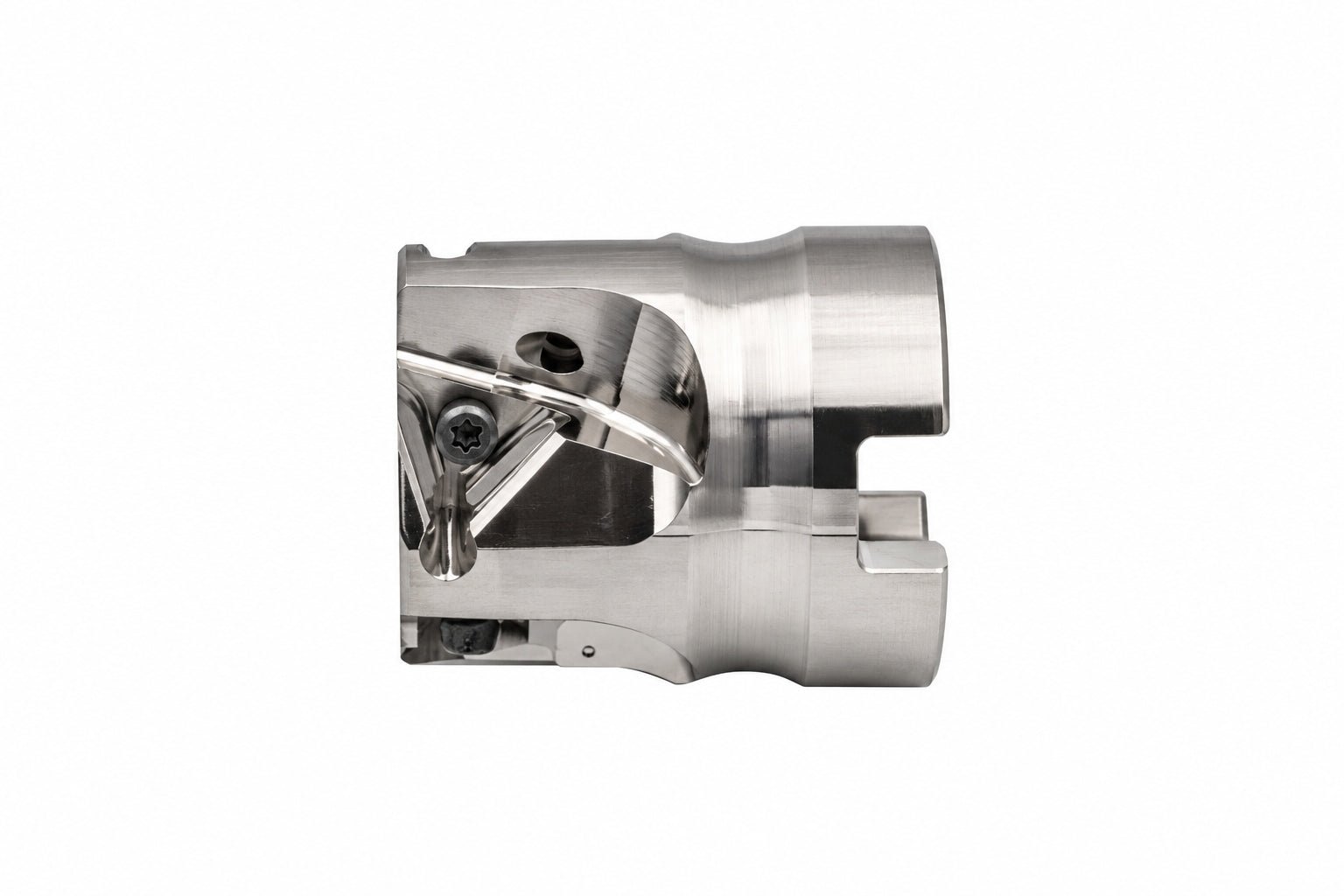

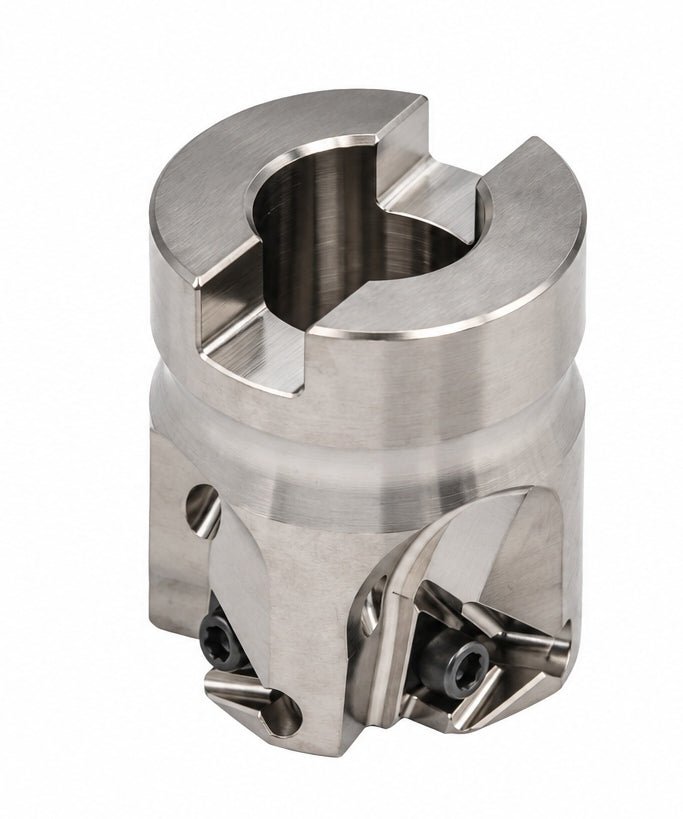

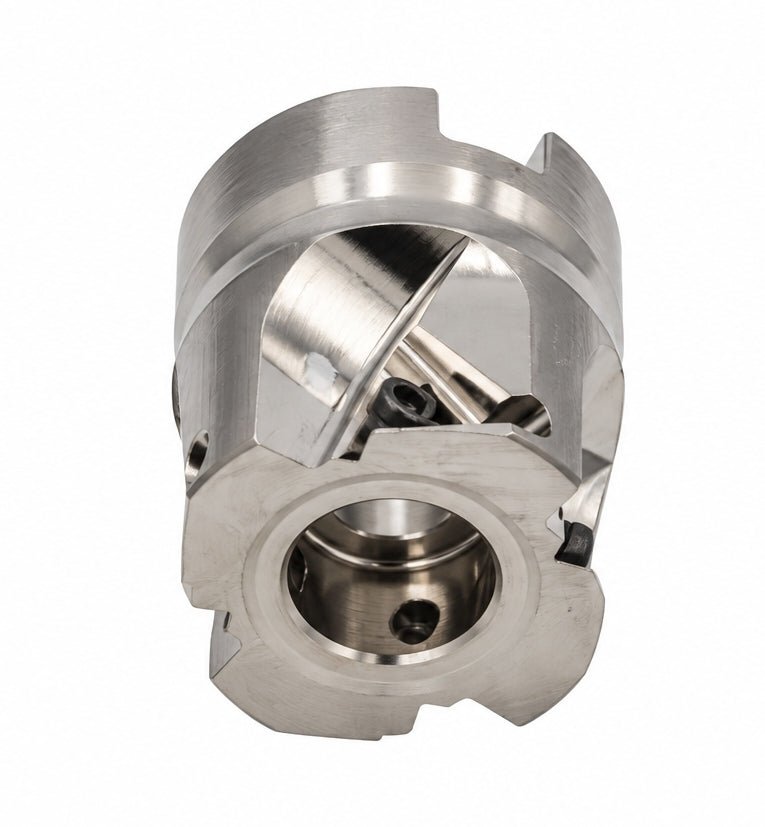

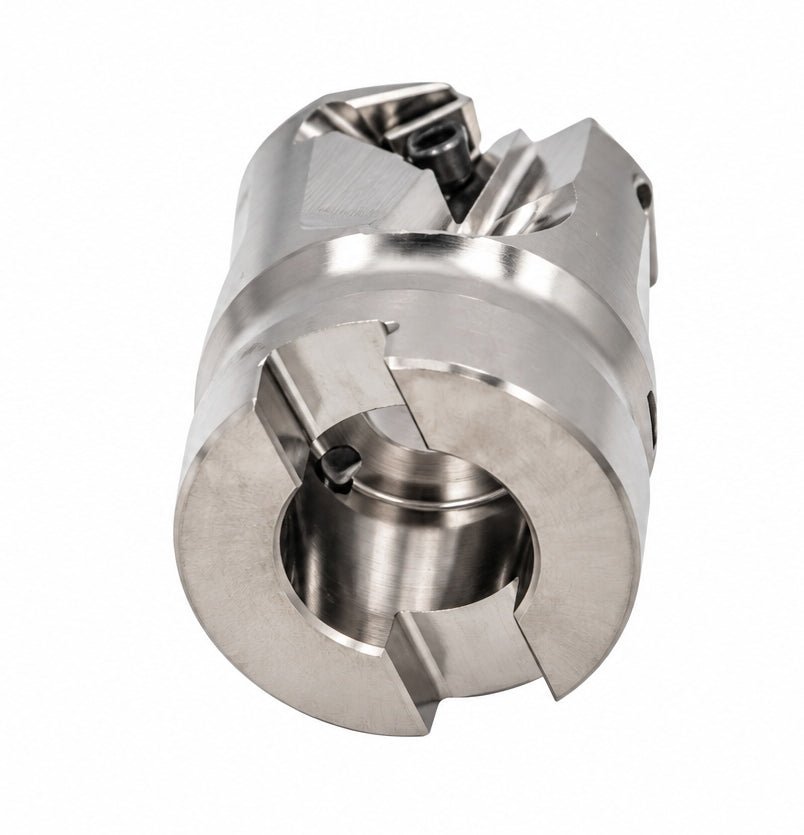

The Kyocera MEV032R-06-4T-M Milling Toolholder is a precision-engineered milling cutter designed for efficient face milling and shoulder milling operations. Featuring a 32mm cutting diameter and a 16mm connection bore, this toolholder accommodates four inserts to provide reliable cutting performance and consistent machining results. Its internal coolant capability helps deliver coolant directly to the cutting area, supporting effective heat management during milling operations.

Key Features & Benefits

  • Precision Milling Design: Engineered for reliable and accurate milling performance.
  • 32mm Cutting Diameter: Suitable for milling operations requiring a 32mm cutter diameter.
  • 4-Insert Configuration: Features four face-mounted inserts for efficient material removal.
  • Internal Coolant: Supports coolant delivery to the cutting zone for improved heat management.
  • 6mm Maximum Depth of Cut: Provides a maximum cutting depth of 6mm, with a recommended depth of cut of 3mm.
  • 90° Cutting Edge Angle: Designed with a 90° tool cutting edge angle.
  • Compact Construction: Features a 35mm overall length for a compact tool setup.
  • High-Speed Capability: Maximum rotational speed of 20,000 RPM, subject to appropriate operating conditions.

Technical Specifications

  • Brand: Kyocera
  • Model: MEV032R-06-4T-M
  • Item Number: THN08500
  • Tool Type: Milling Toolholder
  • Cutting Diameter: 32 mm
  • Number of Inserts: 4
  • Connection Bore Diameter: 16 mm
  • Overall Length (OAL): 35 mm
  • Functional Length (LF): 35 mm
  • Maximum Depth of Cut: 6 mm
  • Recommended Depth of Cut: 3 mm
  • Maximum Plunge Depth: 0.8 mm
  • Body Diameter: 30.4 mm
  • Radial Rake Angle: -35°
  • Axial Rake Angle: 17°
  • Tool Cutting Edge Angle: 90°
  • Cutting Direction: Right-hand
  • Internal Coolant: Yes
  • Maximum Rotational Speed: 20,000 RPM

The Kyocera MEV032R-06-4T-M Milling Toolholder for precision milling applications requiring a 32mm cutter with four inserts and internal coolant capability. Please verify insert compatibility and machine connection requirements before use.
