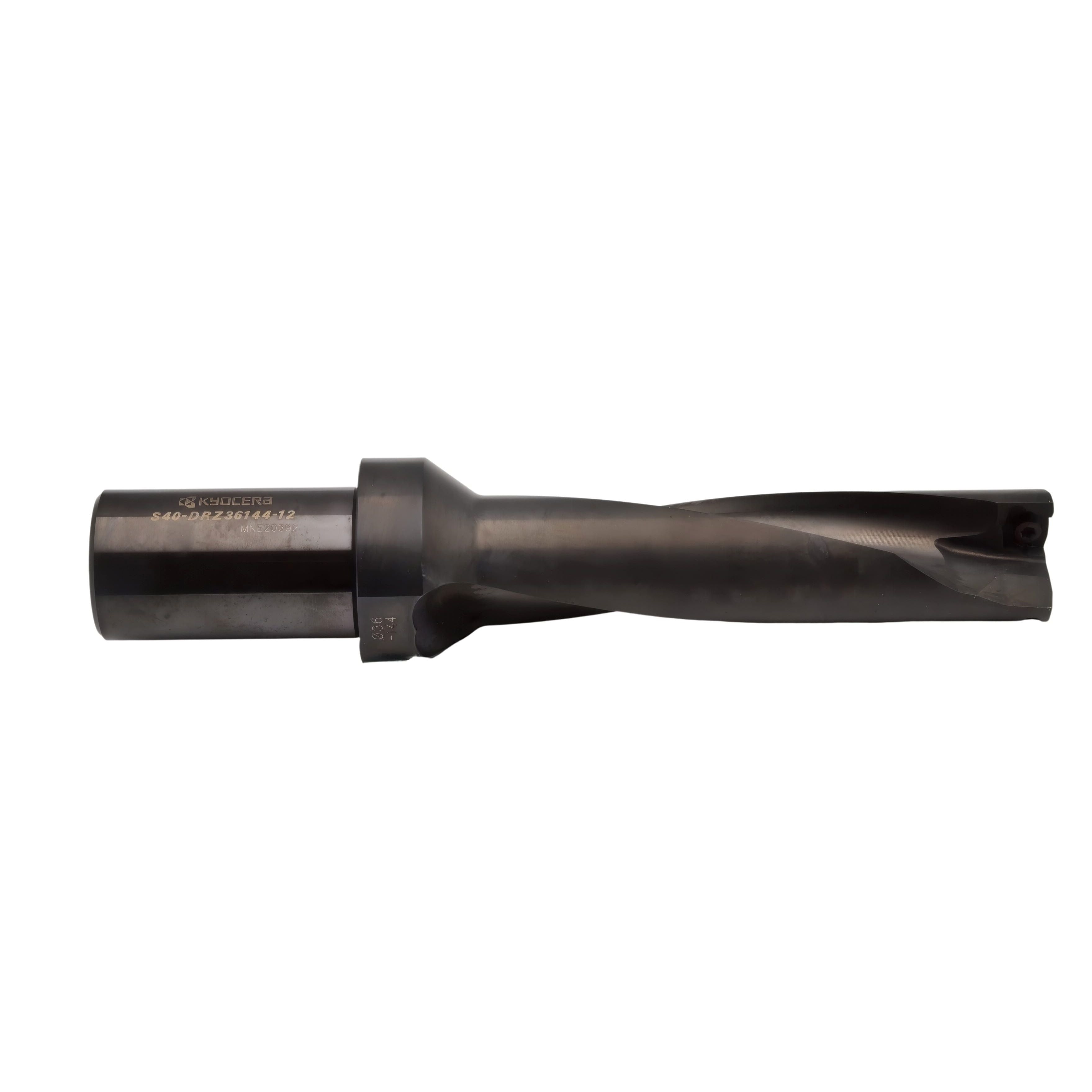

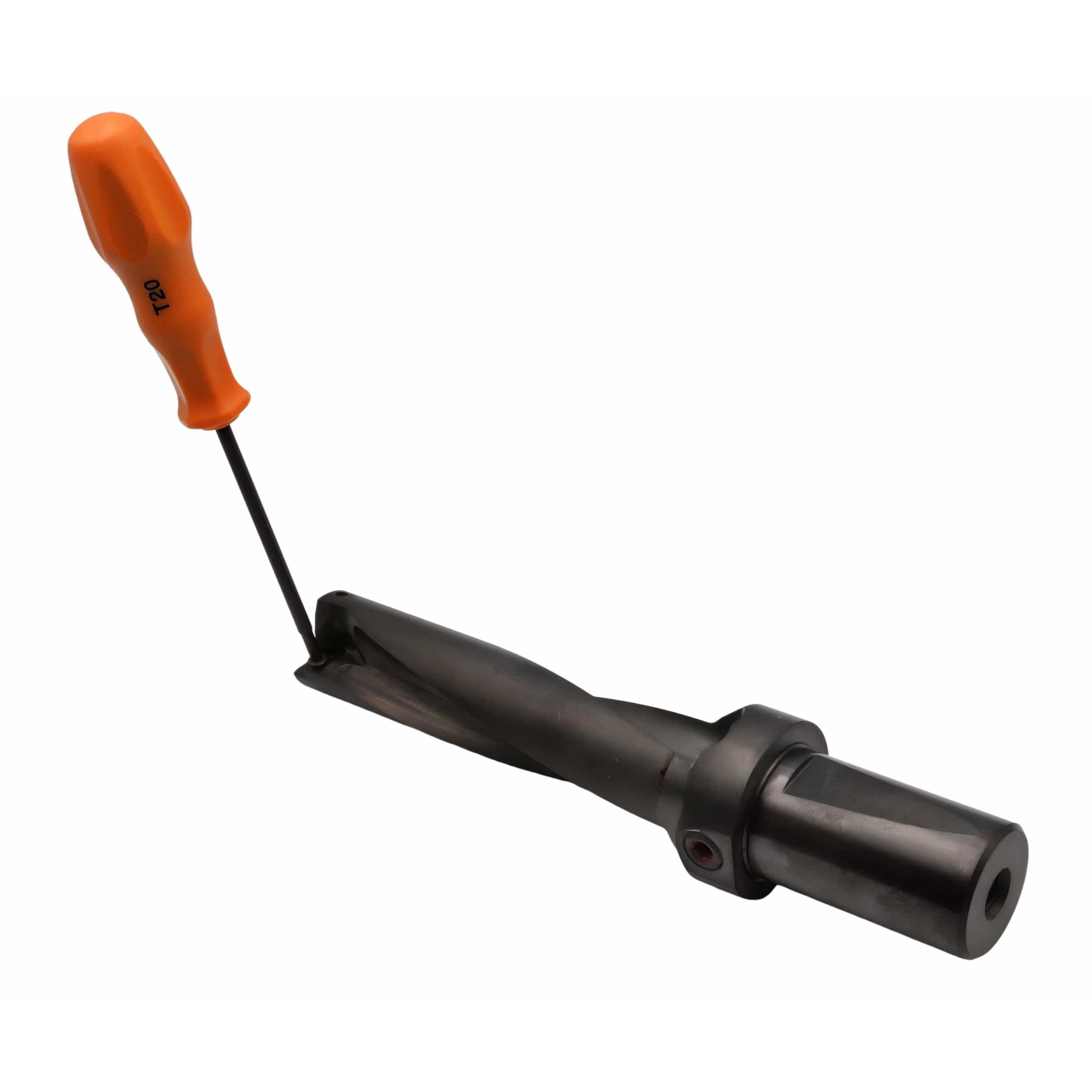

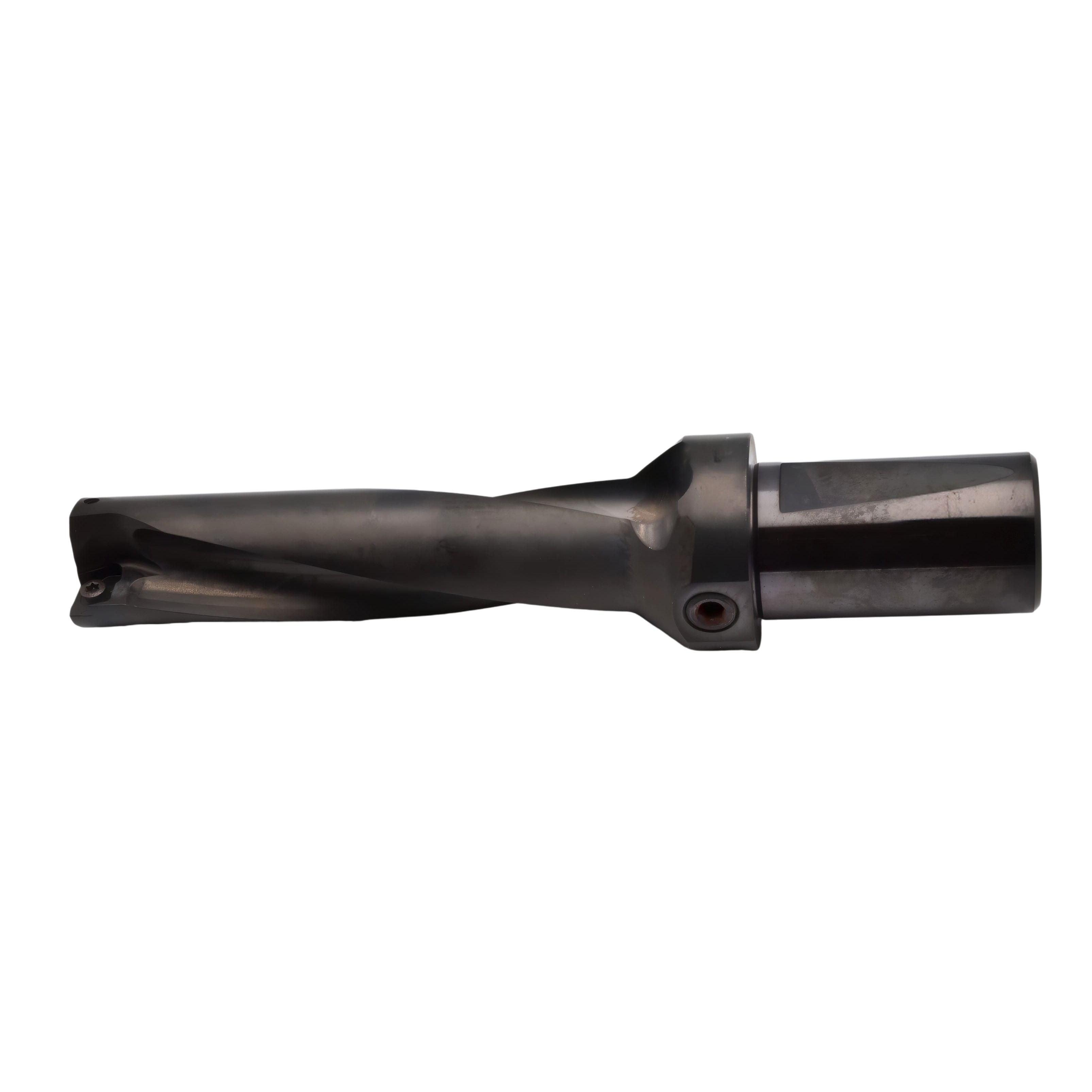

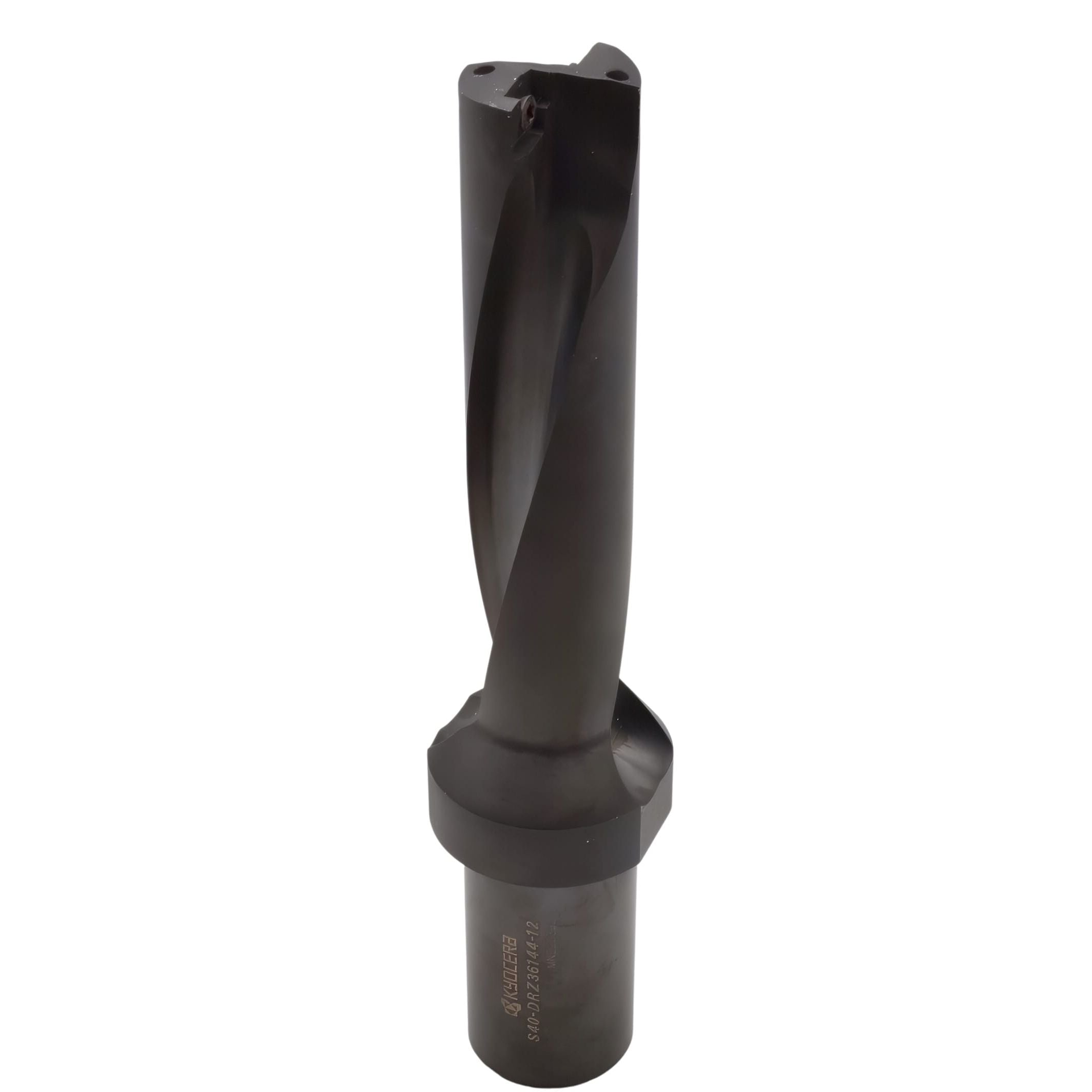

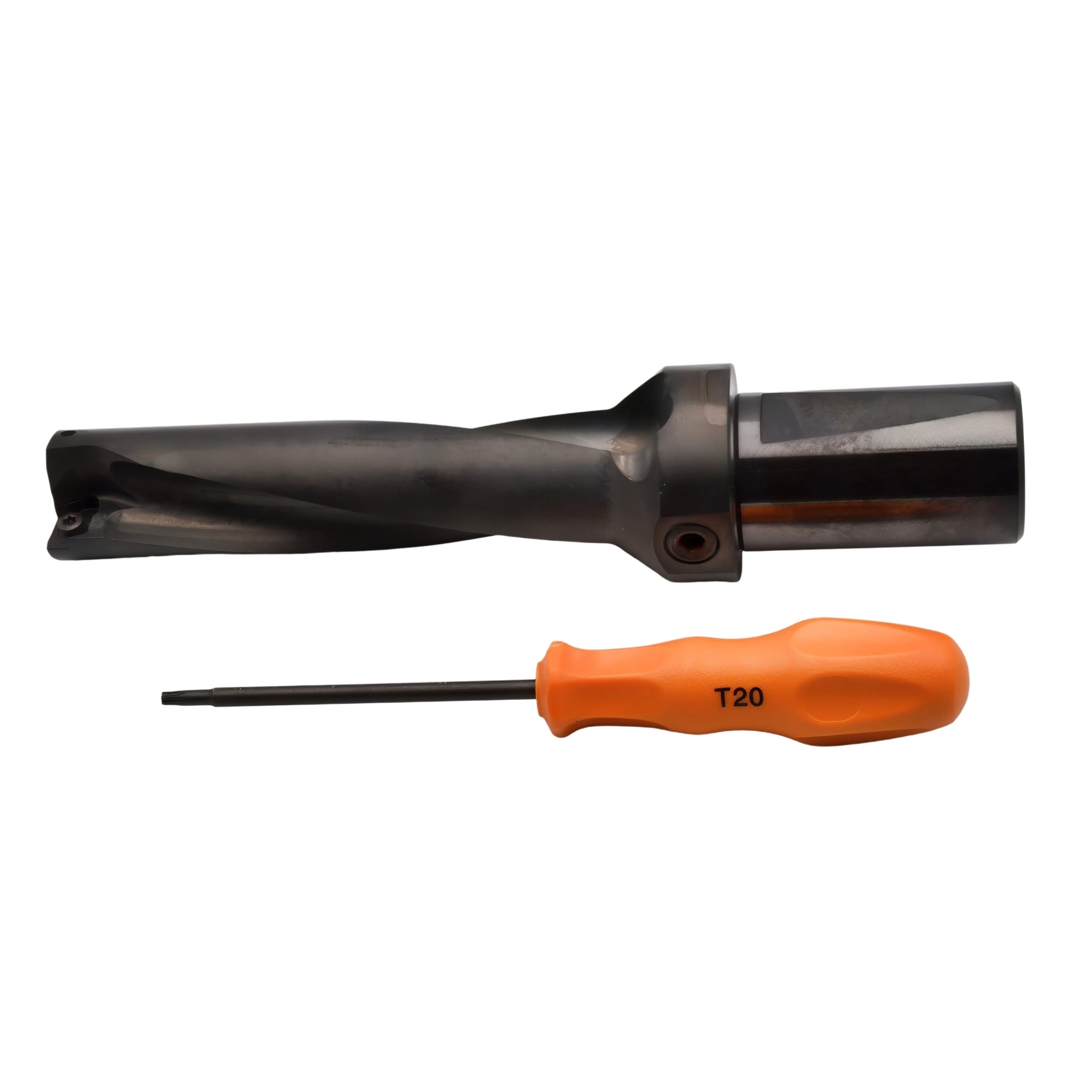

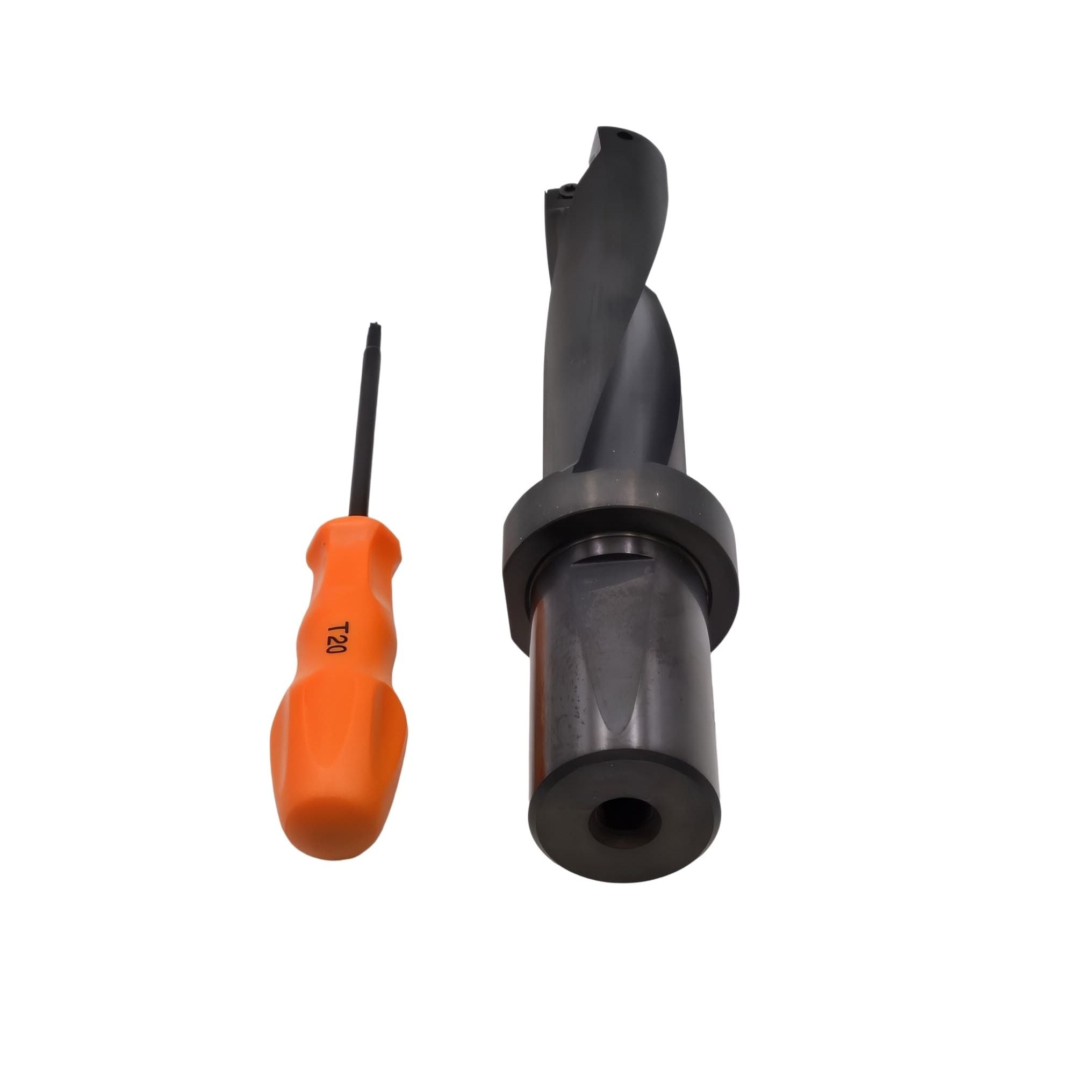

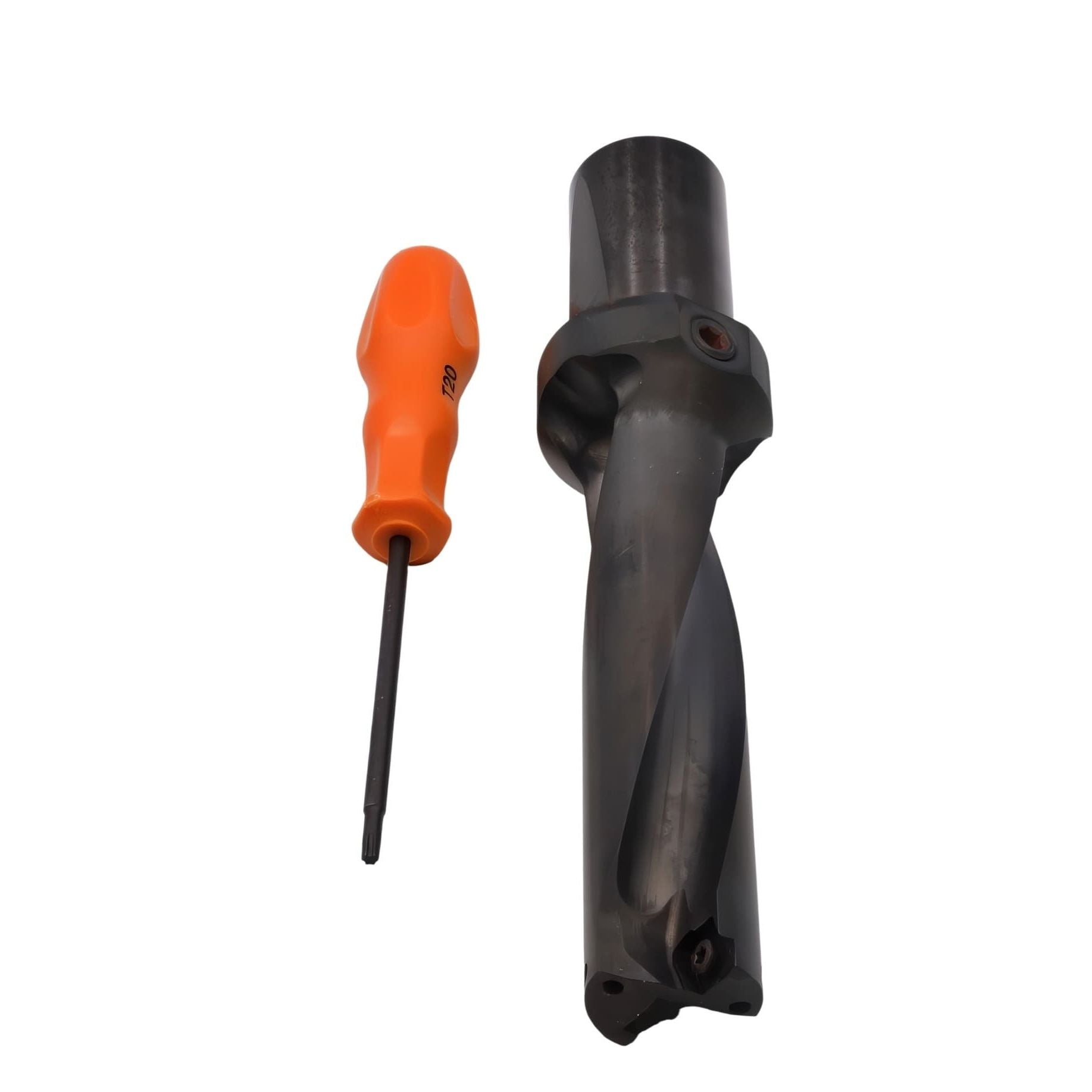

Kyocera S40-DRZ36144-12 Indexable Drill Holder 36mm 4xD – THD01270

The Kyocera S40-DRZ36144-12 is a high-performance indexable drilling toolholder engineered for precision holemaking in demanding CNC machining applications. Designed with a 36mm drilling diameter and 4xD drilling depth capability, this...
$599.00
$0.00
$599.00
(-0%)
SKU: S40-DRZ36144-12
Availability: In Stock
Subtotal: $599.00
KYOCERA ASIA PACIFIC PTE LTD TOOL HOLDERS Kyocera S40-DRZ36144-12 Indexable Drill Holder 36mm 4xD – THD01270

Kyocera S40-DRZ36144-12 Indexable Drill Holder 36mm 4xD – THD01270

$0.00 $599.00

Kyocera S40-DRZ36144-12 Indexable Drill Holder 36mm 4xD – THD01270

$0.00 $599.00

The Kyocera S40-DRZ36144-12 is a high-performance indexable drilling toolholder engineered for precision holemaking in demanding CNC machining applications. Designed with a 36mm drilling diameter and 4xD drilling depth capability, this drill holder delivers excellent rigidity, chip evacuation, and machining stability across a wide range of materials including steel, stainless steel, cast iron, and alloy materials.

Featuring through-tool internal coolant delivery, the S40-DRZ36144-12 enhances heat dissipation and chip removal during deep drilling operations, improving tool life and cutting efficiency. Its robust 40mm shank diameter and precision-engineered body provide exceptional stability during high-feed and high-speed drilling operations.

Key Features & Benefits

  • Designed for high-performance CNC drilling applications
  • 36mm drilling diameter with 4xD drilling depth capability
  • Internal coolant system improves chip evacuation and cooling
  • Excellent rigidity for stable and accurate holemaking
  • Suitable for steel, stainless steel, cast iron, and alloy machining
  • Optimized for high-speed and high-feed drilling performance
  • Precision-engineered body for improved hole accuracy
  • Indexable insert system reduces tooling costs and downtime

Technical Specifications

  • Part Number: S40-DRZ36144-12
  • Item Number: THD01270
  • Product Type: Indexable Drill Holder
  • Drilling Diameter (DC): 36 mm
  • Drilling Depth: 4xD
  • Usable Length (LU): 144 mm
  • Total Length (OAL): 239 mm
  • Head Length (LFS/LPR): 180 mm
  • Shank Diameter (DCON): 40 mm
  • Body Diameter (BD): 34.65 mm
  • Collar Diameter (DCSFMS): 55 mm
  • Flange Diameter (DF): 55 mm
  • Flute Length (FLL): 30.5 mm
  • Shank Length (LS): 59 mm
  • Insert Part no: ZCMT12T3 Range
  • Clearance Angle Major: 7°
  • Cutting Item Count: 2
  • Inscribed Circle Diameter A: 14.3 mm
  • Inscribed Circle Diameter B: 14.3 mm
  • Cutting Edge Length A: 12.3 mm
  • Cutting Edge Length B: 12.5 mm
  • Inside Corner Radius: 0.6 mm
  • Outside Corner Radius: 0.6 mm
  • Side Facing Insert Thickness: 3.97 mm
  • Internal Coolant: Yes
  • Hand: Right
  • Brand: Kyocera

Kyocera drilling systems are engineered for maximum productivity, precision, and reliability, helping machinists achieve superior hole quality and extended tool life in demanding industrial machining environments.
