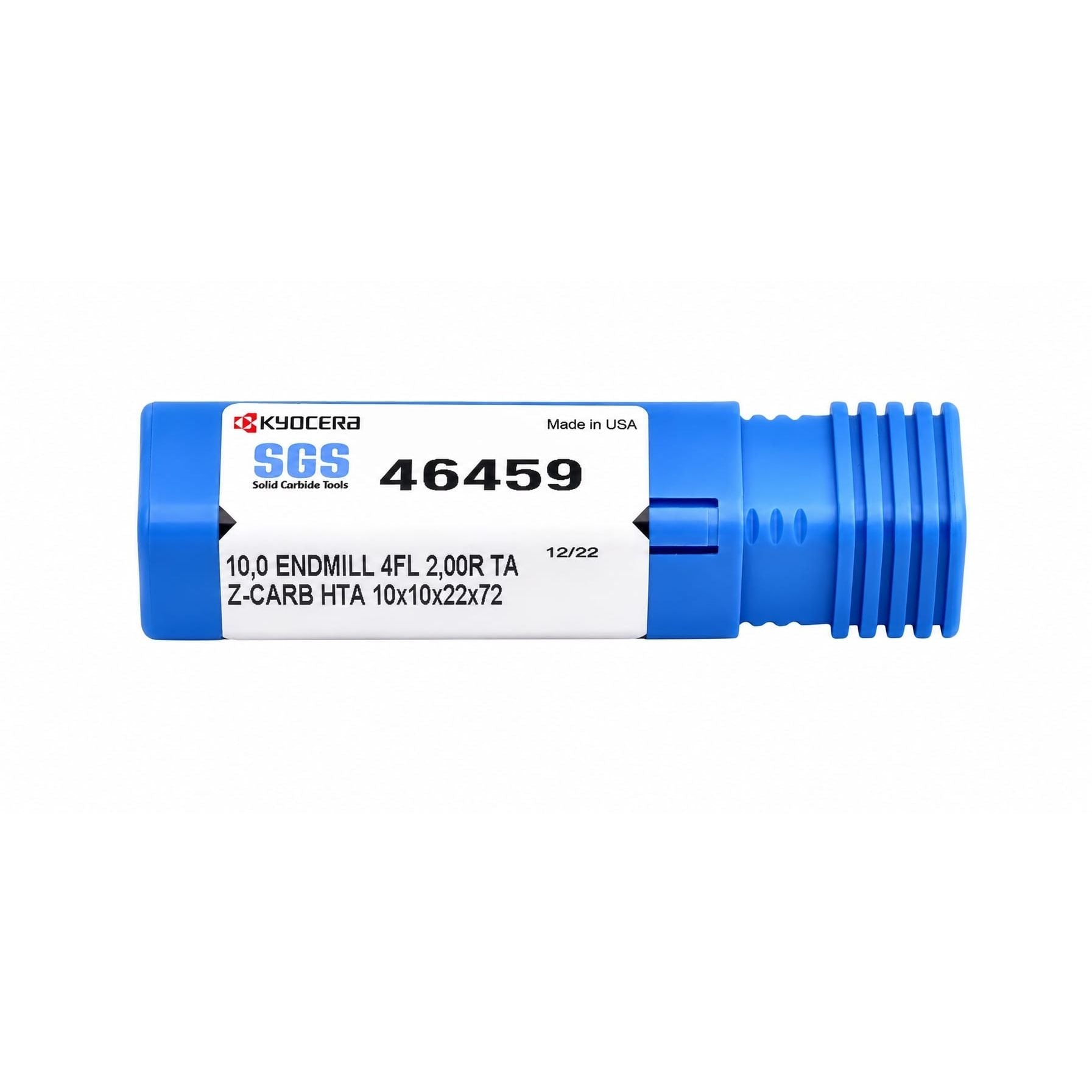

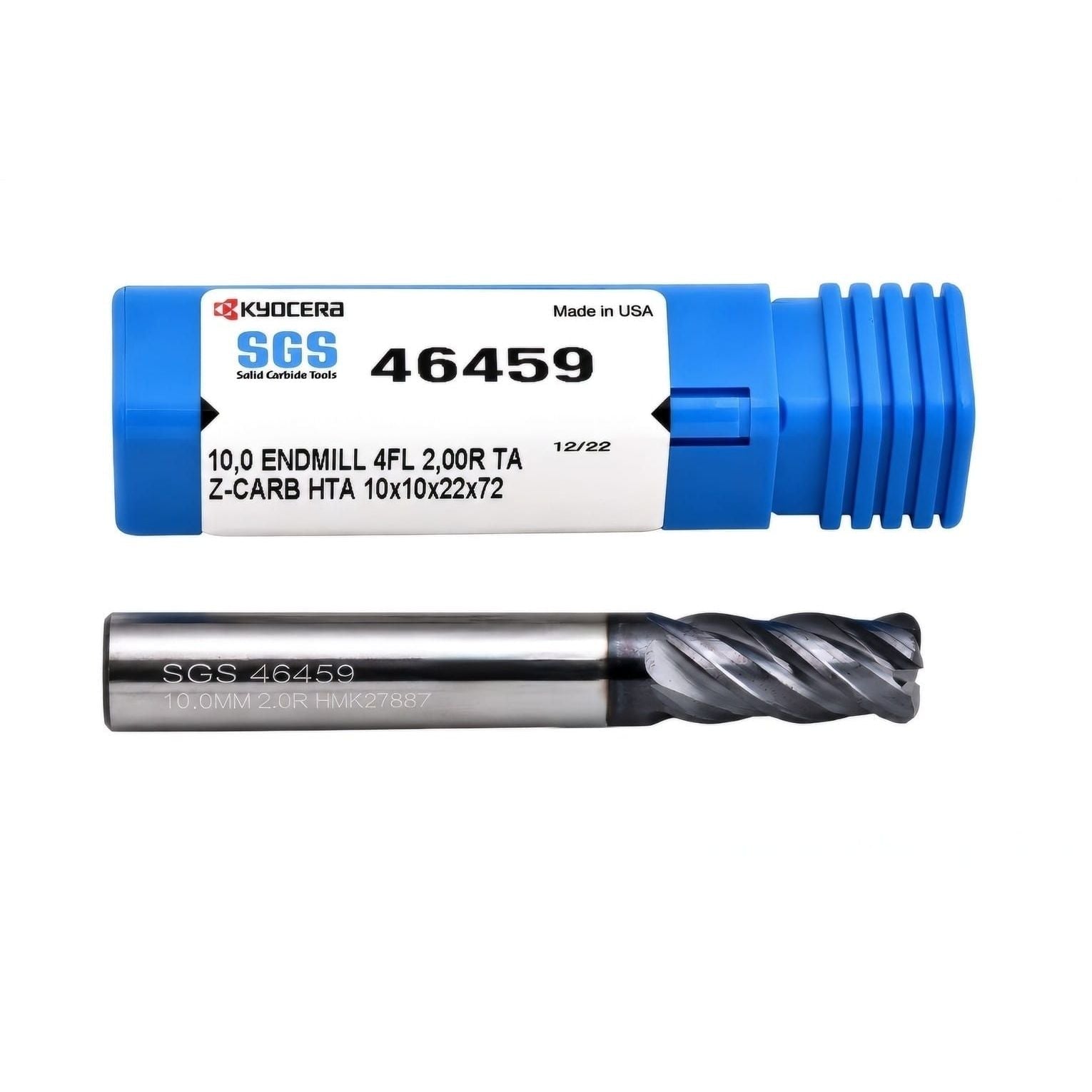

Kyocera SGS 46459 10mm 4 Flute Ti-NAMITE-A AlTiN Corner Radius End Mill

Professional quality Kyocera SGS 46459 Series ZH1M Z-Carb-HTA high performance corner radius end mill manufactured from solid carbide for reliable and precise machining of demanding materials. This 10mm diameter end...
$162.00
$0.00
$162.00
(-0%)
SKU: KSP46459
Availability: In Stock
Subtotal: $162.00
KYOCERA ASIA PACIFIC PTE LTD CARBIDE ENDMILL Kyocera SGS 46459 10mm 4 Flute Ti-NAMITE-A AlTiN Corner Radius End Mill

Kyocera SGS 46459 10mm 4 Flute Ti-NAMITE-A AlTiN Corner Radius End Mill

$0.00 $162.00

Kyocera SGS 46459 10mm 4 Flute Ti-NAMITE-A AlTiN Corner Radius End Mill

$0.00 $162.00

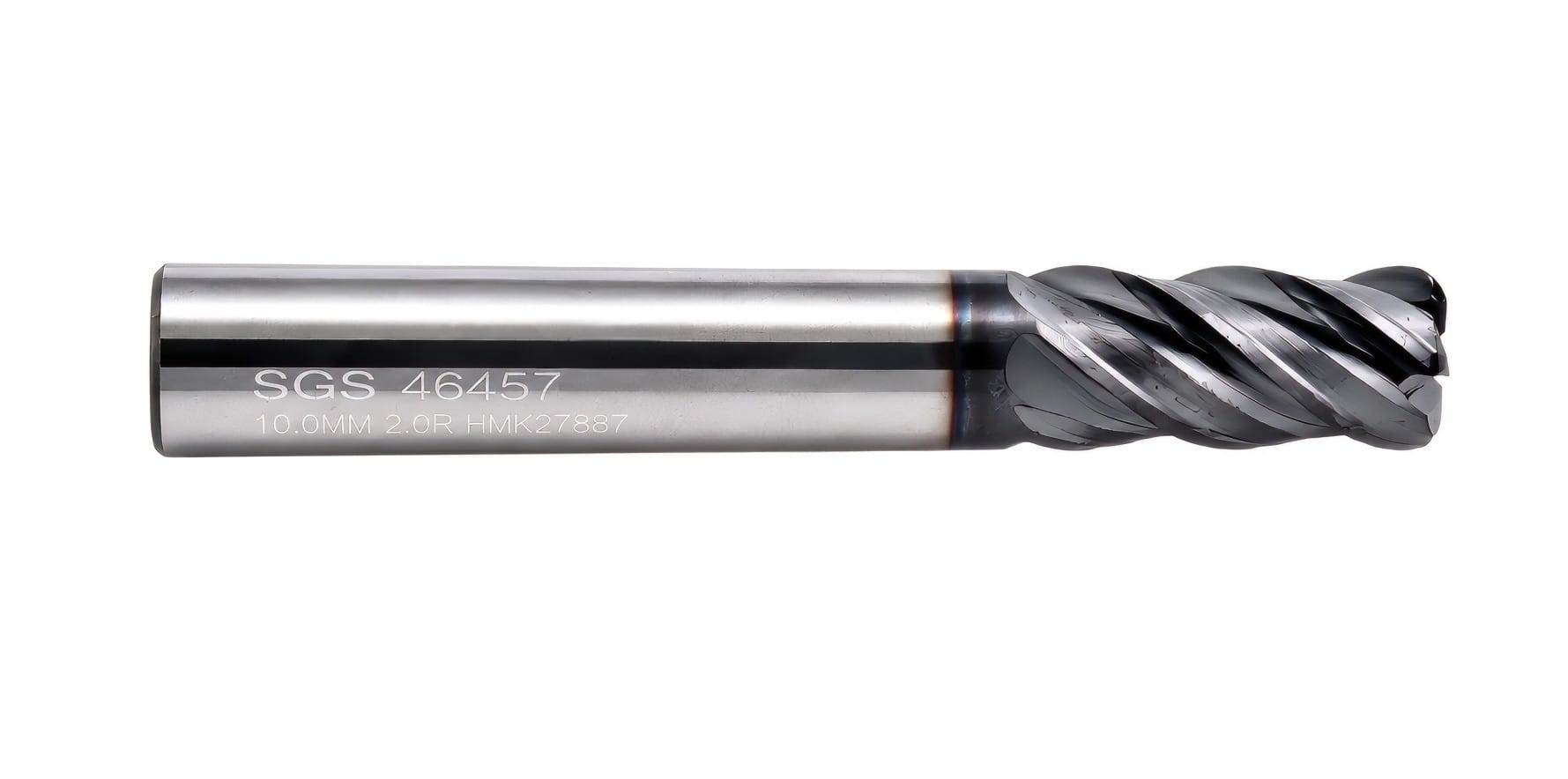

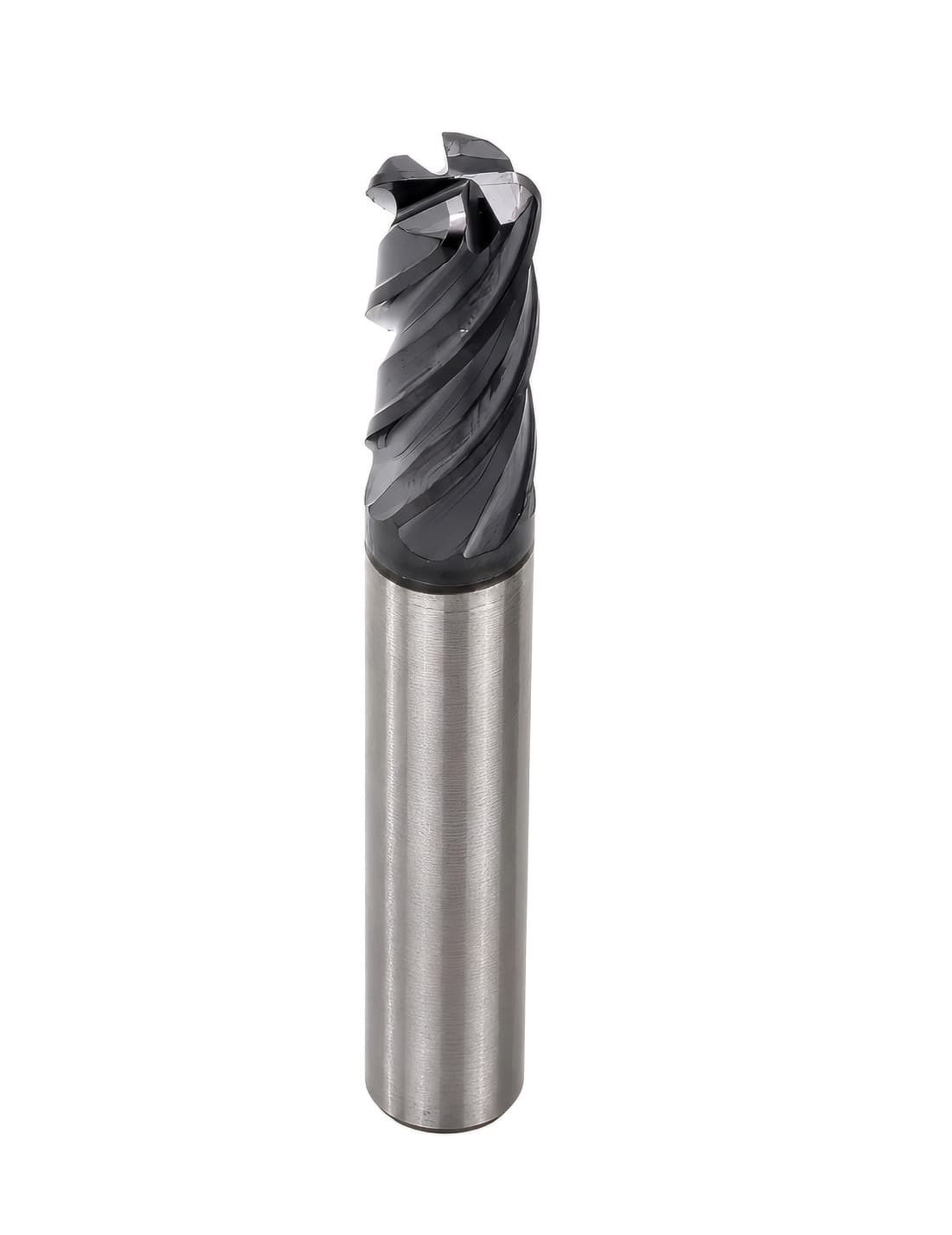

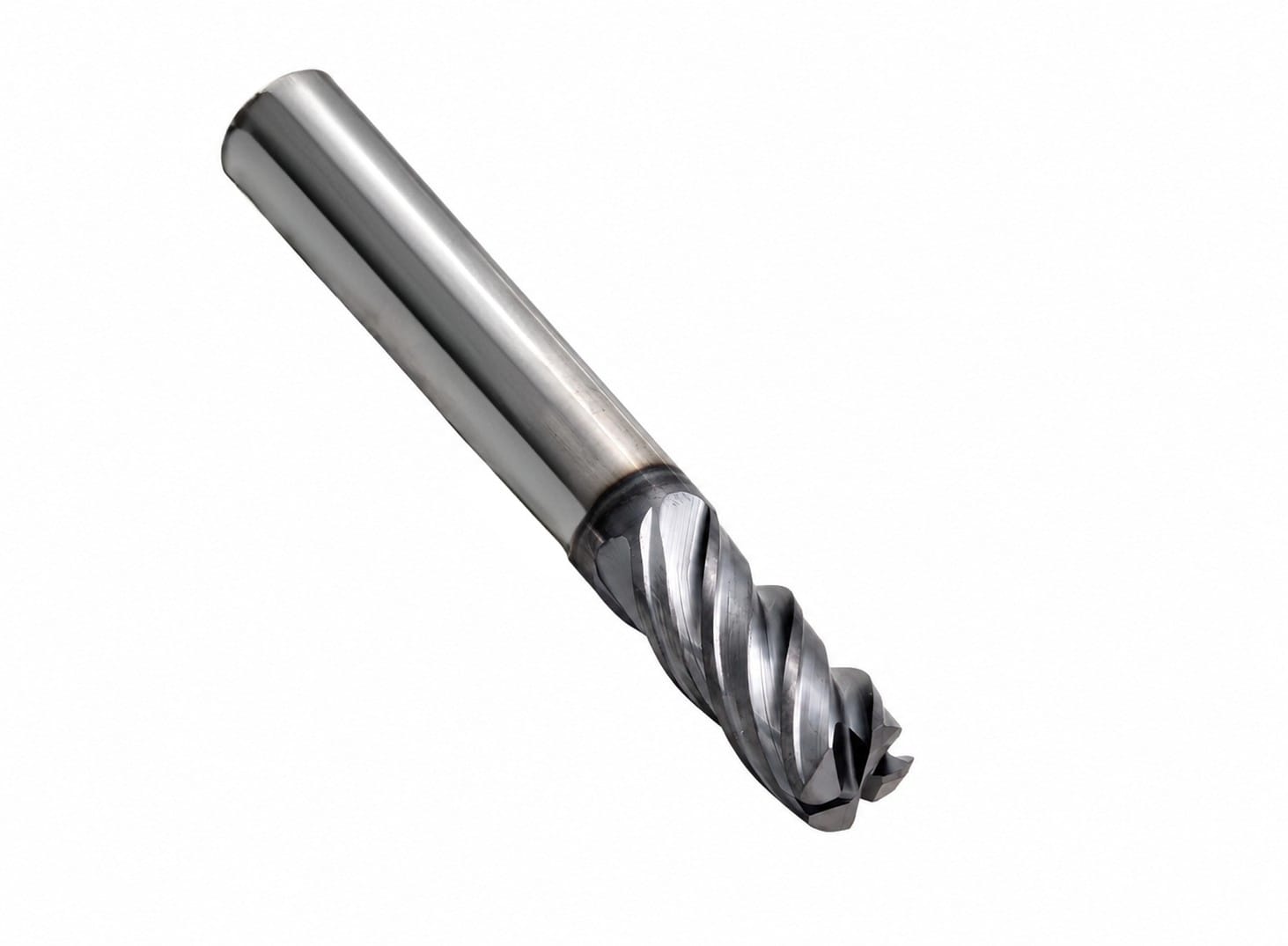

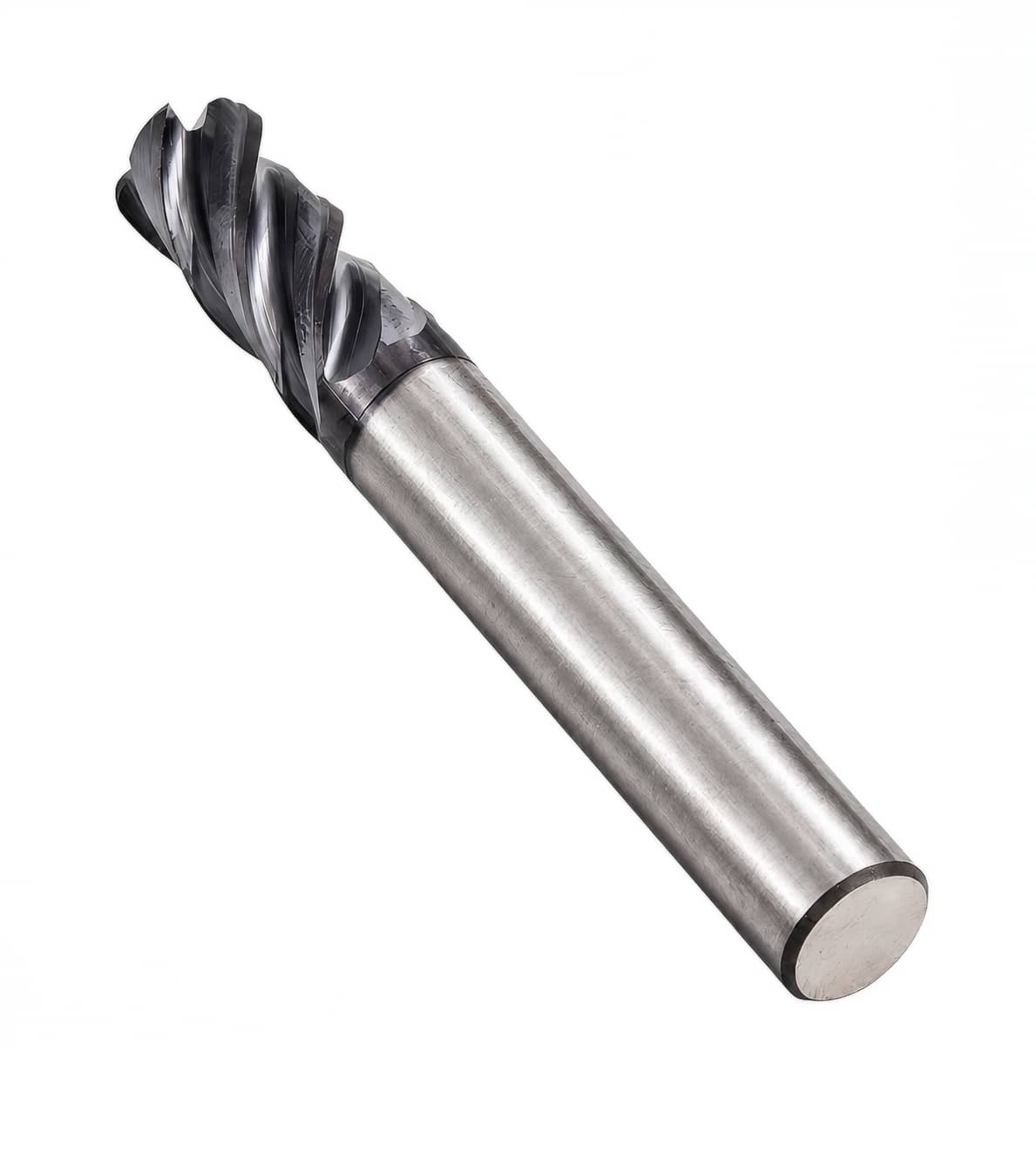

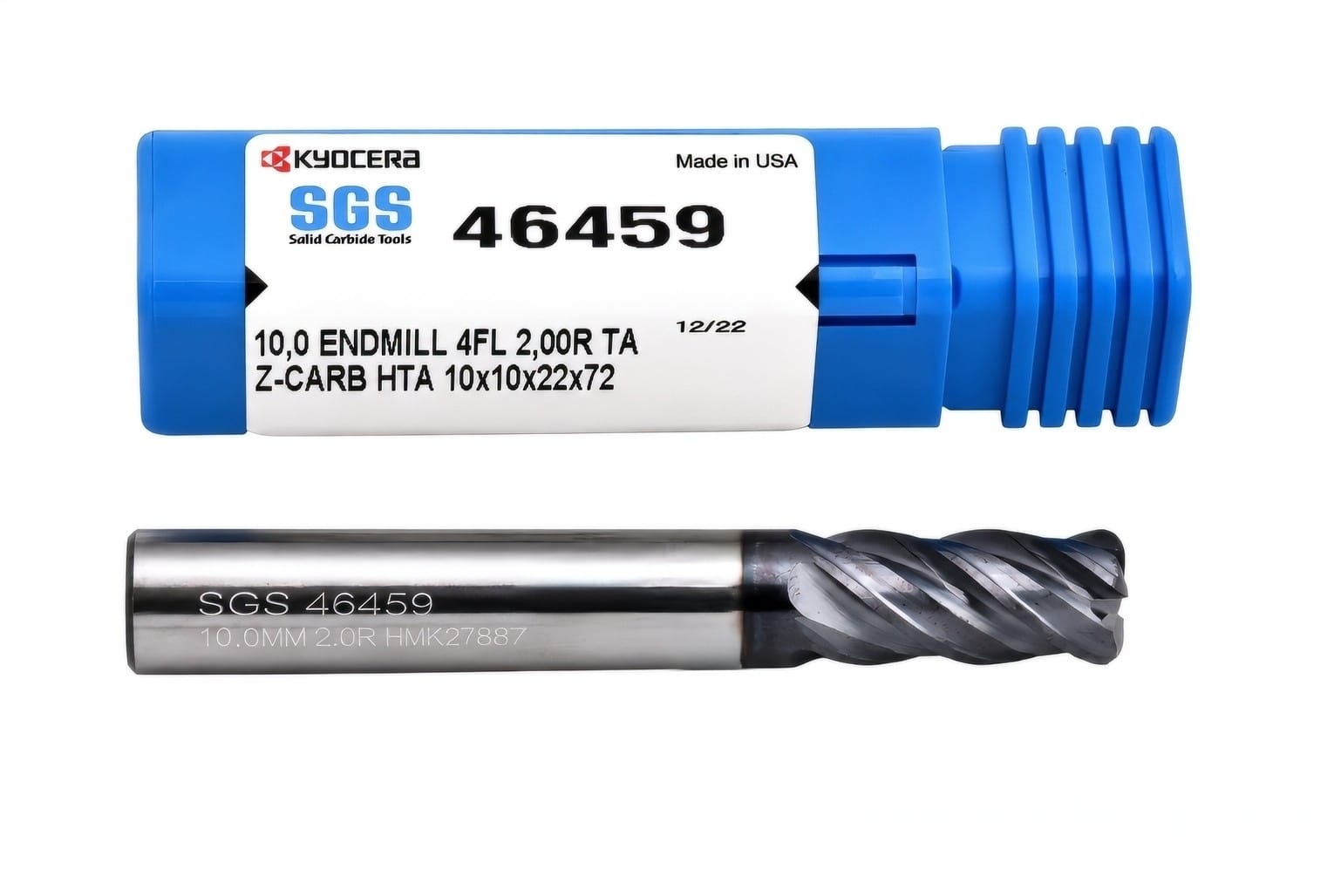

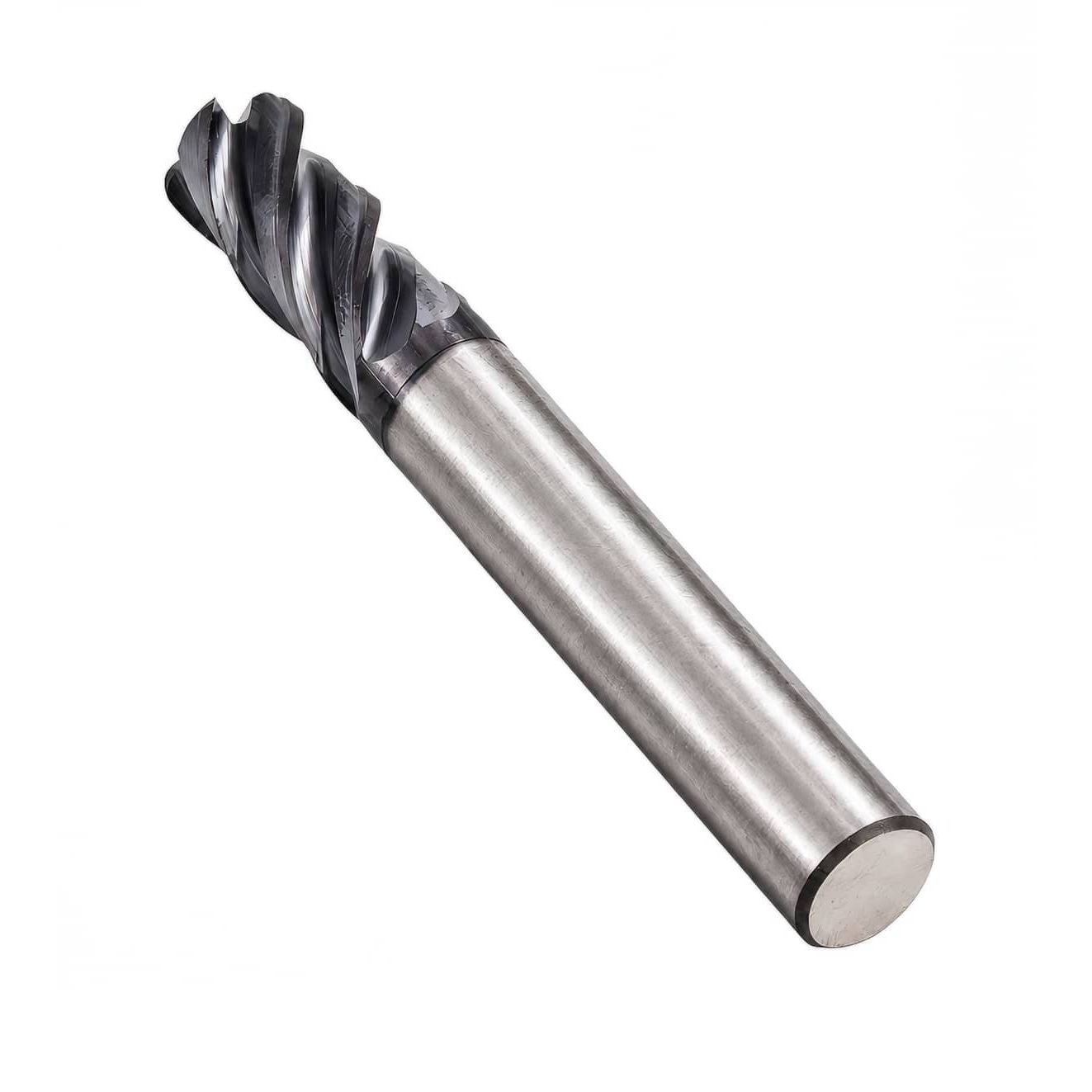

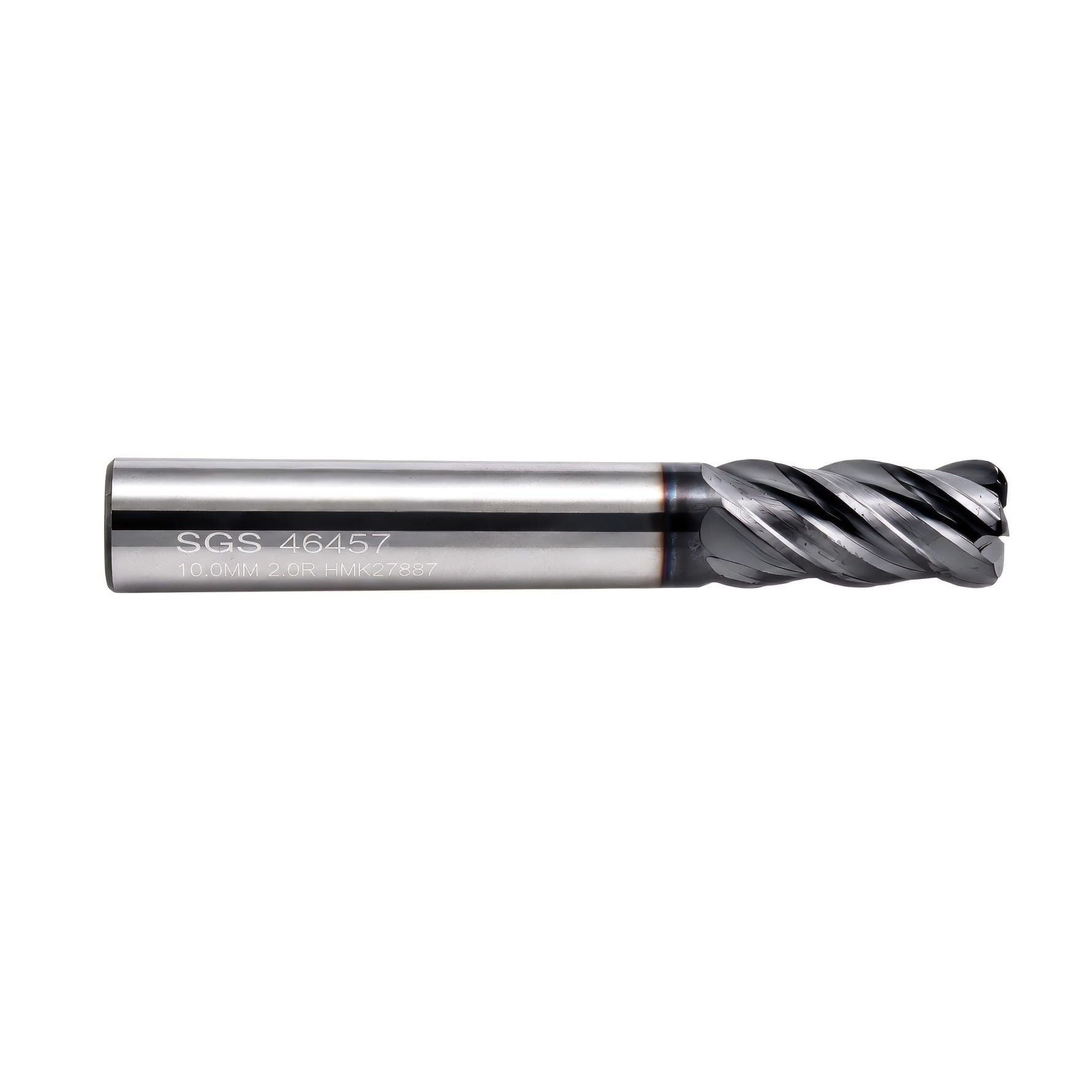

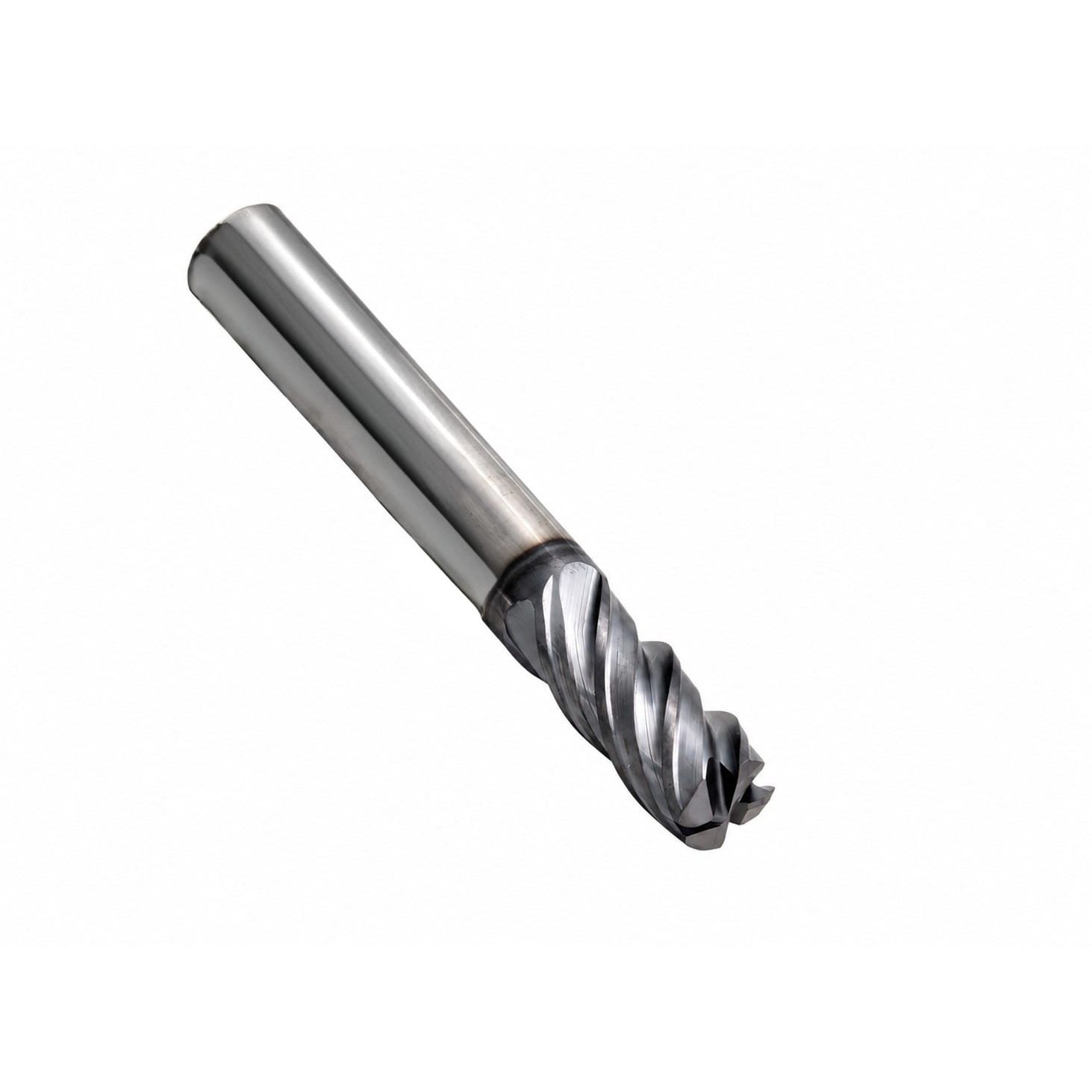

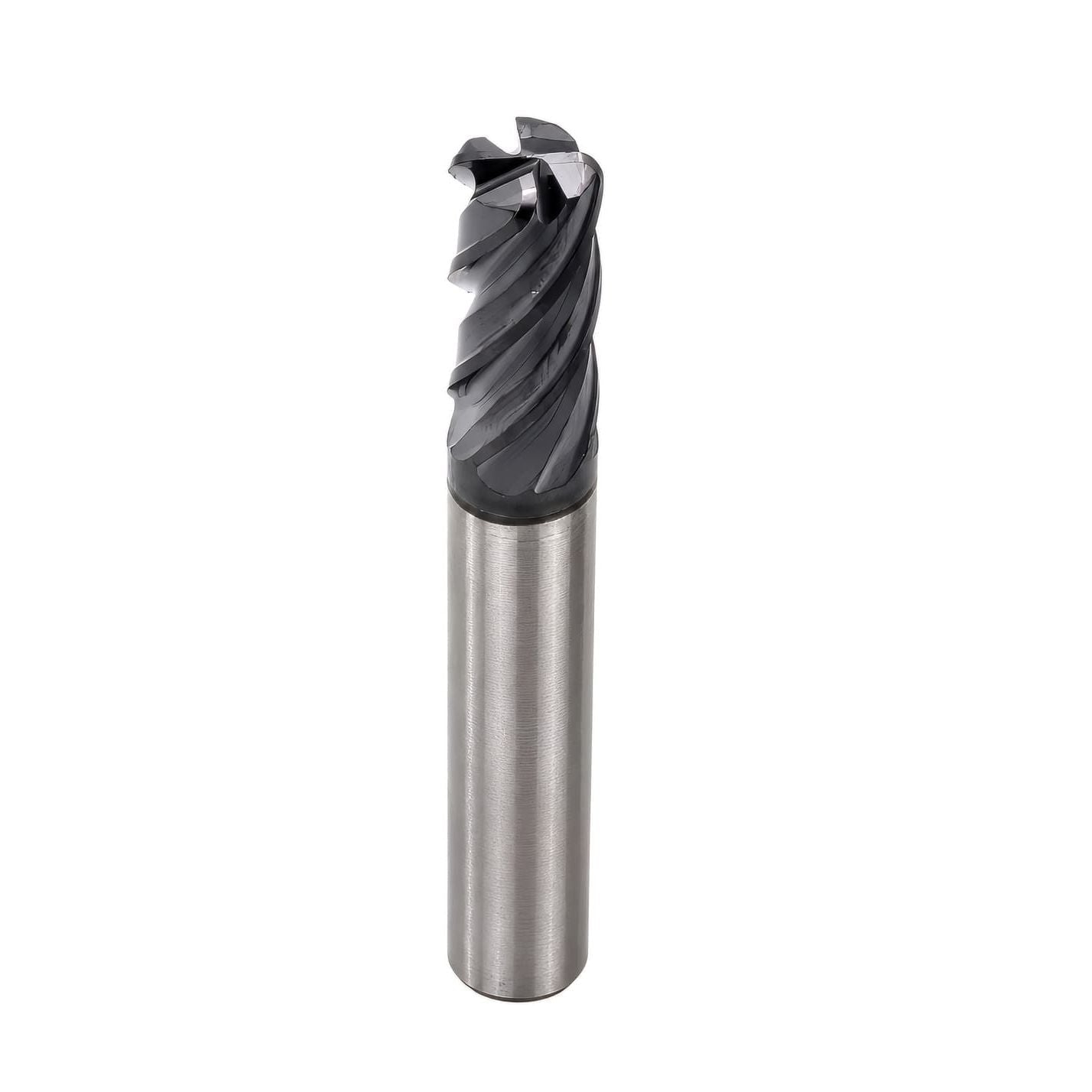

Professional quality Kyocera SGS 46459 Series ZH1M Z-Carb-HTA high performance corner radius end mill manufactured from solid carbide for reliable and precise machining of demanding materials. This 10mm diameter end mill features four flutes, a 2mm corner radius, variable 38-41 degree helix and Ti-NAMITE-A AlTiN coating for enhanced wear resistance and dependable performance in high temperature alloy applications.

The enhanced core and higher helix are designed to provide increased material removal rates in difficult-to-machine materials. Unequal flute spacing helps disrupt rhythmic cutting patterns and suppress damaging harmonics, while the enhanced corner geometry provides tight tolerance corner radii. The centre-cutting design allows for efficient plunging, slotting, profiling and general milling operations and is recommended for materials up to 45 HRc.

Product Specifications

  • Brand: Kyocera SGS
  • Part Number: 46459
  • Series: ZH1M
  • Product Series: Z-Carb-HTA
  • Application: High Performance End Mill
  • End Mill Type: Corner Radius
  • Cutting Diameter: 10mm (0.3937 inch)
  • Number of Flutes: 4
  • Length of Cut: 22mm (0.8661 inch)
  • Shank Diameter: 10mm (0.3937 inch)
  • Overall Length: 72mm (2.8346 inch)
  • Corner Radius: 2mm (0.0787 inch)
  • Shank Length: 49.89mm (1.9640 inch)
  • Material: Solid Carbide
  • Coating: Ti-NAMITE-A AlTiN
  • Shank Type: Straight
  • Flute Type: Spiral
  • Helix Angle: 38-41° Variable Right Spiral
  • Flute Spacing: Unequal
  • Cut Direction: Right Hand Cut Direction (RHC)
  • Rake Angle: Positive
  • Variable Helix: Yes
  • Center Cutting: Yes
  • Chip Breaker: No
  • Coolant Option: External Coolant
  • Tool Length: Regular
  • Weldon Flat: No
  • Cutting Diameter Tolerance: +0.000/-0.040mm
  • Corner Radius Tolerance: +0.000/-0.050mm
  • Shank Diameter Tolerance: h6
  • Recommended Hardness: ≤ 45 HRc (≤ 420 Bhn)
  • Primary Workpiece Materials: Steel, Stainless Steel, Cast Iron, High Temperature Alloys
  • Secondary Workpiece Material: Hardened Materials

The Kyocera SGS 46459 is an excellent choice for CNC milling applications requiring a high performance 10mm 4-flute solid carbide corner radius end mill with 2mm radius, variable 38-41° helix and Ti-NAMITE-A AlTiN coating for efficient material removal, reduced harmonics and reliable machining of difficult materials.
