Live Centre Extended Nose MT3 M12 Drawbar Medium Duty
Vendor: Dajiu
SKU: 562
$41.00
Order in The Next to get it by
Real Time 1 Visitor Right Now
Spend $1 to get Free Shipping

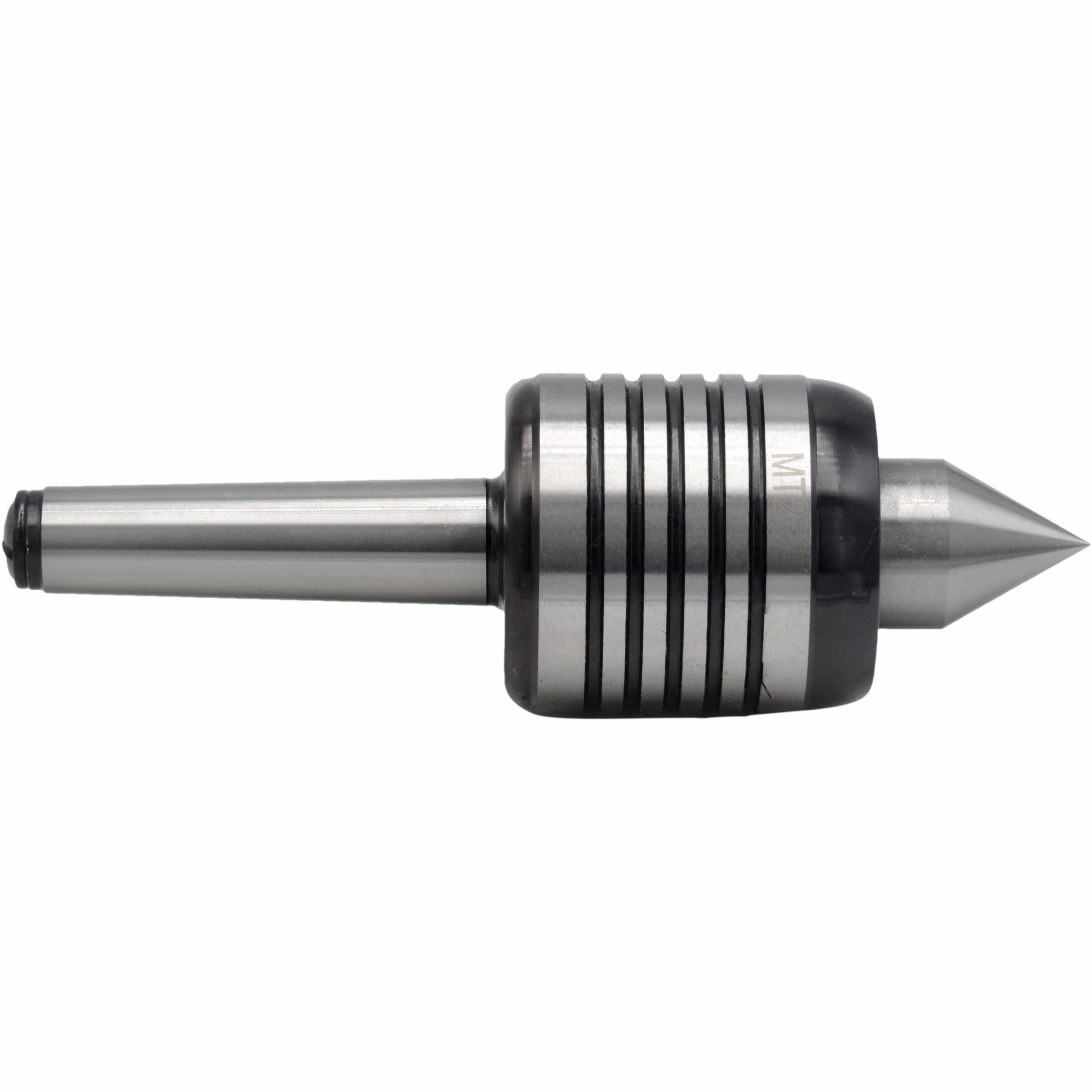

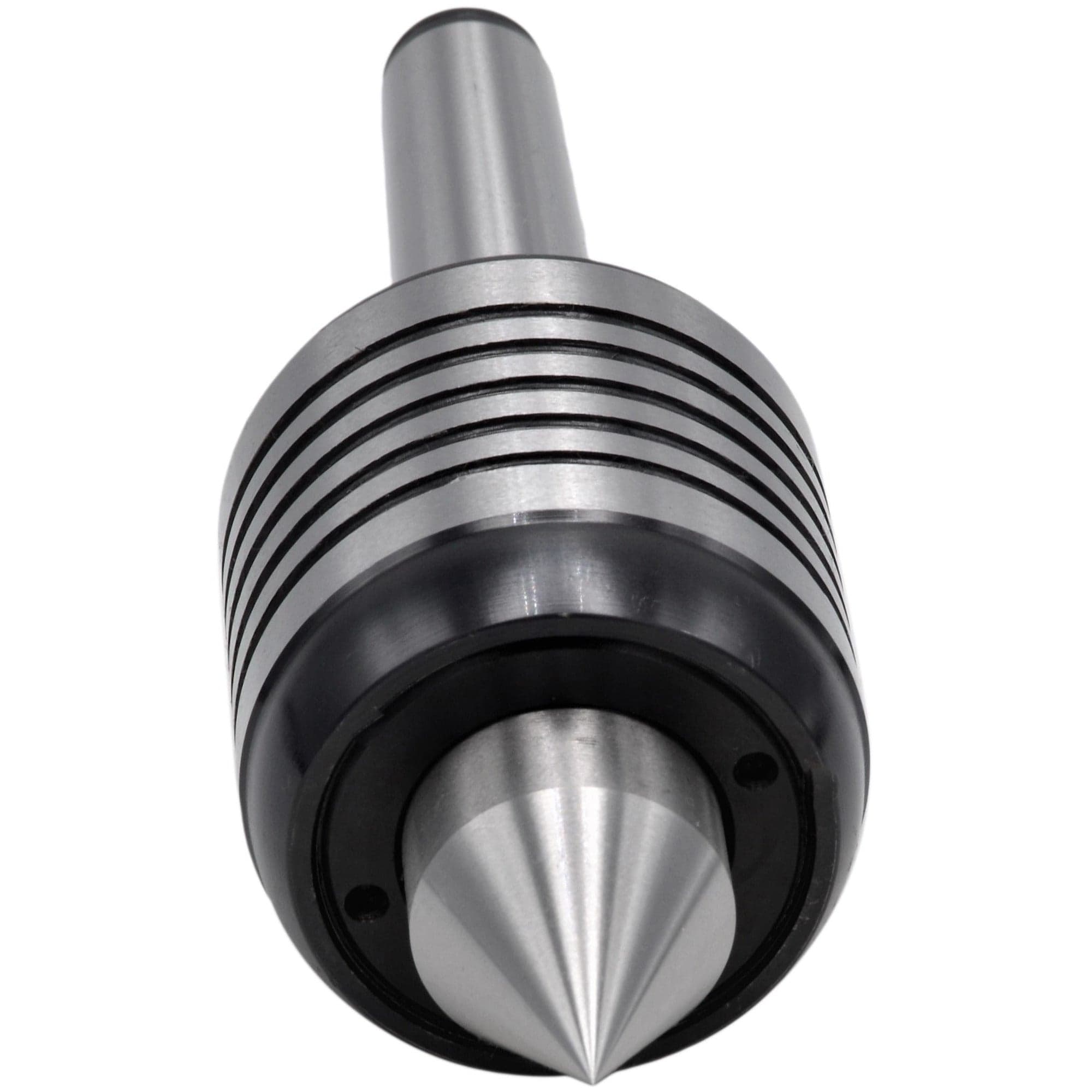

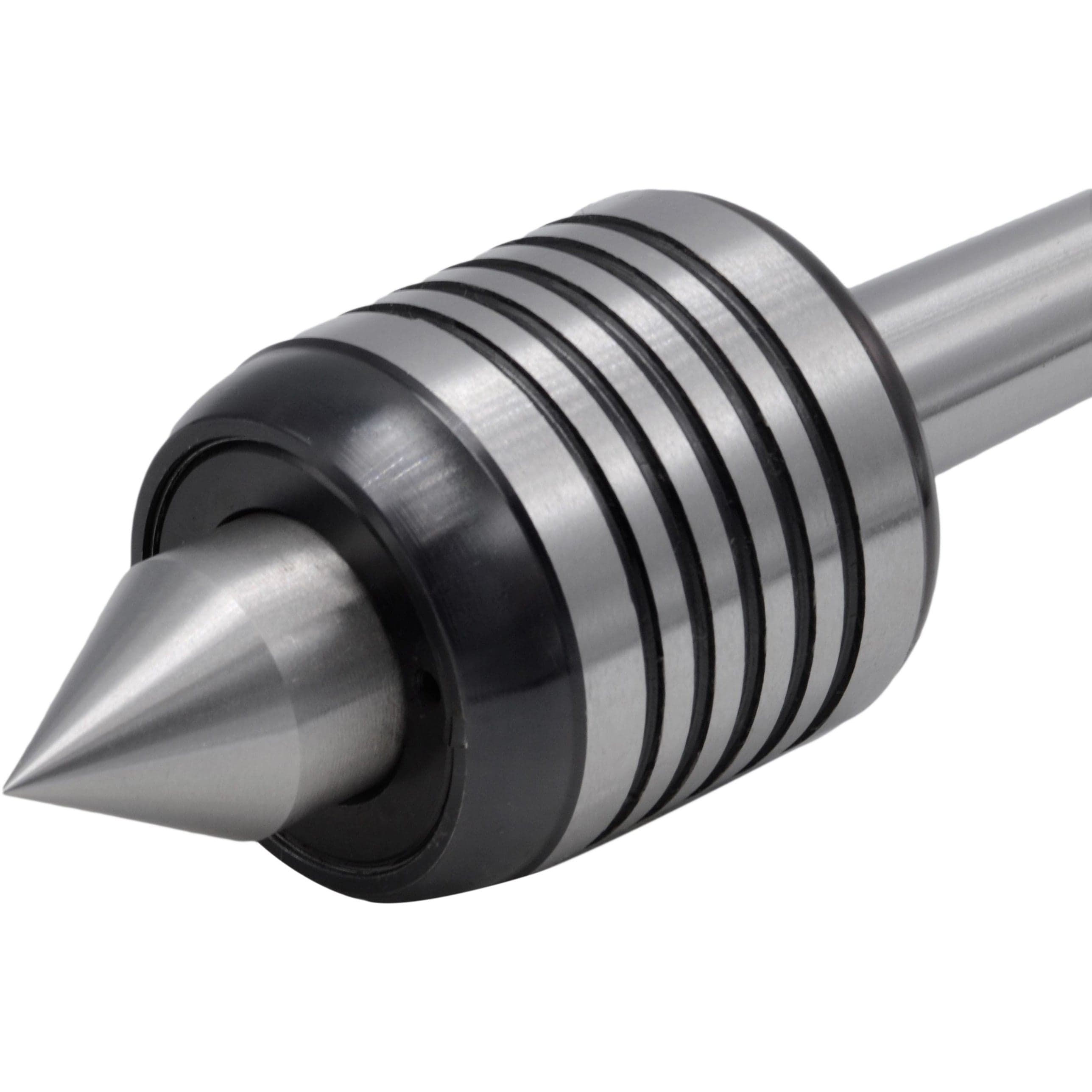

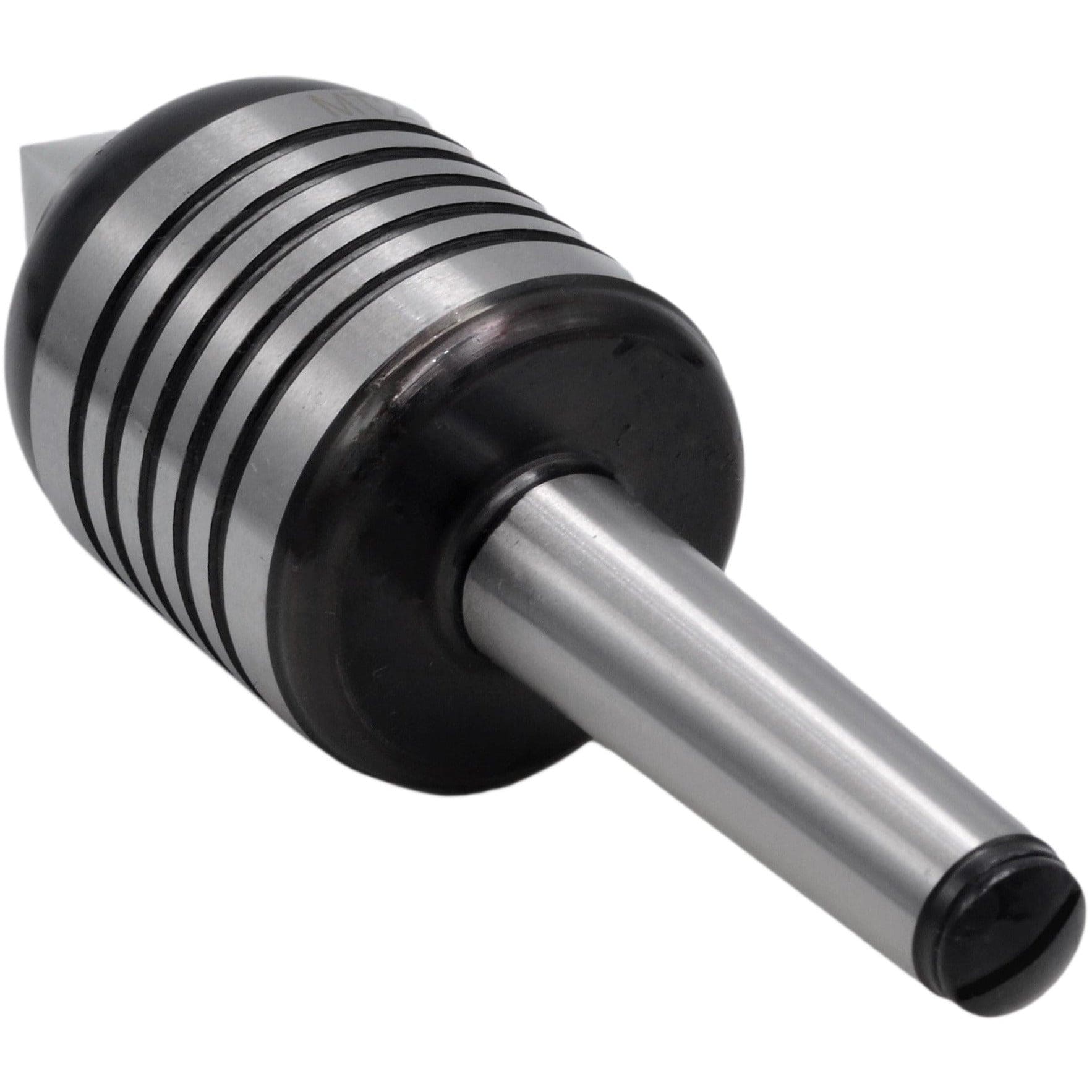

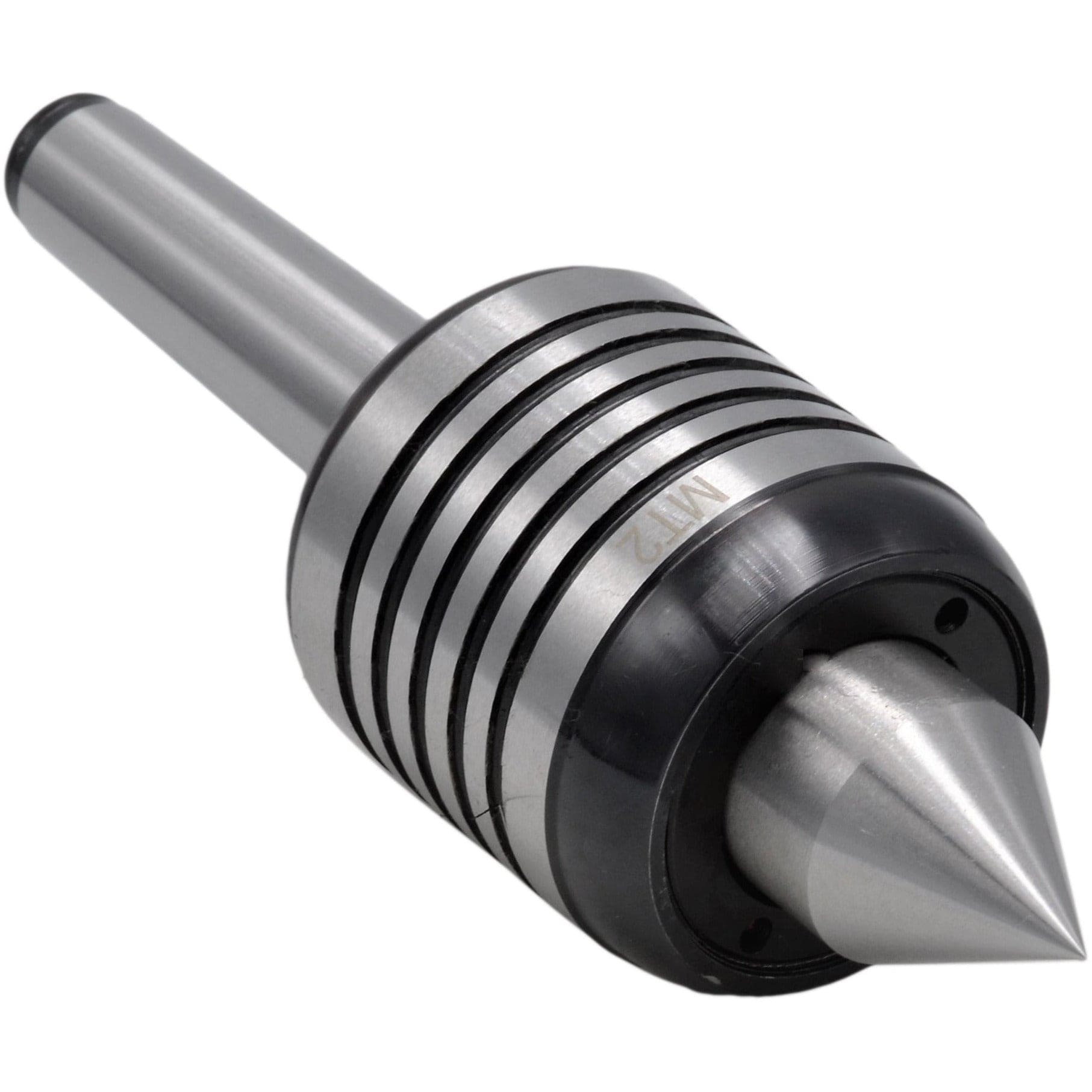

Morse Taper 2 Live Centre
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.
- Shank Size: Morse taper 2
- Part No:DJ-08002/MT2
- Max RPM: 3500
- Accuracy: 0.005 mm
- Load Capacity: 120 kg
- 60 Degree Centre Point
- Triple bearing
-
M10 Drawbar thread with cap

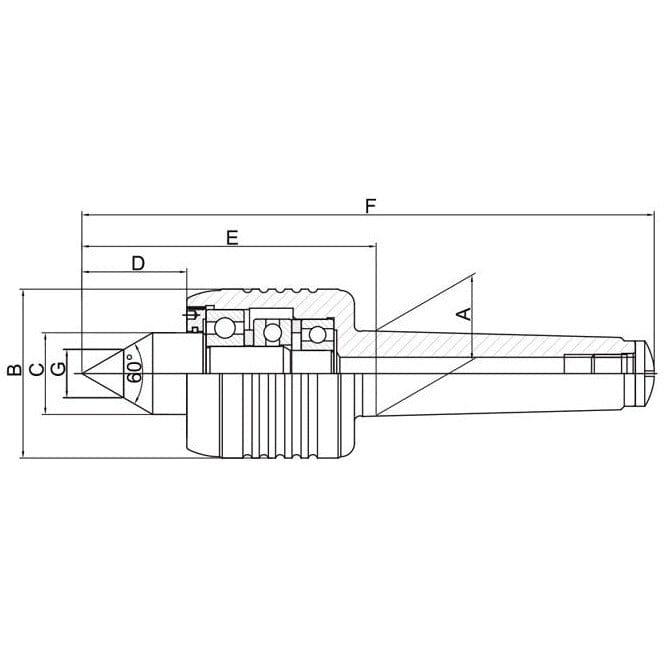

Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm) MT2 17.780 45 24 31 87
151 12
MT3 23.825 52 26 34 94 175 15 MT4 31.267 60 30
38.5
107 210 18 MT5 44.399 77 44 50
130 260 24
