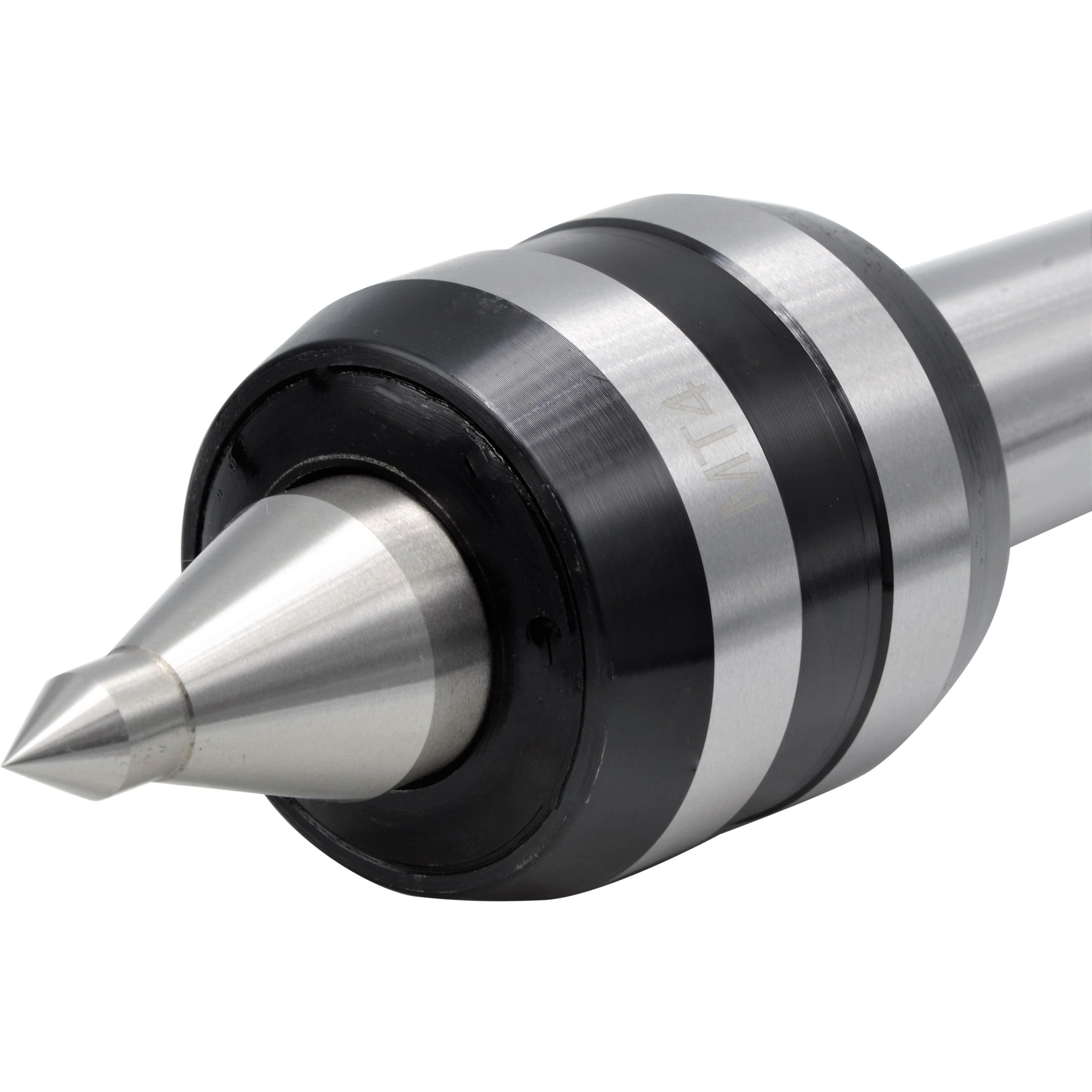

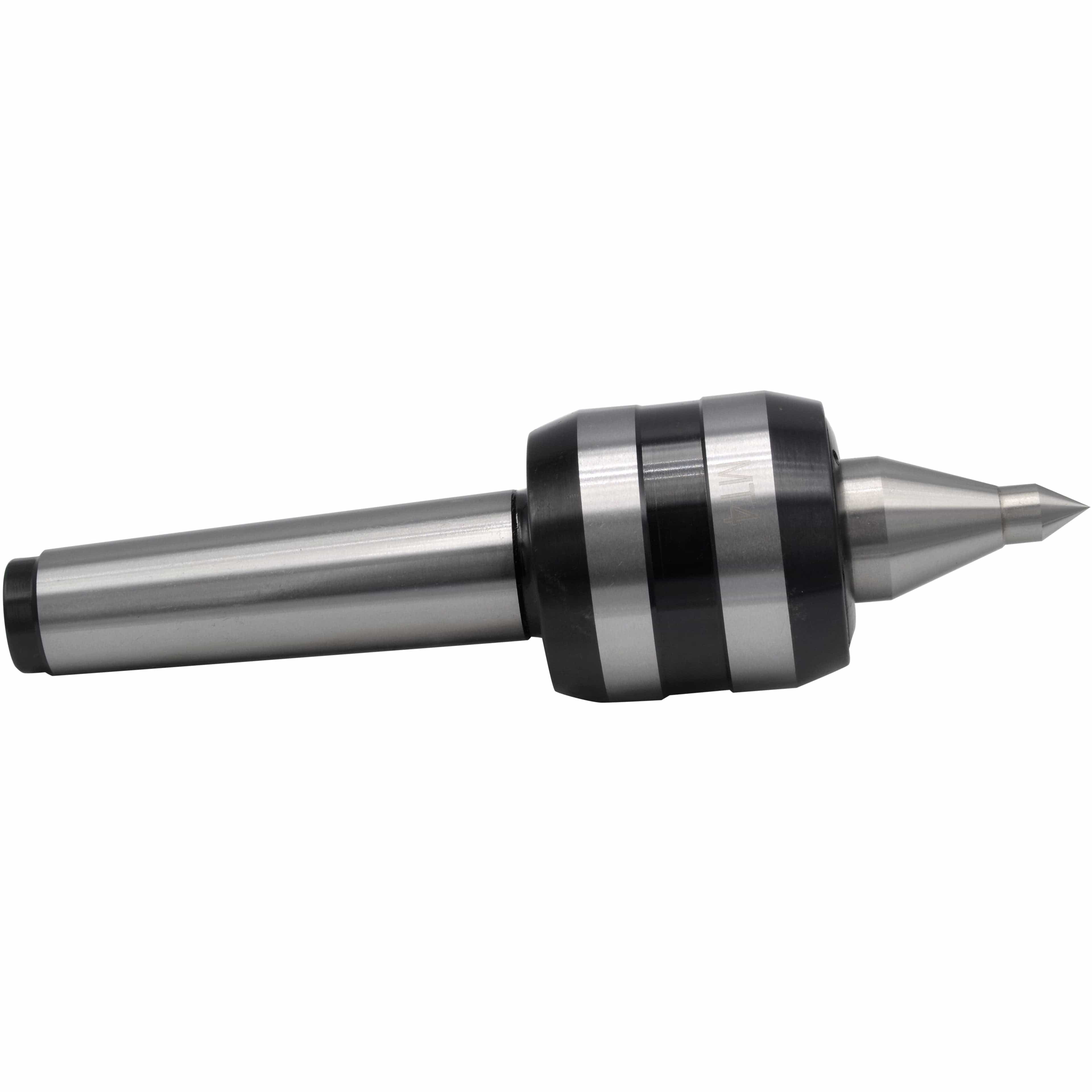

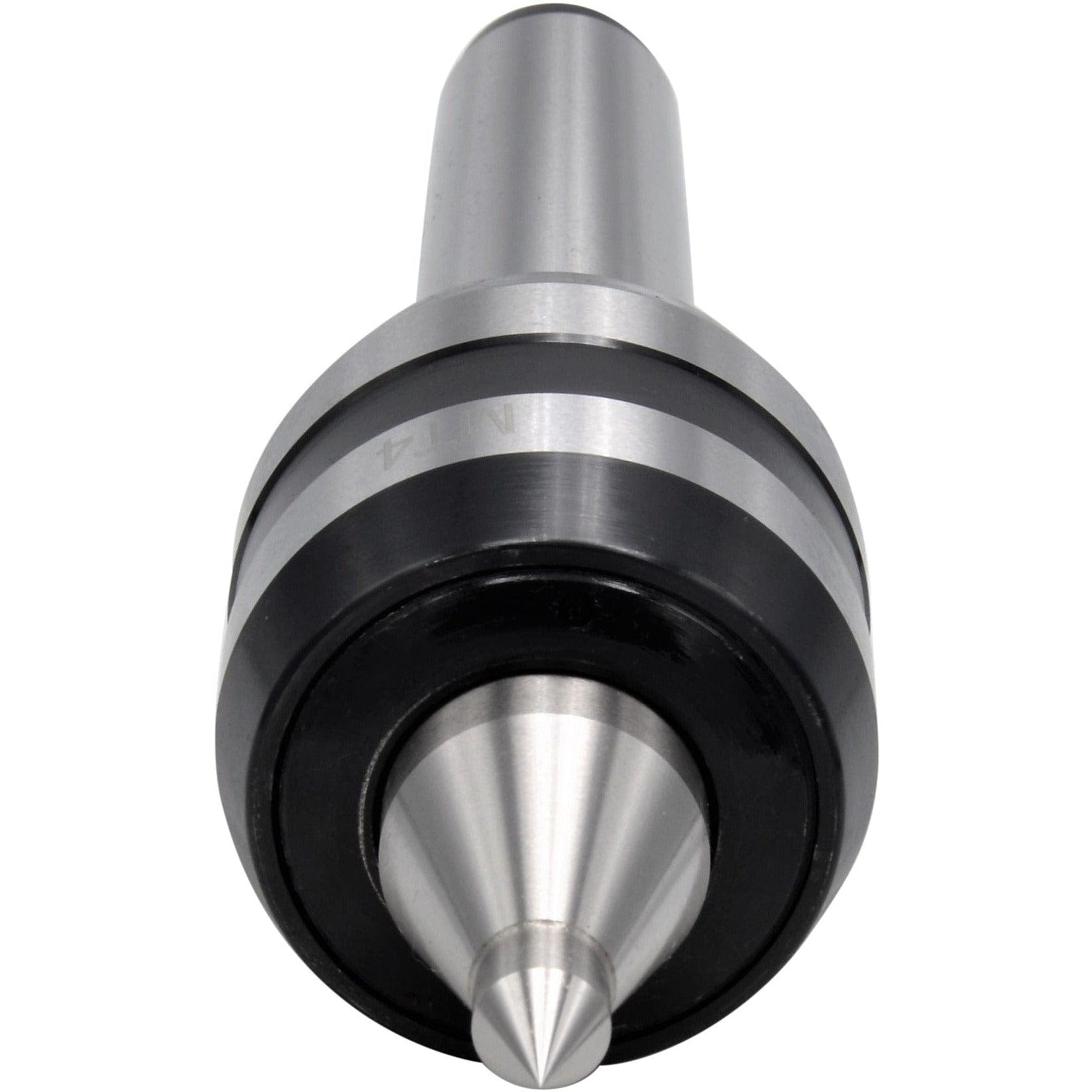

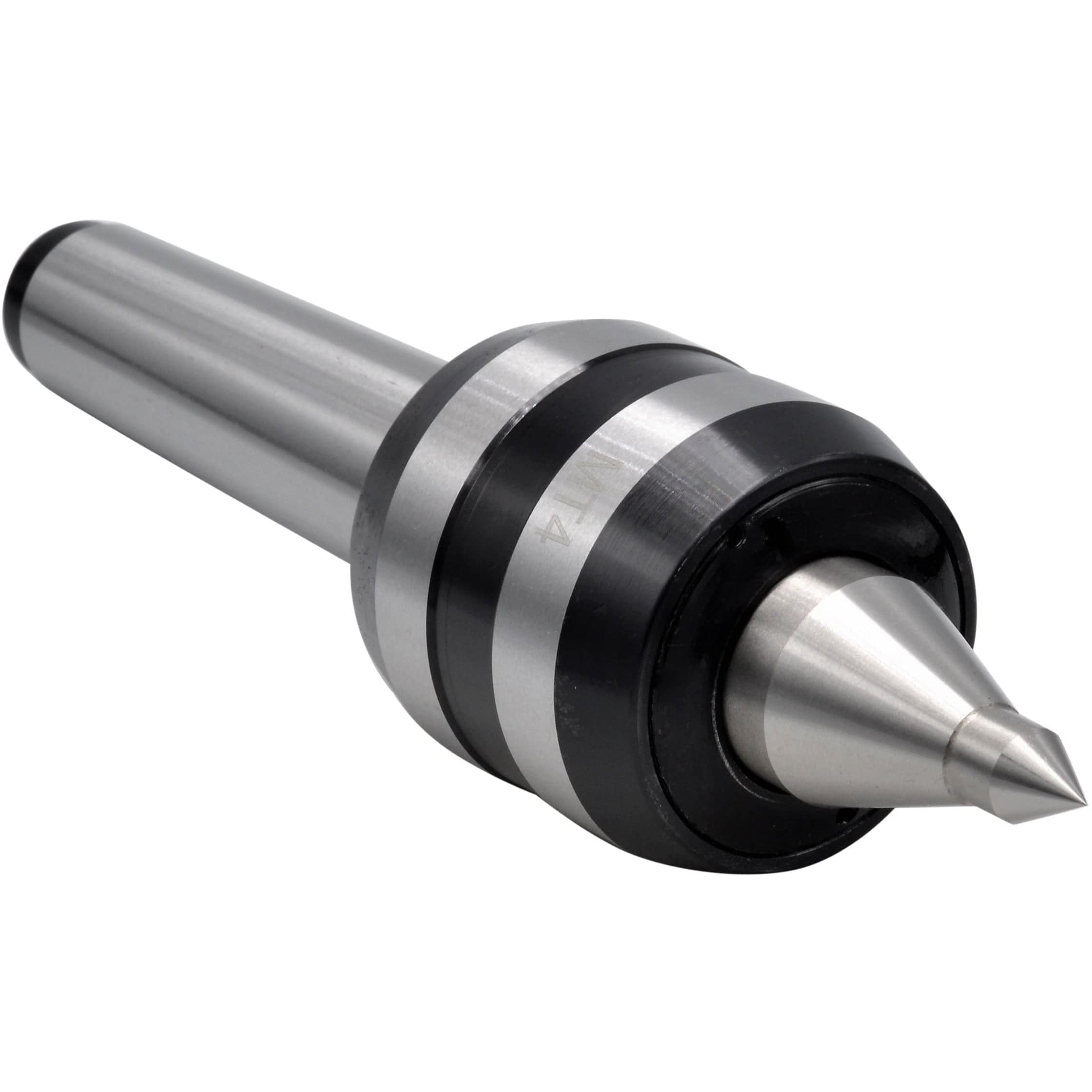

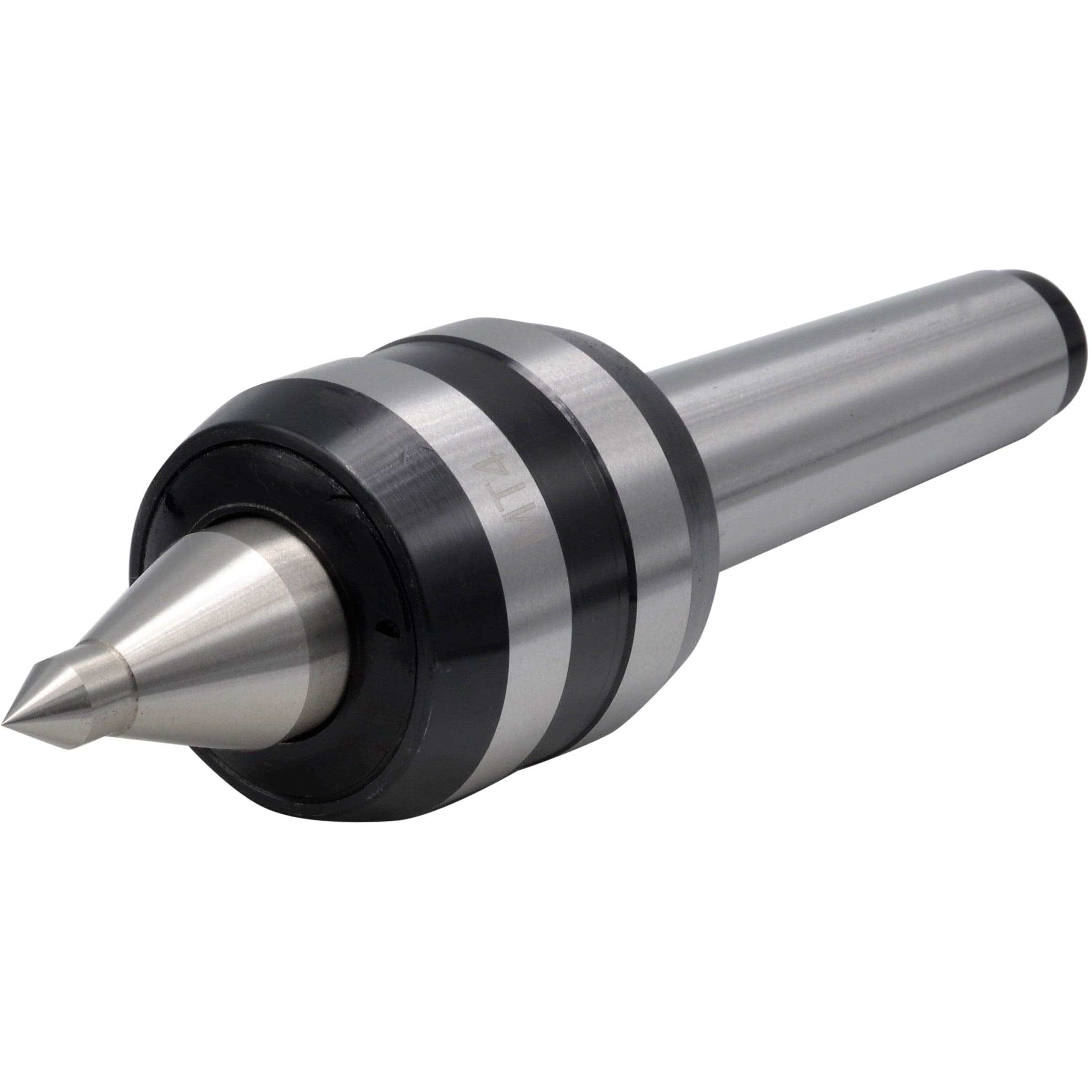

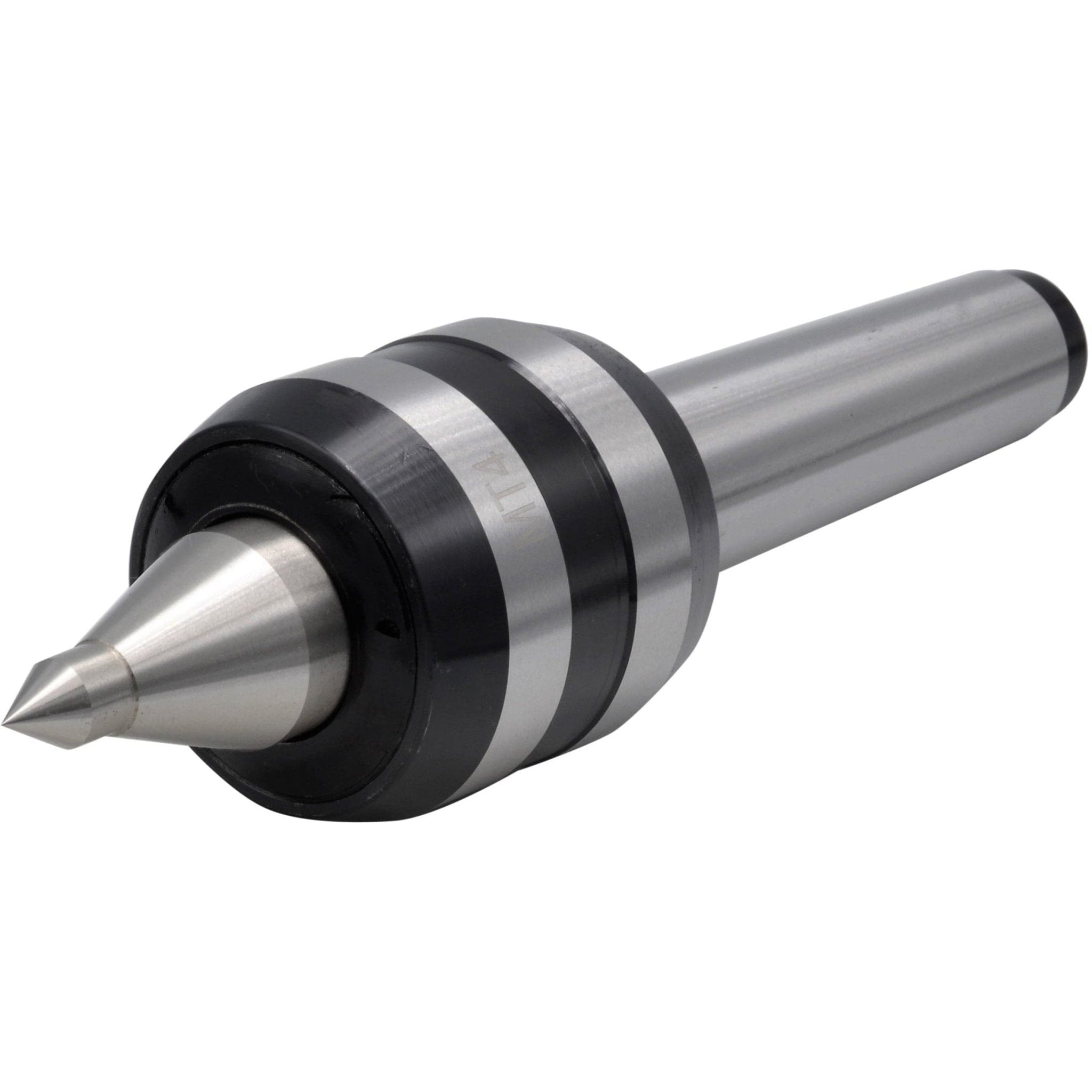

Morse Taper 4 Extended Nose Precision CNC High Speed Live Centre
Vendor: Dajiu
SKU: 575
$231.00
Order in The Next to get it by
Real Time 4 Visitor Right Now
Spend $1 to get Free Shipping
Morse Taper 4 High Speed CNC Live Centre
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
- Shank Size: Morse taper 4
- Part No:DJ-S06008/MT4
- Max RPM: 5000
- Accuracy: 0.005 mm
- Load Capacity: 300 kg
- 60 Degree Centre Point
- Triple bearing
-

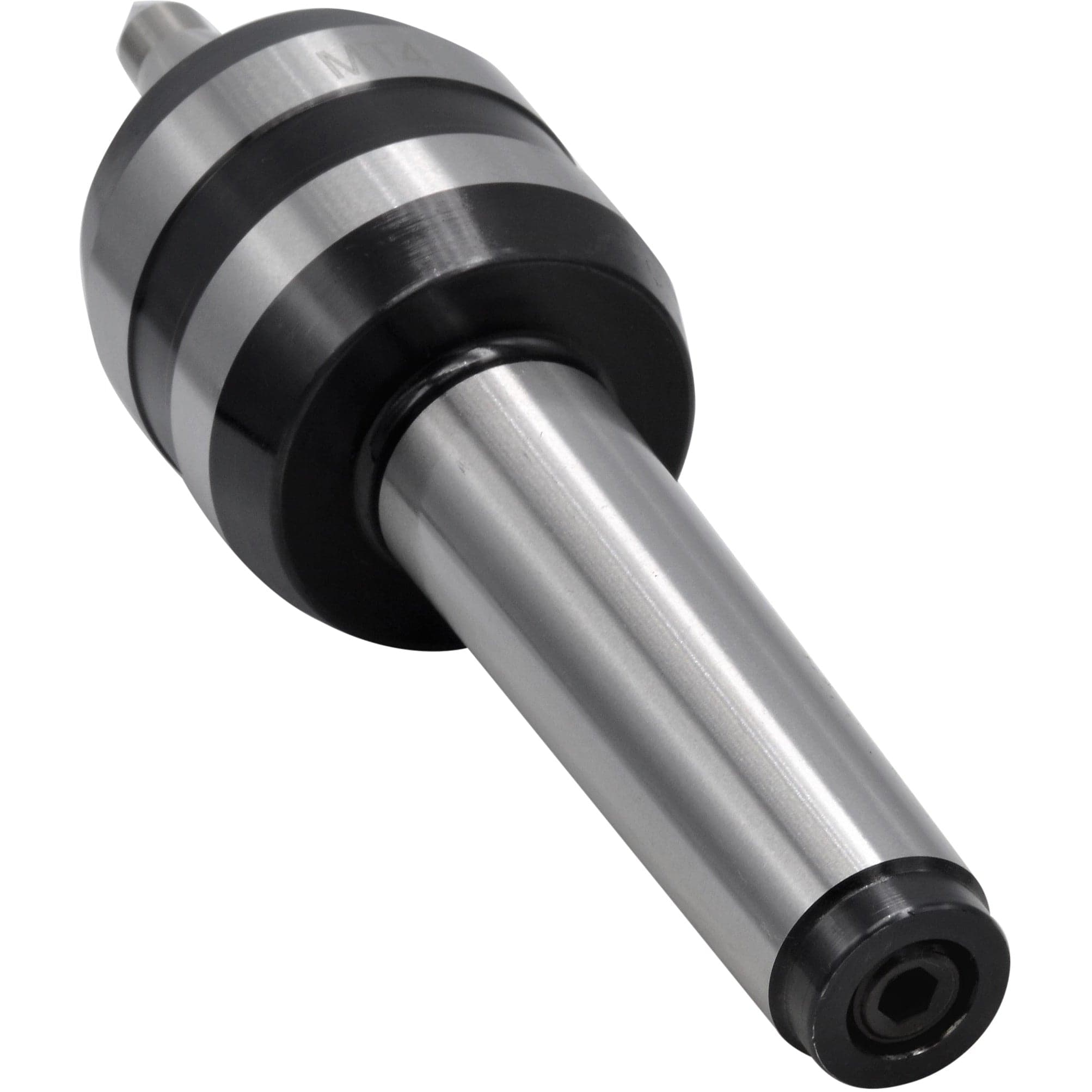

M14 Drawbar thread with cap

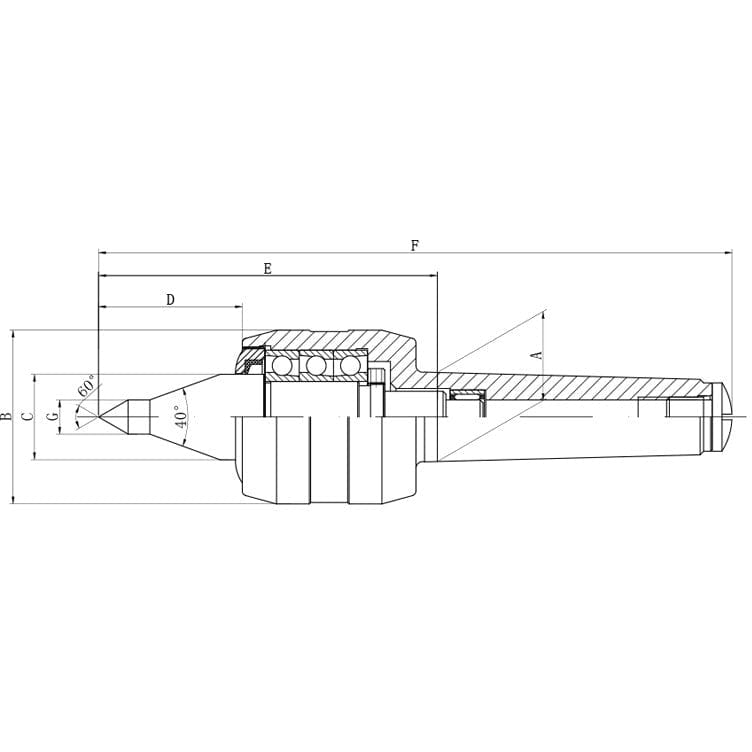

Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm) MT3 23.825 48
24 43 99 180 8
MT4 31.267 61 30
50.5
119.5 222 10 MT5 44.399 72
38
62
140.5 270 12
