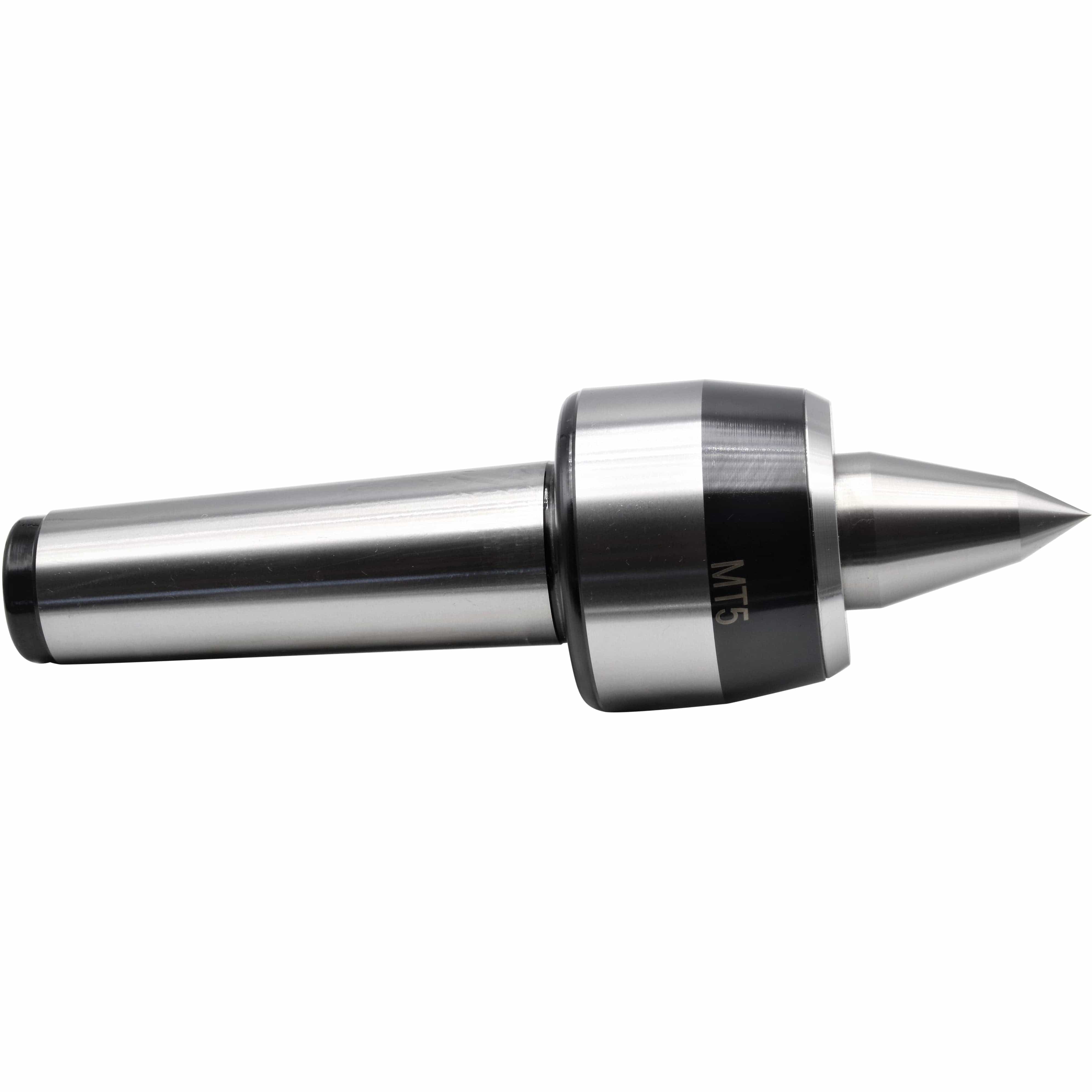

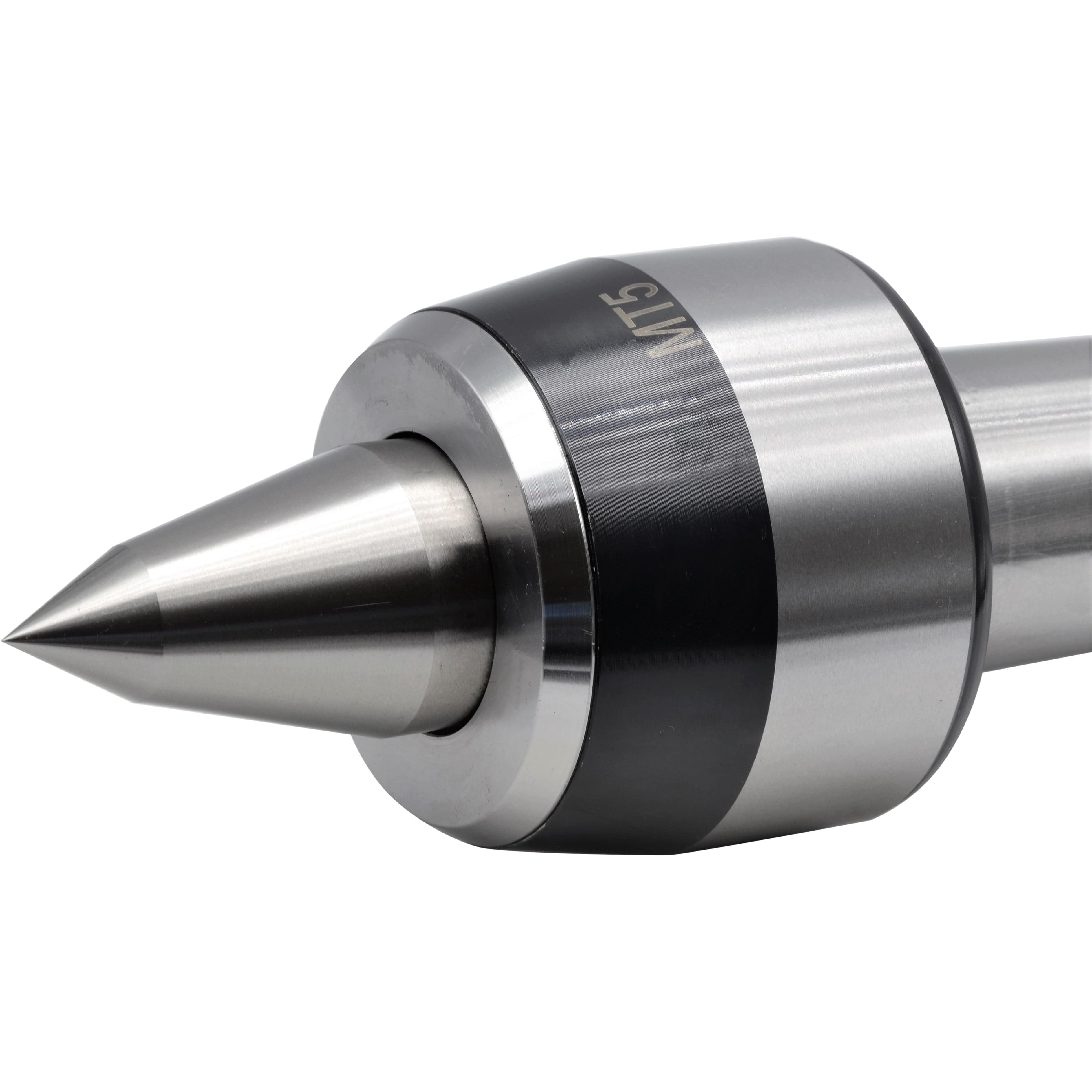

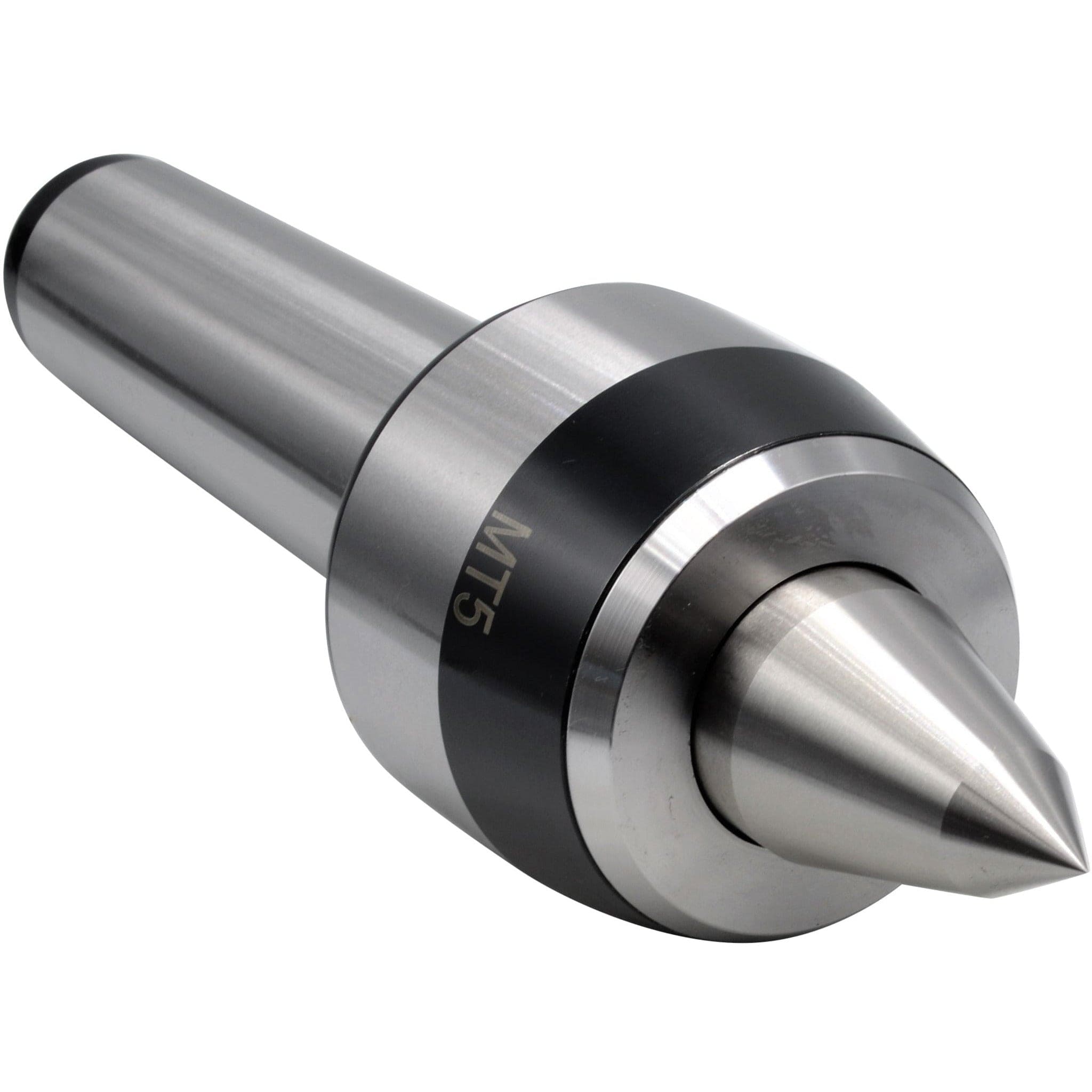

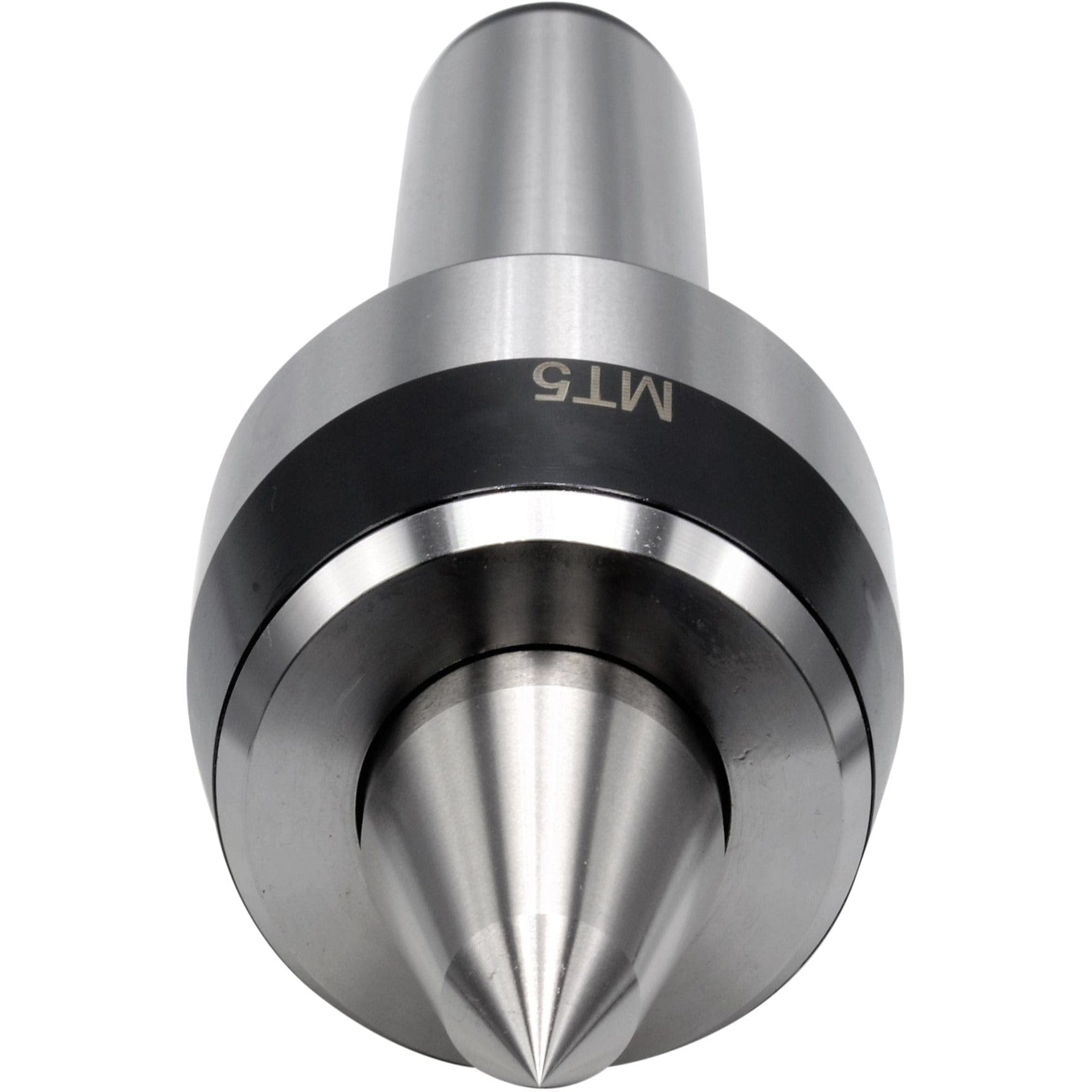

Morse Taper 5 Extended Nose High Speed Live Centre
Morse Taper 5 Extended Nose High Speed Live Centre M18 drawbar
Click to enlarge

in stock

Morse Taper 5 Extended Nose High Speed Live Centre

sold in last hours
Vendor: Dajiu
SKU: 561
$217.00
Delivery & Return
Ask about this product
Order in The Next to get it by
Real Time 7 Visitor Right Now
Spend $1 to get Free Shipping

Product Type: Live Centre

Barcode: 749355905447

Morse Taper 5 High Speed Live Centre

Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing
Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.
  • Shank Size: Morse taper 5
  • Part No:DJ-LO6006/MT5
  • Max RPM: 2500
  • Accuracy: 0.005 mm
  • Load Capacity: 1000 kg
  • 60 Degree Centre Point
  • Triple bearing

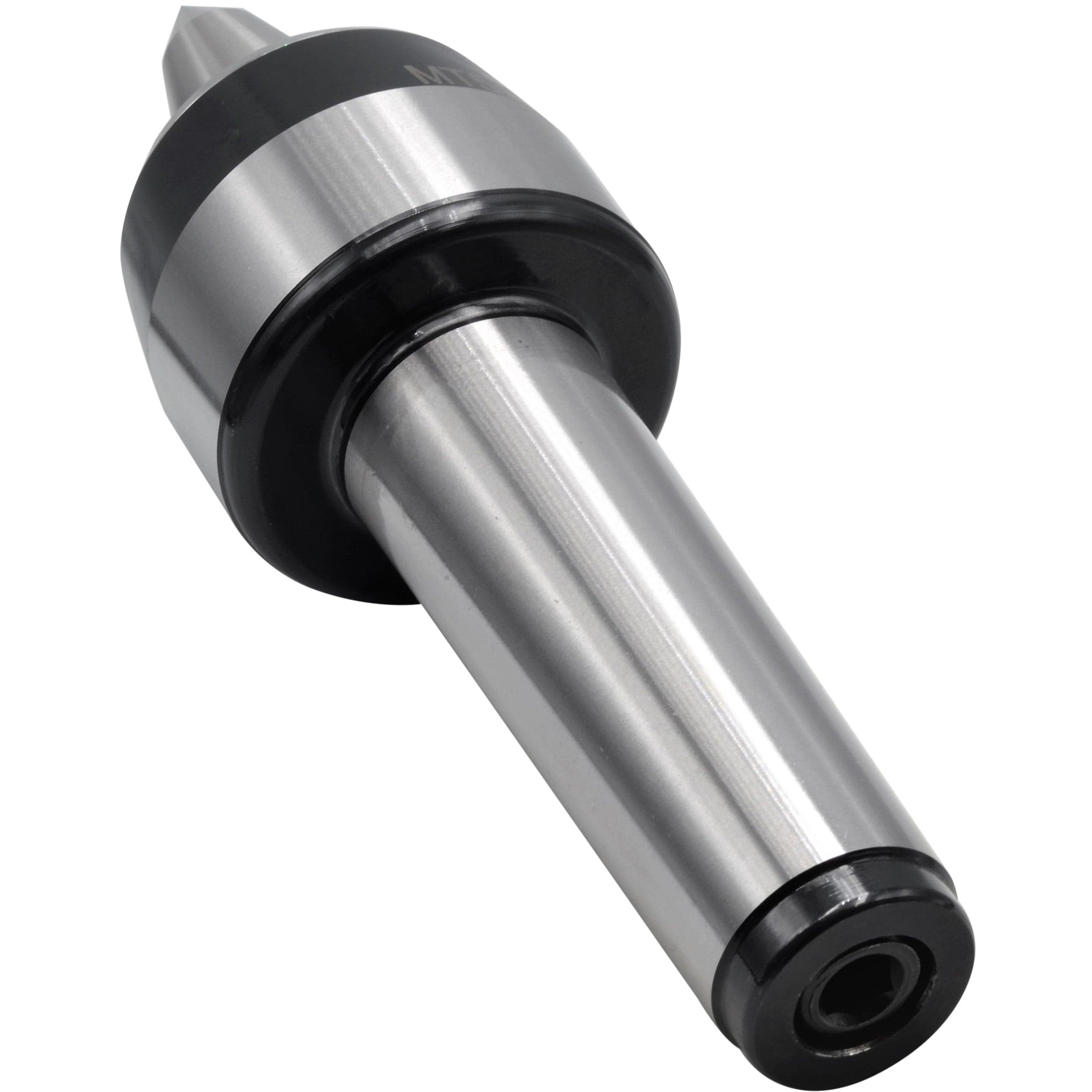

  • M18 Drawbar thread with cap

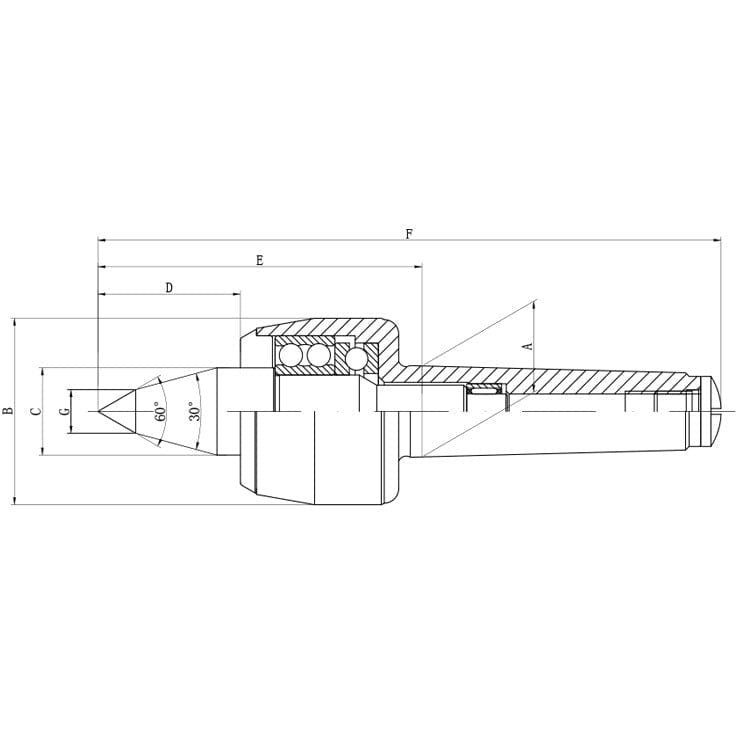

     Model A(ø:mm) B(ø:mm) C(ø:mm) D(mm) E(mm) F(mm) G(ø:mm)
    MT2 17.780 47 24 42 92 156 10
    MT3 23.825 59 25 43.5 102 184 12
    MT4 31.267 64 30 49 112 214.5 15
    MT5 44.399 78 38
    		 58.5
    		 133 262 20
