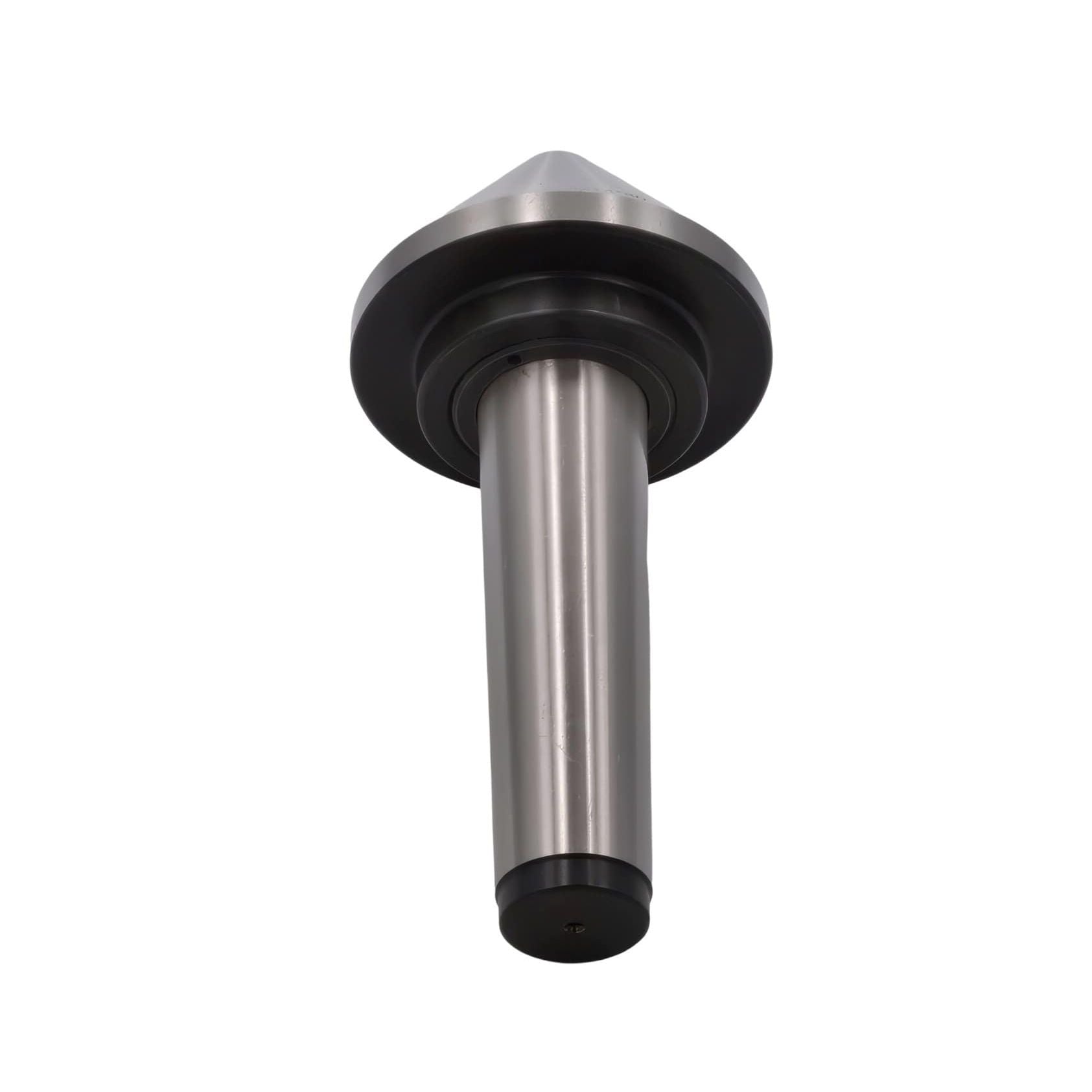

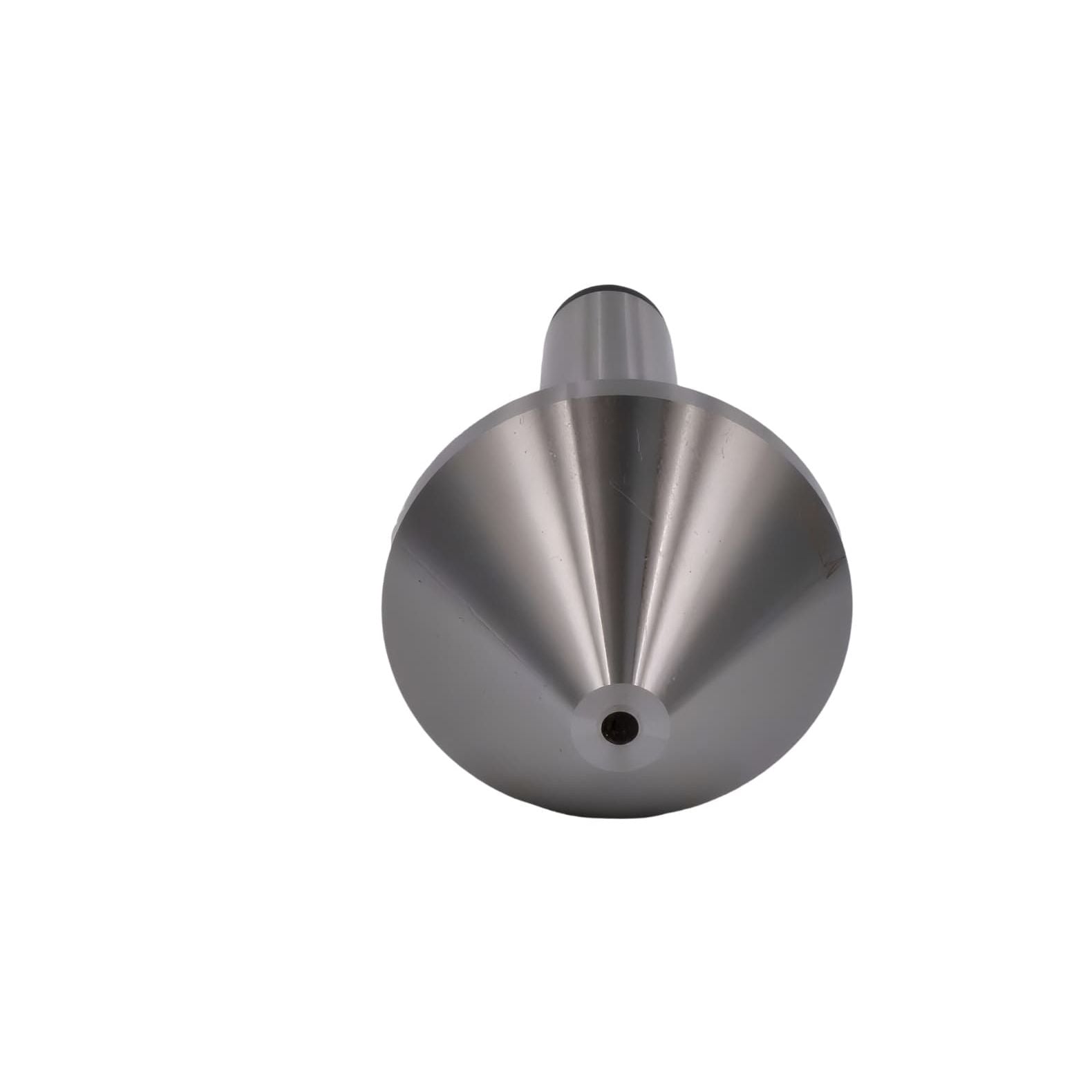

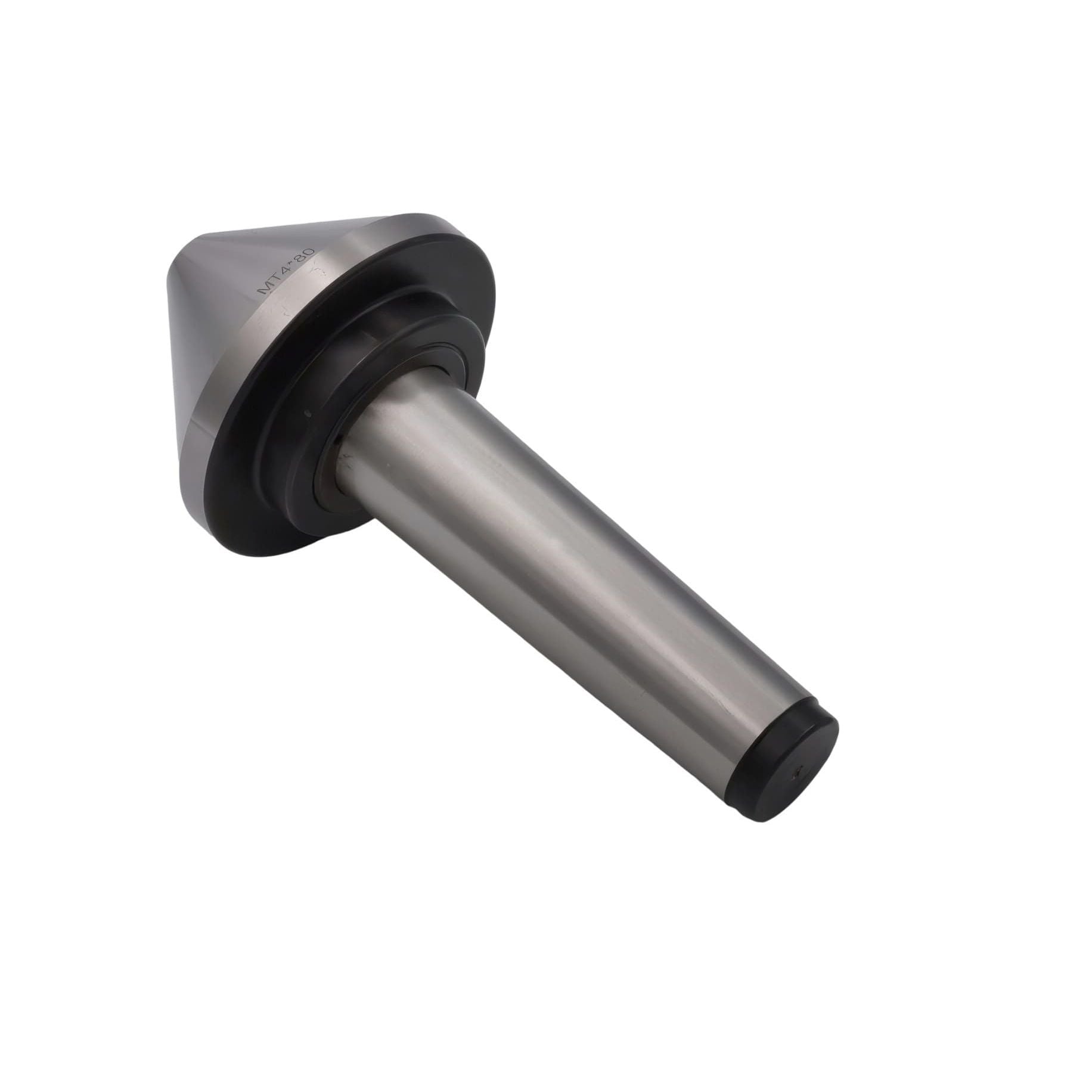

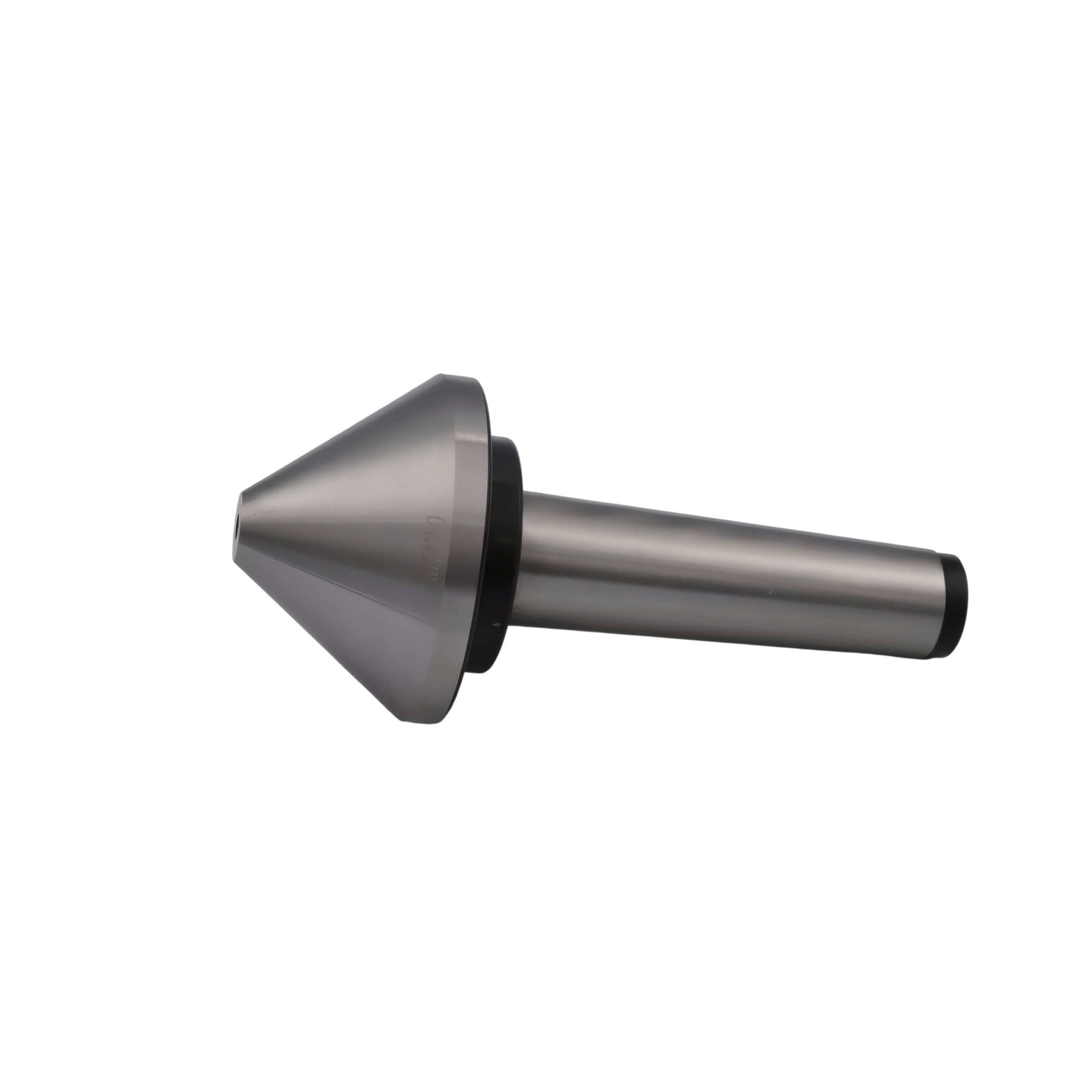

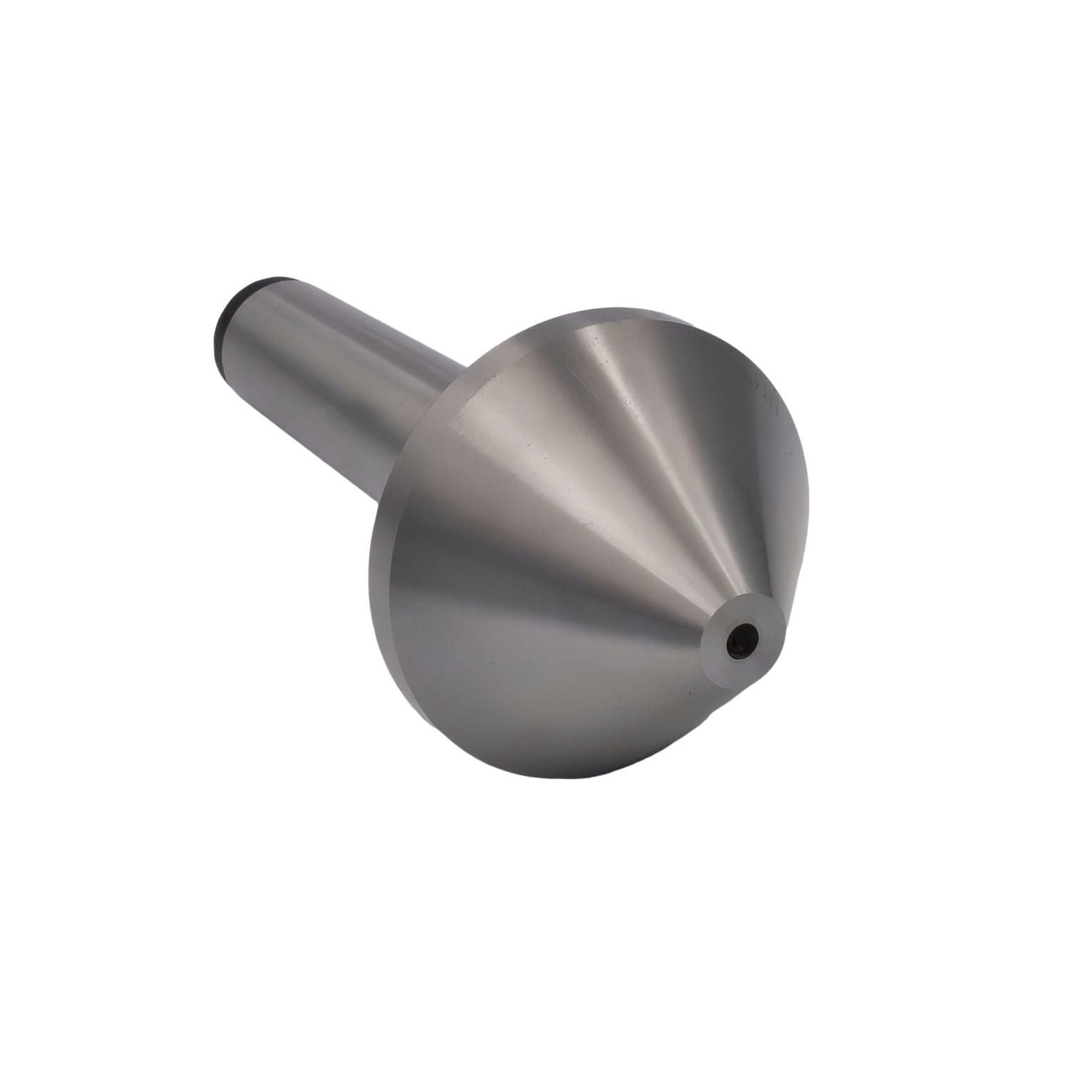

MT4 Pipe Centre 80mm Bull Nose Live Centre

This MT4 Pipe Centre 80mm Bull Nose Live Centre is specifically designed for supporting hollow workpieces such as pipes, tubes, and large internal diameter components during turning operations. Unlike standard...
$271.00
$0.00
$271.00
(-0%)
Vendor: DAJIU
SKU: DS4X80
Availability: In Stock
Subtotal: $271.00
DAJIU ACCESSORIES MT4 Pipe Centre 80mm Bull Nose Live Centre

MT4 Pipe Centre 80mm Bull Nose Live Centre

$0.00 $271.00

MT4 Pipe Centre 80mm Bull Nose Live Centre

$0.00 $271.00

This MT4 Pipe Centre 80mm Bull Nose Live Centre is specifically designed for supporting hollow workpieces such as pipes, tubes, and large internal diameter components during turning operations. Unlike standard pointed live centres, the wide bull nose design distributes pressure evenly inside the bore, preventing deformation and ensuring stable, concentric rotation.

Manufactured from high-quality alloy steel and precision ground for accuracy, this live centre incorporates a robust bearing system that allows smooth rotation under load. The hardened body and nose provide excellent wear resistance, while the sealed bearing design protects against coolant, chips, and contamination—ensuring long service life in demanding workshop environments. These centres are essential for machining thin-walled materials where traditional centres cannot be used effectively.

Key Features & Benefits

  • MT4 Morse taper for compatibility with standard lathe tailstocks
  • Bull nose (pipe centre) design for supporting hollow workpieces
  • 80mm capacity ideal for pipe and tube machining
  • Even load distribution prevents deformation of thin-walled materials
  • Precision ground for improved concentricity and surface finish
  • Heat-treated alloy steel construction for durability
  • Sealed bearing system for smooth rotation and long life
  • Suitable for light to medium-duty turning applications

Technical Specifications

  • Type: Pipe Centre / Bull Nose Live Centre
  • Taper: MT4 (Morse Taper 4)
  • Capacity: Up to 80mm (pipe diameter)
  • Point Style: Bull Nose (Internal support)
  • Point Angle: 60°
  • Material: Heat-treated alloy steel
  • Bearing Type: Double or triple bearing system
  • Application: Pipe, tube, and hollow shaft machining

This MT4 pipe live centre is an essential tool for machinists working with hollow components, providing reliable support, reduced vibration, and improved machining accuracy. Ideal for both manual and CNC lathe applications where internal support is required.
