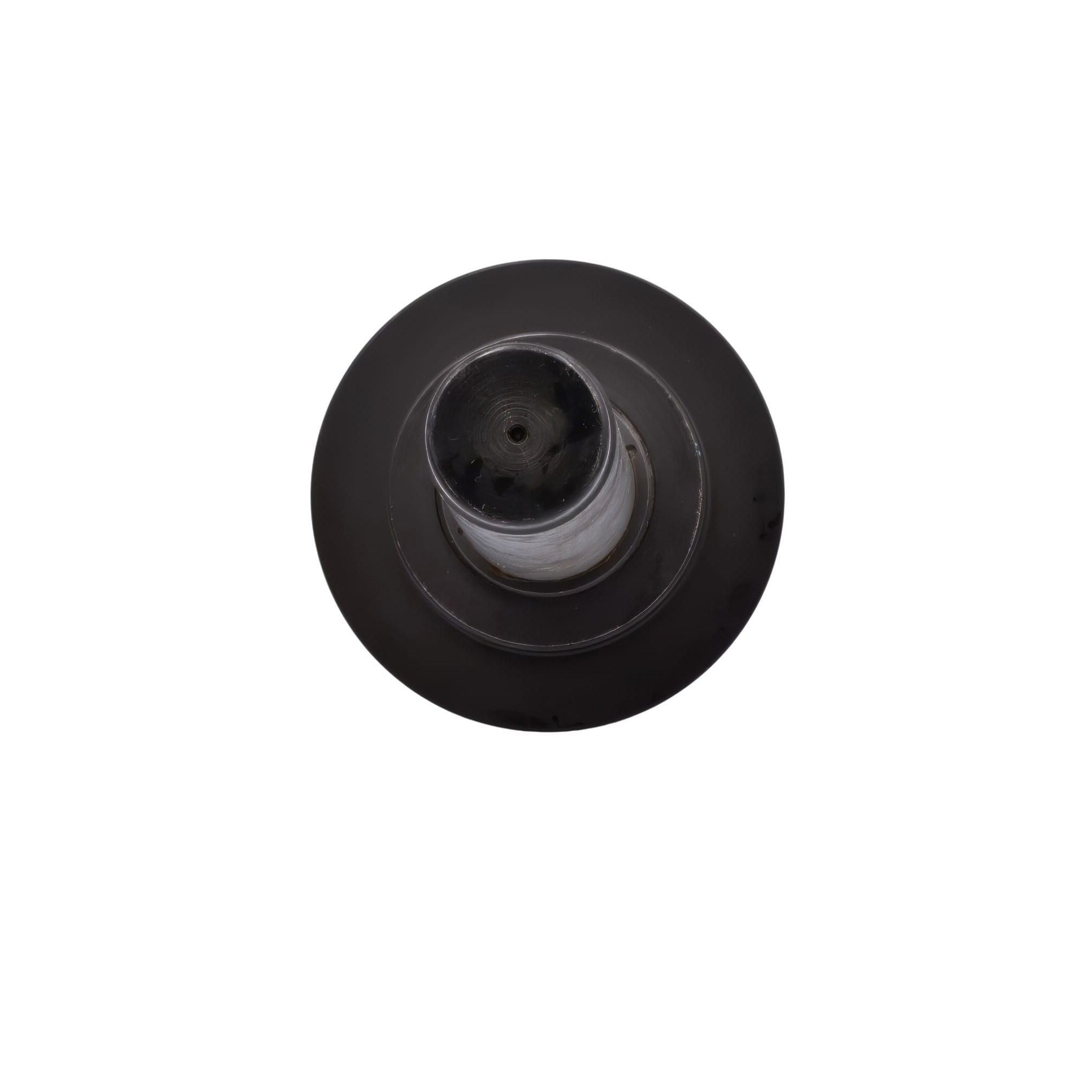

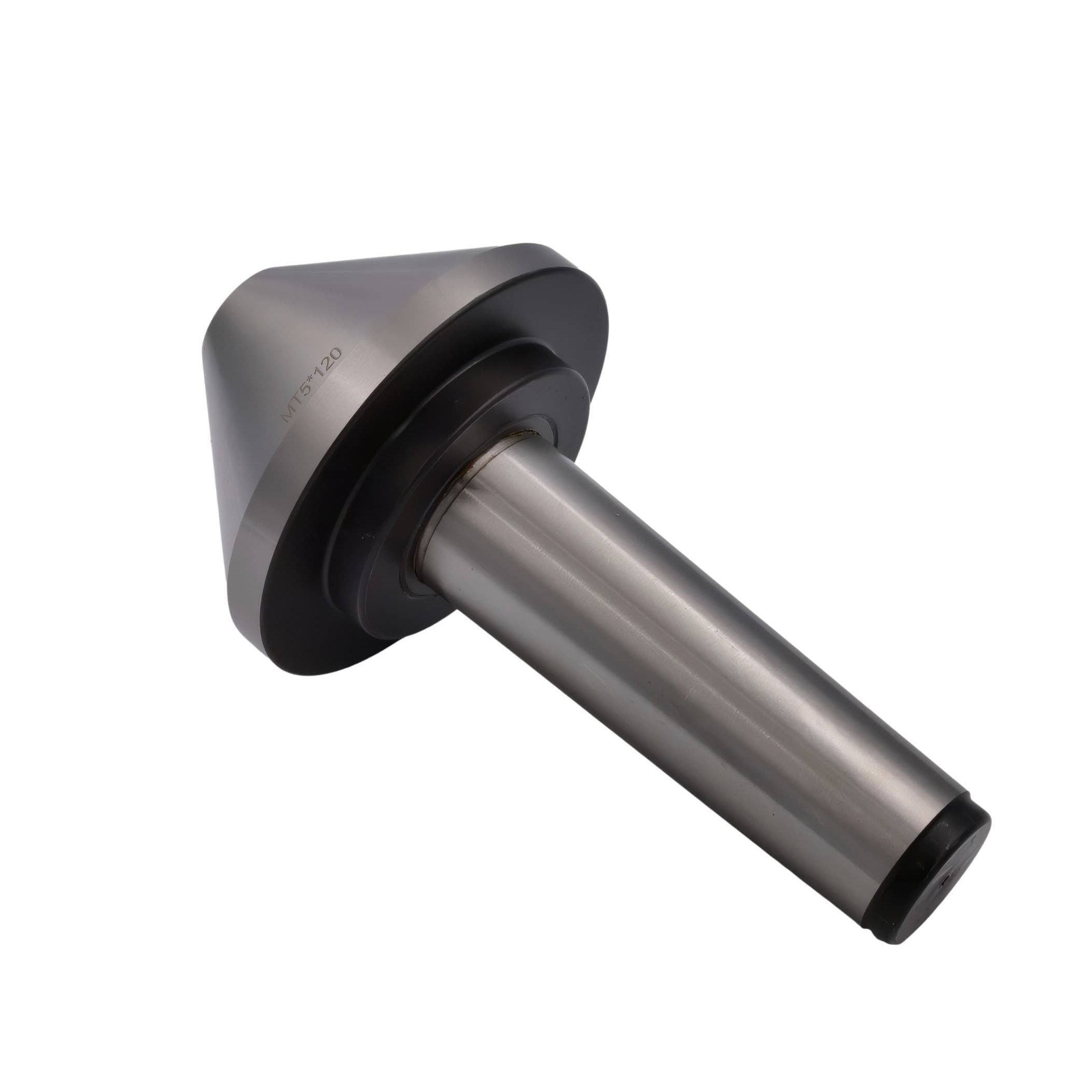

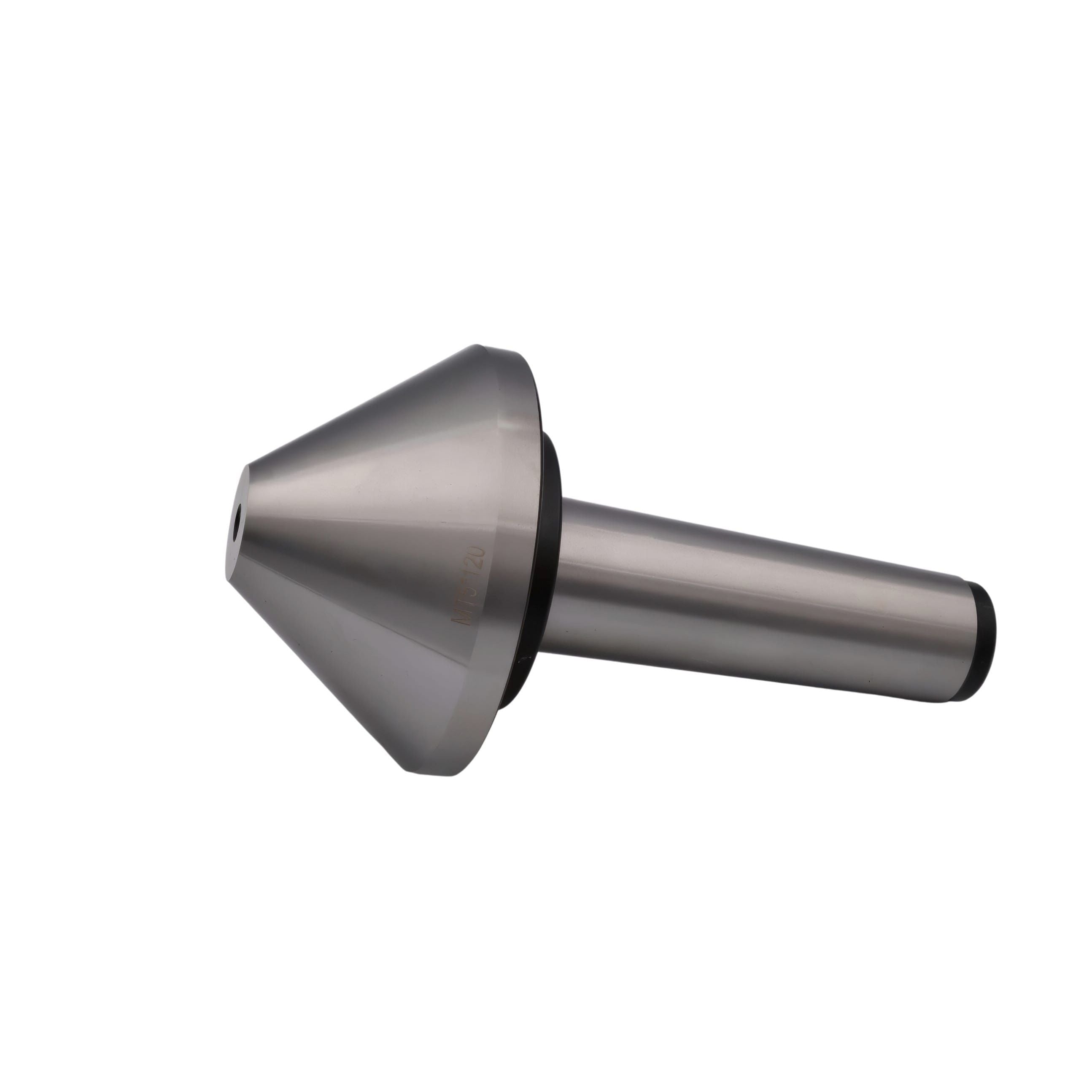

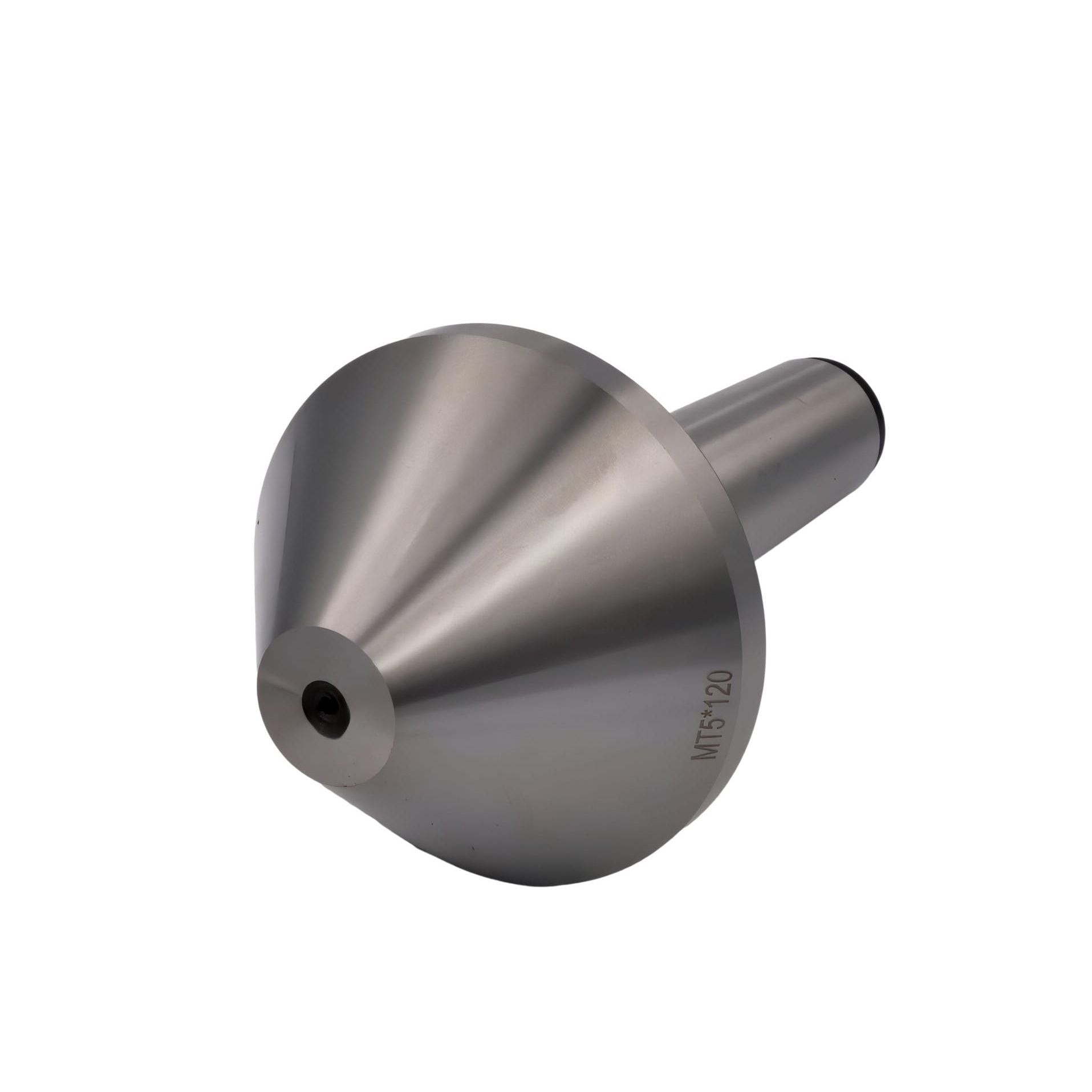

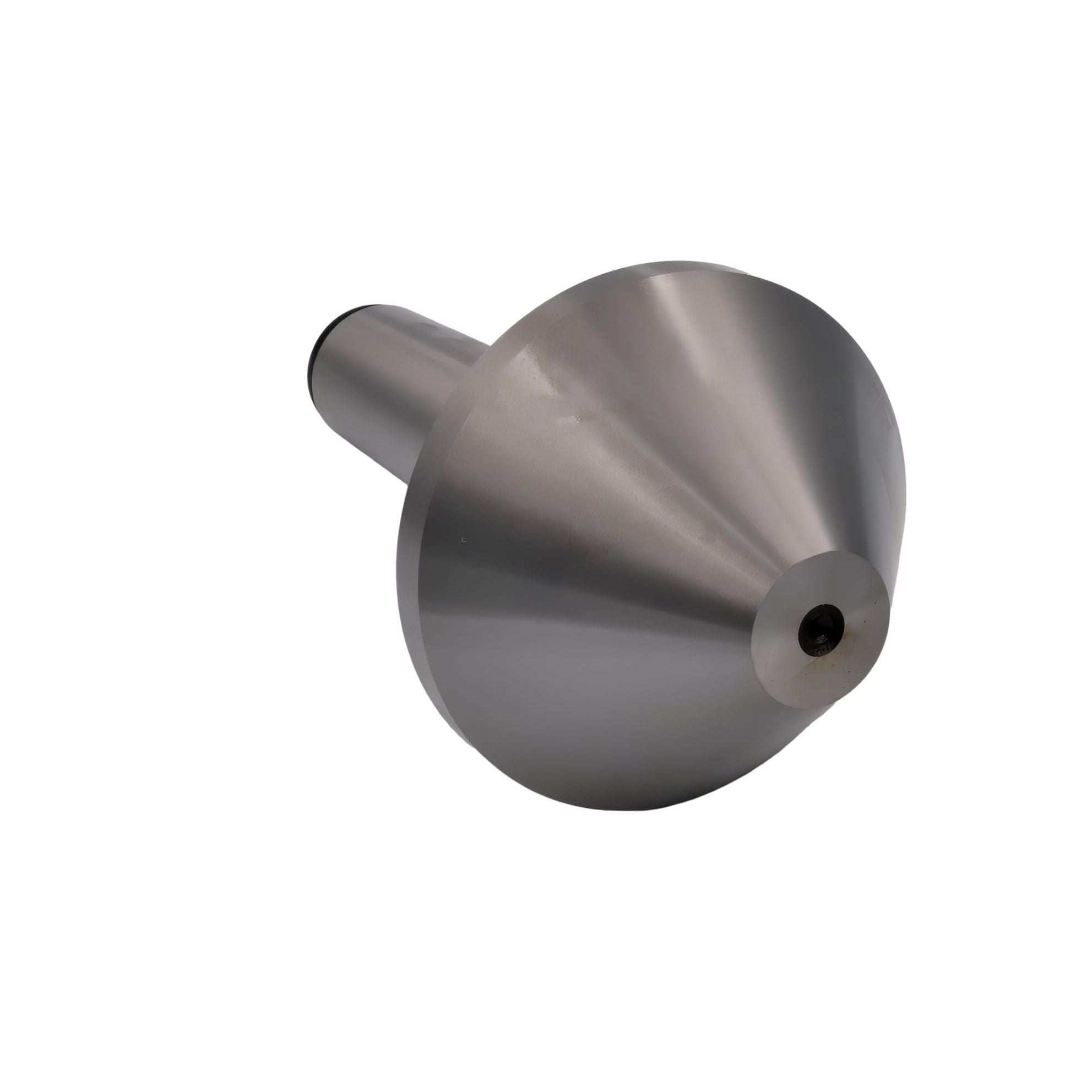

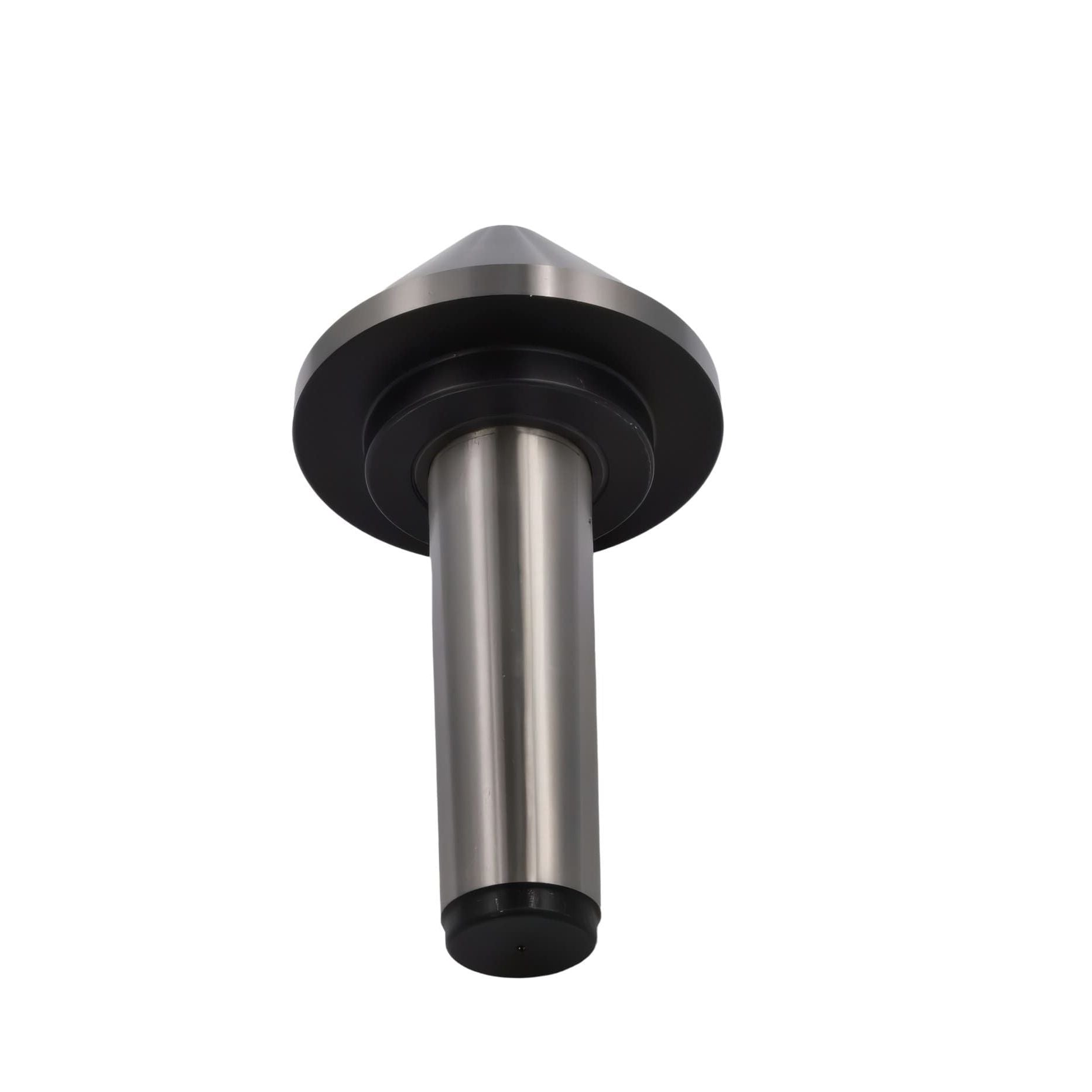

MT5 Pipe Centre 120mm Bull Nose Live Centre

This MT5 Pipe Centre 120mm Bull Nose Live Centre is engineered for supporting large hollow workpieces such as pipes, tubes, and cylindrical components during turning operations. The wide bull nose...
$484.00
$0.00
$484.00
(-0%)
Vendor: DAJIU
SKU: DS5X120
Availability: In Stock
Subtotal: $484.00
DAJIU ACCESSORIES MT5 Pipe Centre 120mm Bull Nose Live Centre

MT5 Pipe Centre 120mm Bull Nose Live Centre

$0.00 $484.00

MT5 Pipe Centre 120mm Bull Nose Live Centre

$0.00 $484.00

This MT5 Pipe Centre 120mm Bull Nose Live Centre is engineered for supporting large hollow workpieces such as pipes, tubes, and cylindrical components during turning operations. The wide bull nose design allows the centre to sit securely inside the bore, distributing pressure evenly and preventing distortion—making it ideal for thin-walled or large-diameter materials.

Constructed from heat-treated alloy steel and precision ground for high accuracy, this live centre features a heavy-duty bearing system that ensures smooth, low-friction rotation even under high loads. The sealed bearing design protects against coolant, dust, and debris, extending tool life and maintaining consistent performance in demanding machining environments. Bull nose live centres are specifically designed to improve stability, reduce vibration, and maintain concentricity when machining hollow components.

Key Features & Benefits

  • MT5 Morse taper for heavy-duty lathe applications
  • Large 120mm bull nose capacity for pipe and tube work
  • Designed for internal support of hollow workpieces
  • Even load distribution reduces deformation on thin materials
  • Precision ground for improved concentric accuracy
  • Hardened alloy steel construction for durability and wear resistance
  • Heavy-duty bearing system for smooth, high-load rotation
  • Sealed design to protect against coolant and contamination

Technical Specifications

  • Type: Pipe Centre / Bull Nose Live Centre
  • Taper: MT5 (Morse Taper 5)
  • Capacity: Up to 120mm
  • Point Style: Bull Nose (Internal support)
  • Point Angle: Approx. 60°–75°
  • Material: Heat-treated alloy steel
  • Hardness: Approx. HRC 58–62
  • Bearing Type: Multi-bearing (double/triple bearing system)
  • Application: Pipe, tube, and hollow shaft machining

This MT5 bull nose live centre is ideal for heavy-duty machining where internal support is required, delivering enhanced stability, reduced chatter, and improved machining accuracy across large-diameter hollow components.
