Insize Precision Bore Gauge 50-160mm with Dial Indicator Series 2825-160

The Insize 2825-160 Precision Bore Gauge is a high-accuracy internal measuring instrument designed for precise bore diameter inspection in machining, engineering, and quality control applications. Supplied with a dial indicator,...
$567.00
$0.00
$567.00
(-0%)
Vendor: INSIZE
SKU: 2825-160
Availability: In Stock
Subtotal: $567.00
INSIZE MEASURING EQUIPMENT Insize Precision Bore Gauge 50-160mm with Dial Indicator Series 2825-160

Insize Precision Bore Gauge 50-160mm with Dial Indicator Series 2825-160

$0.00 $567.00

Insize Precision Bore Gauge 50-160mm with Dial Indicator Series 2825-160

$0.00 $567.00

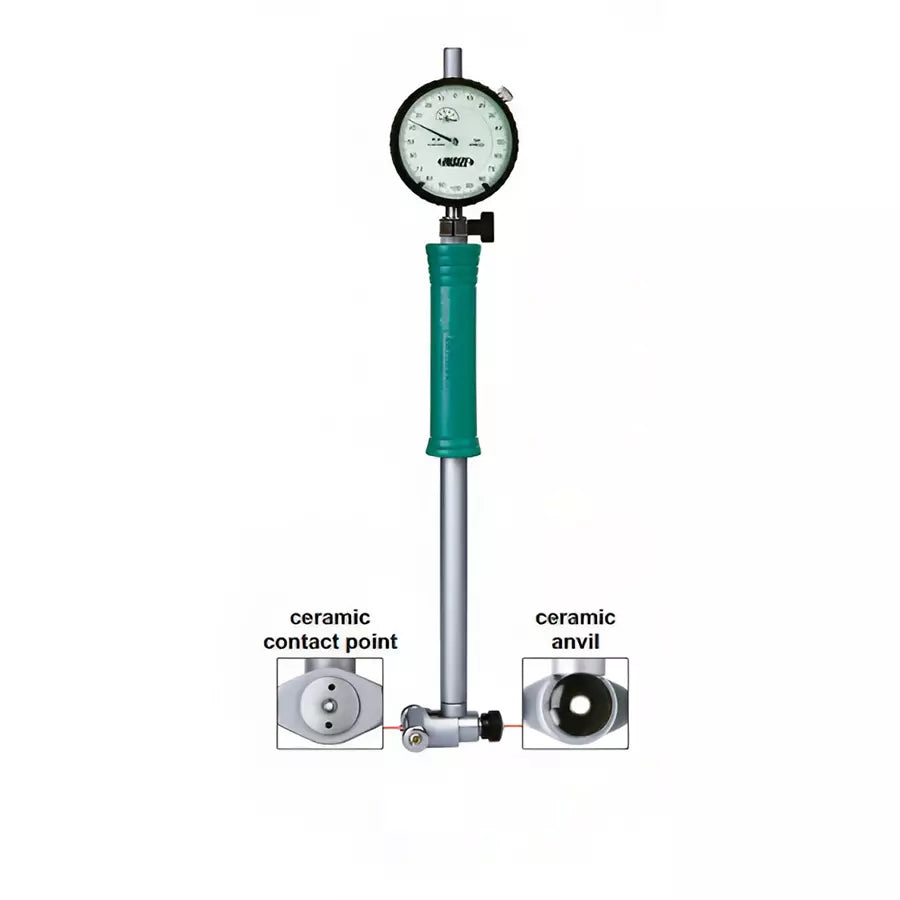

The Insize 2825-160 Precision Bore Gauge is a high-accuracy internal measuring instrument designed for precise bore diameter inspection in machining, engineering, and quality control applications. Supplied with a dial indicator, this professional bore gauge provides reliable and repeatable measurement results for internal diameters ranging from 50mm to 160mm.

Featuring ceramic anvils and contact points for improved wear resistance and durability, the Insize 2825-160 delivers excellent measuring stability and long-term precision performance. With ±0.007mm accuracy and 0.0015mm repeatability, this bore gauge is ideal for inspecting cylinders, bearing housings, machined bores, and precision-engineered components.

Key Features & Benefits

  • Precision bore gauge for internal diameter measurement
  • Measurement range from 50mm to 160mm
  • Supplied with precision dial indicator
  • Ceramic contact points and anvils for durability
  • High measuring accuracy and repeatability
  • Suitable for precision machining and inspection work
  • Ideal for cylinder and bore measurement applications
  • Professional workshop and quality control instrument
  • Reliable and repeatable internal measurement performance
  • Optional setting ring and bore gauge setter available

Technical Specifications

  • Part Number: 2825-160
  • Product Type: Precision Bore Gauge
  • Measurement Range: 50-160mm
  • Indicator Type: Dial Indicator
  • Indicator Range: 1mm
  • Indicator Graduation: 0.001mm
  • Indicator Code: 2313-1FA
  • Accuracy: ±0.007mm
  • Repeatability: 0.0015mm
  • Contact Point Material: Ceramic
  • Anvil Material: Ceramic
  • Dimension A: 26mm
  • Dimension B: 9mm
  • Dimension C: 35mm
  • Diameter D: 13mm
  • Diameter E: 12.8mm
  • F Dimension: SR2
  • Total Length (L): 141mm

Optional Accessories

  • Setting Ring (Code: 6312)
  • Bore Gauge Setter
  • Built-in Wireless Digital Indicator (optional)

Applications:

  • Internal bore measurement
  • Cylinder bore inspection
  • Bearing housing measurement
  • Precision machining inspection
  • Engineering and manufacturing quality control
  • Workshop and toolroom measurement applications

Insize precision bore gauges are engineered for professional inspection and machining environments, delivering dependable accuracy, repeatability, and durability for demanding internal measurement applications.

Insize is globally recognised for manufacturing precision measuring instruments and inspection equipment trusted by machinists, engineers, and quality control professionals worldwide.
