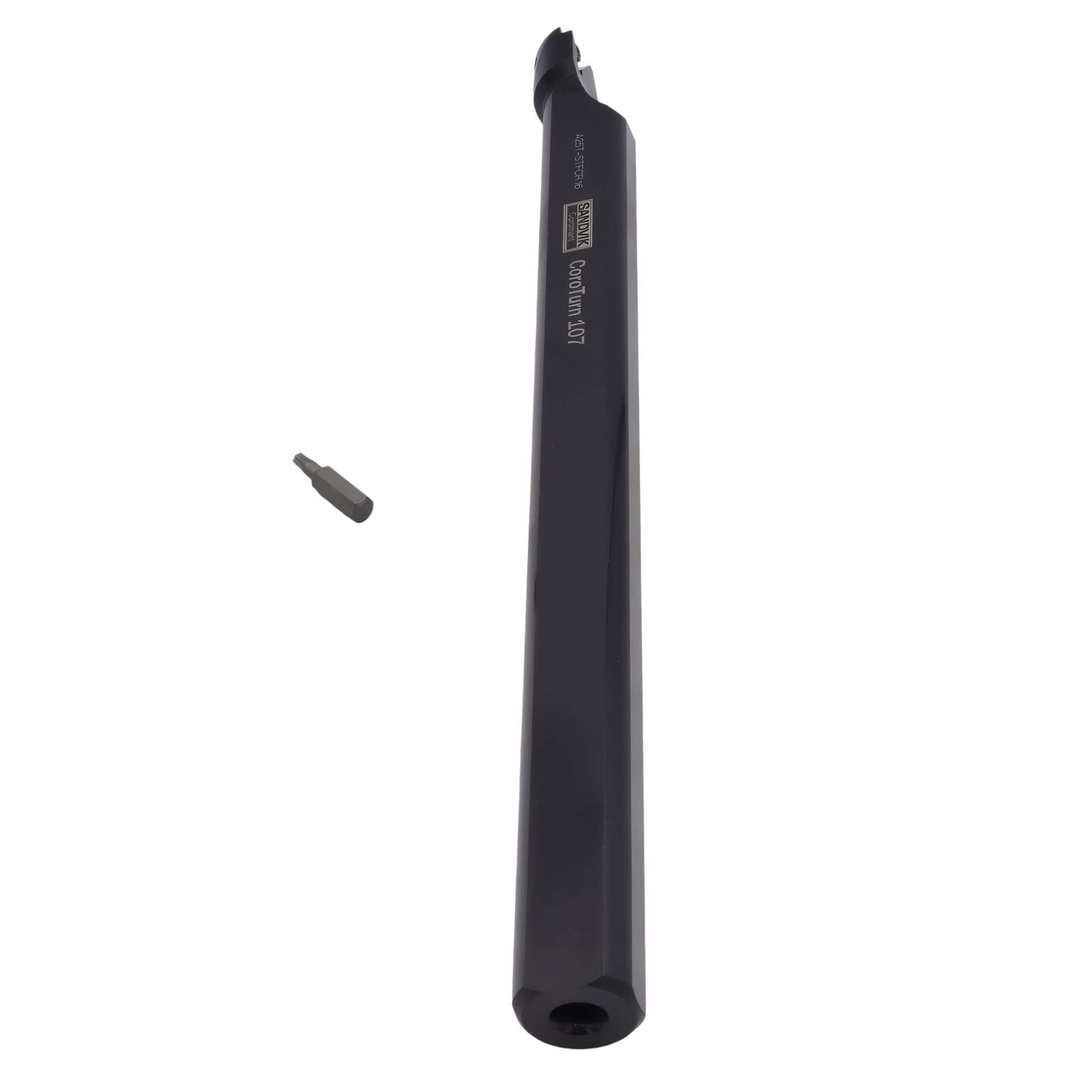

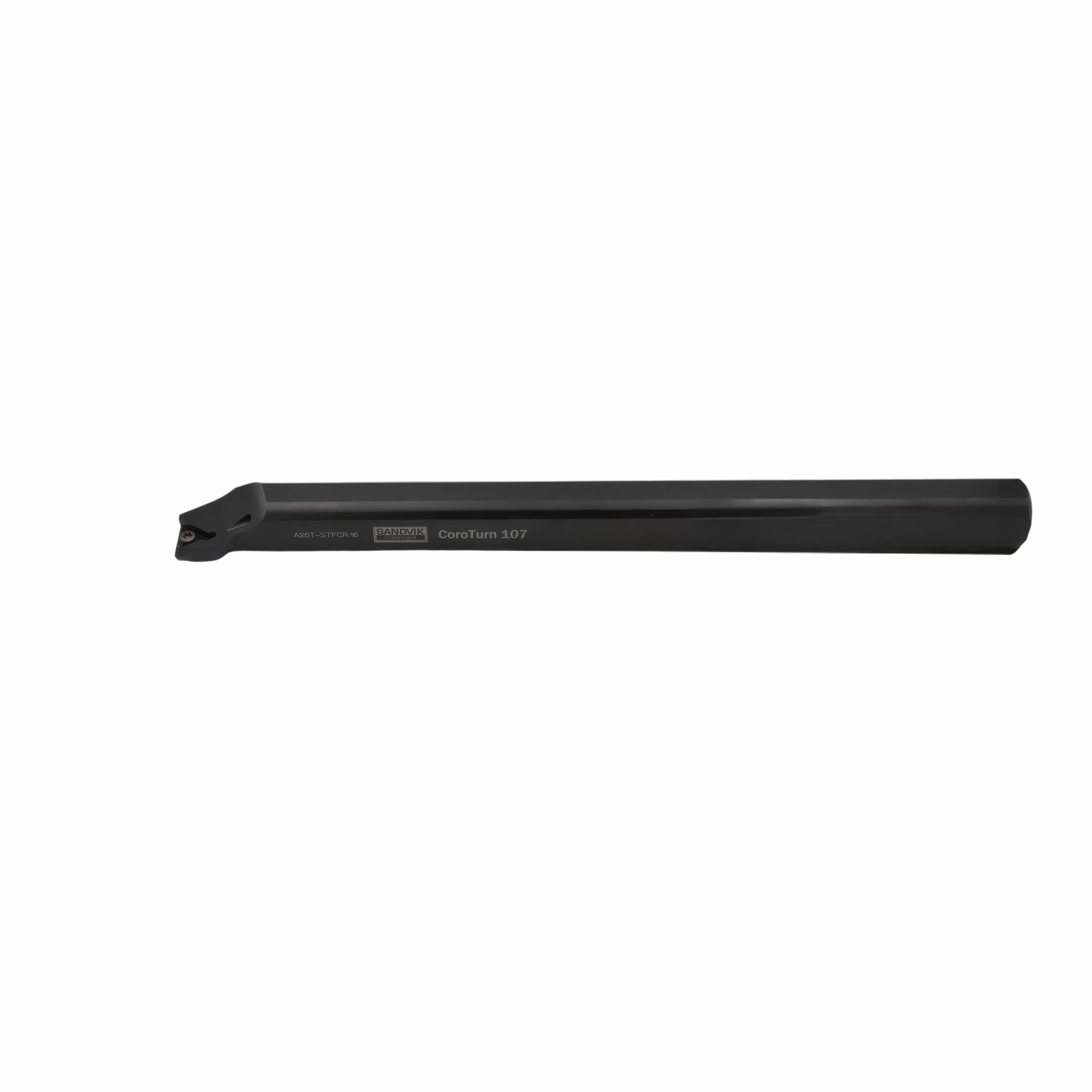

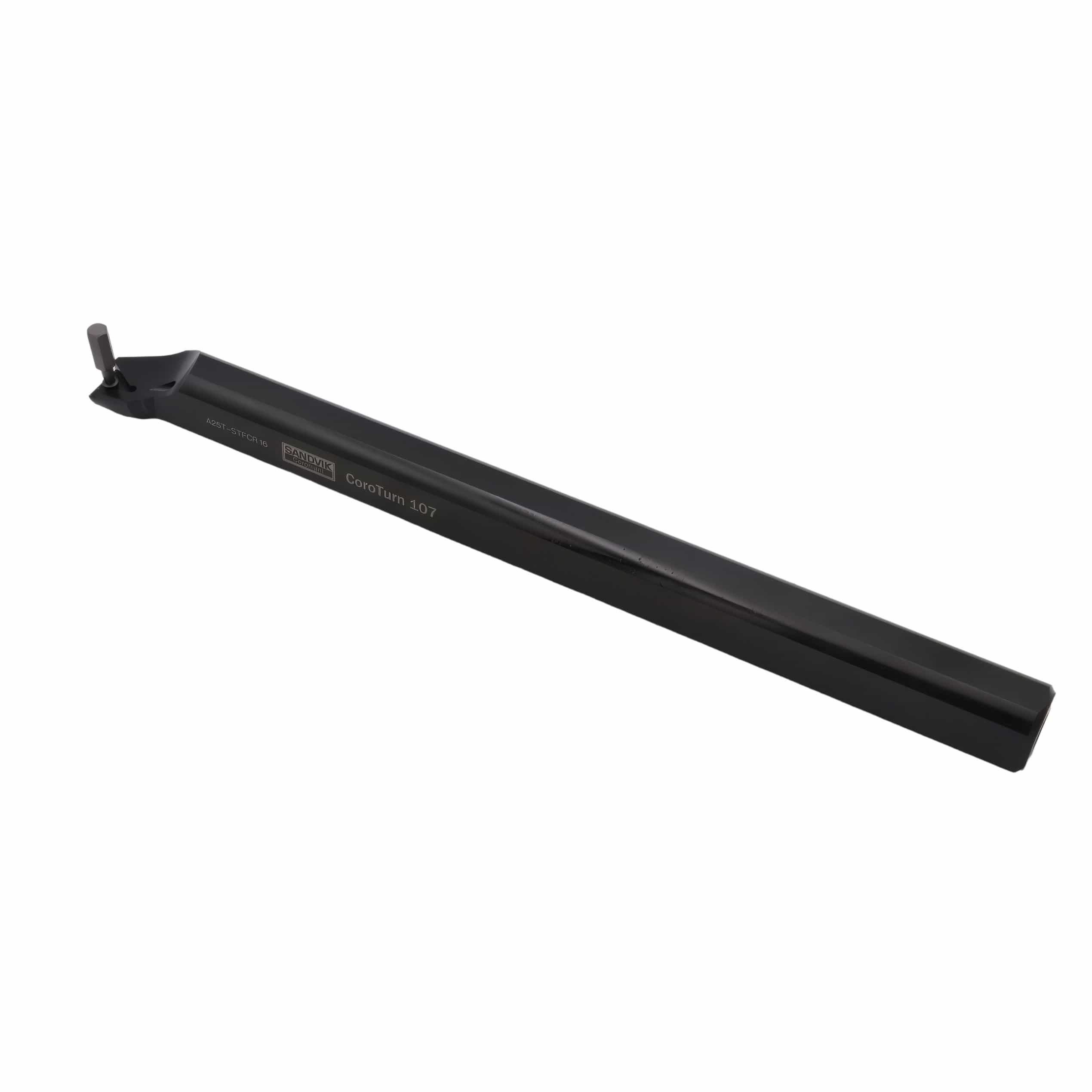

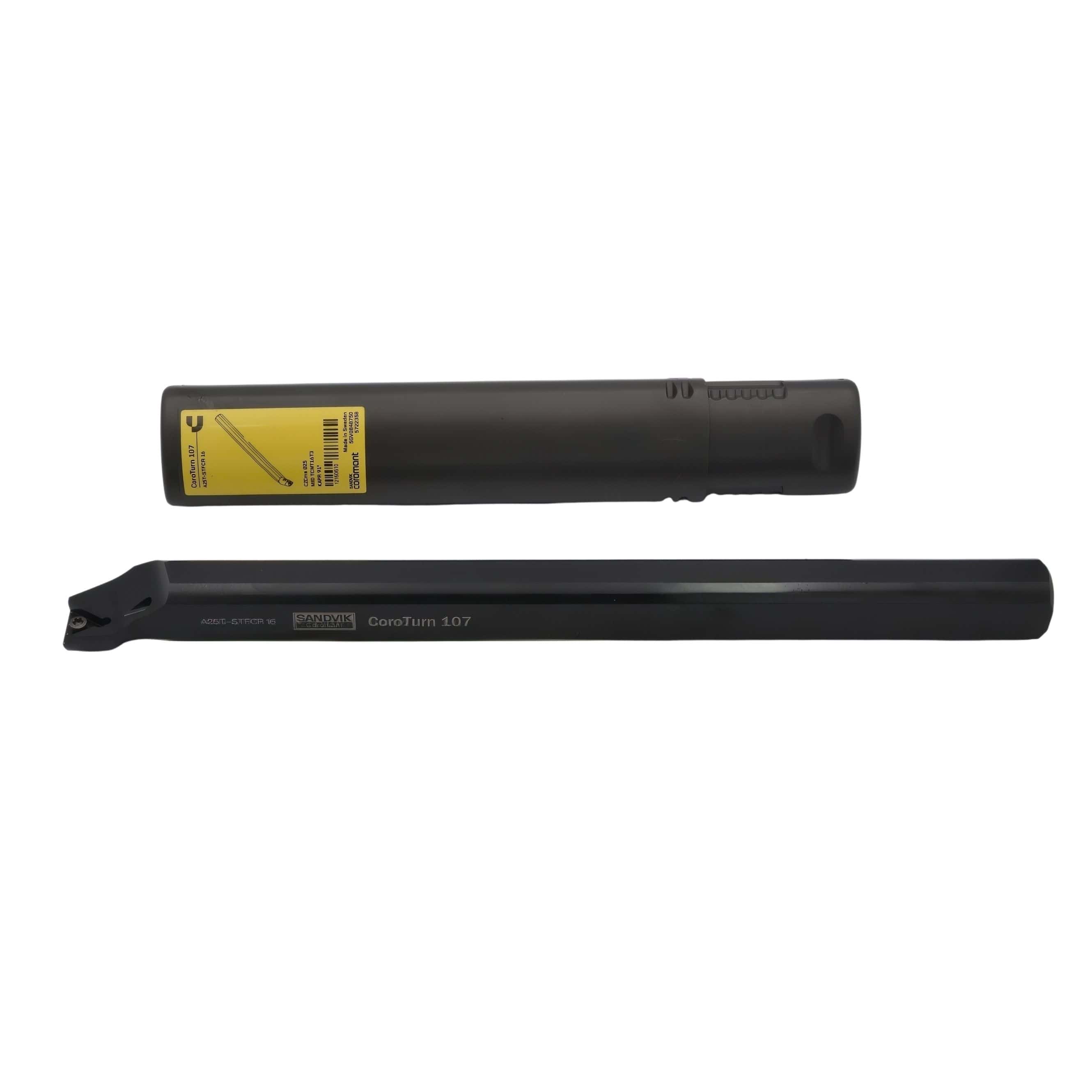

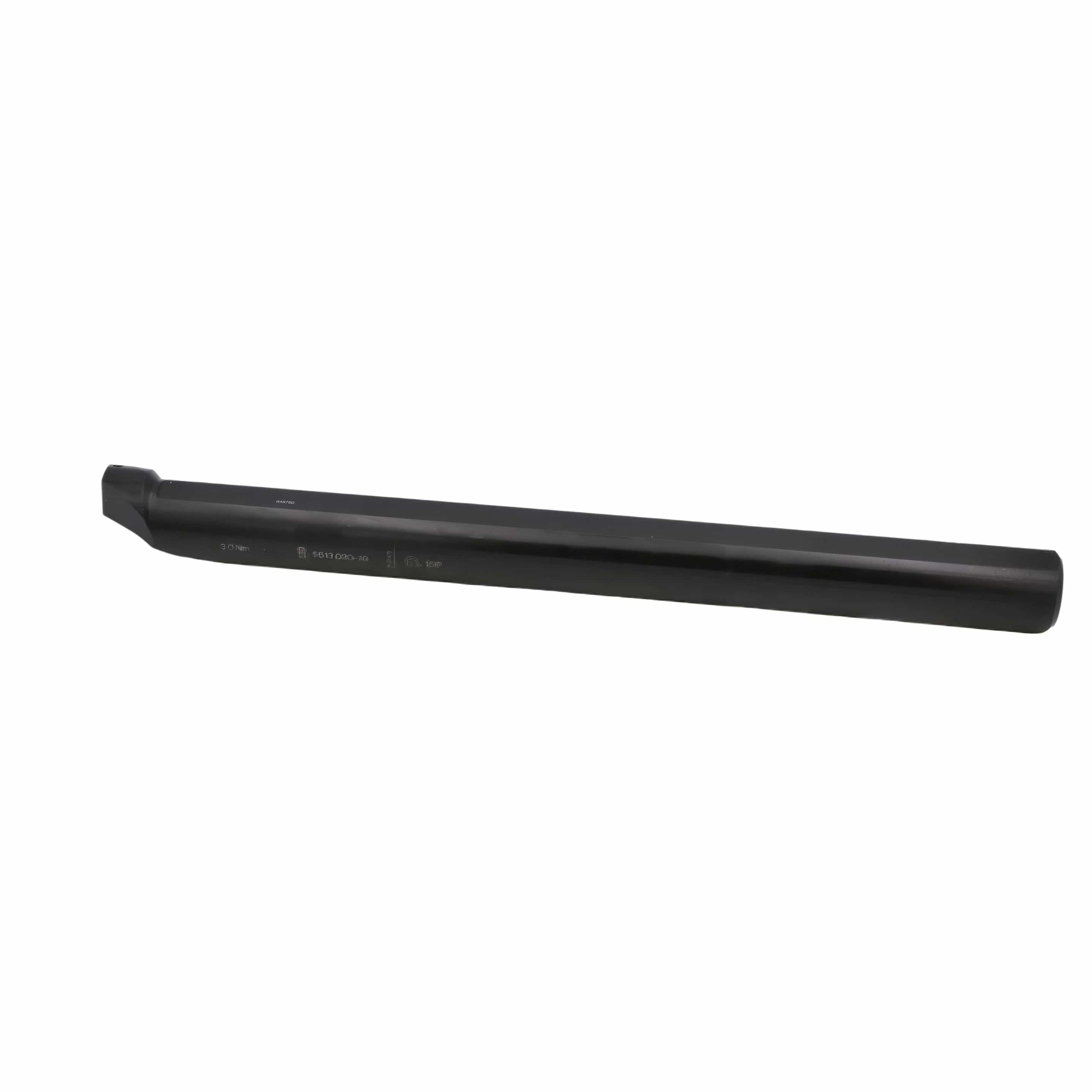

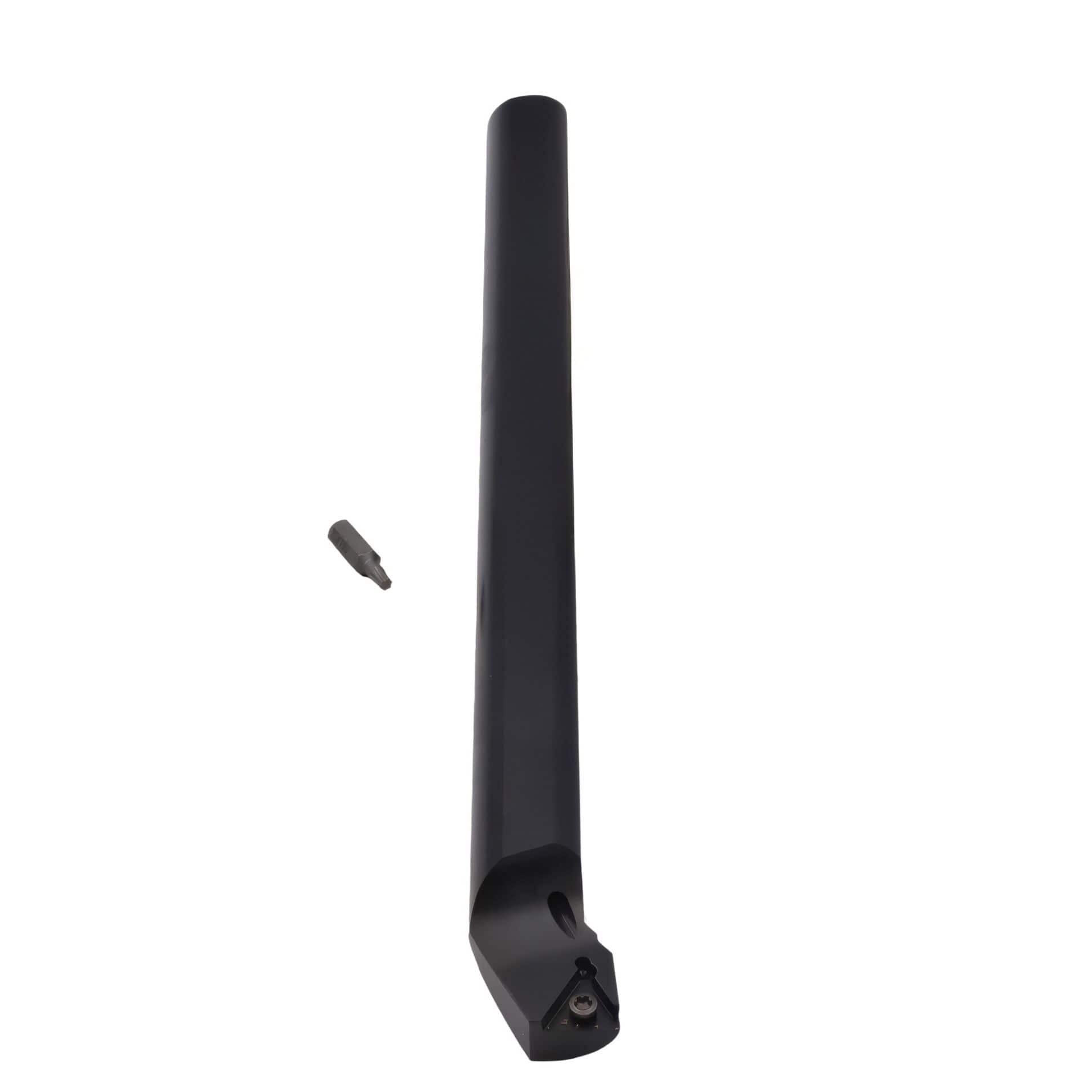

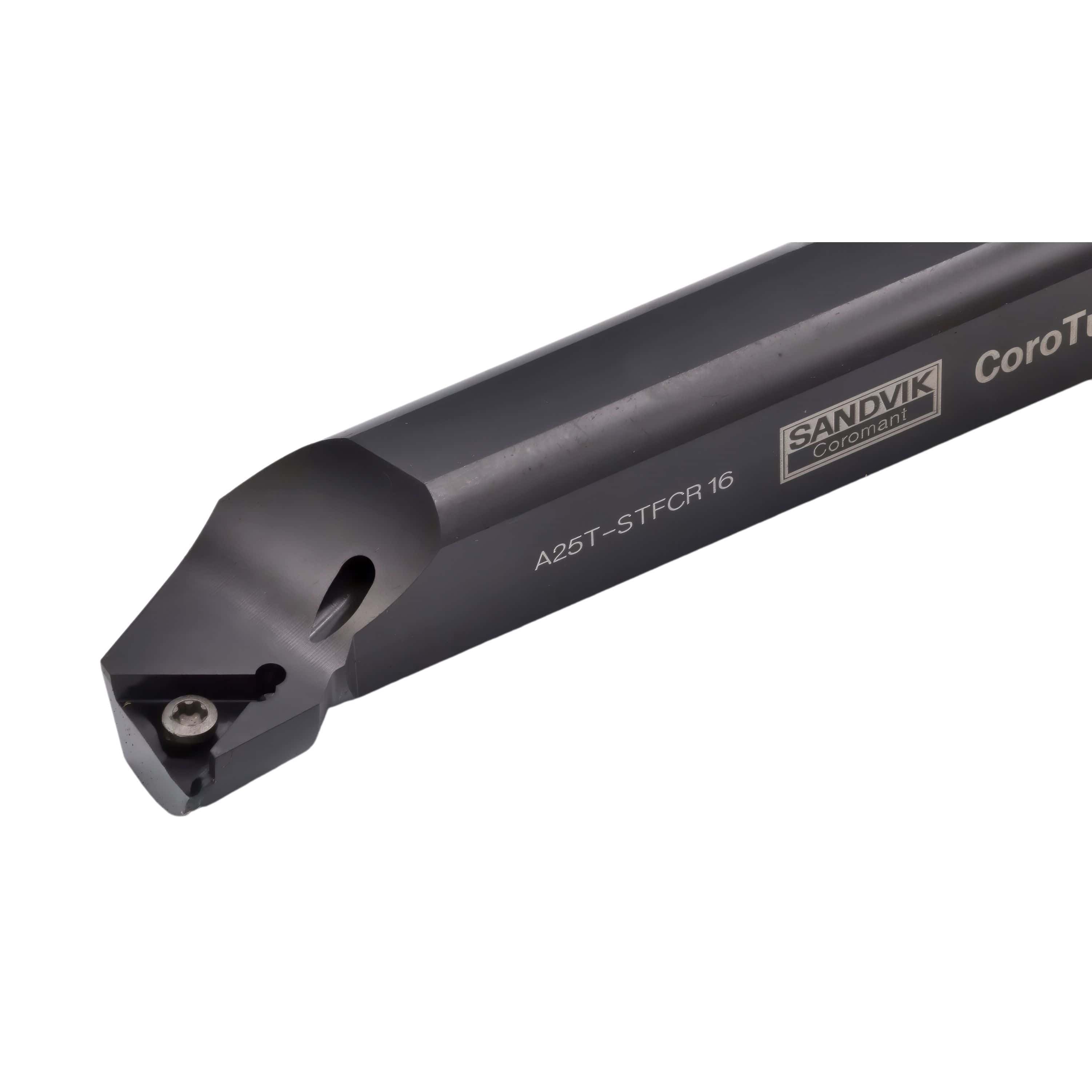

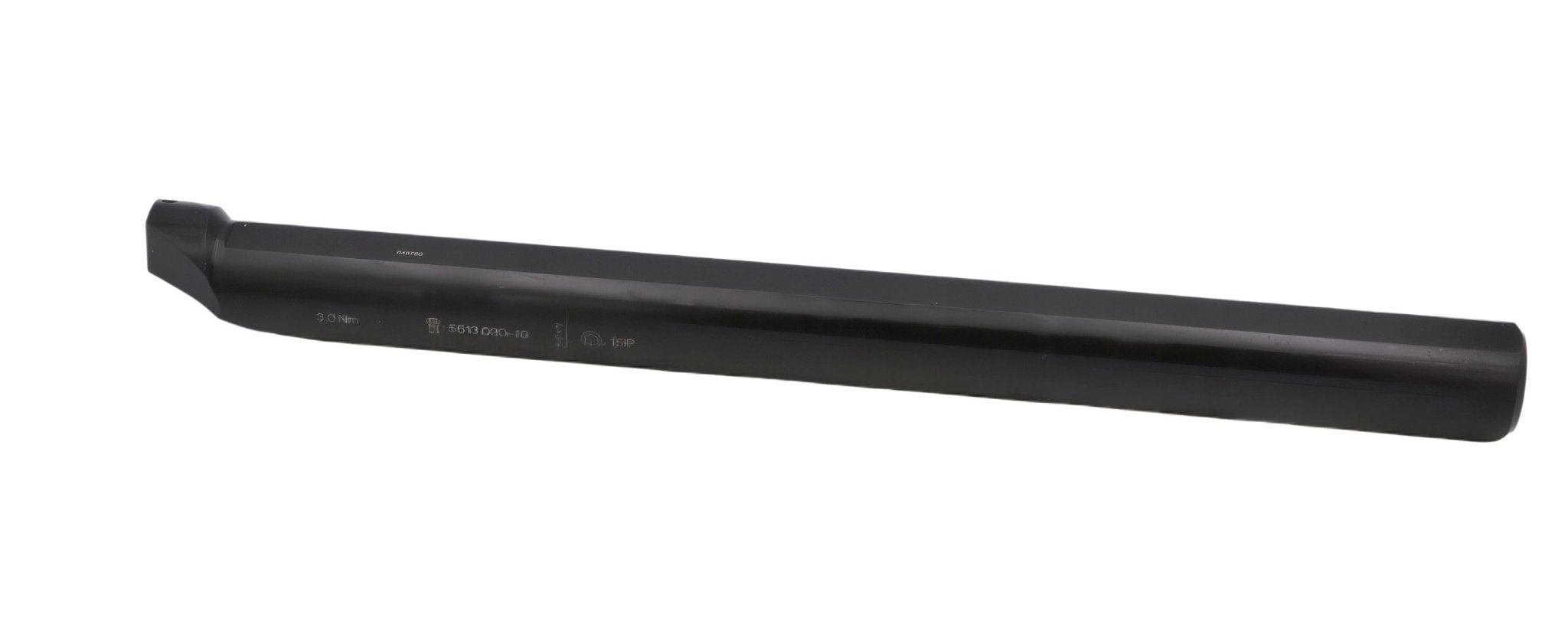

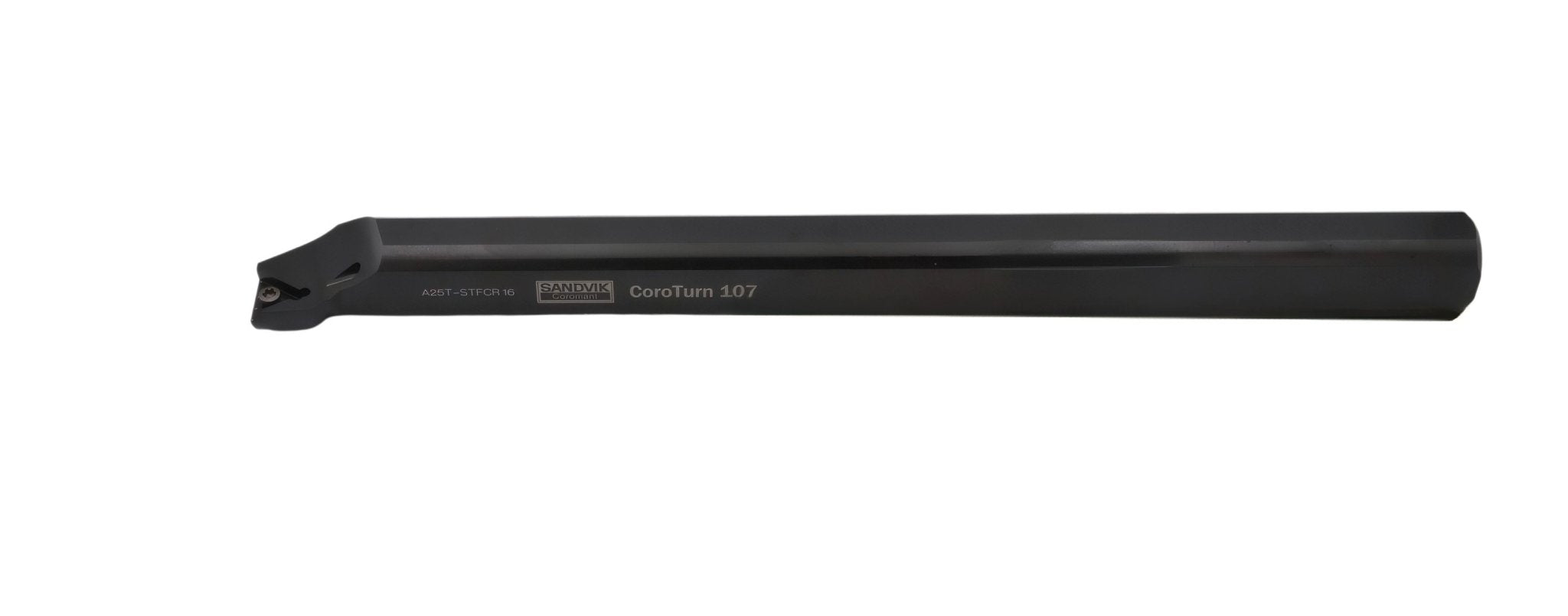

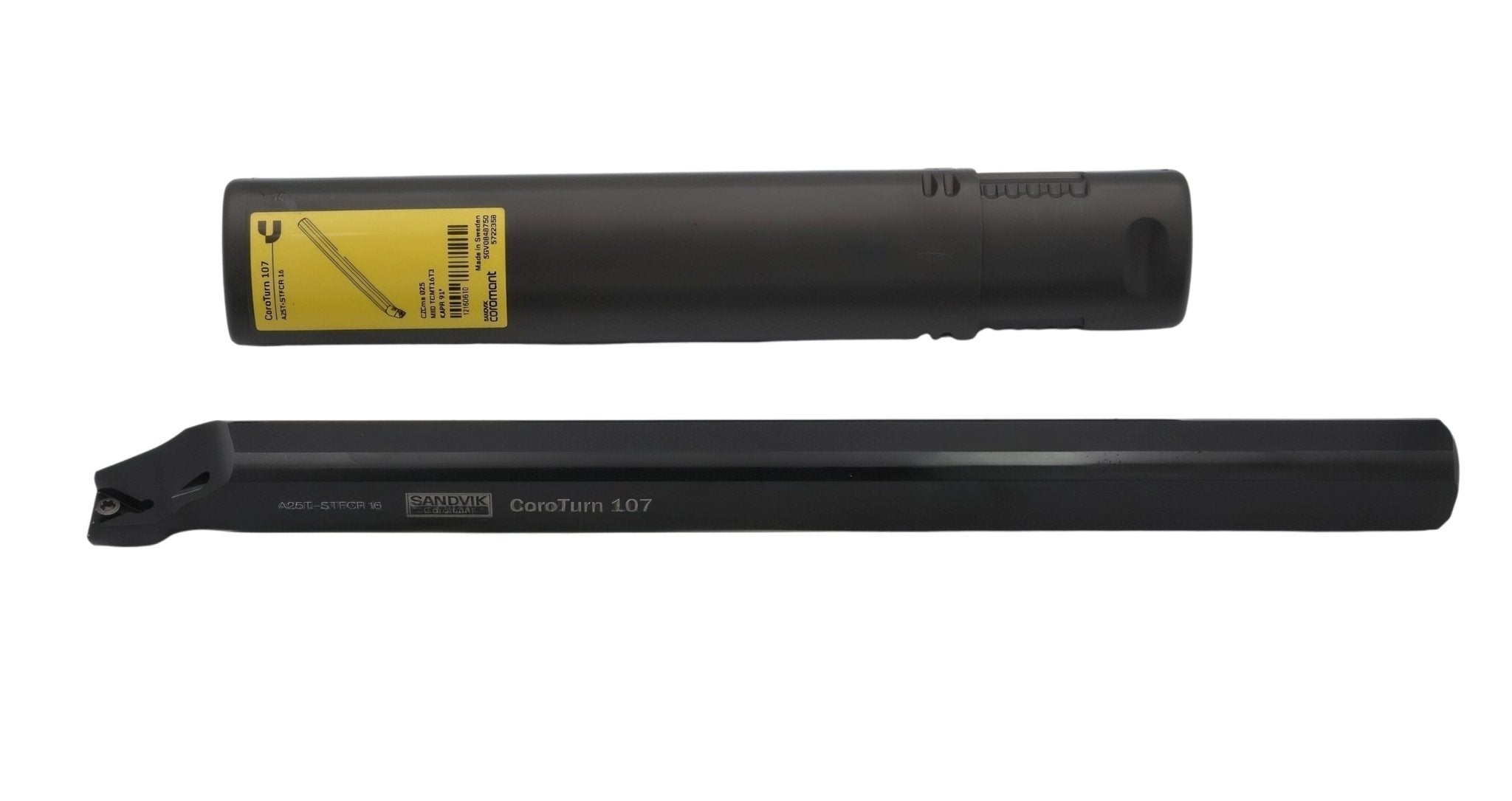

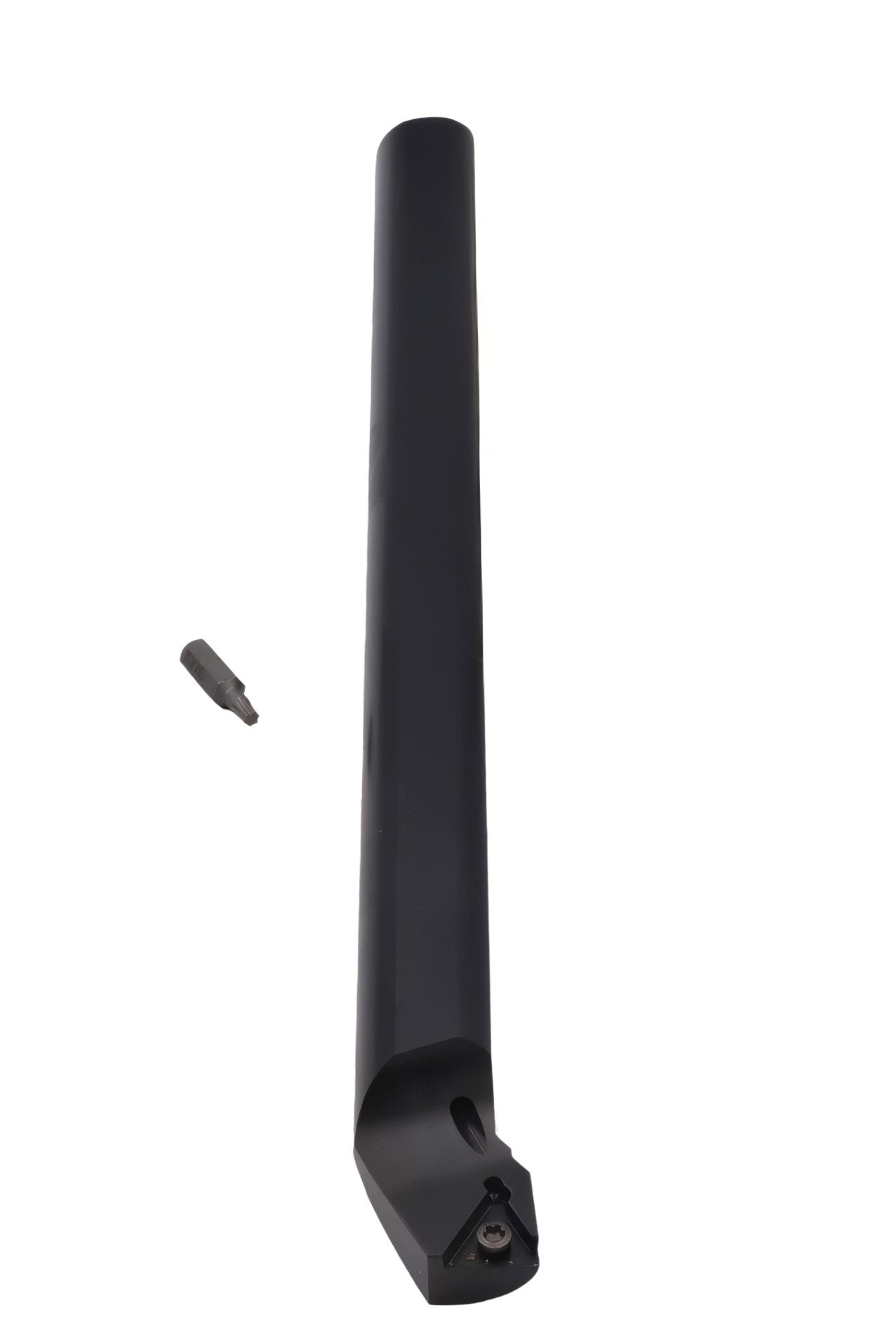

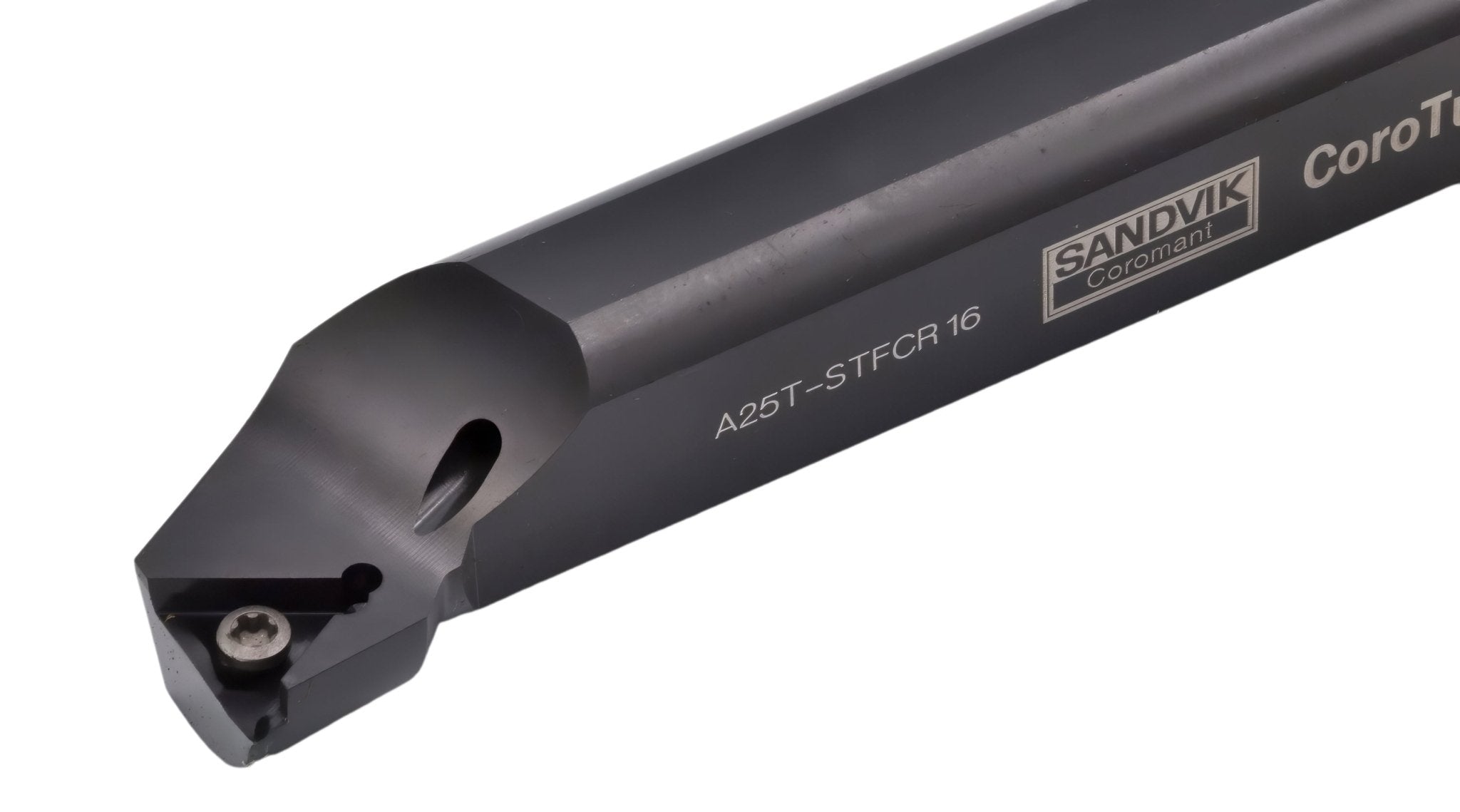

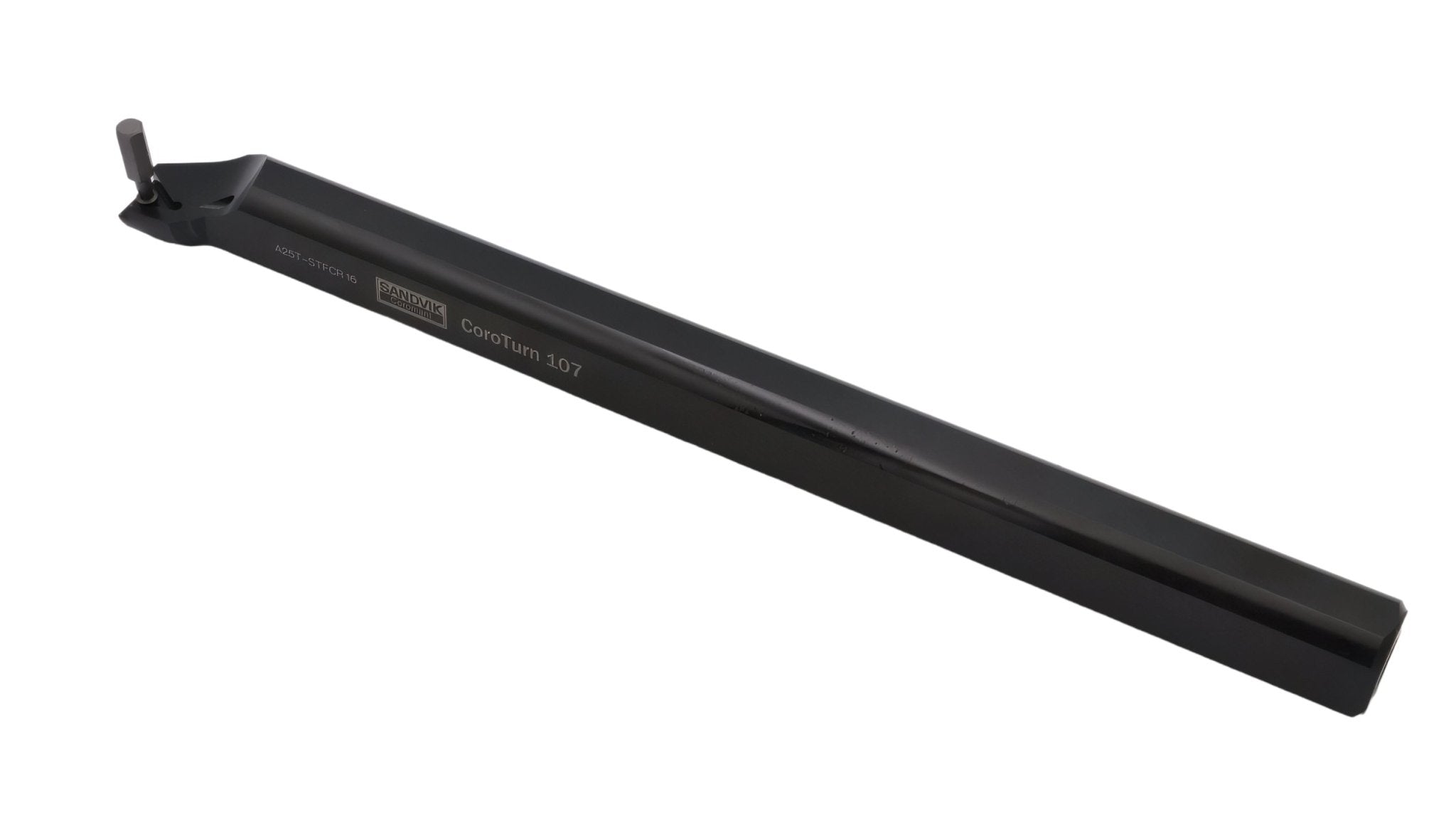

Sandvik A25T-STFCR 16 Internal Boring Bar – Ø25 mm x 32mm Bore Dia to suit TCMT16 inserts

Sandvik Coromant A25T-STFCR 16 CoroTurn® 107 Boring Bar – 25mm Shank, TCMT 16 Insert The Sandvik Coromant A25T-STFCR 16 is a premium CoroTurn® 107 internal boring bar designed for precision...
$229.00
$0.00
$229.00
(-0%)
Vendor: SANDVIK
SKU: A25T-STFCR 16
Availability: In Stock
Subtotal: $229.00
SANDVIK Boring Bars Sandvik A25T-STFCR 16 Internal Boring Bar – Ø25 mm x 32mm Bore Dia to suit TCMT16 inserts

Sandvik A25T-STFCR 16 Internal Boring Bar – Ø25 mm x 32mm Bore Dia to suit TCMT16 inserts

$0.00 $229.00

Sandvik A25T-STFCR 16 Internal Boring Bar – Ø25 mm x 32mm Bore Dia to suit TCMT16 inserts

$0.00 $229.00

Sandvik Coromant A25T-STFCR 16 CoroTurn® 107 Boring Bar – 25mm Shank, TCMT 16 Insert

The Sandvik Coromant A25T-STFCR 16 is a premium CoroTurn® 107 internal boring bar designed for precision internal turning, profiling, and finishing operations. Manufactured from high-strength steel and featuring Sandvik's proven screw-clamp insert system, this boring bar provides exceptional rigidity, repeatability, and machining stability for demanding CNC and manual lathe applications.

Designed to accommodate TCMT 16T308 inserts, the A25T-STFCR 16 features a 25mm cylindrical shank with three locating flats for secure clamping and accurate tool positioning. The integrated internal coolant supply delivers coolant directly to the cutting edge, improving chip evacuation, extending insert life, and enhancing machining performance during continuous production operations.

Key Features & Benefits

  • High-performance internal boring bar from the Sandvik CoroTurn® 107 range
  • Designed for internal turning, profiling, and finishing operations
  • Compatible with TCMT 16T308 carbide inserts
  • Rigid 25mm cylindrical shank with three locating flats
  • Screw-clamp insert design for maximum insert security
  • Internal coolant supply with 40 bar coolant capability
  • Excellent chip control and surface finish
  • Right-hand cutting configuration
  • Ideal for CNC lathes and high-production machining

Technical Specifications

  • Brand: Sandvik Coromant
  • Model: A25T-STFCR 16
  • Series: CoroTurn® 107
  • Tool Type: Internal Boring Bar
  • Cutting Direction: Right Hand
  • Insert Compatibility: TCMT 16T308
  • Clamping Method: Screw Clamp Through Hole
  • Shank Type: Cylindrical with Three Flats
  • Shank Diameter: 25 mm
  • Minimum Bore Diameter: 32 mm
  • Overall Length: 300 mm
  • Functional Length: 300 mm
  • Maximum Overhang: 100 mm
  • Minimum Overhang: 37.5 mm
  • Cutting Edge Angle: 91°
  • Lead Angle: -1°
  • Coolant Supply: Internal
  • Maximum Coolant Pressure: 40 bar
  • Body Material: Steel
  • Application: Internal Turning, Boring and Profiling

The Sandvik Coromant A25T-STFCR 16 CoroTurn® 107 boring bar is engineered for precision internal machining, offering superior rigidity, effective coolant delivery, and reliable insert clamping for consistent, high-quality turning performance.
