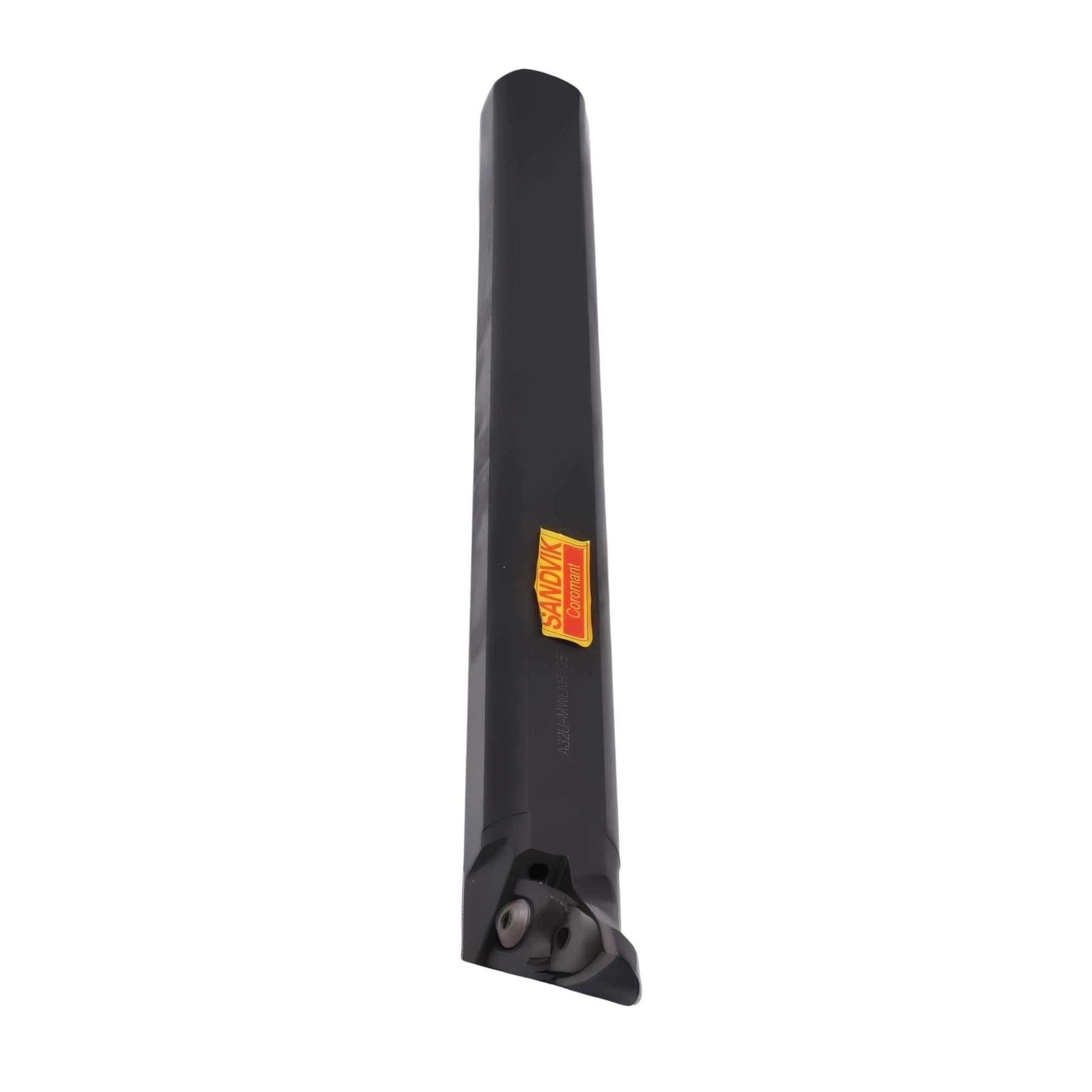

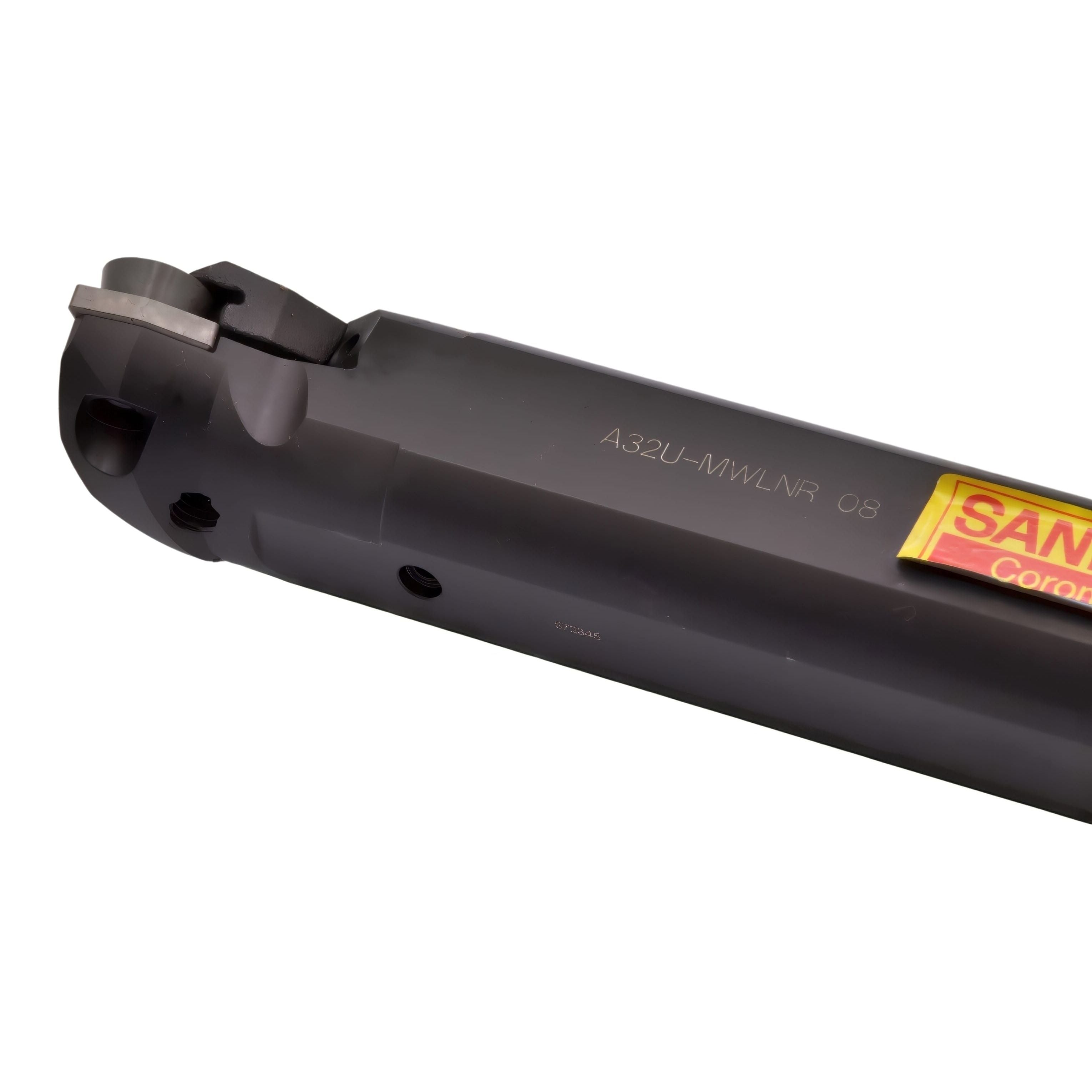

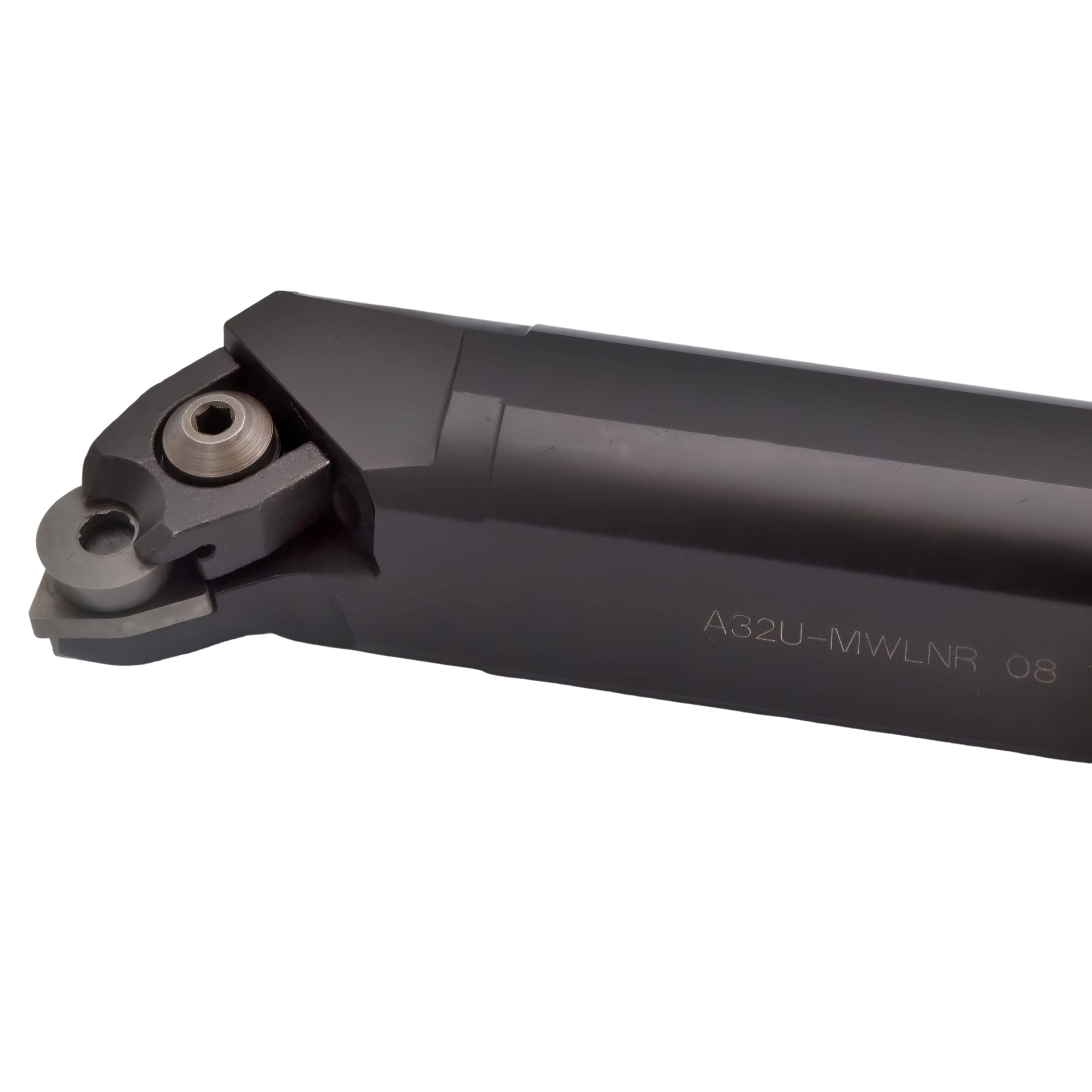

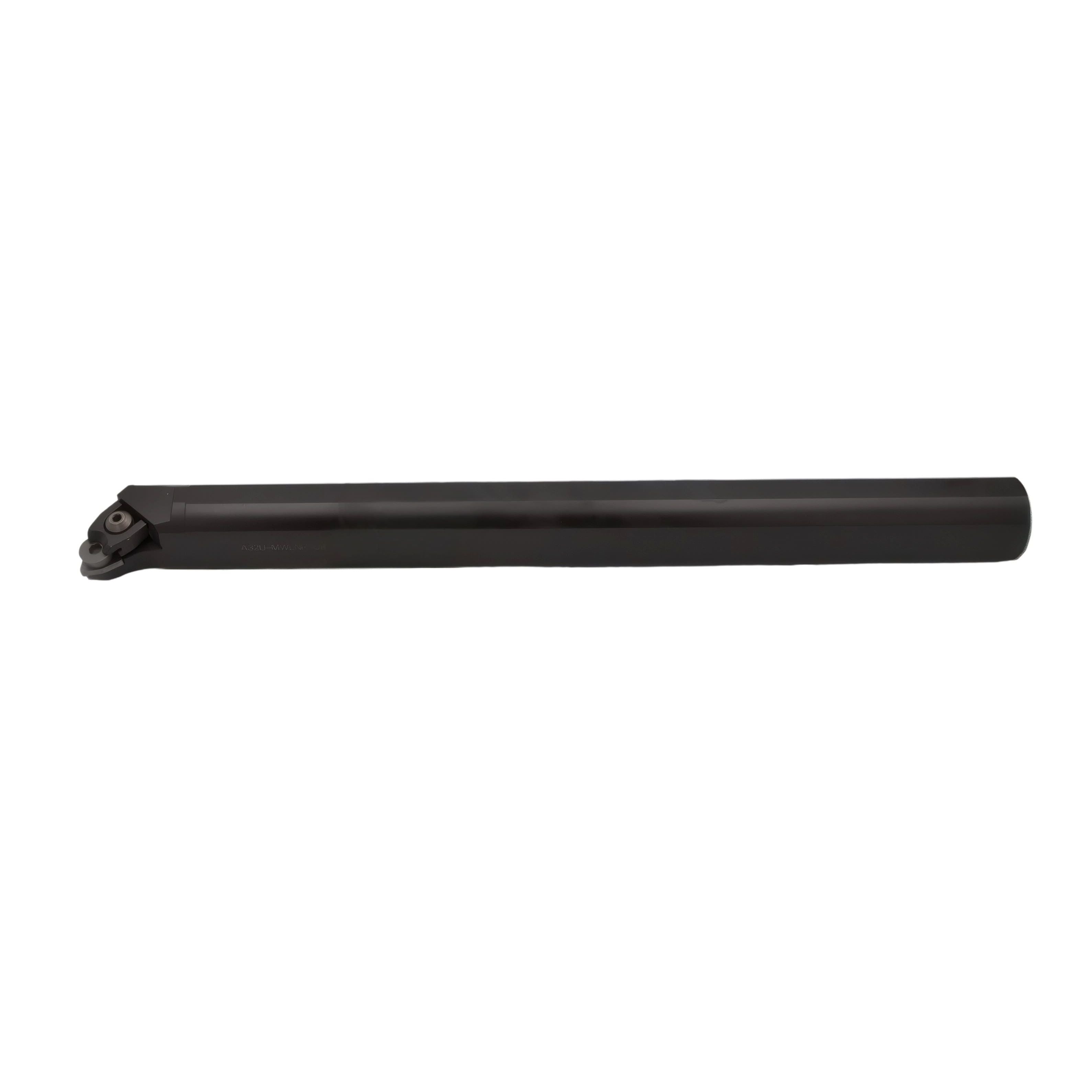

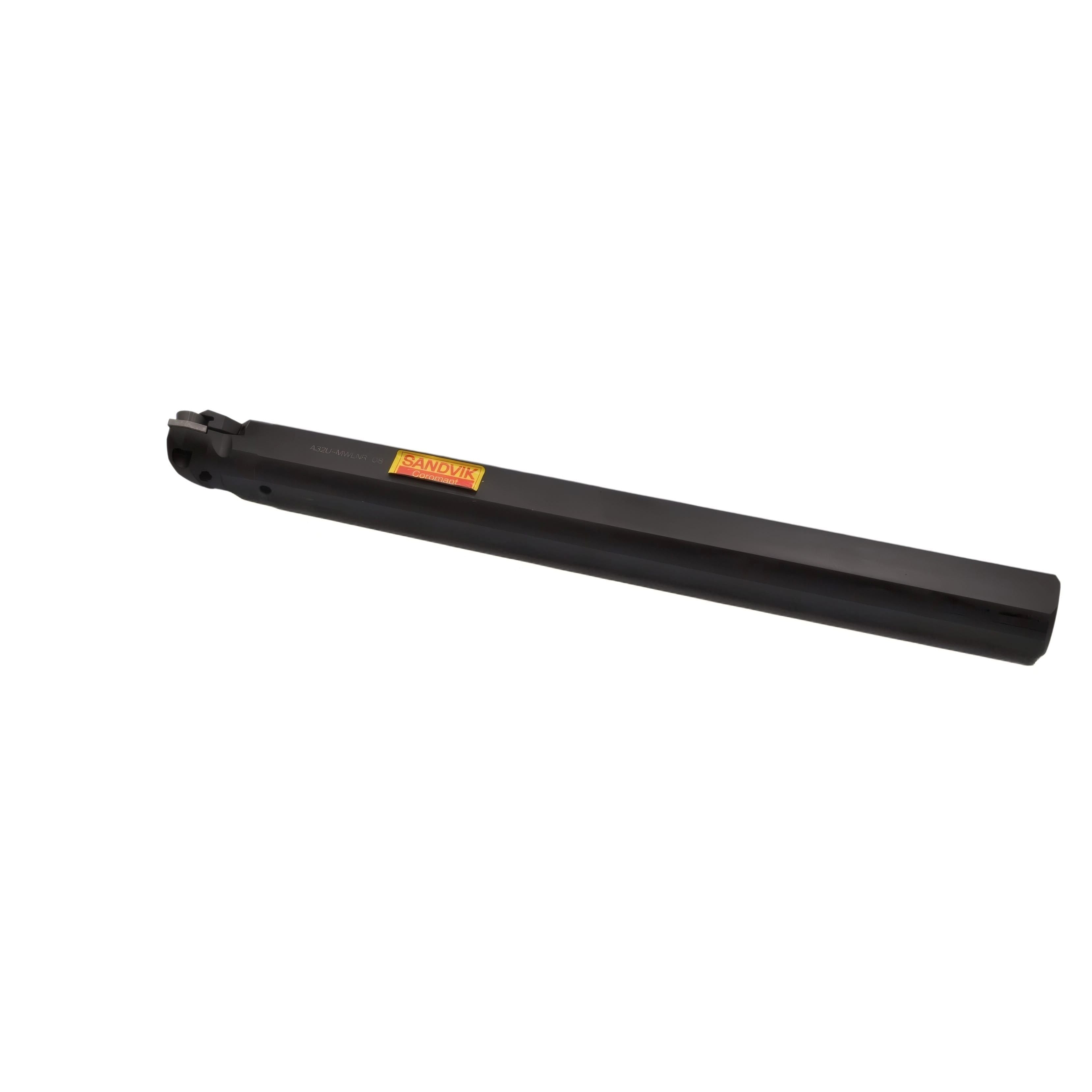

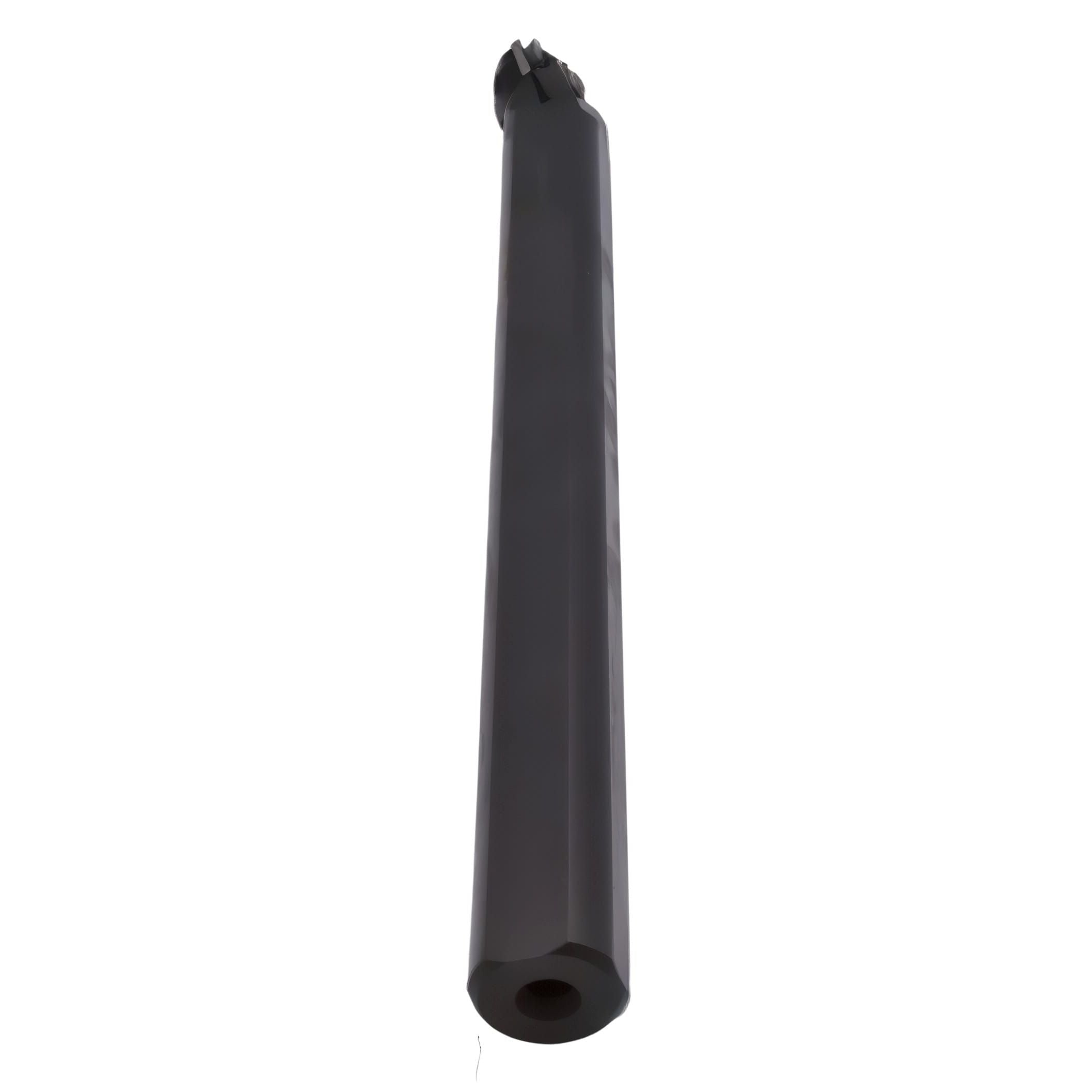

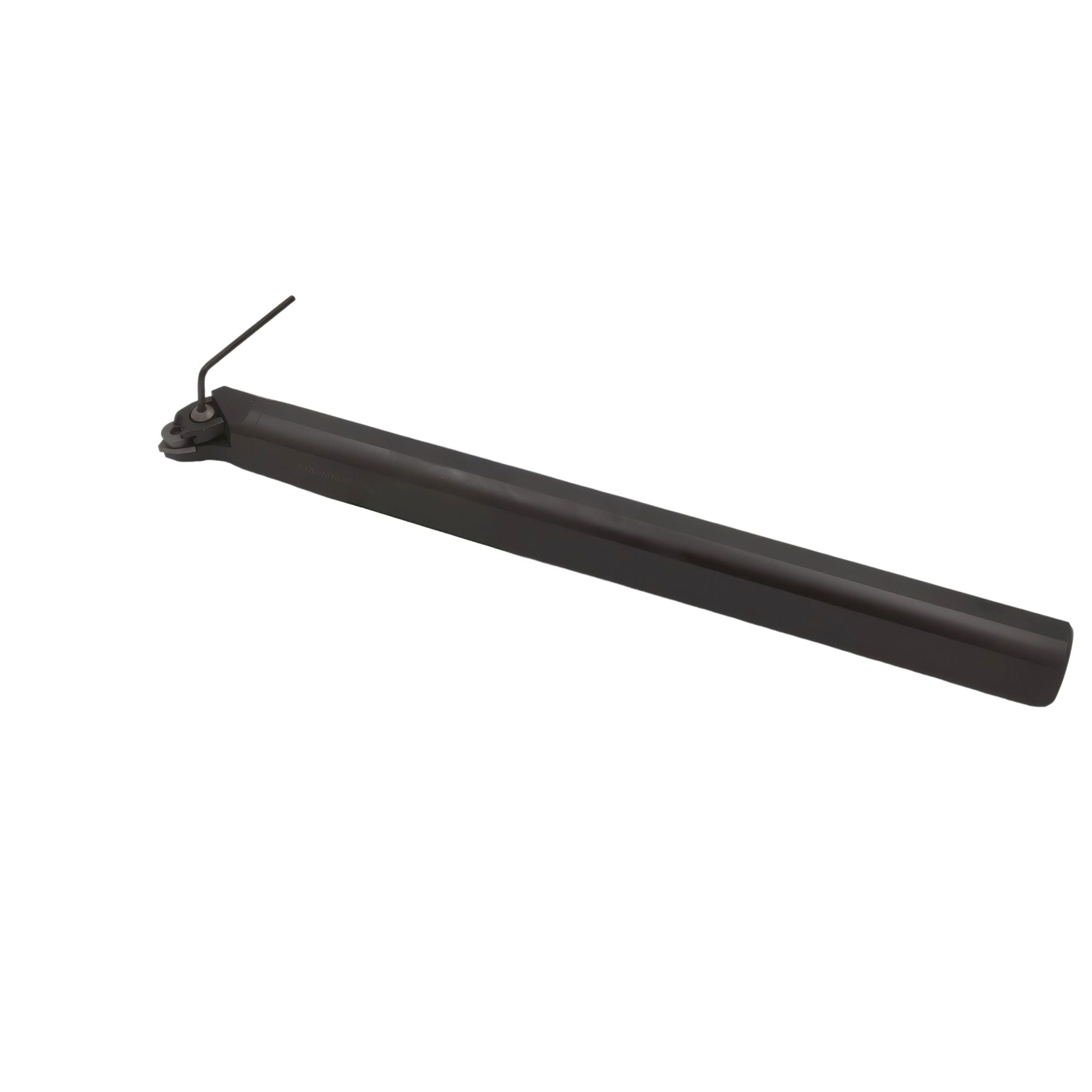

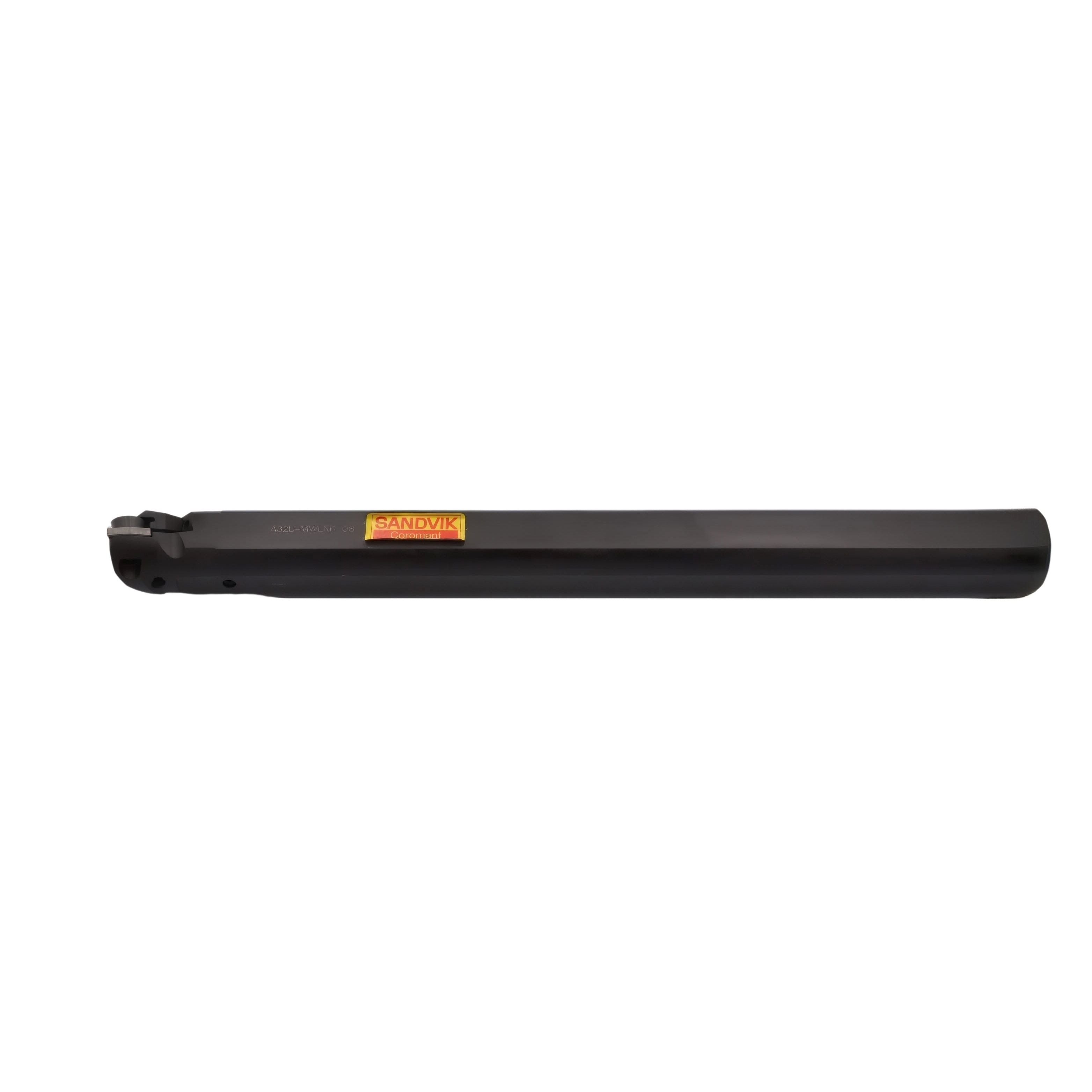

Sandvik A32U-MWLNR 08 Internal Boring Bar – Ø32 mm x 40mm Bore Dia to suit WNMG08 inserts

Sandvik A32U-MWLNR 08 – Internal Boring Bar (5722501) The Sandvik A32U-MWLNR 08 is a precision T-Max® P series indexable boring bar designed for internal turning and boring applications, engineered for...
$419.00
$0.00
$419.00
(-0%)
Vendor: SANDVIK
SKU: A32U-MWLNR 08
Availability: Out Of Stock
Subtotal: $419.00
SANDVIK Boring Bars Sandvik A32U-MWLNR 08 Internal Boring Bar – Ø32 mm x 40mm Bore Dia to suit WNMG08 inserts

Sandvik A32U-MWLNR 08 Internal Boring Bar – Ø32 mm x 40mm Bore Dia to suit WNMG08 inserts

$0.00 $419.00

Sandvik A32U-MWLNR 08 Internal Boring Bar – Ø32 mm x 40mm Bore Dia to suit WNMG08 inserts

$0.00 $419.00

Sandvik A32U-MWLNR 08 – Internal Boring Bar (5722501)

The Sandvik A32U-MWLNR 08 is a precision T-Max® P series indexable boring bar designed for internal turning and boring applications, engineered for rigidity, process security and compatibility with standard turning inserts.

Key Features & Benefits

• Engineered for internal turning and boring operations with high stability and cutting control.
• Designed to accept WNMG 08 inserts (commonly WNMG 080408).
• Cylindrical shank with 3 flats for secure mounting in toolposts and boring setups.
• Right-hand cutting orientation for standard internal machining directions.
• Sandvik Coromant T-Max® P tooling platform — proven performance for industrial machining.

Technical Specifications

  • Item No / Material Id: 5722501
  • Mode/ ISO Designation: A32U-MWLNR 08
  • Internal coolant hole: Yes
  • Series: T-Max® P
  • Shank Diameter (DCON / BD): Ø 32 mm
  • Minimum Bore Diameter (DMIN): Ø 40 mm
  • Insert Compatibility: WN 08 (e.g., WNMG08, WNMM08, WNGA08, WNMA08)
  • Shank Type: Cylindrical shank with 3 flats
  • Cutting Direction: Right-hand
  • Overall Length LF: 350mm
  • Minimum overhang OHN: 48mm
  • Maximum overhang OHX: 128mm
  • Functional width WF: 22mm
  • Tool cutting edge angle KAPR: 95 °
  • Shank Height H: 30mm
