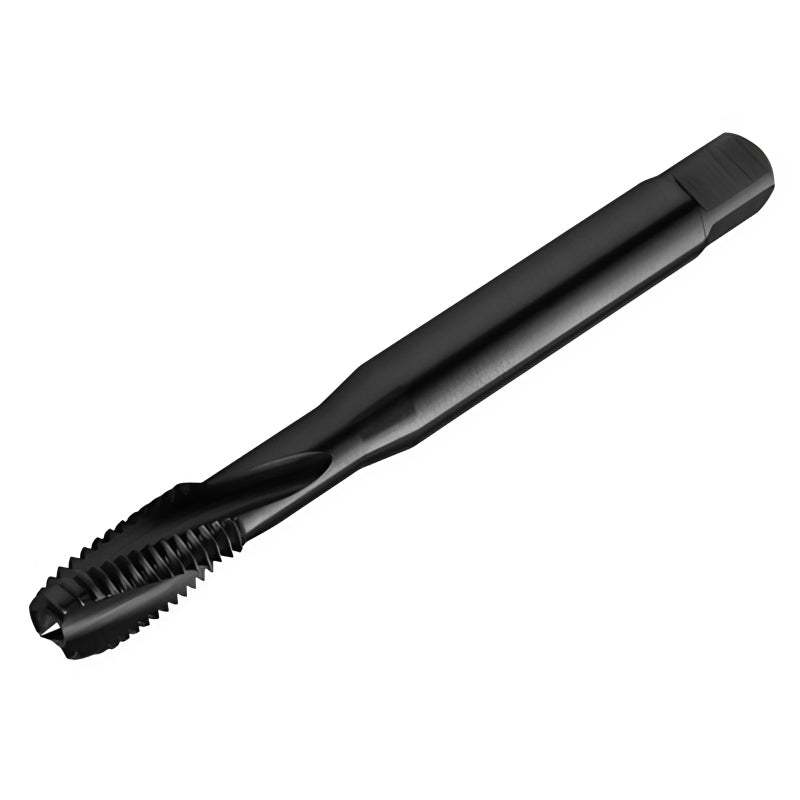

Sandvik M24 × 3.0 Blue Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 376)

Engineered for heavy-duty CNC and conventional machining. The spiral point (gun nose) geometry drives chips forward and out through the exit side, ensuring clean threads and reliable production in steels and other robust materials. Optimized for through holes.

Key Features & Benefits

  • Durable Performance – HSS-E substrate with advanced PVD FeN coating for long tool life and wear resistance.
  • Efficient Chip Control – Spiral point pushes chips ahead, reducing clogging in through-hole applications.
  • Stable & Accurate – DIN 376 shank design with robust dimensions for high-strength tapping.
  • Precision Threads – Ground to 6H tolerance for consistent, repeatable results.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) M
Thread Size M24
Thread Form M (Metric 60°)

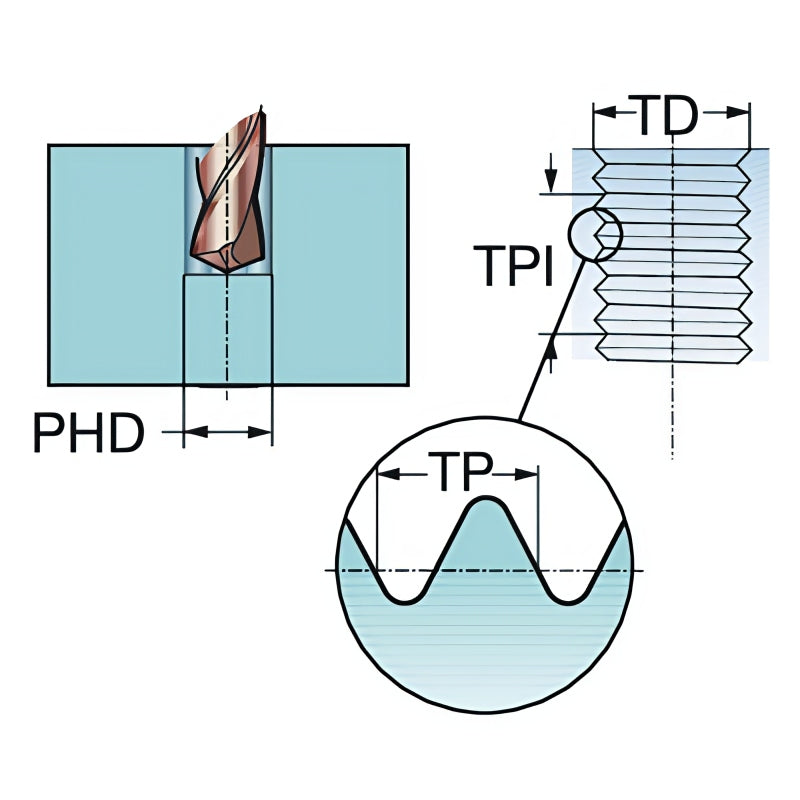

Thread Pitch 3.0 mm 0.1181 in
Thread Diameter 24.0 mm 0.9449 in
Tap Chamfer Length 12.6298 mm 0.4973 in
Premachined Hole Diameter 21.0 mm 0.8268 in
Premachined Hole Type / Hole Type Through hole Through hole
Thread Tolerance Class 6H
Shank Standard DIN 376

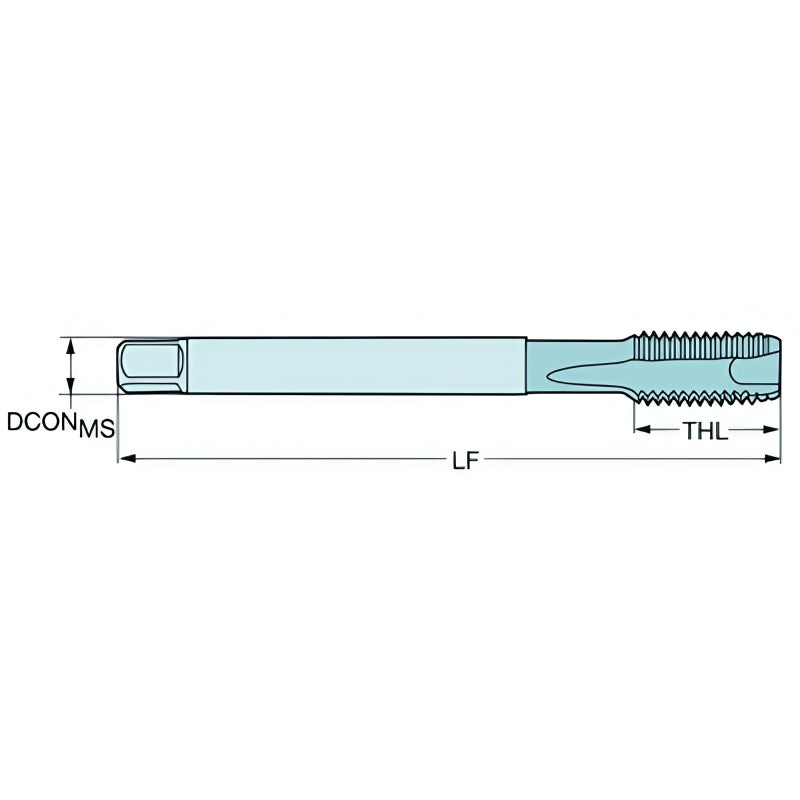

Usable Length (LU) 113 mm 4.4488 in
Functional Length (LF) 160 mm 6.2992 in
Overall Length (OAL) 160 mm 6.2992 in
Neck Diameter 17.7 mm 0.6969 in
Flute Count 4
Flute Helix Angle
Radial Rake Angle 11° 11°
Threading Length 38.0 mm 1.4961 in
Threading Chamfer Type B = 3.5–5×TP (Gunnose)
Chip Breaker MM
Grade S9P4
Substrate HSS-E
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 18.00 × 14.50
Connection Diameter (Machine Side) 18.0 mm 0.7087 in
Connection Diameter Tolerance h9
Weight 0.322 kg 0.710 lb
Maximum Regrinds 0
Release Date 12/12/2011
Release Pack ID 11.2

Why Choose This Tool?

The Sandvik M24 spiral point (gun nose) tap is designed for professional-grade through-hole tapping. Its robust DIN 376 body, HSS-E substrate, and PVD FeN coating ensure durability, precision, and reliable chip evacuation—making it ideal for demanding production environments on both CNC and manual machines.
