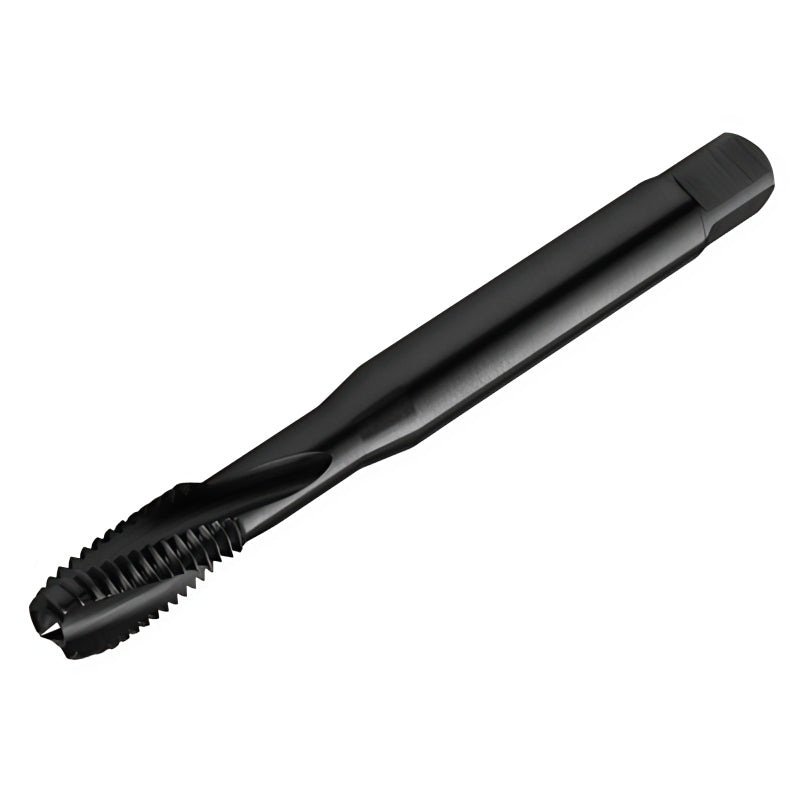

Sandvik HSS-PM Blue Gun Nose PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

Sandvik UNC #10-24 Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 2184-1) Designed for high-performance CNC and conventional machining, this Sandvik spiral point (gun nose) tap ensures smooth,...
$31.00
$31.00
(-0%)
Vendor: SANDVIK
SKU: T200-XM100DE-10-24 C145
Availability: In Stock
Subtotal: $31.00
Sandvik HSS-PM Blue Gun Nose PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

Sandvik HSS-PM Blue Gun Nose PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

$31.00

Sandvik HSS-PM Blue Gun Nose PVD FeN coated Tap No.10 UNC, DIN 2184-1 Short Body

$31.00

Sandvik UNC #10-24 Spiral Point (Gun Nose) Tap – Premium Through-Hole Tapping (DIN 2184-1)

Designed for high-performance CNC and conventional machining, this Sandvik spiral point (gun nose) tap ensures smooth, accurate threading by driving chips forward and out of the hole. Its robust geometry and premium coating deliver reliable performance in steels and other tough materials, making it ideal for through-hole applications.

Key Features & Benefits

  • Extended Tool Life – Powder metallurgy HSS-PM substrate with PVD FeN coating offers superior wear resistance.
  • Reliable Chip Flow – Spiral point design pushes swarf ahead for consistent through-hole tapping.
  • Strong Shank Design – DIN 2184-1 standard ensures stability and durability under load.
  • High Thread Accuracy – Ground to 2B tolerance for consistent, in-spec threads.

Technical Specifications

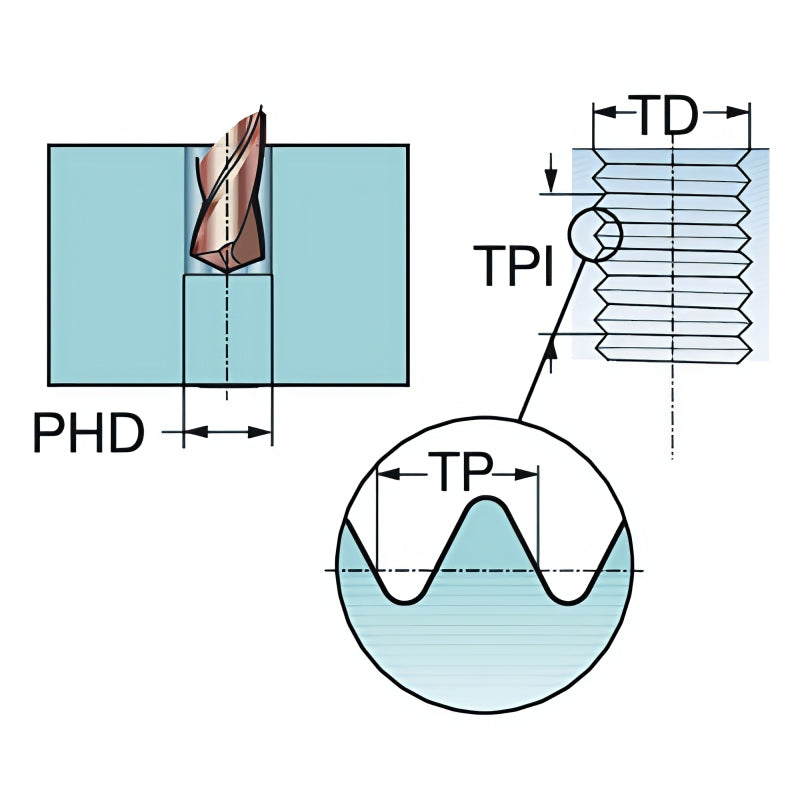

Specification Metric Imperial
Thread Size UNC #10-24
Threads per Inch (TPI) 24
Thread Form UNC 60° UNC 60°
Thread Diameter 4.83 mm 0.19 in
Tap Chamfer Length 4.57 mm 0.1801 in
Premachined Hole Diameter 3.9 mm 0.1535 in
Premachined Hole Type / Hole Type Through hole Through hole
Thread Tolerance Class 2B 2B
Shank Standard DIN 2184-1 DIN 2184-1
Usable Length (LU) 25 mm 0.9843 in
Functional Length (LF) 70 mm 2.7559 in
Overall Length (OAL) 72 mm 2.8346 in
Neck Diameter 3.32 mm 0.1307 in
Flute Count 3
Flute Helix Angle 0° (spiral point)
Radial Rake Angle
Threading Length 13 mm 0.5118 in
Threading Chamfer Type B = 3.5–5×TP (Gunnose)
Chip Breaker XM
Grade C145 C145
Substrate HSS-PM
Coating PVD FeN (iron-nitride)
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 6.00 × 4.90
Connection Diameter (Machine Side) 6.0 mm 0.2362 in
Connection Diameter Tolerance h9
Weight 0.014 kg 0.0309 lb
Maximum Regrinds 0
Release Date 09/20/2014
Release Pack ID 14.2

Why Choose This Tool?

The Sandvik UNC #10-24 spiral point (gun nose) tap delivers precision threading, long tool life, and efficient chip evacuation. With its HSS-PM substrate, FeN coating, and robust DIN 2184-1 shank, it is the go-to solution for reliable through-hole tapping in steels and other demanding materials—perfect for both CNC and conventional machining.
