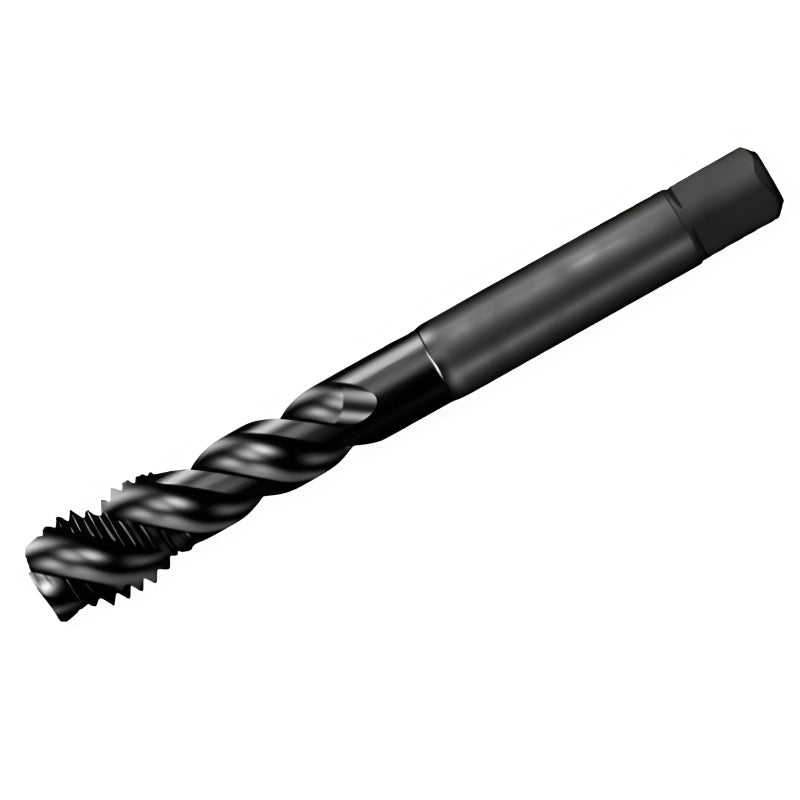

Engineered for precision and durability in CNC and conventional machining. The spiral flute geometry with a 45° helix angle ensures efficient chip evacuation from blind holes, preventing clogging and maintaining smooth, accurate threading. Optimized for blind-hole tapping in steels, stainless steels, and cast irons (PMK).
Specification | Metric | Imperial |
---|---|---|
Workpiece Material(s) | PMK | — |
Thread Size | UNC 3/4-10 | 3/4-10 |
Thread Form | UNC 60° | UNC 60° |
Thread Pitch | 2.54 mm (equiv.) | 10 TPI |
Thread Diameter | 19.05 mm | 0.7500 in |
Tap Chamfer Length | 5.18 mm | 0.2039 in |

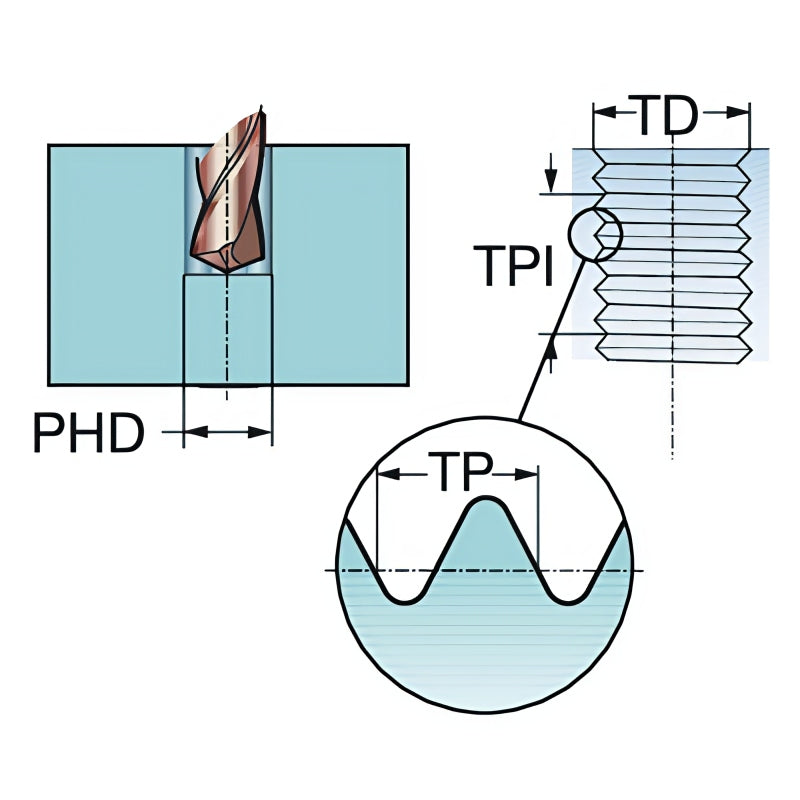

Premachined Hole Diameter | 16.5 mm | 0.6496 in |
Premachined Hole Type / Hole Type | Blind hole | Blind hole |
Thread Tolerance Class | 2B | — |
Shank Standard | DIN 2184-1 | — |
Usable Length (LU) | 80.75 mm | 3.1791 in |

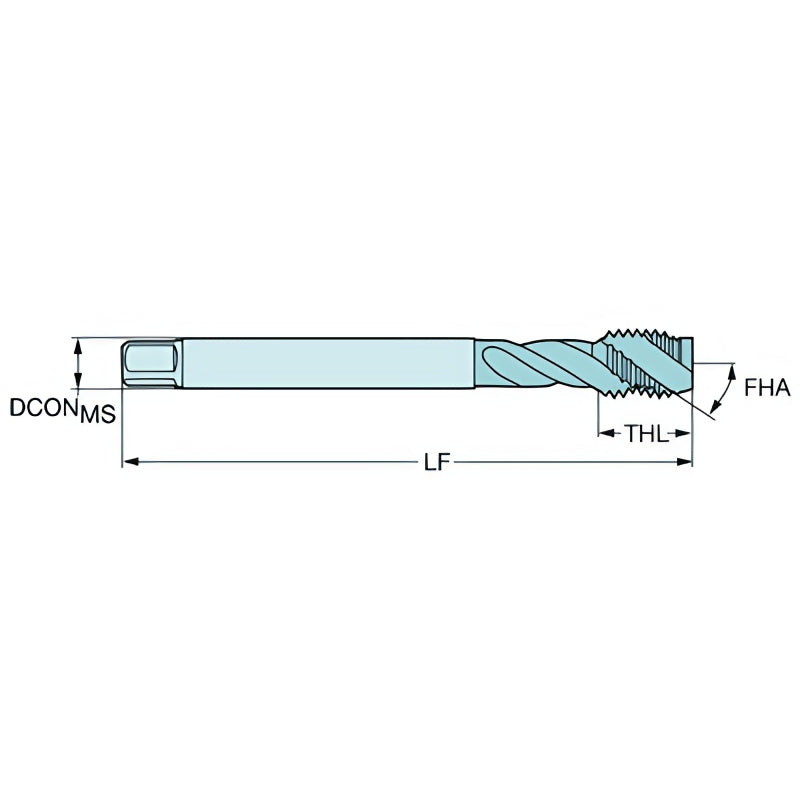

Functional Length (LF) | 125 mm | 4.9213 in |
Overall Length (OAL) | 125 mm | 4.9213 in |
Neck Diameter | 13.6 mm | 0.5354 in |
Flute Count | 4 | — |
Flute Helix Angle | 45° | — |
Radial Rake Angle | 13° | — |
Threading Length | 25 mm | 0.9843 in |
Threading Chamfer Type | C = 2–3×TP | — |
Chip Breaker | XM | — |
Grade | B145 | — |
Substrate | HSS-E | — |
Coating | PVD FeN | — |
Coolant Entry / Exit | Without / None | — |
Connection – Machine Side | Tap shank DIN-metric 14.00 × 11.00 | — |
Connection Diameter (Machine Side) | 14.0 mm | 0.5512 in |
Connection Diameter Tolerance | h9 | — |
Weight | 0.1293 kg | 0.2851 lb |
Maximum Regrinds | 0 | — |
Release Date | 02/25/2014 | — |
Release Pack ID | 14.1 | — |
This Sandvik spiral flute tap uses a high-performance HSS-E substrate with a durable PVD FeN coating and a 45° spiral design for efficient chip evacuation. With a 4-flute configuration and DIN 2184-1 shank, it delivers strength, precision, and consistent performance in blind-hole tapping of PMK materials—ideal for demanding CNC and production environments.
