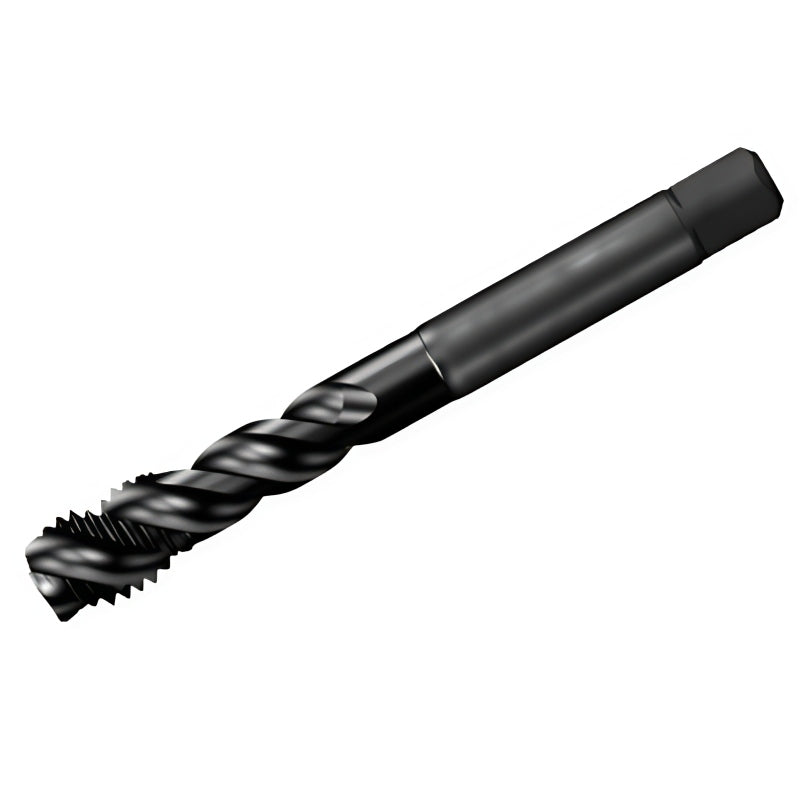

Sandvik UNF 5/8-18 Spiral Flute Tap – Premium Blind-Hole Tapping (DIN 2184-1)

Built for demanding threading applications in steels, stainless steels, and cast irons (PMK). The 45° spiral flute geometry is optimized for blind holes, ensuring chips are lifted out cleanly for precise threads and longer tool life. Suitable for CNC machining centers and conventional machines.

Key Features & Benefits

  • Durable Construction – HSS-PM substrate with PVD FeN coating extends wear resistance and performance.
  • Efficient Chip Evacuation – 45° spiral flutes designed to pull chips up and out of blind holes.
  • DIN 2184-1 Standard – Ensures rigidity, compatibility, and repeatable performance in production setups.
  • Precision Threading – Manufactured to UNF 2B tolerance for consistent, accurate threads.

Technical Specifications

Specification Metric Imperial
Workpiece Material(s) PMK

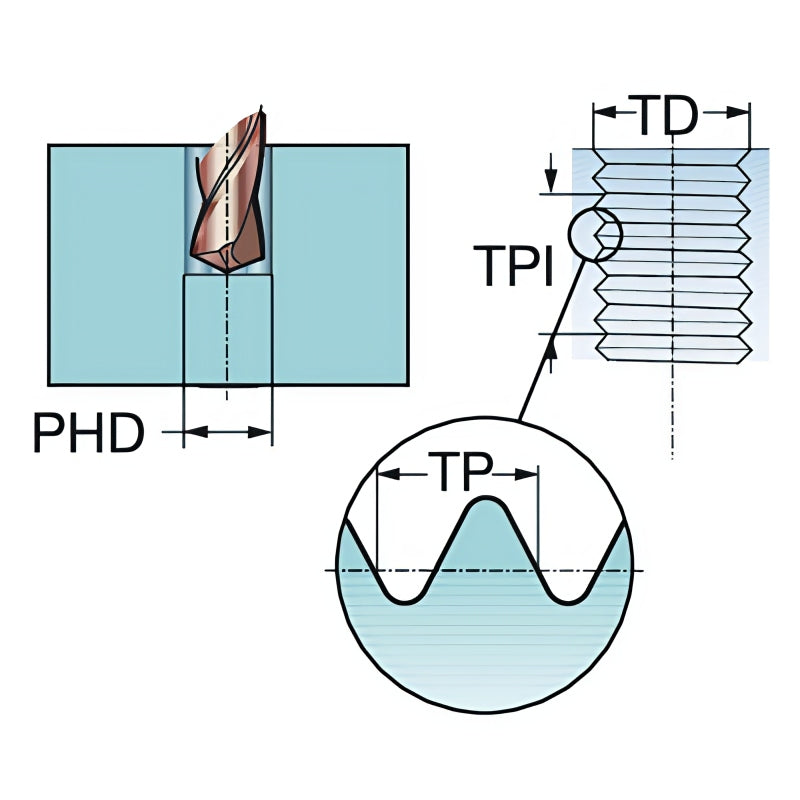

Thread Size UNF 5/8-18 5/8-18
Thread Form UNF 60° UNF 60°
Thread Pitch 1.41 mm 18 TPI
Thread Diameter 15.88 mm 0.625 in
Tap Chamfer Length 2.99 mm 0.1176 in
Premachined Hole Diameter 14.5 mm 0.5709 in
Premachined Hole Type / Hole Type Blind hole Blind hole
Thread Tolerance Class 2B
Shank Standard DIN 2184-1

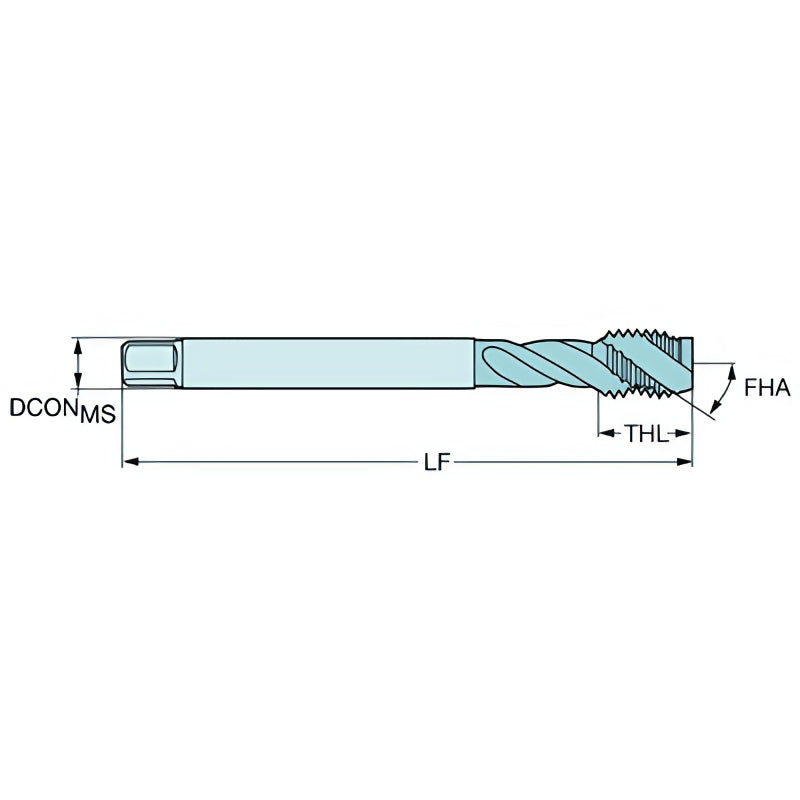

Usable Length (LU) 67.75 mm 2.6673 in
Functional Length (LF) 110 mm 4.3307 in
Overall Length (OAL) 110 mm 4.3307 in
Neck Diameter 11.6 mm 0.4567 in
Flute Count 4
Flute Helix Angle 45°
Radial Rake Angle 13°
Threading Length 20 mm 0.7874 in
Threading Chamfer Type C = 2–3×TP
Chip Breaker XM
Grade C145
Substrate HSS-PM
Coating PVD FeN
Coolant Entry / Exit Without / None
Connection – Machine Side Tap shank DIN-metric 12.00 × 9.00
Connection Diameter (Machine Side) 12.0 mm 0.4724 in
Connection Diameter Tolerance h9
Weight 0.0888 kg 0.1958 lb
Maximum Regrinds 0
Release Date 02/25/2014
Release Pack ID 14.1

Why Choose This Tool?

The Sandvik UNF 5/8-18 spiral flute tap combines an HSS-PM substrate with a PVD FeN coating for long-lasting durability and precision. Its 45° spiral flutes make it ideal for blind-hole tapping, providing clean chip evacuation and reliable performance in steels, stainless steels, and cast irons. Perfect for high-accuracy production runs on CNC and manual machines.
