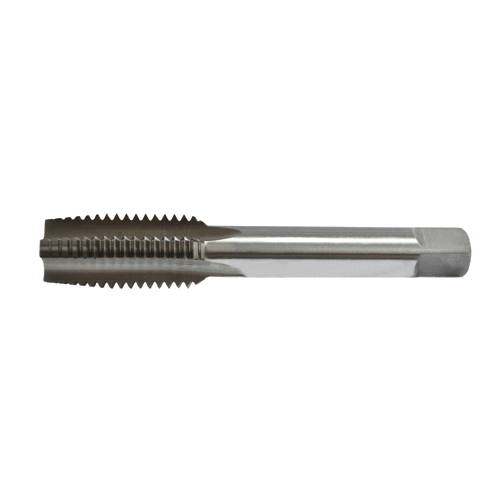

Somta Series 511 – MF14 x 1.25 HSS Short Hand Tap Bottom

The Somta Series 511 Short Hand Tap is manufactured from premium high speed steel for reliable and accurate metric fine thread tapping applications. Designed for general-purpose hand tapping, this bottoming...
$76.00
$0.00
$76.00
(-0%)
Vendor: SOMTA
SKU: 5111403
Availability: In Stock
Subtotal: $76.00
SOMTA TAPS Somta Series 511 – MF14 x 1.25 HSS Short Hand Tap Bottom

Somta Series 511 – MF14 x 1.25 HSS Short Hand Tap Bottom

$0.00 $76.00

Somta Series 511 – MF14 x 1.25 HSS Short Hand Tap Bottom

$0.00 $76.00

The Somta Series 511 Short Hand Tap is manufactured from premium high speed steel for reliable and accurate metric fine thread tapping applications. Designed for general-purpose hand tapping, this bottoming tap delivers precise thread formation and smooth cutting performance in engineering, workshop, and maintenance applications.

Manufactured to ISO 529 standards, the tap features a straight flute design for stable threading and effective control during manual tapping operations. The metric fine thread profile is ideal for applications requiring finer pitch threads and improved fastening precision.

Key Features & Benefits

  • Somta Series 511 short hand tap
  • Part Number: 5111403
  • Tap Type: Bottoming Tap
  • Thread Size: MF14 x 1.25
  • Pitch: 1.25mm

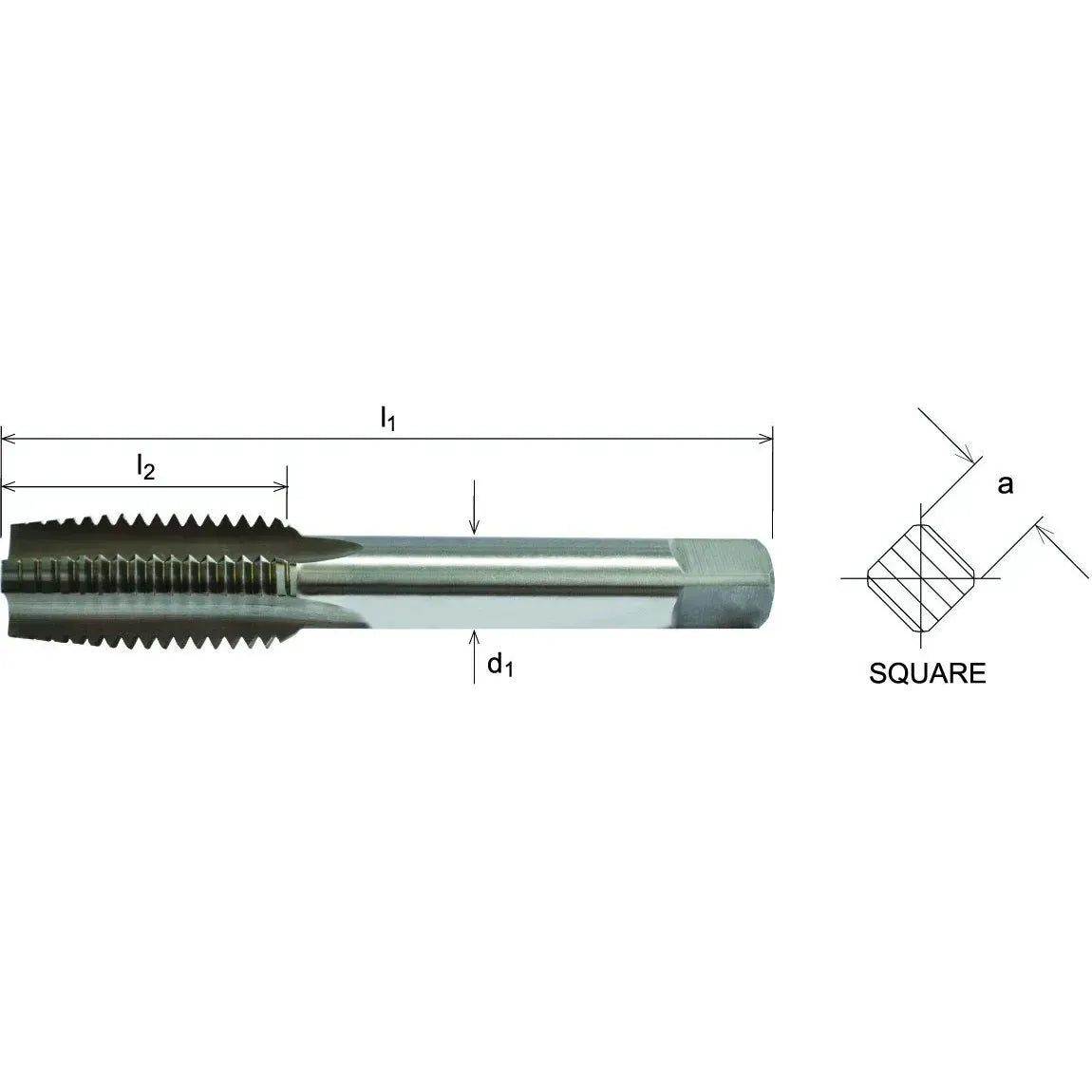

  • Overall Length (l1): 90mm
  • Thread Length (l2): 25mm
  • Shank Diameter (d1): 11.2mm
  • Square Size (a): 9mm
  • Number of Flutes: 4
  • Manufactured from premium HSS
  • Suitable for general hand tapping applications
  • Straight flute design for stable threading performance
  • ISO 2 6H thread tolerance
  • Right-hand cutting direction
  • 60° thread profile
  • Manufactured to ISO 529 standards
  • Suitable for workshop, engineering, and maintenance applications

Technical Specifications

  • Brand: Somta
  • Series: 511
  • Tool Type: Short Hand Tap
  • Tap Style: Bottoming
  • Thread Size: MF14 x 1.25
  • Pitch: 1.25mm
  • Overall Length: 90mm
  • Thread Length: 25mm
  • Shank Diameter: 11.2mm
  • Square Size: 9mm
  • Number of Flutes: 4
  • Material: HSS
  • Thread Tolerance: ISO 2 6H
  • Thread Profile: 60°
  • Standards: ISO 529
  • Code: 5111403

Somta cutting tools are trusted worldwide for their precision engineering, durability, and dependable threading performance across industrial engineering, maintenance, and metalworking applications.

Please ensure tooling specifications are suitable for your machine and application prior to purchase.
