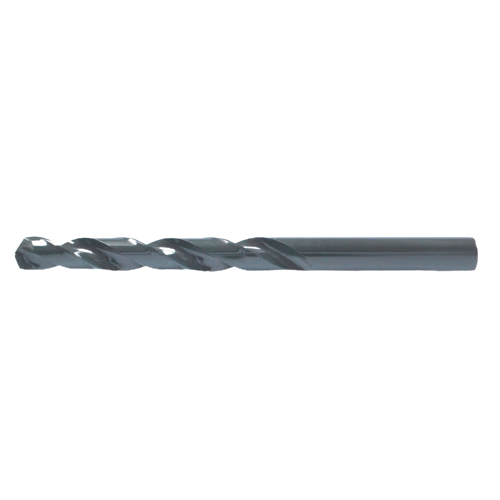

Somta Series 102 – 1/64" HSS Straight Shank Jobber Drill

The Somta Series 102 Jobber Drill Bit is a precision-engineered 1/64" (0.397mm) straight shank drill manufactured from premium High Speed Steel (HSS) to DIN 338 standards. Designed for high-precision drilling...
$18.00
$0.00
$18.00
(-0%)
Vendor: SOMTA
SKU: 1020040
Availability: In Stock
Subtotal: $18.00
SOMTA DRILLS Somta Series 102 – 1/64" HSS Straight Shank Jobber Drill

Somta Series 102 – 1/64" HSS Straight Shank Jobber Drill

$0.00 $18.00

Somta Series 102 – 1/64" HSS Straight Shank Jobber Drill

$0.00 $18.00

The Somta Series 102 Jobber Drill Bit is a precision-engineered 1/64" (0.397mm) straight shank drill manufactured from premium High Speed Steel (HSS) to DIN 338 standards. Designed for high-precision drilling of extremely small holes, this drill is ideal for electronics, instrument manufacture, model engineering, precision fabrication, and light engineering applications.

Featuring a standard point geometry for drill sizes below 3.0mm, the drill provides smooth entry, excellent concentricity, and accurate hole production. The precision-ground flutes ensure efficient chip evacuation while maintaining strength and rigidity for reliable drilling performance in steel, brass, aluminium, copper, plastics, and other machinable materials.

Key Features & Benefits

  • Somta Series 102 HSS Jobber Drill
  • Part Number: 1020040
  • 1/64" (0.397mm) drill diameter
  • Manufactured from premium High Speed Steel (HSS)
  • DIN 338 standard jobber drill
  • Standard point geometry for drills below 3.0mm
  • Precision-ground flutes for efficient chip evacuation
  • Straight shank for use in standard drill chucks and precision collets
  • Excellent dimensional accuracy and hole quality
  • Suitable for precision drilling in a wide range of materials

Technical Specifications

  • Brand: Somta
  • Series: 102
  • Part Number: 1020040
  • Drill Diameter (d): 1/64" (0.397mm)
  • Flute Length (l2): 5mm
  • Overall Length (l1): 20mm
  • Material: High Speed Steel (HSS)
  • Point Style: Standard Point
  • Finish: Bright Finish
  • Shank Type: Straight Shank
  • Standard: DIN 338
  • Application: Precision general-purpose drilling

The Somta 1020040 1/64" HSS Jobber Drill Bit delivers exceptional precision and reliability for fine-hole drilling where dimensional accuracy and clean hole quality are critical.
