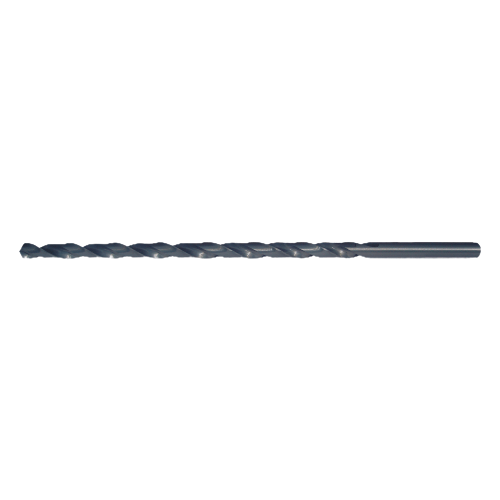

Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill

Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill (Blue Finish) | 1350635 The SOMTA 1350635 is a 1/4″ High-Speed Steel Extra Length Straight Shank Drill designed for...
$83.00
$0.00
$83.00
(-0%)
Vendor: SOMTA
SKU: 1350635
Availability: In Stock
Subtotal: $83.00
Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill

Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill

$0.00 $83.00

Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill

$0.00 $83.00

Somta Series 135 – 1/4″ HSS Extra Length Straight Shank Drill (Blue Finish) | 1350635

The SOMTA 1350635 is a 1/4″ High-Speed Steel Extra Length Straight Shank Drill designed for deep-reach drilling in steels, cast iron, and non-ferrous alloys. Precision-engineered to ISO 3292 / DIN 1869 standards, it offers excellent rigidity, accuracy, and heat resistance for professional and industrial applications. The blue-oxide surface enhances chip evacuation and cutting performance while minimizing wear.

Suited for general machining, toolmaking, and fabrication where deeper, accurate holes are required with superior finish and minimal deflection.

Key Features & Benefits

  • High-Speed Steel (HSS): Delivers excellent strength and wear resistance under load.
  • 315 mm Overall Length: Ensures extended drilling reach without compromising rigidity.
  • Type N Geometry (30° Helix): Optimized for general-purpose metal drilling.
  • Blue Oxide Finish: Improves lubrication and reduces heat buildup at cutting edges.
  • 118° Point Angle: Ensures accurate hole starting and clean surface finish.

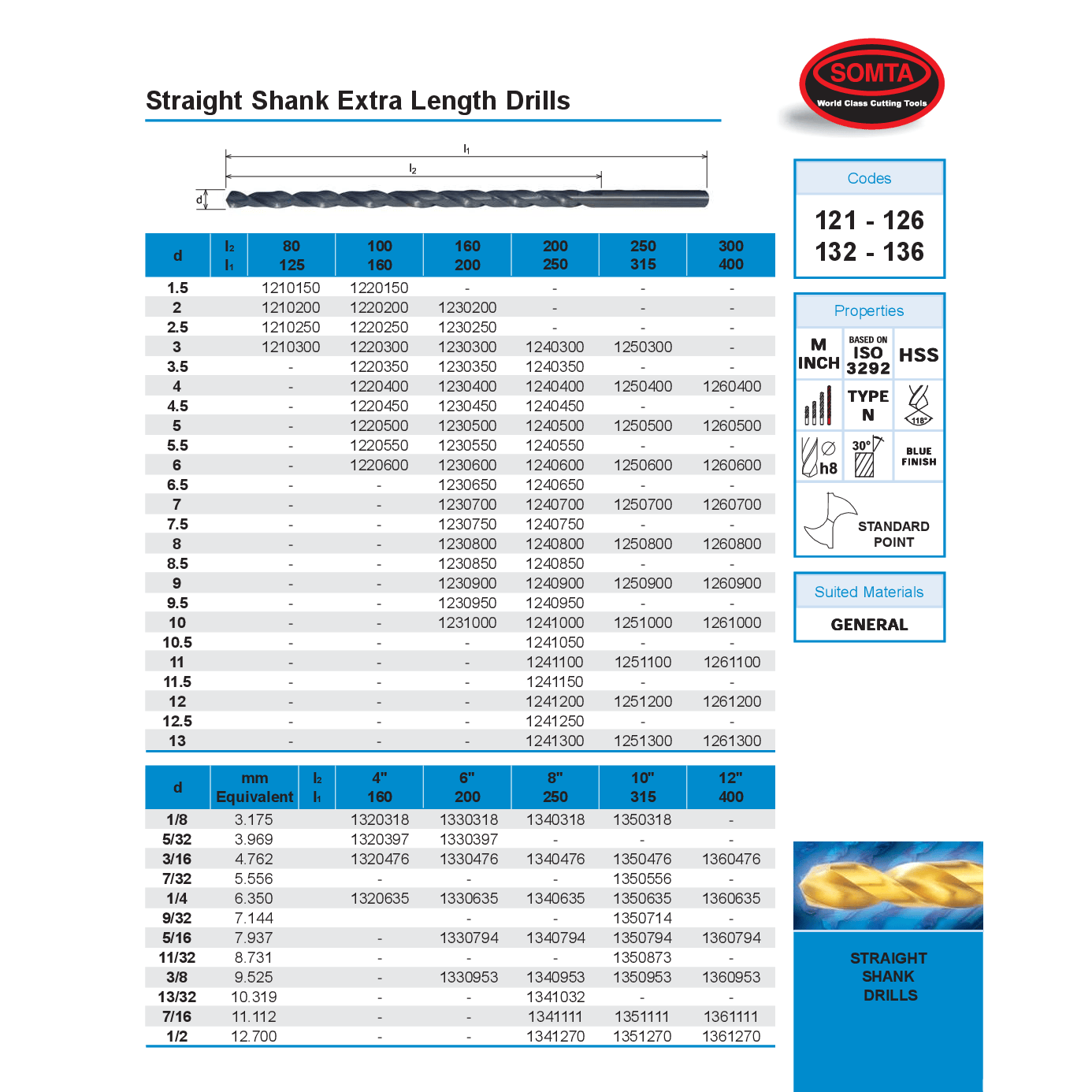

Technical Specifications

  • Part No: 1350635
  • Series: 135 (HSS Extra Length Straight Shank Drills – Inch Series)
  • Tool Type: Extra Length HSS Drill – Type N
  • Cutting Diameter (d): 1/4″ (6.35 mm)
  • Flute Length (l₁): 10″
  • Overall Length (l): 315 mm
  • Helix Type: Type N (30° Right-Hand Spiral)
  • Point Angle: 118°
  • Material: High-Speed Steel (HSS)
  • Finish: Blue Oxide
  • Applications: Extended-depth drilling in mild steels and non-ferrous materials requiring accuracy and longevity.

Why Choose SOMTA Cutting Tools?

  • Precision Manufacture: Built to ISO/DIN standards for repeatable accuracy.
  • Reliable Performance: Minimizes run-out and improves hole quality at depth.
  • Extended Tool Life: Blue oxide surface reduces wear and improves cooling.
  • Reputation for Excellence: SOMTA Tools – a trusted name since 1954.

The SOMTA 1350635 combines deep-drilling reach with superior accuracy and durability for precision engineering and maintenance work.
