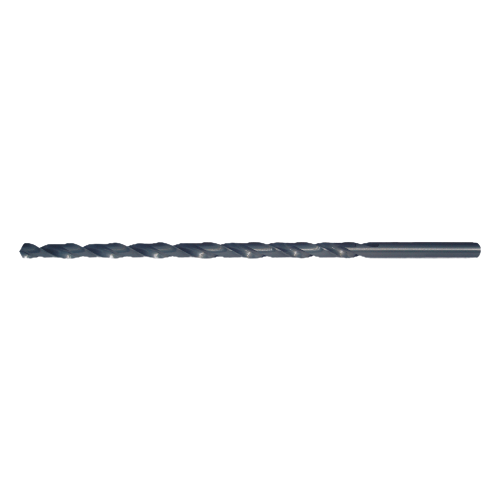

Somta Series 135 – 3/16″ HSS Extra Length Straight Shank Drill (Blue Finish) | 1350476

The SOMTA 1350476 is a 3/16″ High-Speed Steel Extra Length Straight Shank Drill designed for deep-hole and extended-reach drilling applications requiring precision, rigidity, and smooth chip evacuation. Built to ISO 3292 / DIN 1869 standards, it ensures superior dimensional accuracy, consistent performance, and long service life across a variety of ferrous and non-ferrous materials.

The blue-oxide finish provides improved heat resistance, reduces friction, and enhances chip flow — making this drill ideal for metal fabrication, maintenance, and production environments.

Key Features & Benefits

  • High-Speed Steel (HSS): Delivers strength, hardness, and edge retention under continuous operation.
  • Extra Length (315 mm OAL): Ideal for deep-hole and extended-reach applications.
  • Type N Helix (30°): Balanced geometry for general-purpose drilling in steels and alloys.
  • Blue Oxide Finish: Enhances lubrication and reduces cutting friction.
  • Precision-Ground Flutes: Promotes smooth chip evacuation and superior hole finish.

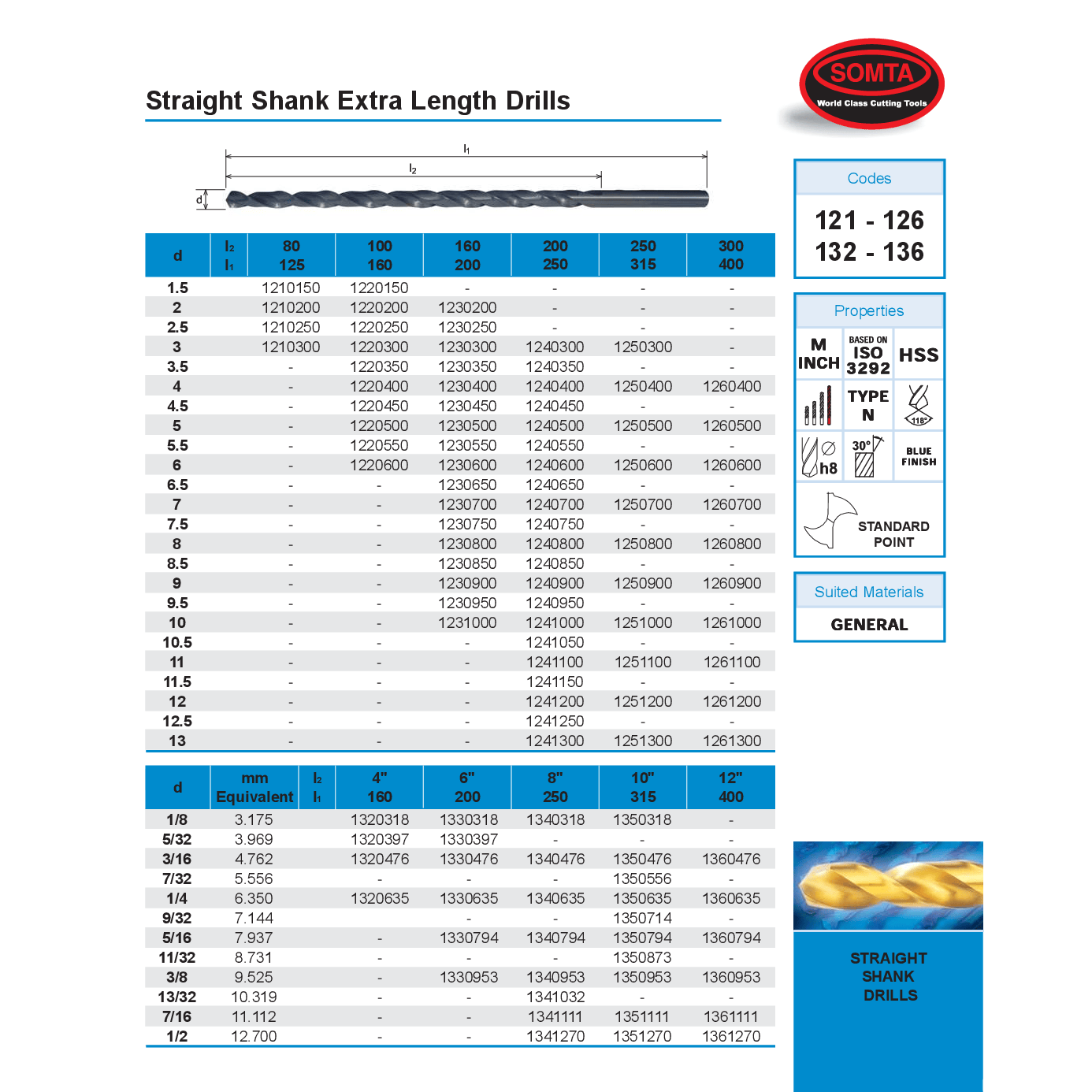

Technical Specifications

  • Part No: 1350476
  • Series: 135 (HSS Extra Length Straight Shank Drills – Inch Series)
  • Tool Type: Extra Length HSS Drill – Type N
  • Cutting Diameter (d): 3/16″ (4.76 mm)
  • Flute Length (l₁): 10″
  • Overall Length (l): 315 mm
  • Shank Type: Straight Shank
  • Helix Type: Type N (30° Right-Hand Spiral)
  • Point Angle: 118° Standard Point
  • Material: High-Speed Steel (HSS)
  • Finish: Blue Oxide
  • Applications: Deep drilling in steels, cast iron, and non-ferrous materials requiring long reach and dimensional stability.

Why Choose SOMTA Cutting Tools?

  • Precision Built: Complies with ISO/DIN standards for dimensional accuracy.
  • Consistent Performance: Provides stable cutting with smooth surface finish.
  • Extended Tool Life: Blue-oxide treatment improves wear resistance and heat dissipation.
  • Trusted Heritage: SOMTA Tools – delivering industrial cutting performance since 1954.

The SOMTA 1350476 combines reach, accuracy, and reliability for deep-hole drilling in demanding industrial environments.
