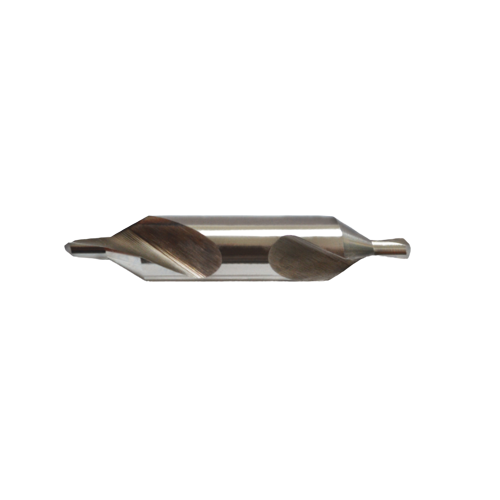

Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill

Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill | 1NA0002 The SOMTA 1NA0002 is a precision High-Speed Steel Centre Drill (No. 2) designed to produce accurate, concentric...
$17.00
$0.00
$17.00
(-0%)
Vendor: SOMTA
SKU: 1NA0002
Availability: In Stock
Subtotal: $17.00
Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill

Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill

$0.00 $17.00

Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill

$0.00 $17.00

Somta Series 1NA – 4.76 mm (No. 2) HSS Centre Drill | 1NA0002

The SOMTA 1NA0002 is a precision High-Speed Steel Centre Drill (No. 2) designed to produce accurate, concentric centre holes prior to turning or grinding operations. Manufactured to American Standard Form A (60°), this tool delivers optimum alignment accuracy, surface finish, and reliability in a range of metalworking applications. Its rigid HSS construction provides excellent strength, wear resistance, and edge retention for extended tool life under continuous use.

Engineered for precision machinists, the Somta 1NA Series centre drills feature finely ground flutes for clean chip evacuation and a bright finish that reduces friction and burr formation. Ideal for use on steel, cast iron, and non-ferrous materials where true centre alignment and hole quality are critical.

Key Features & Benefits

  • High-Speed Steel (HSS) – Provides superior toughness and heat resistance for high-speed machining.
  • Form A 60° Included Angle – Complies with American Standard geometry for accurate pilot and countersink formation.
  • Bright Finish – Enhances surface quality and minimises built-up edge formation.
  • Precision-Ground Flutes – Ensures smooth chip removal and consistent hole accuracy.
  • Short, Rigid Design – Improves stability and reduces deflection during high-speed operations.

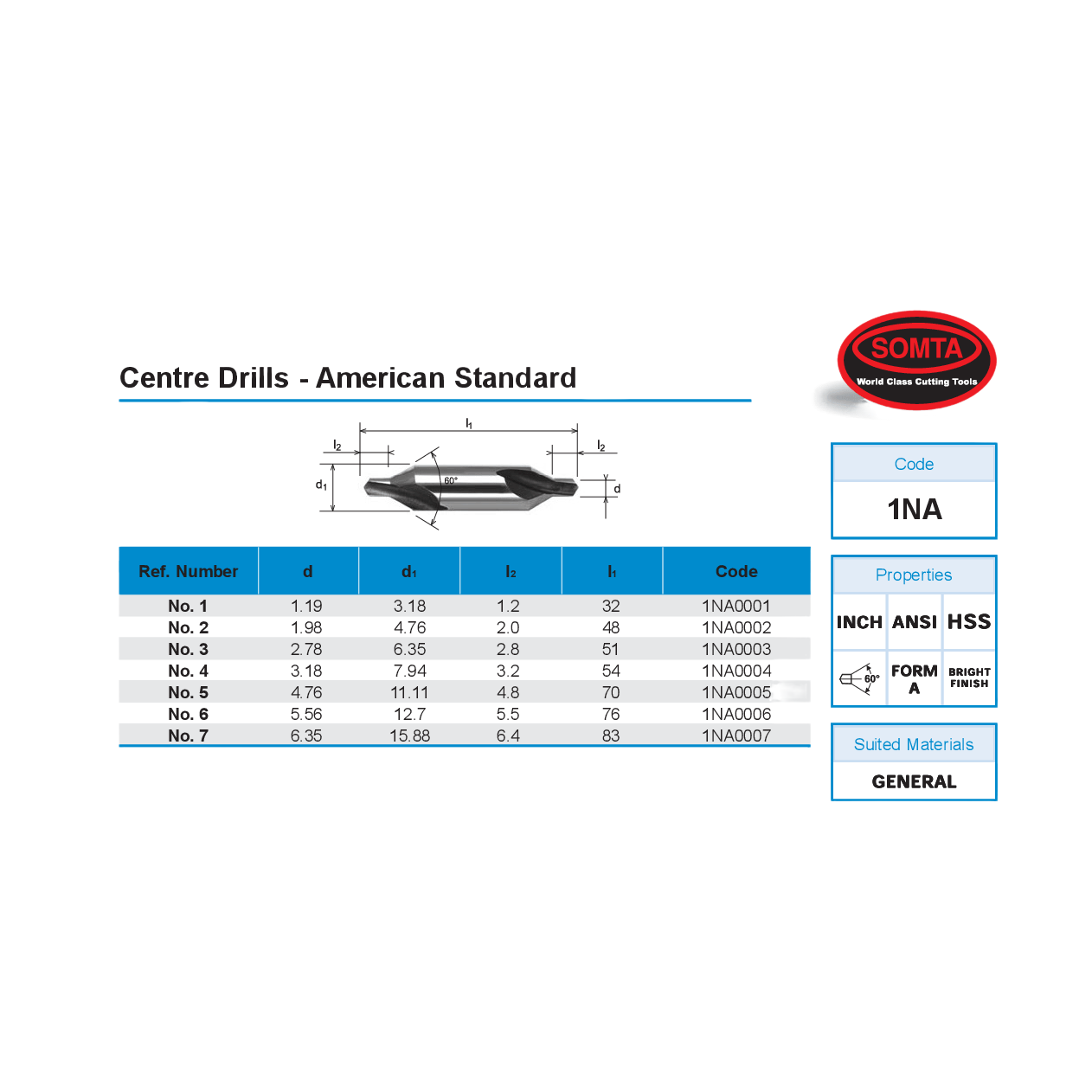

Technical Specifications

  • Part No: 1NA0002
  • Series: 1NA (Centre Drills – American Standard Form A)
  • Tool Type: HSS Centre Drill No. 2
  • Pilot Diameter (d): 1.98 mm
  • Body Diameter (d₁): 4.76 mm (≈ 3/16″)
  • Web Length (l₂): 2.0 mm
  • Flute Length (l₁): 48 mm
  • Point Angle: 60° Included Angle (Form A)
  • Finish: Bright Finish
  • Material: High-Speed Steel (HSS)
  • Suited Materials: General Engineering Steels, Cast Irons, and Non-Ferrous Metals

Why Choose SOMTA Cutting Tools?

  • Precision Manufacturing – Produced to ANSI standards for dimensional accuracy and repeatability.
  • Reliable Performance – Maintains concentricity and smooth hole geometry throughout use.
  • Industrial Durability – Hardened HSS construction ensures long service life in high-load applications.
  • Trusted Quality – Backed by SOMTA’s proven manufacturing excellence since 1954.

The SOMTA 1NA0002 delivers reliable performance, precise alignment, and excellent finish quality in centre drilling operations. Available through Twin Eagle Imports — your trusted partner for premium industrial tooling solutions and machining supplies.
