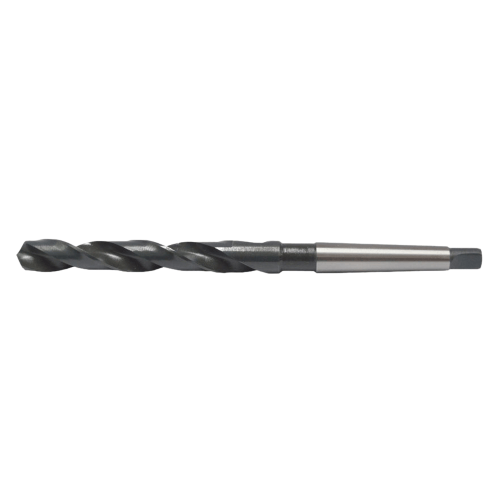

Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4

Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4 The SOMTA 2143334 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill is a precision-engineered, heavy-duty cutting tool designed...
$237.00
$0.00
$237.00
(-0%)
Vendor: SOMTA
SKU: 2143334
Availability: In Stock
Subtotal: $237.00
SOMTA DRILLS Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4

Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4

$0.00 $237.00

Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4

$0.00 $237.00

Somta Series 214 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill MT4

The SOMTA 2143334 – 1-5/16" (33.34mm) HSS Morse Taper Shank Drill is a precision-engineered, heavy-duty cutting tool designed for accurate and efficient drilling in steels, cast iron, and non-ferrous metals. With its No. 4 Morse Taper shank, it ensures superior torque transmission, rigidity, and alignment, making it ideal for industrial and workshop drilling machines requiring deep, stable drilling performance.

Manufactured from premium high-speed steel (HSS), this drill combines durability, heat resistance, and wear protection under tough cutting conditions. The Type N geometry and Thinned Point design reduce cutting thrust, improve centering, and promote efficient chip removal. The Bright Finish enhances chip flow and surface quality, ensuring long-lasting, reliable performance in demanding production environments.

Key Features & Benefits

  • High-speed steel (HSS) construction ensures long life, toughness, and heat resistance.
  • Morse Taper No. 4 shank provides rigidity and positive torque transfer.
  • Thinned Point geometry minimizes cutting load and enhances centering accuracy.
  • Bright Finish improves chip evacuation and surface smoothness.
  • Complies with DIN 345 Type N for precise, reliable drilling performance.

Technical Specifications

  • Part No: 2143334
  • Series: 214
  • Size (d): 33.34 mm (1-5/16")
  • Flute Length (I2): ≈185 mm
  • Overall Length (I1): ≈334 mm
  • Material: High-Speed Steel (HSS)
  • Geometry: Type N – Thinned Point
  • Shank Type: Morse Taper No. 4 (MT4)
  • Finish: Bright Finish (Shank and Point)
  • Standard: DIN 345

Why Choose SOMTA Series 214 – 1-5/16" HSS Morse Taper Shank Drill?

  • Precision-engineered for deep and stable drilling in ferrous and non-ferrous materials.
  • Efficient chip evacuation for cooler cutting and extended tool life.
  • Trusted SOMTA performance, supplied and supported by Twin Eagle Imports.
