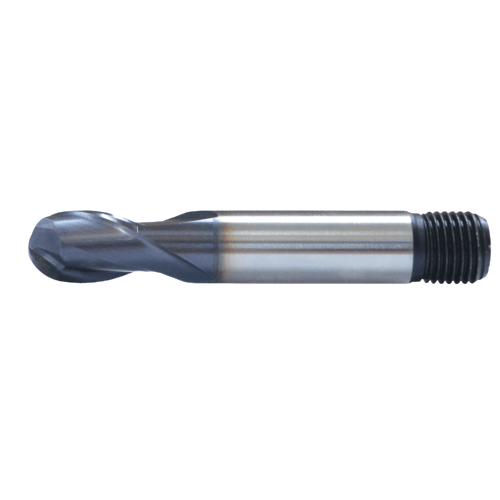

Somta Series 340 – 5.0 mm HSS-Co8e Ball Nose End Mill (2 Flute) | 3400500

The SOMTA 3400500 is a precision 2-flute ball nose end mill designed for contouring, slotting, and radius milling. Manufactured from premium HSS-Co8e (8% cobalt high-speed steel), it offers outstanding thermal stability, wear resistance, and tool life. The ball nose geometry produces smooth radius transitions, ideal for 3D profiling and finishing applications on steel, aluminium, and general-purpose materials.

Key Features & Benefits

  • HSS-Co8e Material – Delivers superior hardness and durability under high cutting temperatures.
  • 2-Flute Ball Nose Design – Ensures effective chip evacuation and precision contouring.
  • Centre-Cutting Capability – Allows direct plunging and slot entry without pilot holes.
  • Optional TiAlN Coating – Increases wear and oxidation resistance in high-speed applications.
  • DIN 327 Standard – Provides consistency and dimensional accuracy.

Technical Specifications

  • Part No: 3400500
  • Tool Type: 2-Flute Ball Nose End Mill
  • Cutting Diameter (d): 5 mm
  • Flute Length (l₂): 8 mm
  • Overall Length (l₁): 52 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Suitable for profiling, slot milling, and contouring in steels, aluminium, and cast materials.

Why Choose SOMTA Cutting Tools?

  • Exceptional Surface Finish – Ideal for 3D profiling and smooth corner blending.
  • Reliable Tool Life – Cobalt enrichment maintains hardness at high feed rates.
  • Versatile Use – Works effectively on both CNC and manual machines.
  • Proven SOMTA Quality – Engineered for precision and durability in industrial milling.

The SOMTA 3400500 delivers consistent, high-quality performance in precision profiling and finishing operations.
