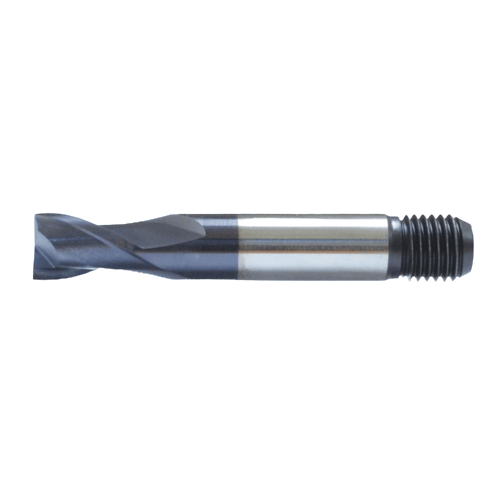

Somta Series 348 – 17.0 mm HSS-Co8e Slot Drill (2 Flute) | 3481700

The SOMTA 3481700 is a high-quality 17.0 mm 2-flute slot drill made from HSS-Co8e, offering outstanding cutting edge strength and thermal stability. It delivers consistent performance for slotting, pocketing, and keyway milling in ferrous and non-ferrous materials.

Key Features & Benefits

  • HSS-Co8e Construction – Provides superior resistance to heat and wear.
  • 2-Flute Design – Allows excellent chip flow and reduced cutting vibration.
  • Centre-Cutting Geometry – Enables plunge and pocket milling operations.
  • TiAlN Coating Option – Extends tool life and protects against oxidation.
  • DIN 327 Standard – Guarantees precision tool dimensions and consistent performance.

Technical Specifications

  • Part No: 3481700
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 17.0 mm
  • Flute Length (lβ‚‚):Β 19 mm
  • Overall Length (l₁):Β 79 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30Β°
  • Standard: DIN 327
  • Applications: Slot milling, keyway machining, and pocket cutting in steels, aluminium, and cast iron.

Why Choose SOMTA Cutting Tools?

  • High Cutting Precision – Produces smooth and accurate results.
  • Extended Wear Resistance – Retains edge sharpness for long service life.
  • Versatile Use – Compatible with CNC and manual milling machines.
  • Proven SOMTA Reliability – Manufactured to exacting international standards.

The SOMTA 3481700 delivers dependable accuracy and tool life for industrial-grade slotting and profiling applications.
