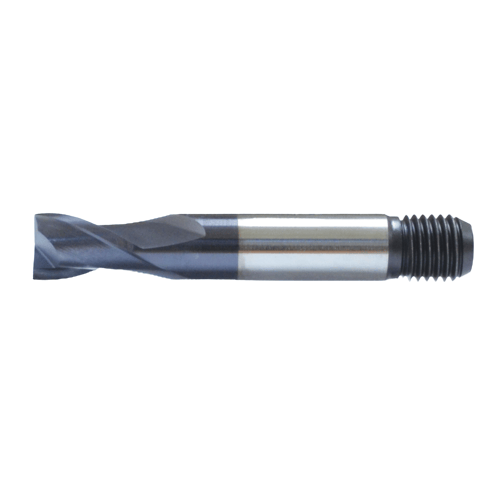

Somta Series 348 – 5.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 5.0 mm HSS-Co8e Slot Drill (2 Flute) | 3480500 The SOMTA 3480500 is a precision 5.0 mm 2-flute slot drill designed for general-purpose machining. Constructed from...
$28.00
$0.00
$28.00
(-0%)
Vendor: SOMTA
SKU: 3480500
Availability: In Stock
Subtotal: $28.00
Somta Series 348 – 5.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

Somta Series 348 – 5.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $28.00

Somta Series 348 – 5.0 mm HSS-Co8 2 Flute End Mill (Slot Drill)

$0.00 $28.00

Somta Series 348 – 5.0 mm HSS-Co8e Slot Drill (2 Flute) | 3480500

The SOMTA 3480500 is a precision 5.0 mm 2-flute slot drill designed for general-purpose machining. Constructed from HSS-Co8e (8% cobalt high-speed steel), it provides excellent wear resistance and edge stability during high-speed operations. Its centre-cutting design allows for smooth plunging and slotting in a variety of materials including steels, stainless steel, and aluminium.

Key Features & Benefits

  • HSS-Co8e Material – Enhanced cobalt alloy offers excellent thermal stability and durability.
  • 2-Flute Geometry – Optimized for efficient chip clearance and low cutting resistance.
  • Centre-Cutting Design – Suitable for plunge and pocket milling without pilot drilling.
  • Optional TiAlN Coating – Extends tool life in dry and high-speed applications.
  • DIN 327 Standard – Guarantees consistent geometry and manufacturing precision.

Technical Specifications

  • Part No: 3480500
  • Tool Type: 2-Flute Slot Drill
  • Cutting Diameter (d): 5.0 mm
  • Flute Length (l₂): 8 mm
  • Overall Length (l₁): 52 mm
  • Number of Flutes: 2
  • Material: High-Speed Steel with 8% Cobalt (HSS-Co8e)
  • Coating: Uncoated / TiAlN option
  • Helix Angle: 30°
  • Standard: DIN 327
  • Applications: Keyway, slot, and pocket milling in ferrous and non-ferrous materials.

Why Choose SOMTA Cutting Tools?

  • Precision Manufacturing – Produces clean and accurate slots with superior surface finish.
  • Long Tool Life – Retains cutting sharpness under tough machining conditions.
  • Versatile Application – Ideal for CNC machining and toolroom use.
  • Trusted SOMTA Quality – Built to meet professional industrial standards.

The SOMTA 3480500 delivers reliable performance and accuracy in slot milling and plunge cutting applications.
