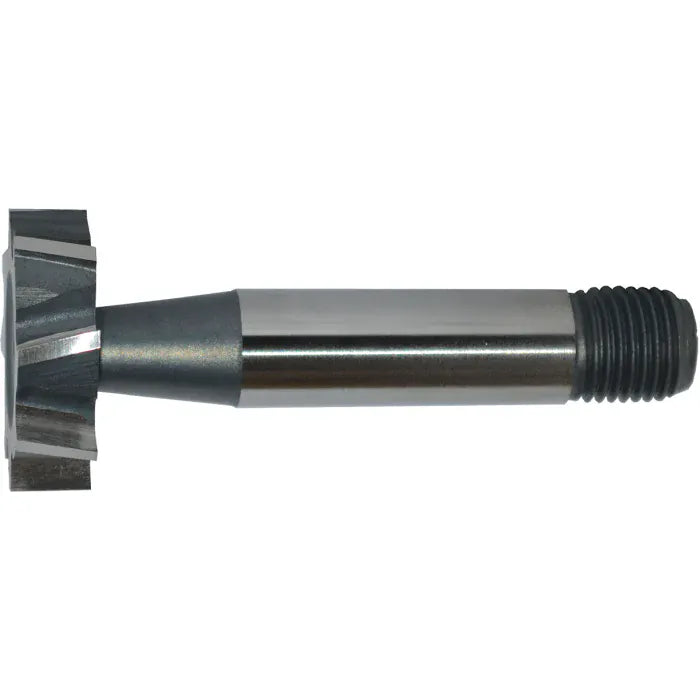

Somta Series 367 – Woodruff Cutter Size 812

The Somta Series 367 Woodruff Cutter is manufactured from premium High-Speed Steel Cobalt (HSS Co5) and is designed to produce keyseats to suit Woodruff keys. Its precision-ground cutting edges provide...
$284.00
$0.00
$284.00
(-0%)
Vendor: SOMTA
SKU: 3670300
Availability: In Stock
Subtotal: $284.00
SOMTA Cutter Somta Series 367 – Woodruff Cutter Size 812

Somta Series 367 – Woodruff Cutter Size 812

$0.00 $284.00

Somta Series 367 – Woodruff Cutter Size 812

$0.00 $284.00

The Somta Series 367 Woodruff Cutter is manufactured from premium High-Speed Steel Cobalt (HSS Co5) and is designed to produce keyseats to suit Woodruff keys. Its precision-ground cutting edges provide accurate and consistent machining, making it ideal for shaft keyway production and general engineering applications.

Manufactured to BS 122 standards, this precision cutter features a w=e8 cutter width tolerance and d=h12 cutter diameter tolerance for accurate machining, while the h8 shank tolerance ensures secure tool holding. The multiple-tooth design promotes smooth cutting action and efficient chip evacuation for extended tool life.

Key Features & Benefits

  • Premium High-Speed Steel Cobalt (HSS Co5) construction
  • Designed for machining Woodruff keyseats and keyways
  • Precision-ground cutting edges for accurate slot dimensions
  • Manufactured to BS 122 standards
  • Multiple tooth design for smooth cutting action
  • Excellent chip evacuation and cutting performance
  • w=e8 cutter width tolerance for machining accuracy
  • d=h12 cutter diameter tolerance
  • h8 shank tolerance for secure clamping
  • Suitable for general engineering and production machining

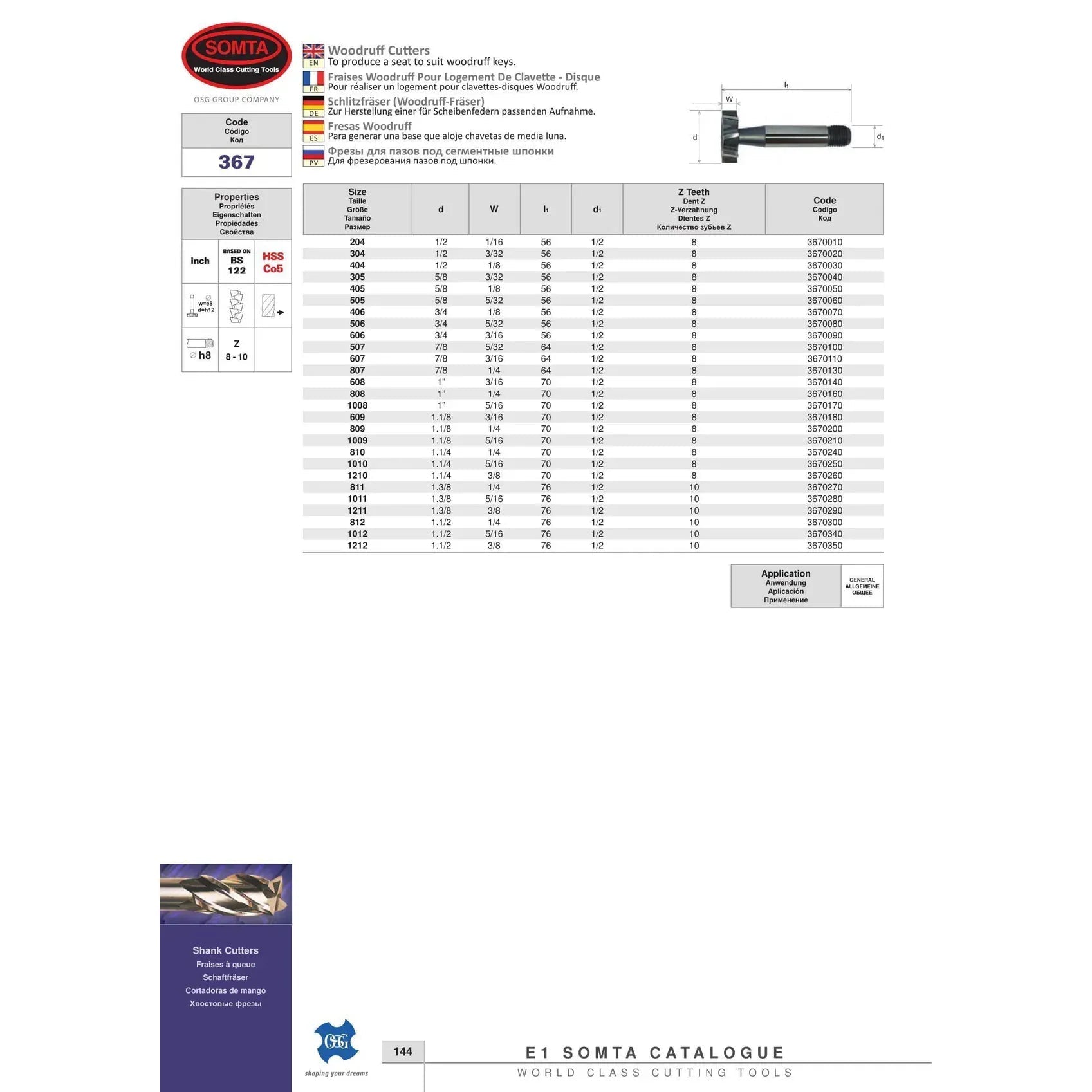

Technical Specifications

  • Brand: Somta
  • Series: 367
  • Part Number: 3670300
  • Tool Type: Woodruff Cutter
  • Cutter Size: 812
  • Cutter Diameter (d): 1-1/2"
  • Cutter Width (W): 1/4"
  • Overall Length (l₁): 76mm
  • Shank Diameter (d₁): 1/2"
  • Number of Teeth: 10
  • Material: High-Speed Steel Cobalt (HSS Co5)
  • Standard: BS 122
  • Cutter Width Tolerance: e8
  • Cutter Diameter Tolerance: h12
  • Shank Tolerance: h8
  • Application: Machining Woodruff keyseats and keyways

Somta Series 367 Woodruff Cutters are trusted by machinists for their precision, durability, and dependable cutting performance. The 3670300 Woodruff Cutter delivers excellent accuracy and efficient material removal for a wide range of keyway machining applications.
